Toyota CAMRY 车轮和车轮盖 — Figure 4103
Toyota CAMRY EPC diagram 4103, 车轮和车轮盖, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

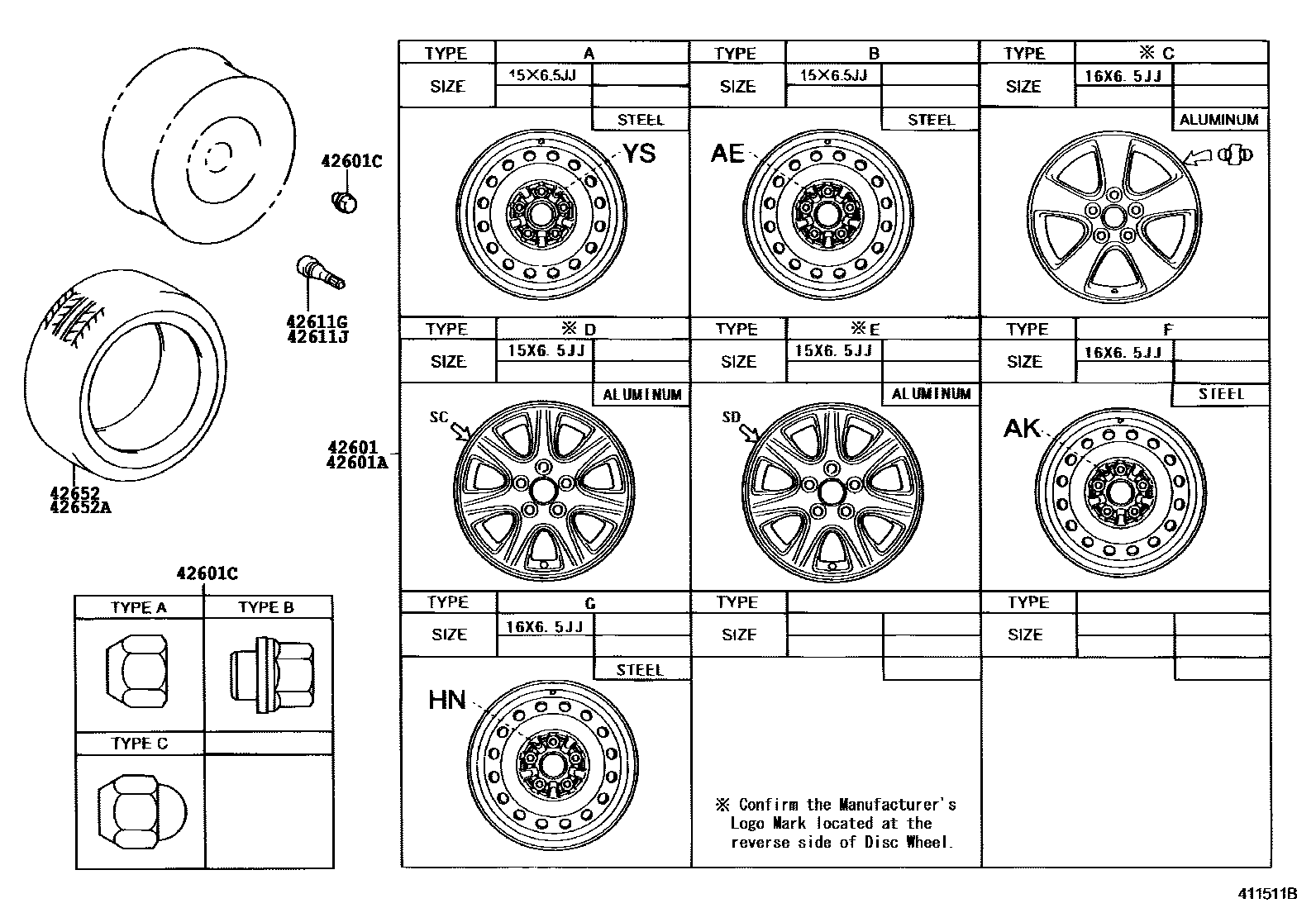

| 42601 | spoke wheel | 42611-28420 · 42611-28430 · 42611-33310 · 42611-33320 · 42611-33340 · 42611-33350 · 42611-33360 |
| 42601A | Spoke wheel (for spare tire) | 42611-28420 · 42611-28430 · 42611-33310 · 42611-33320 · 42611-33340 · 42611-33350 · 42611-33360 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01021 · 90942-01033 |

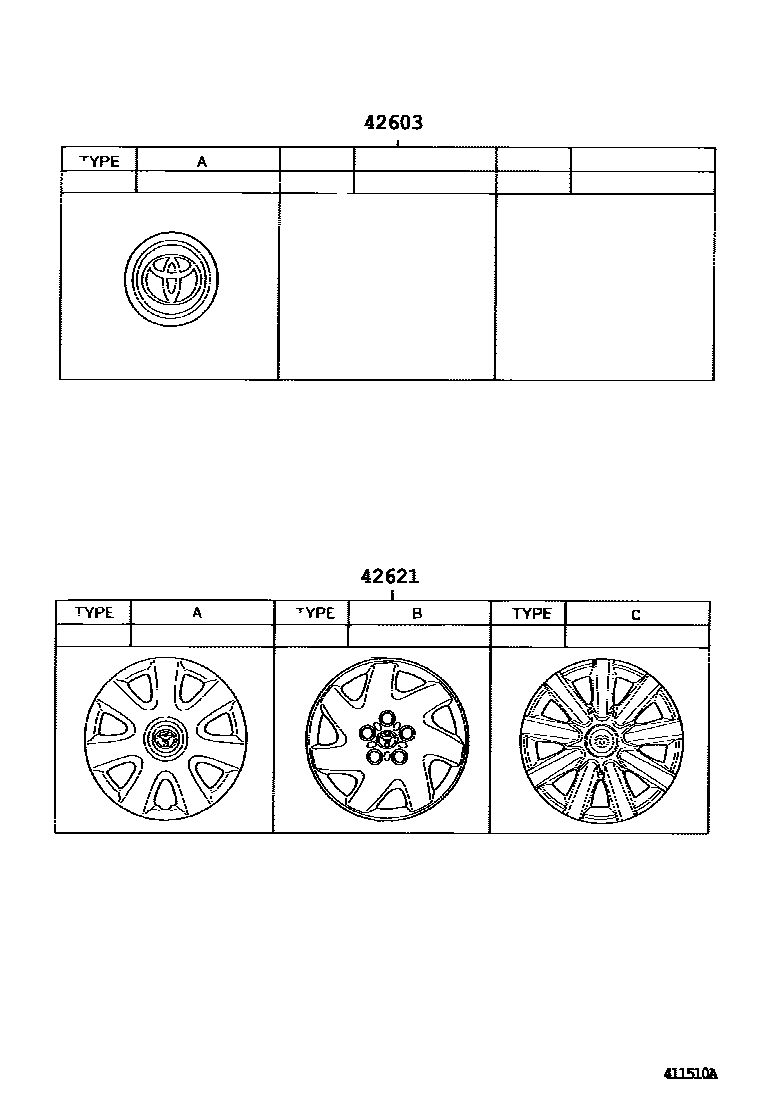

| 42603 | Wheel hub decorative parts sub-assembly | 42603-33090 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42621 | wheel cover | 42602-33050 · 42602-33070 · 42602-33090 |
| 42652 | tires | 42652-28610 · 42652-28611 · 42652-33260 · 42652-33261 · 42652-33262 · 42652-33270 · 42652-33271 · 42652-33272 · 42652-33500 · 42652-33501 · 42652-33502 · 42652-33520 · 42652-33521 · 42652-33522 · 42652-33580 · 42652-33581 · 42652-33590 · 42652-33591 · 42652-33600 |
| 42652A | Tire (for Spare Wheel) | 42652-28610 · 42652-28611 · 42652-33260 · 42652-33261 · 42652-33262 · 42652-33270 · 42652-33271 · 42652-33272 · 42652-33500 · 42652-33501 · 42652-33502 · 42652-33520 · 42652-33521 · 42652-33522 · 42652-33580 · 42652-33581 · 42652-33590 · 42652-33591 · 42652-33600 |
