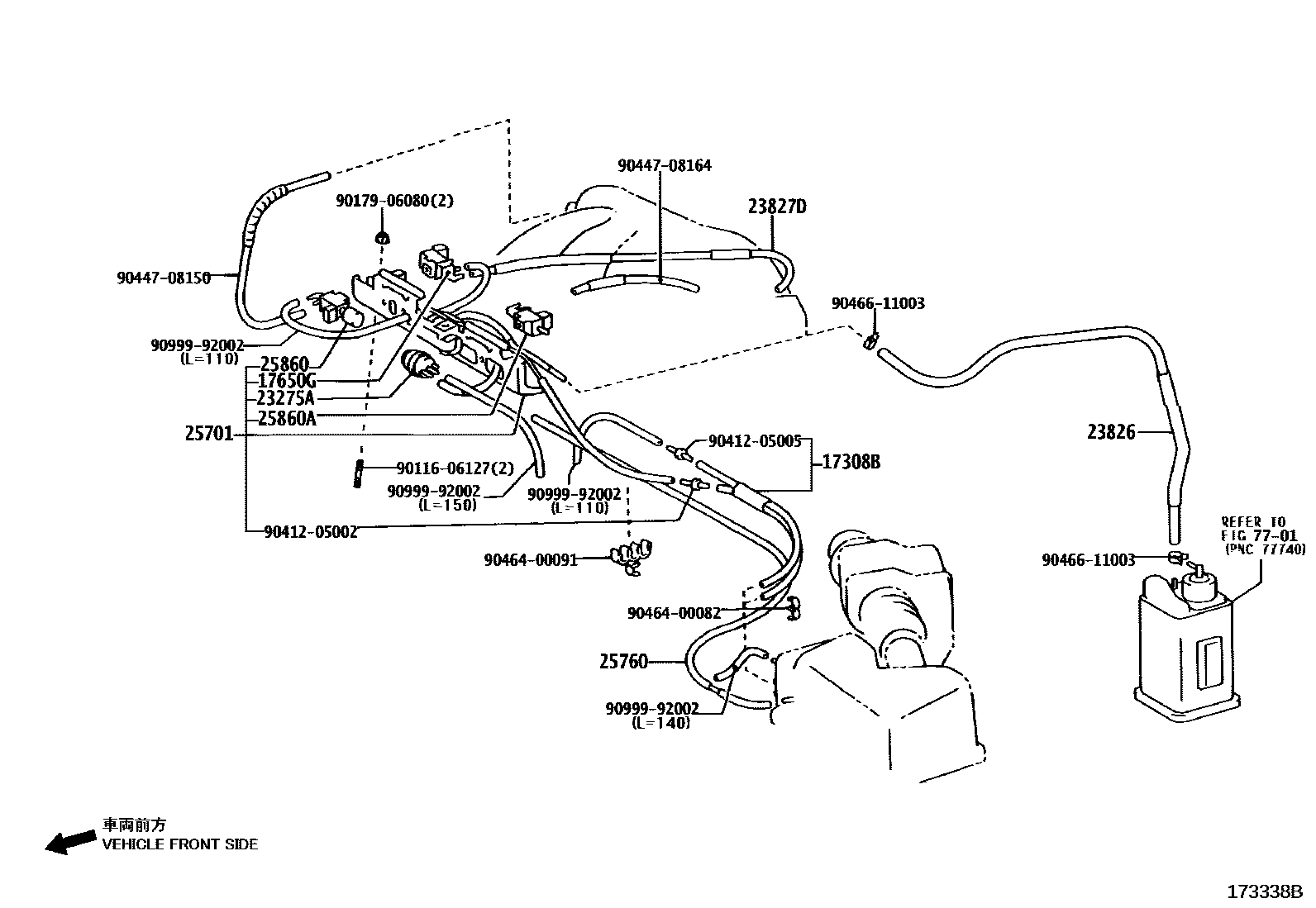

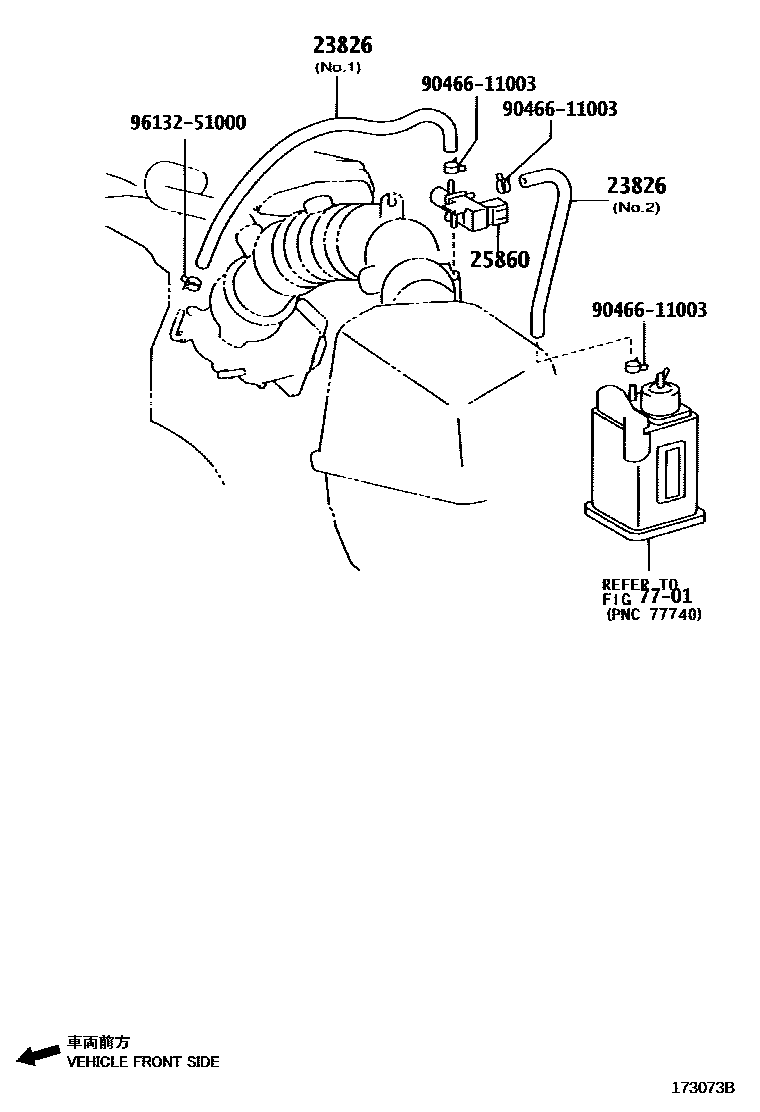

Toyota CAMRY vacuum tube — Figure 1708
Toyota CAMRY EPC diagram 1708, vacuum tube, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17308B | Vacuum hose sub-assembly | 17308-20170 |
| 17650G | Duty cycle controlled vacuum switching valve | 90910-12241 |
| 23275A | vacuum control valve | 90925-03193 |
| 23826 | No. 1 fuel vapor supply hose | 23826-20080 · 23826-28150 · 23826-28160 |
| 23827D | No. 2 fuel vapor supply hose | 23827-20070 |
| 25701 | Emission control valve assembly | 25701-20180 · 25701-20210 |
| 25760 | Vacuum transfer hose assembly | 25760-20020 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-28080 · 25860-62010 |
| 25860A | No. 1 vacuum switch valve | 90910-12174 |
