Toyota CAMRY RADIATOR & WATER OUTLET — Figure 1603

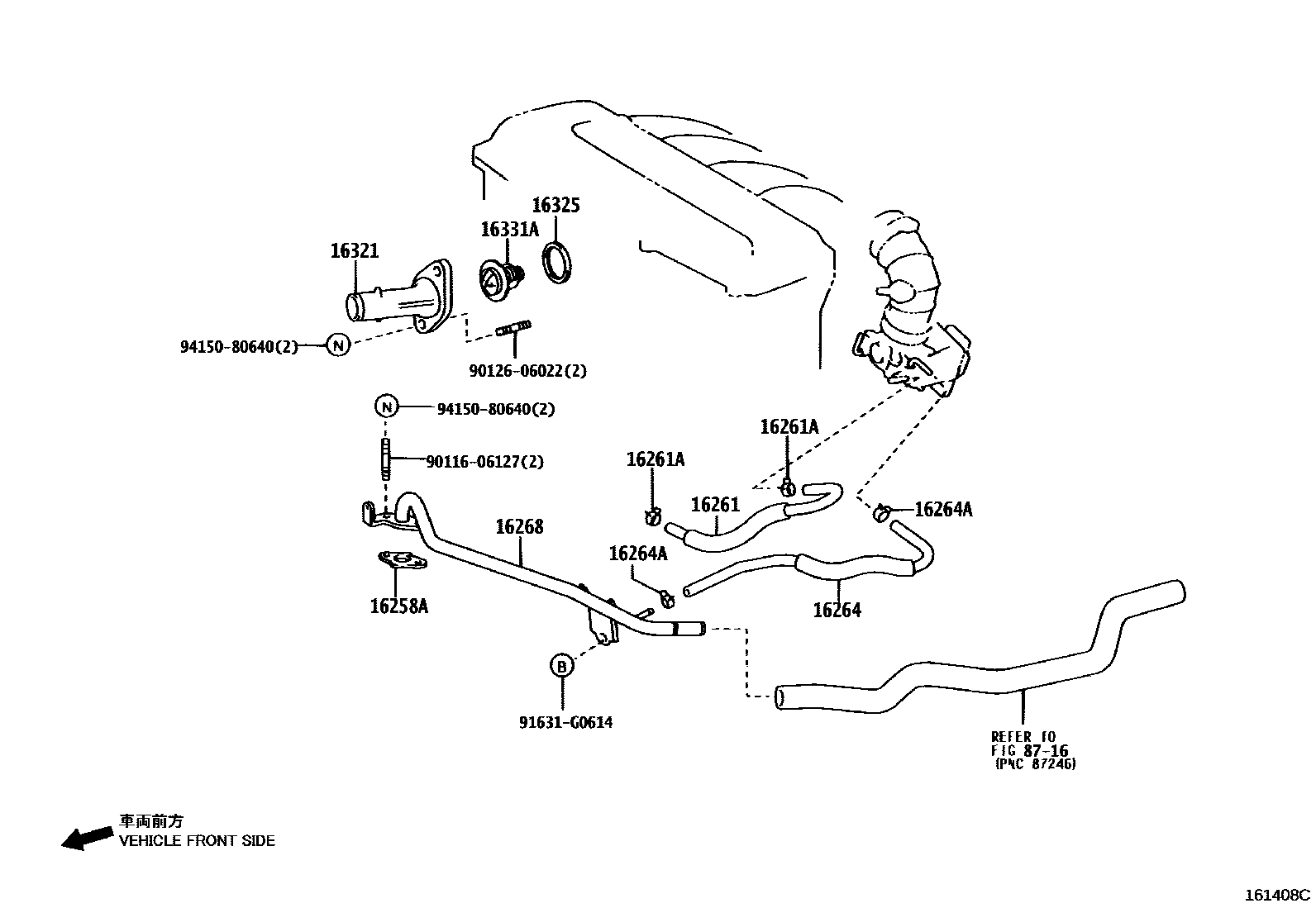

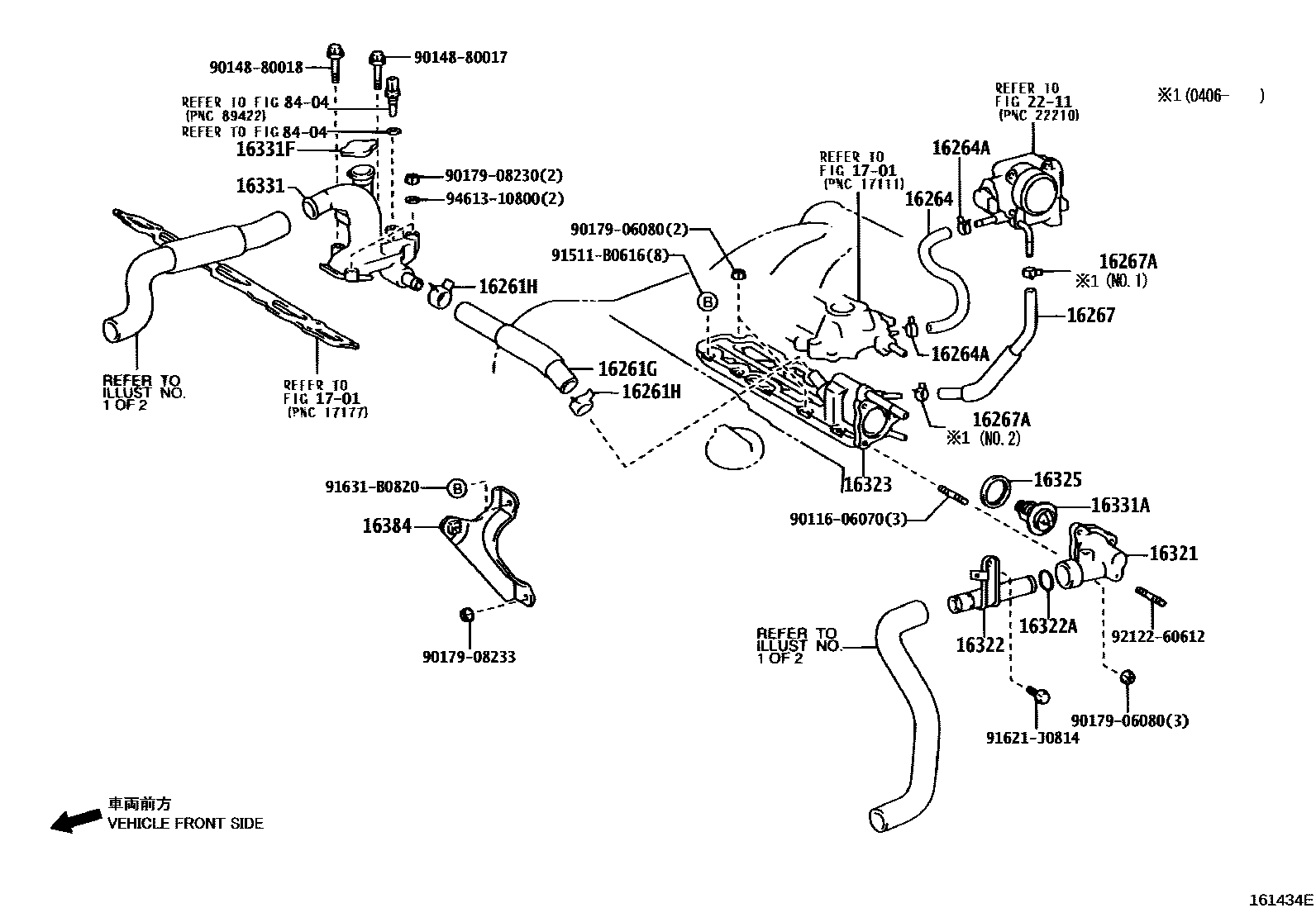

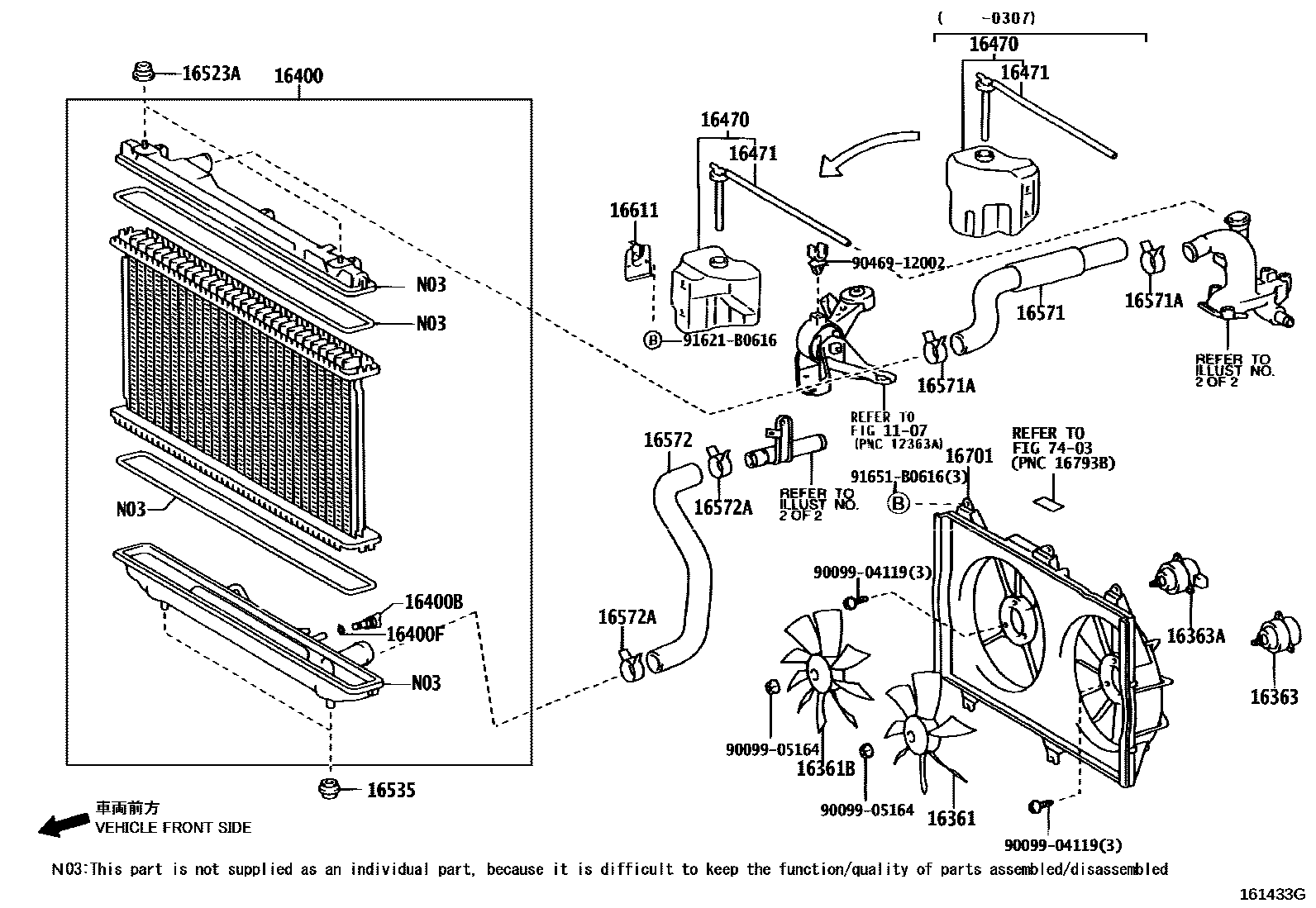

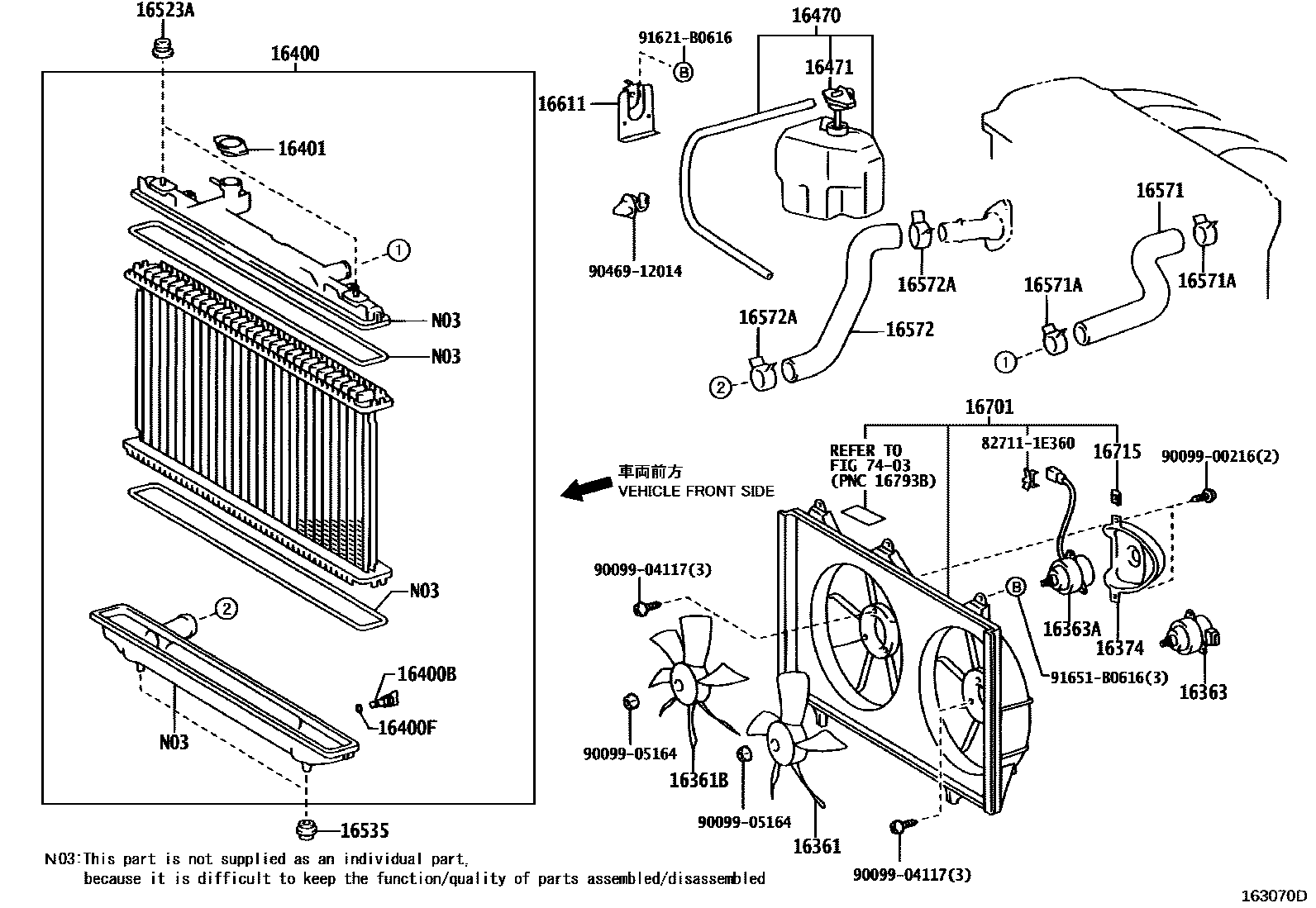

Toyota CAMRY EPC diagram 1603, RADIATOR & WATER OUTLET, with 4 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16258A | Pad (for heater return) | 16258-28010 · 16258-28011 · 16258-28030 |
| 16261 | HOSE, WATER BY-PASS | 16261-28050 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 96135-51300 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-20010 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 90467-28007 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-20030 · 16264-28060 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 96135-51300 · 96137-41501 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-20030 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 96135-51300 · 96137-41501 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-28010 |
| 16321 | water inlet | 16321-20010 · 16321-28020 |
| 16322 | PIPE, WATER INLET | 16322-20020 |
| 16322A | O-RING, WATER INLET | 96761-35031 |
| 16323 | HOUSING, WATER INLET | 16323-20010 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-28010 · 16325-62010 |
| 16331 | Water outlet | 16331-20060 |
| 16331A | thermostat | 90916-03084 · 90916-03129 · 90916-03136 |
| 16331F | Cover assembly (for water outlet) | 16401-62090 |
| 16361 | Fan | 16361-20110 · 16361-20111 · 16361-22030 · 16361-28160 |
| 16361B | Fan No. 2 | 16361-20120 · 16361-20121 · 16361-74160 · 16361-74161 |
| 16363 | cooling fan motor | 16363-20140 · 16363-20340 · 16363-23010 |
| 16363A | Cooling fan motor No. 2 | 16363-20240 · 16363-20350 · 16363-74370 |
| 16374 | Cooling fan motor vibration isolation pad | 16366-28130 |
| 16384 | Fan belt adjustment lever bracket | 16384-20020 |
| 16400 | Radiator assembly | 16400-20270 · 16400-20271 · 16400-28270 · 16400-28271 · 16400-28280 · 16400-28281 |
| 16400B | Radiator drain switch screw plug | 23322-54010 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16401 | Radiator cover sub-assembly | 16401-28280 · 16401-28430 |
| 16470 | Radiator reservoir assembly | 16470-20080 · 16470-20091 · 16470-28060 · 16470-28090 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-20060 · 16405-20080 · 16405-28030 · 16405-28031 |
| 16523A | Radiator bracket cushion | 16523-28020 |
| 16535 | Radiator lower support | 16535-20010 · 16535-74210 |
| 16571 | Radiator water inlet hose | 16571-20060 · 16571-28080 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90466-35001 |
| 16572 | Radiator outlet hose | 16572-20080 · 16572-20110 · 16572-28080 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90466-35001 |
| 16611 | Radiator reservoir bracket | 16611-28010 |
| 16701 | Fan cover sub-assembly | 16711-20140 · 16711-28200 · 16711-28201 |
| 16715 | fan cover bracket | 88688-18030 |
