Toyota CAMRY Engine Overhaul Gasket Kit — Figure 1103

Toyota CAMRY EPC diagram 1103, Engine Overhaul Gasket Kit, with 12 images and 2 PNC and OE references.

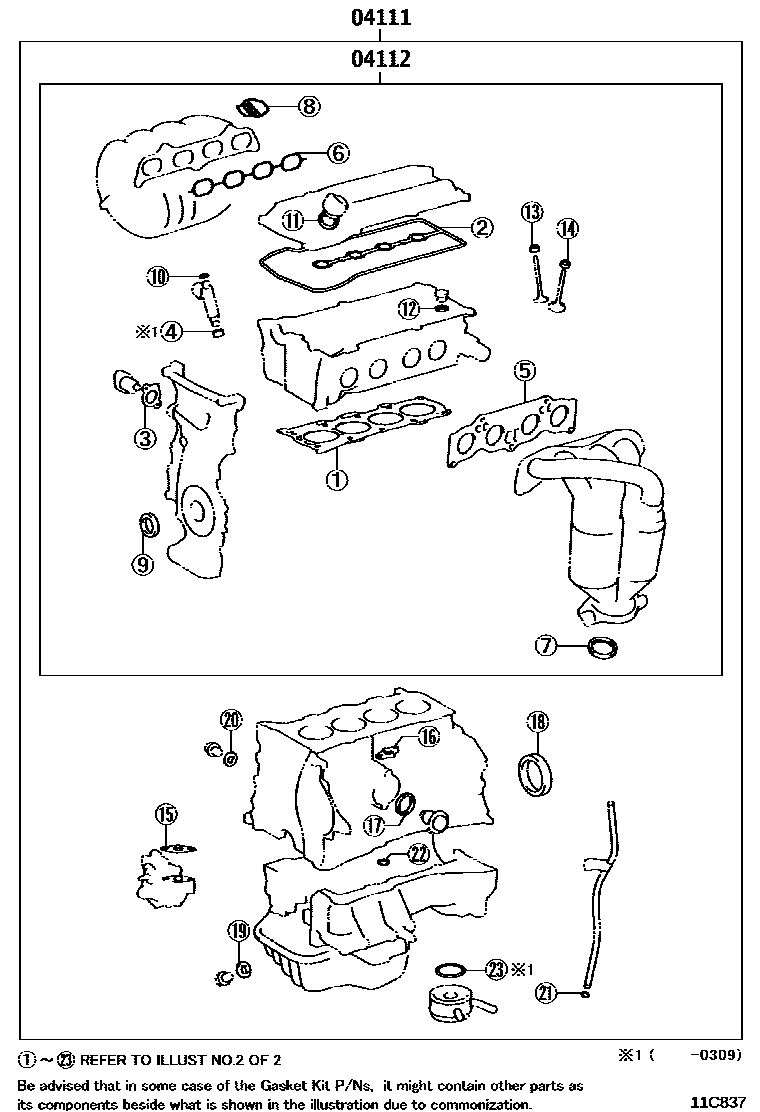

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C837
Engine Overhaul Gasket Kit — 11C837 (200108 – 200601)

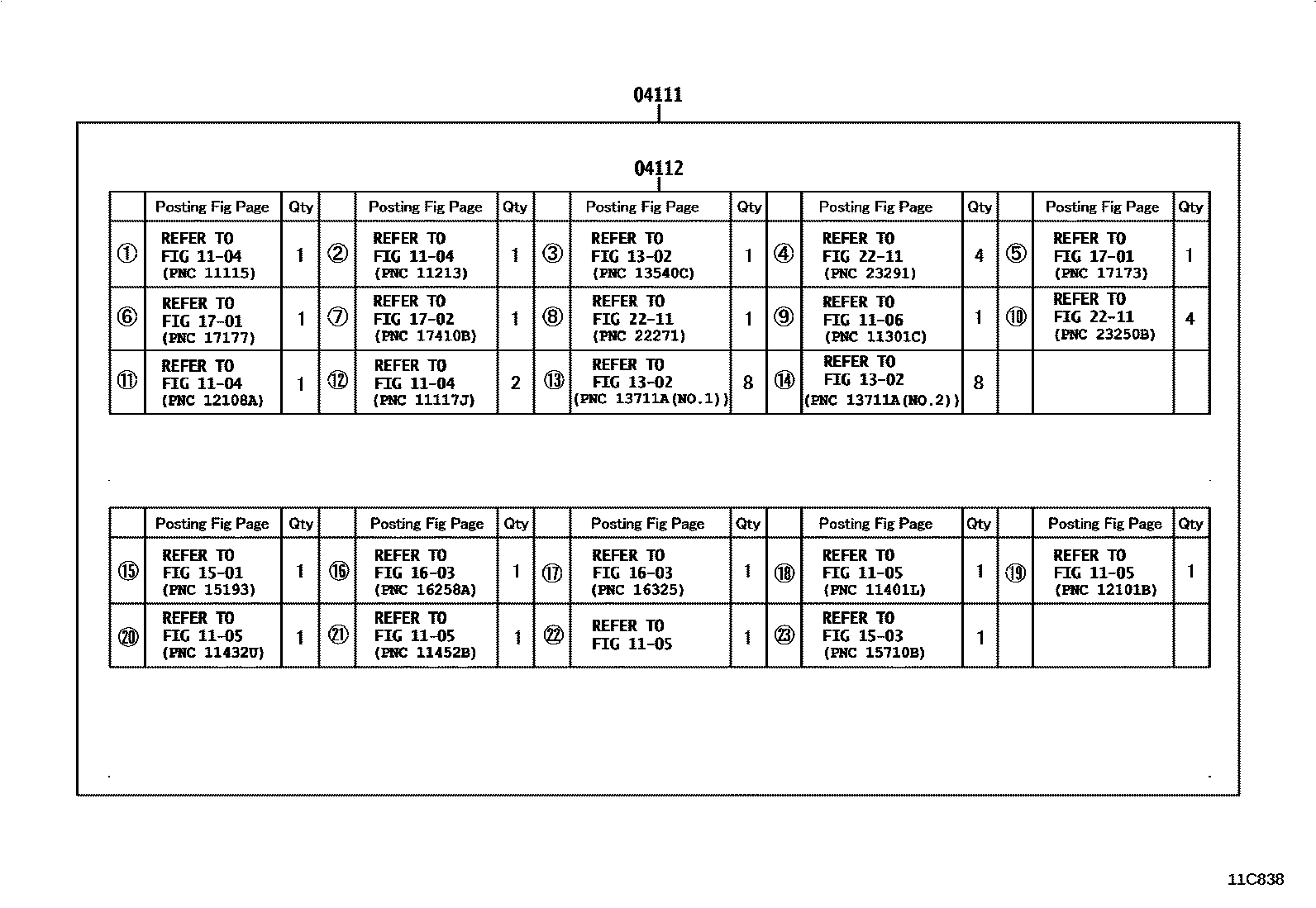

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C838
Engine Overhaul Gasket Kit — 11C838 (200108 – 200601)

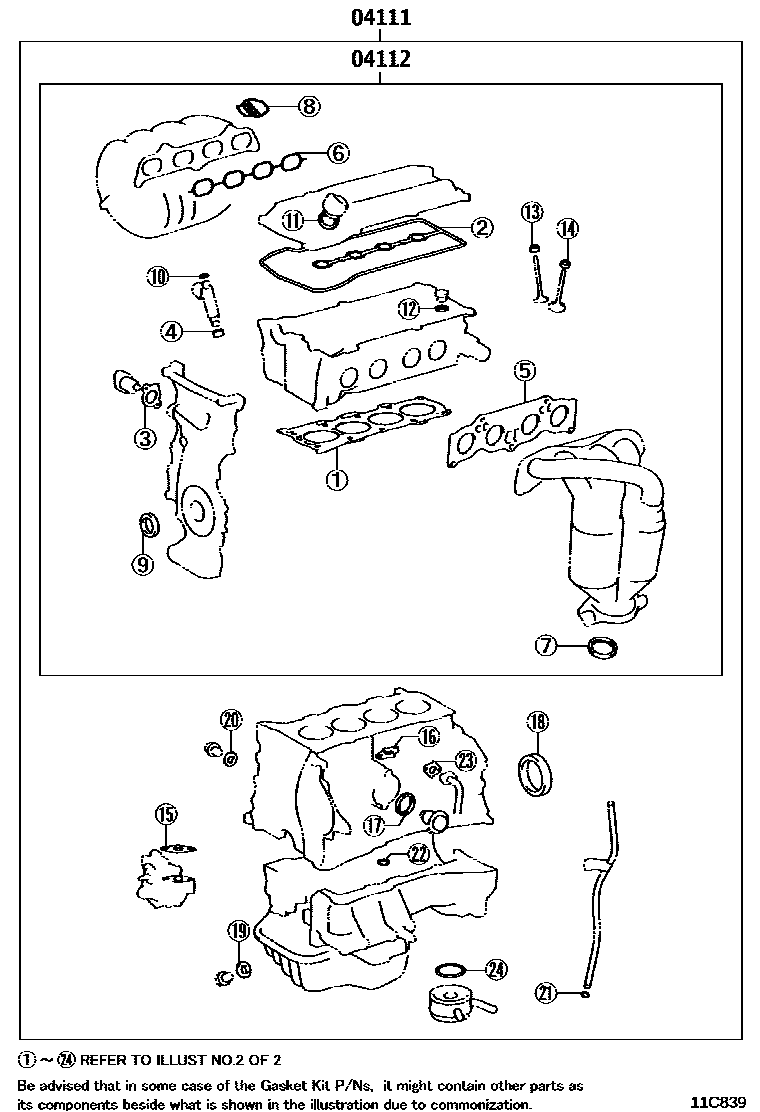

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C839
Engine Overhaul Gasket Kit — 11C839 (200108 – 200309)

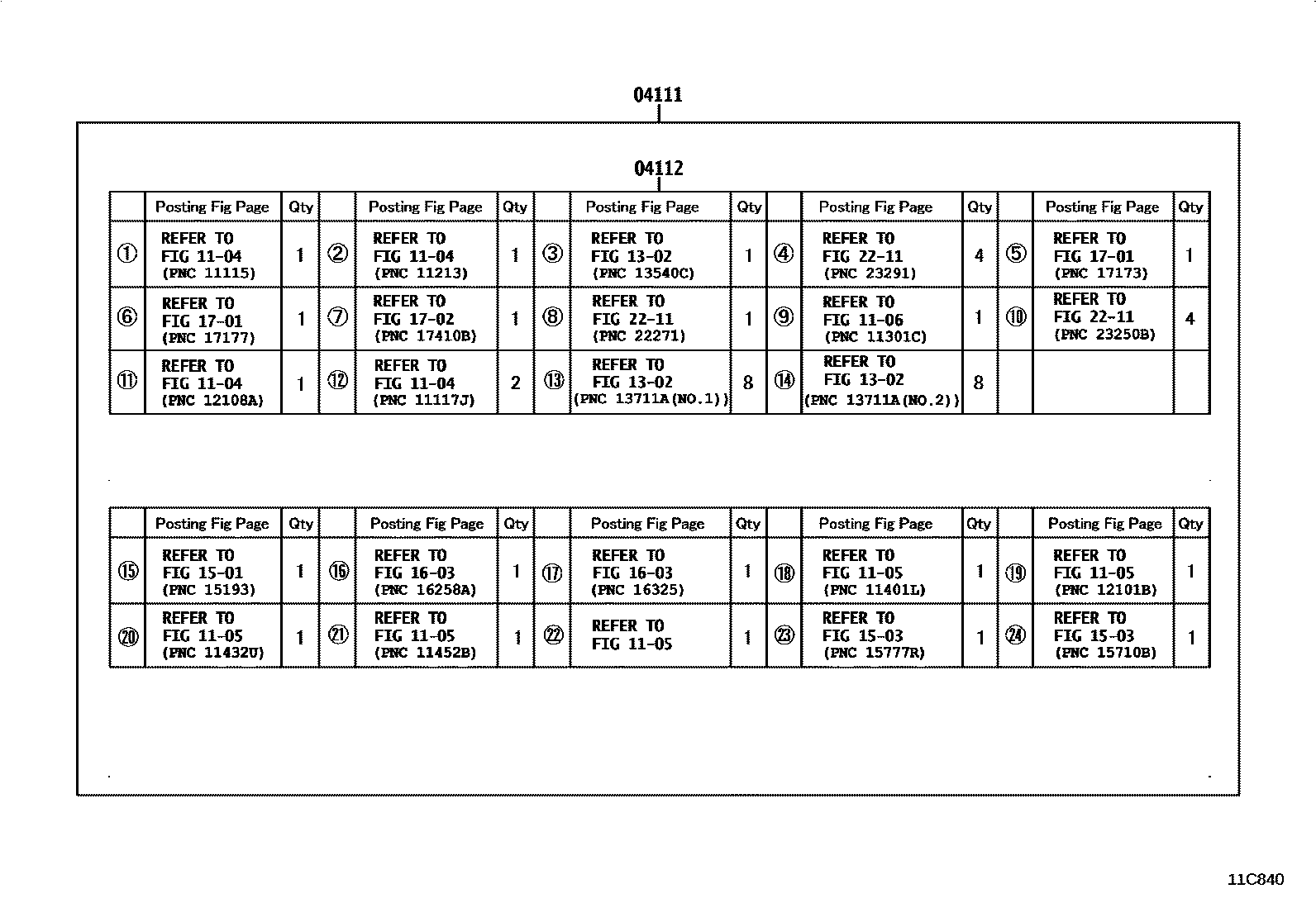

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C840
Engine Overhaul Gasket Kit — 11C840 (200108 – 200309)
Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C841
Engine Overhaul Gasket Kit — 11C841 (200309 – 200601)

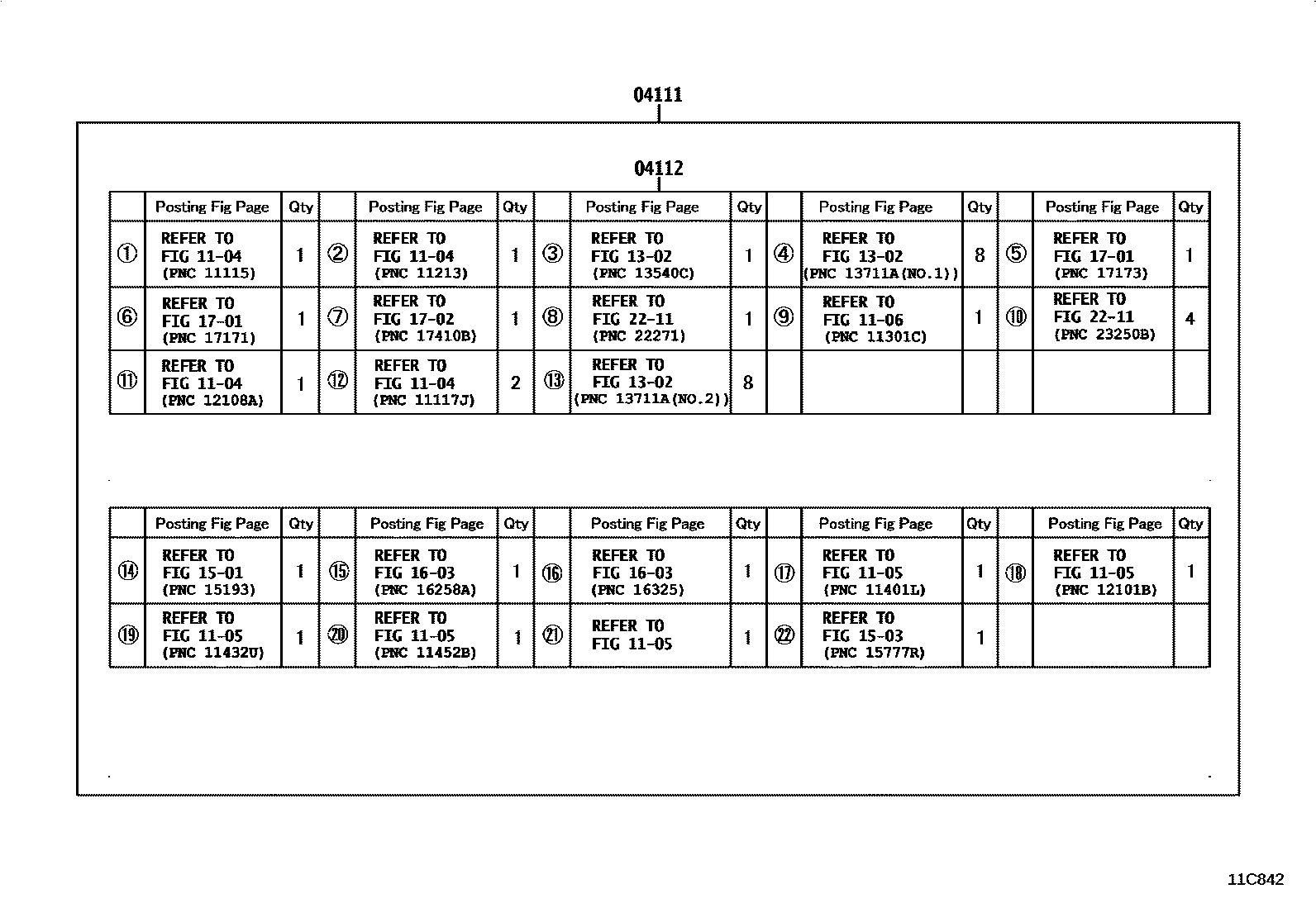

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C842
Engine Overhaul Gasket Kit — 11C842 (200309 – 200601)

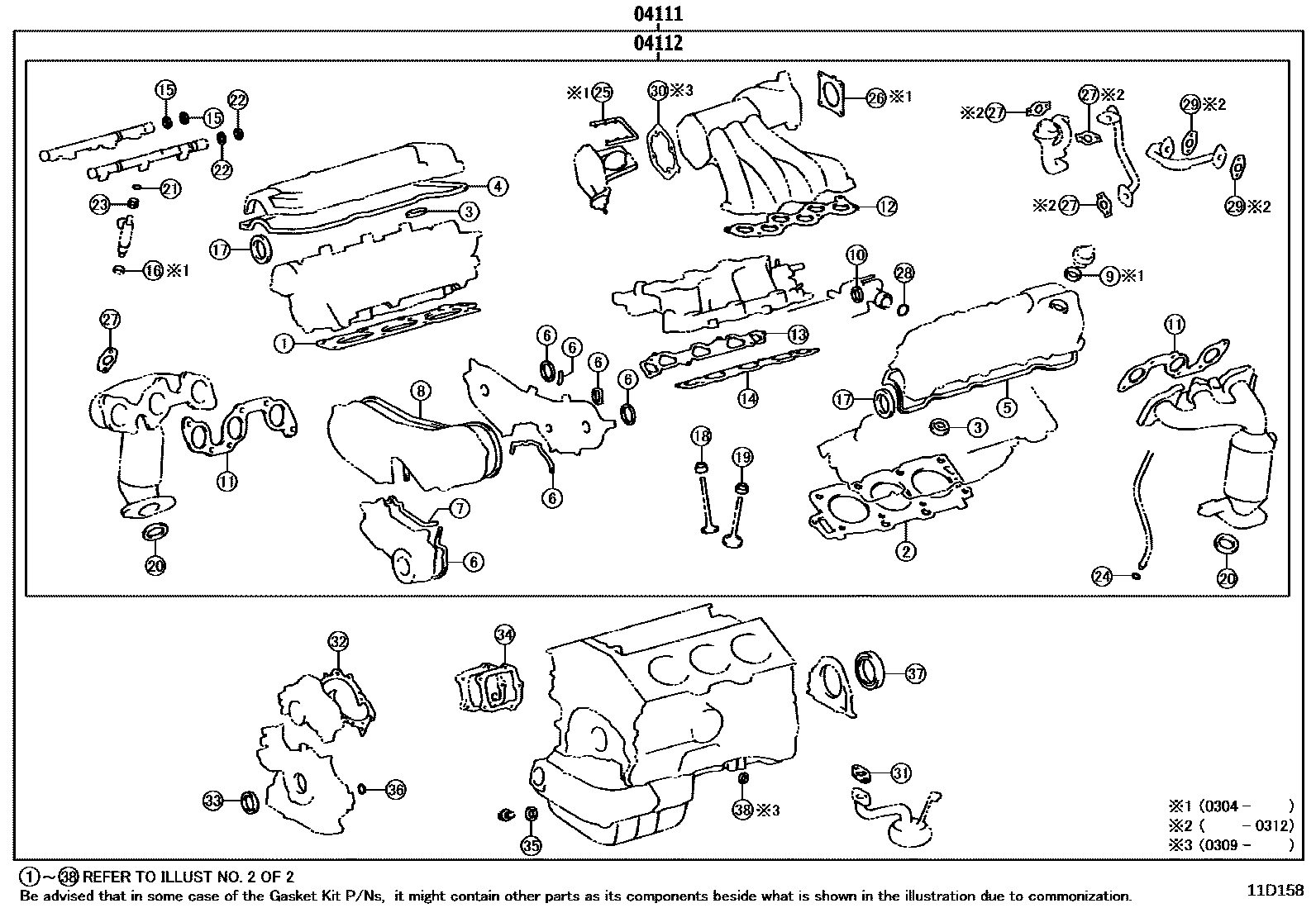

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11D158
Engine Overhaul Gasket Kit — 11D158 (200108 – 200406)

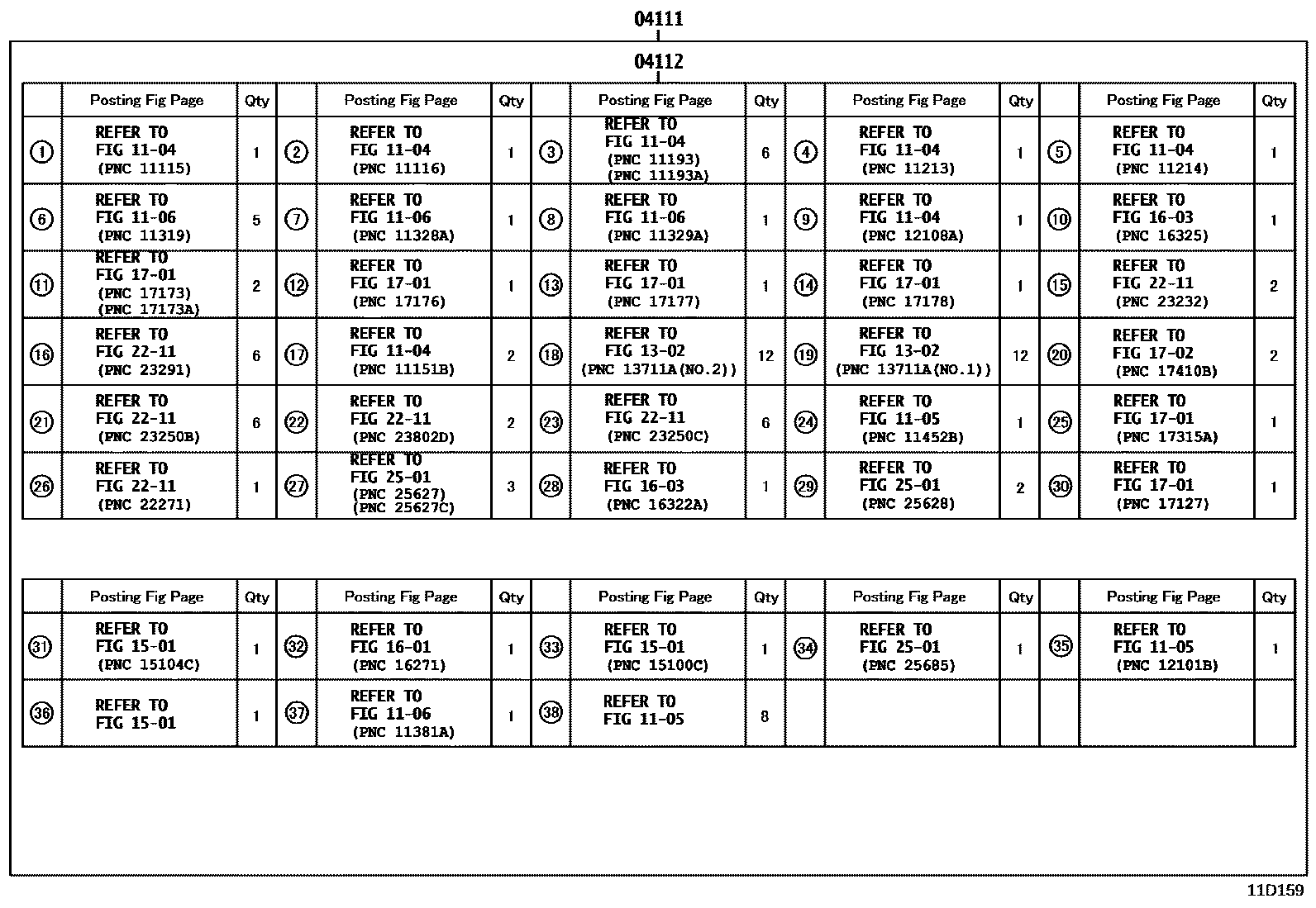

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11D159
Engine Overhaul Gasket Kit — 11D159 (200108 – 200406)

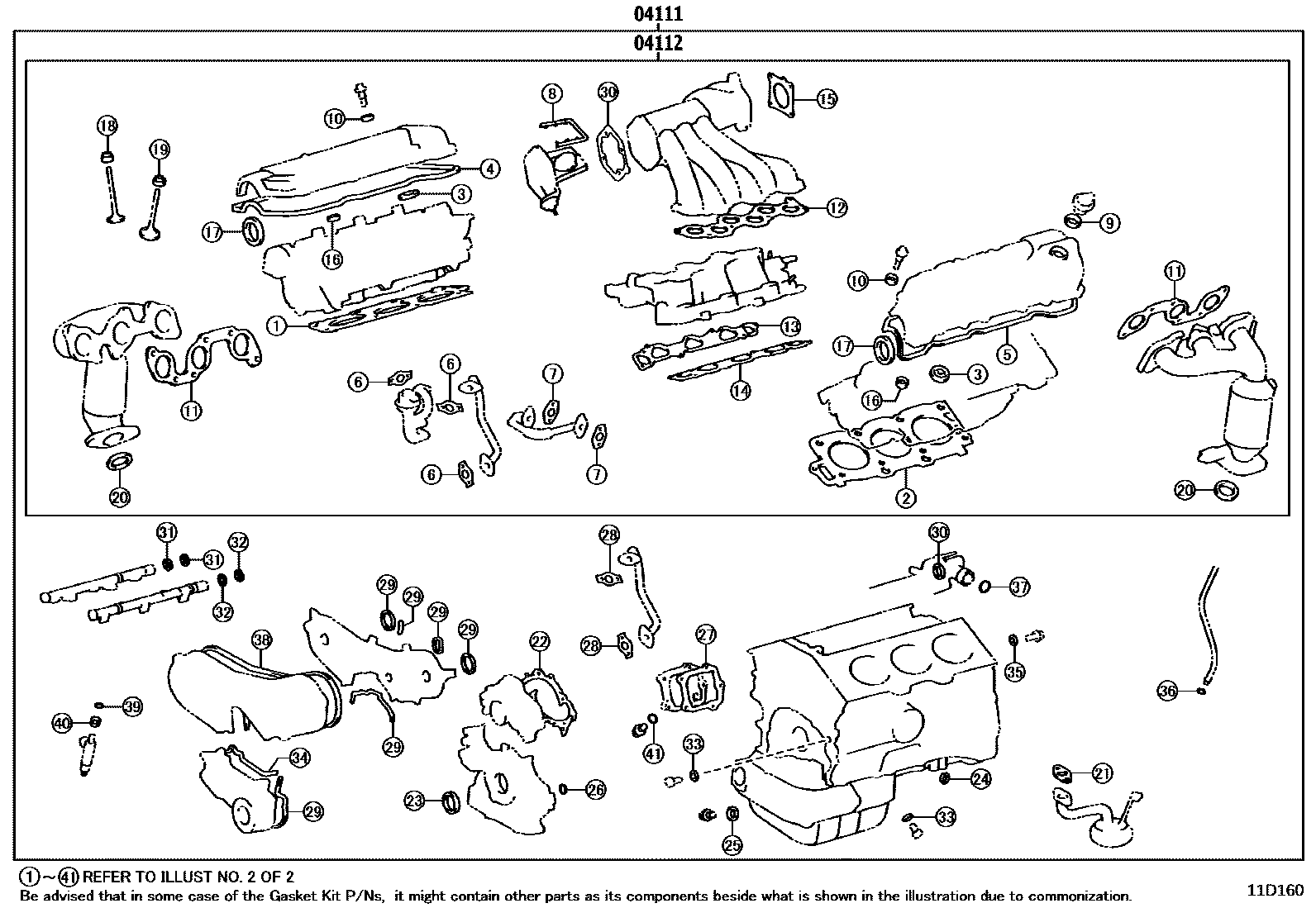

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11D160
Engine Overhaul Gasket Kit — 11D160 (200406 – 200408)

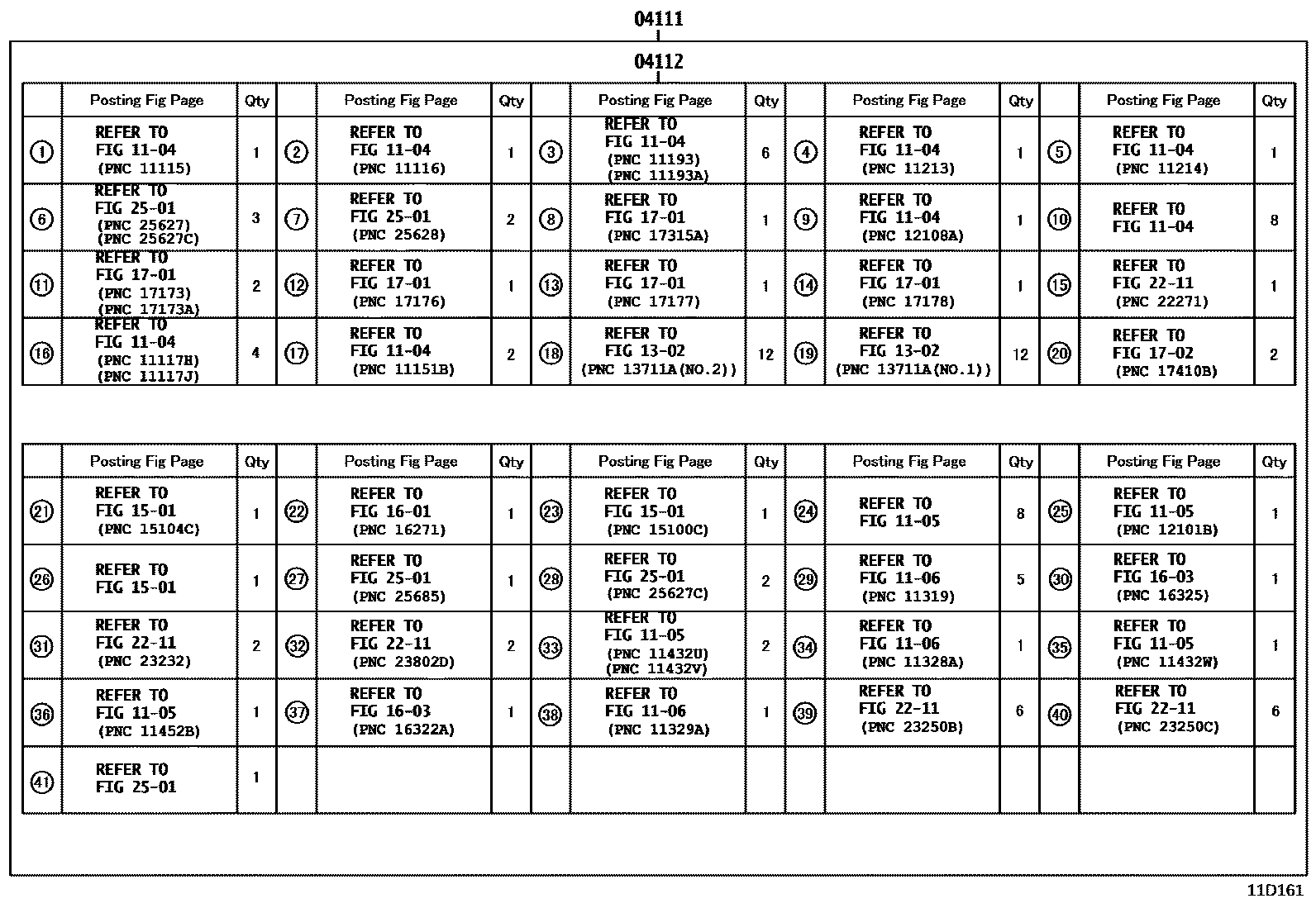

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11D161
Engine Overhaul Gasket Kit — 11D161 (200406 – 200408)

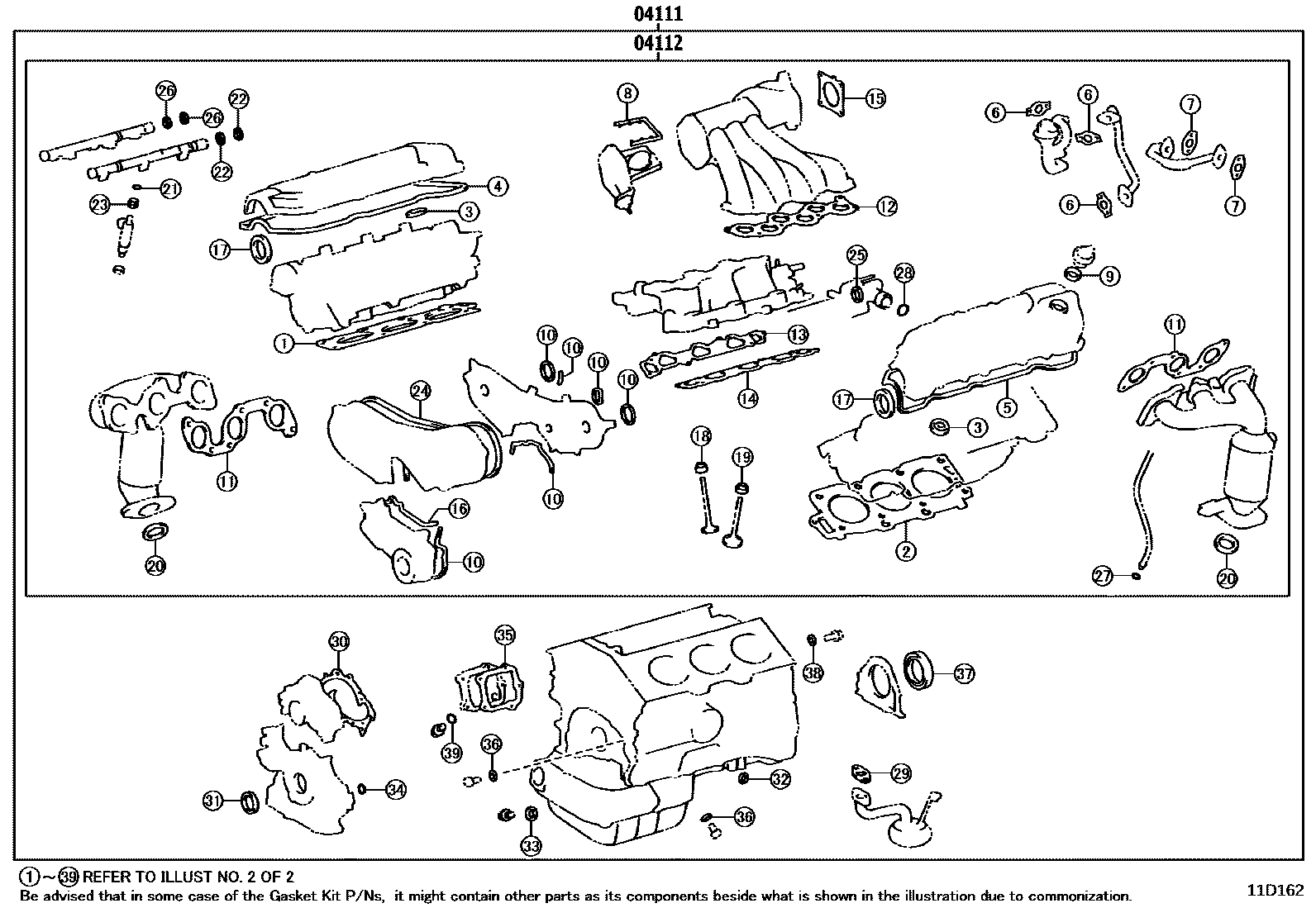

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11D162
Engine Overhaul Gasket Kit — 11D162 (200408 – 200601)

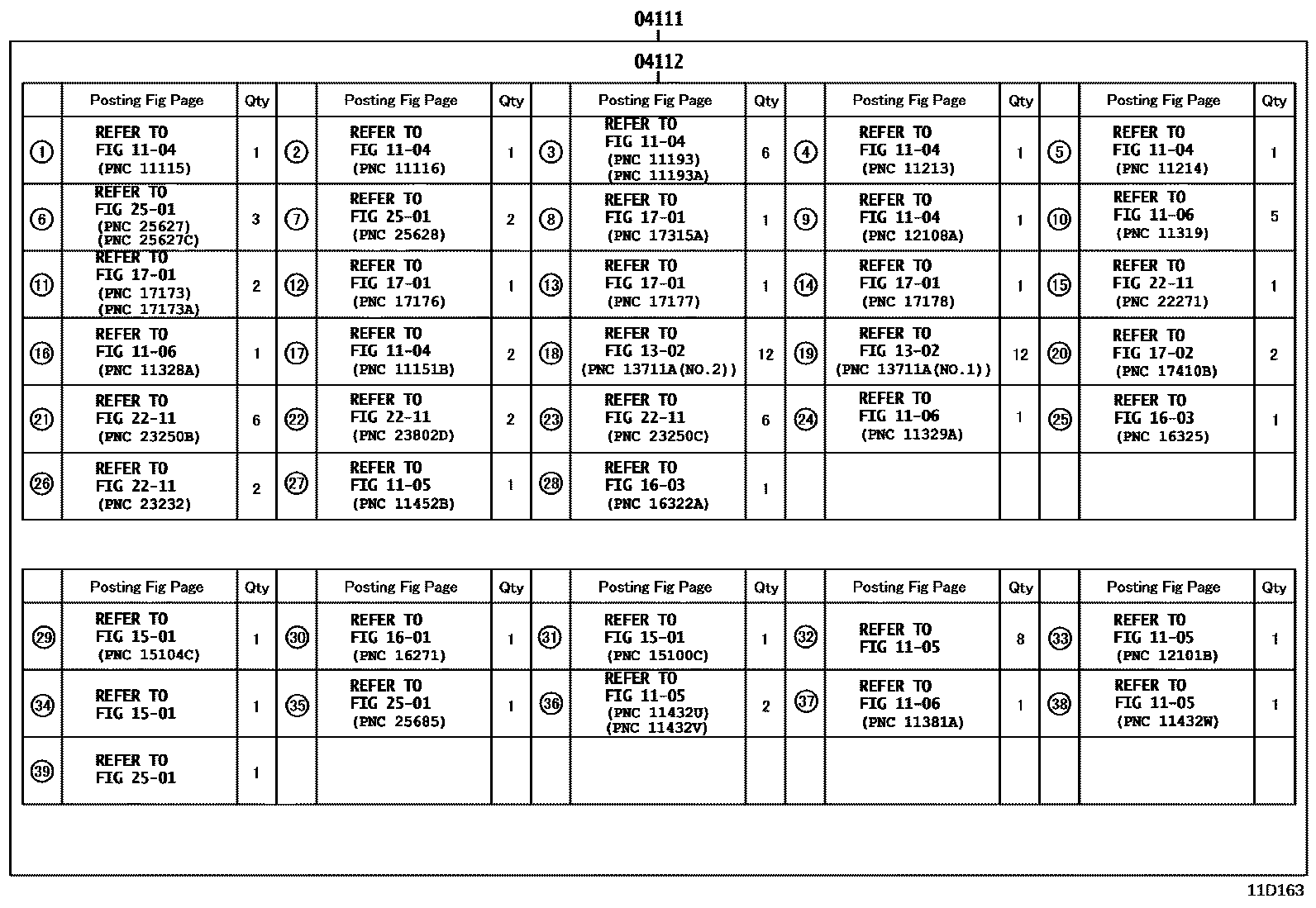

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11D163
Engine Overhaul Gasket Kit — 11D163 (200408 – 200601)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-20170 · 04111-20171 · 04111-20320 · 04111-20410 · 04111-20411 · 04111-20462 · 04111-28130 · 04111-28131 · 04111-28132 · 04111-28133 · 04111-28140 · 04111-28141 · 04111-28142 · 04111-28143 · 04111-28260 · 04111-28280 · 04111-28281 · 04111-28450 · 04111-28451 · 04111-28452
04112Engine valve grinding pad assembly04112-20160 · 04112-20161 · 04112-20220 · 04112-20223 · 04112-20380 · 04112-28130 · 04112-28131 · 04112-28132 · 04112-28133 · 04112-28140 · 04112-28141 · 04112-28142 · 04112-28143 · 04112-28260 · 04112-28261 · 04112-28262 · 04112-28280 · 04112-28281
