Toyota CAMRY Heating & Air Conditioning - Compressor — Figure 8719
Toyota CAMRY EPC diagram 8719, Heating & Air Conditioning - Compressor, with 4 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

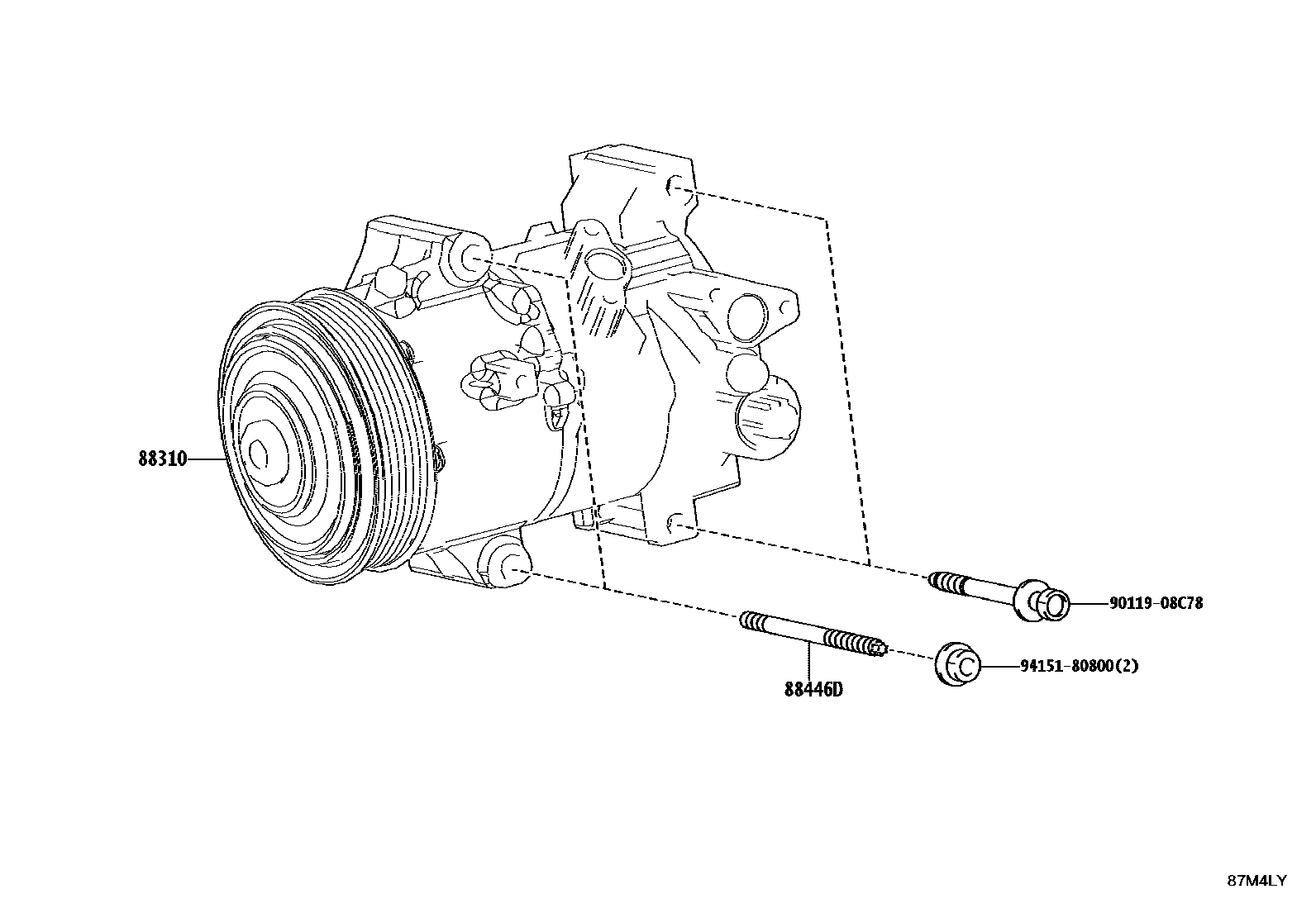

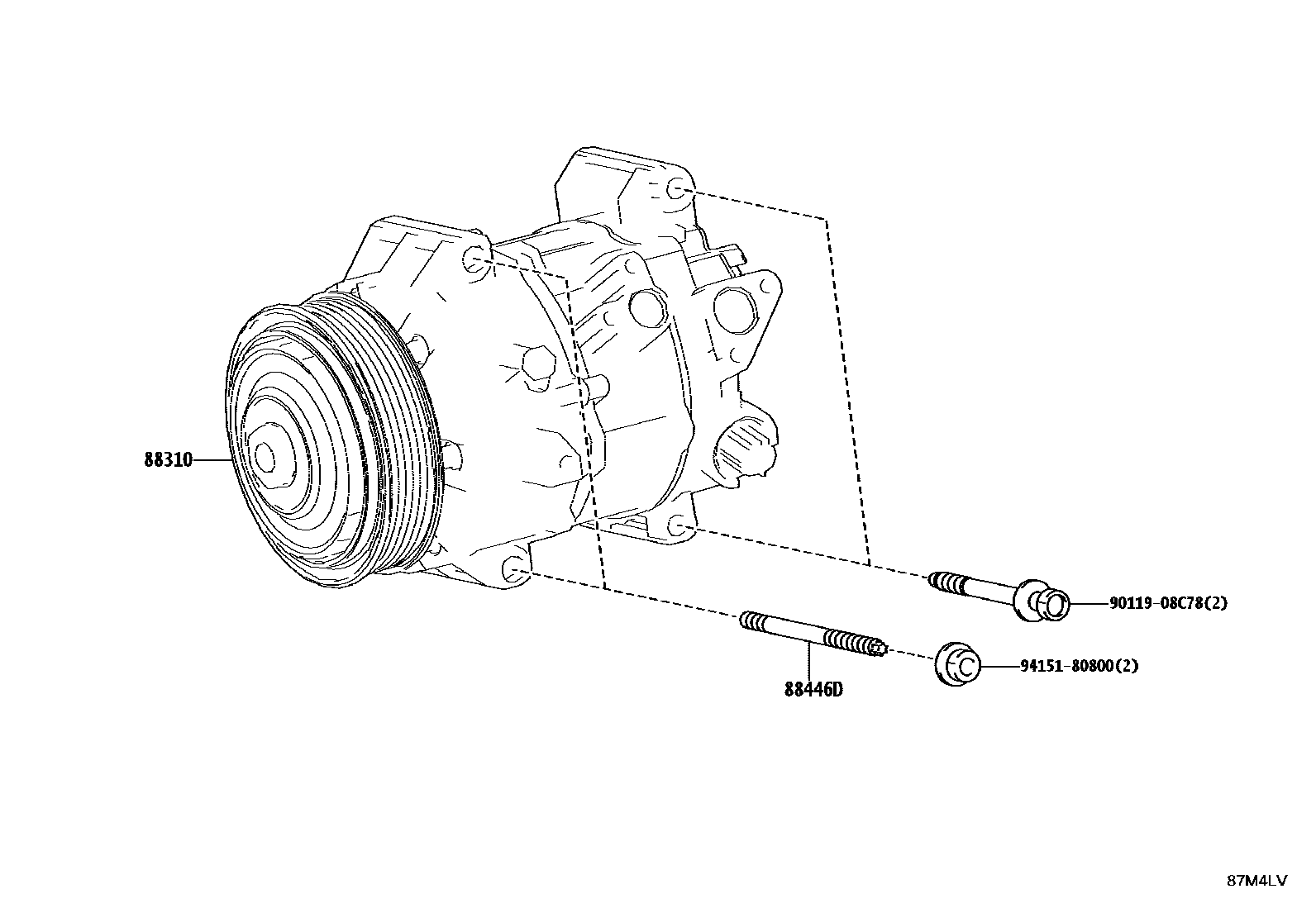

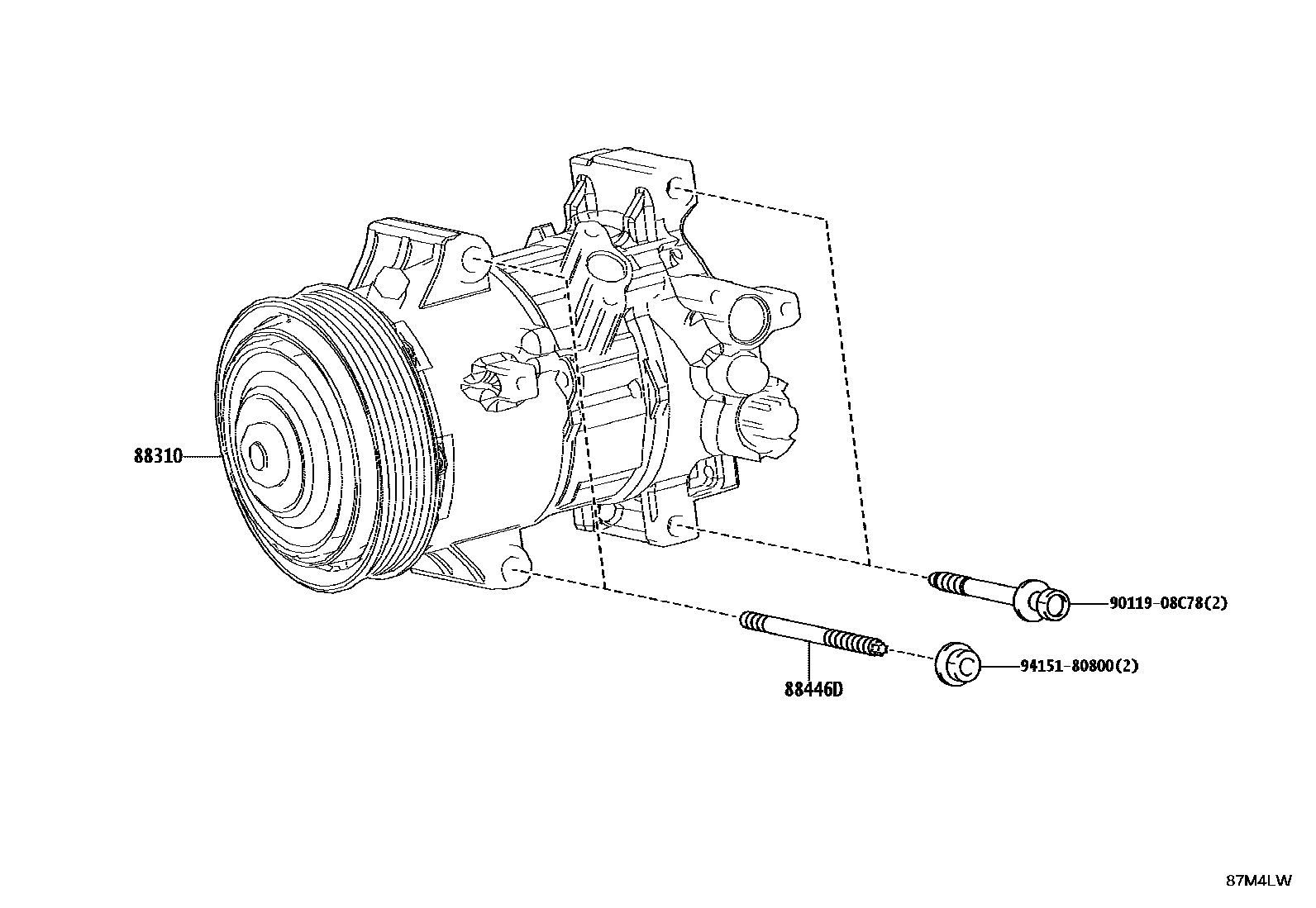

| 88310 | Compressor assembly with pulley | 88310-33430 · 88310-33470 · 88310-48300 |

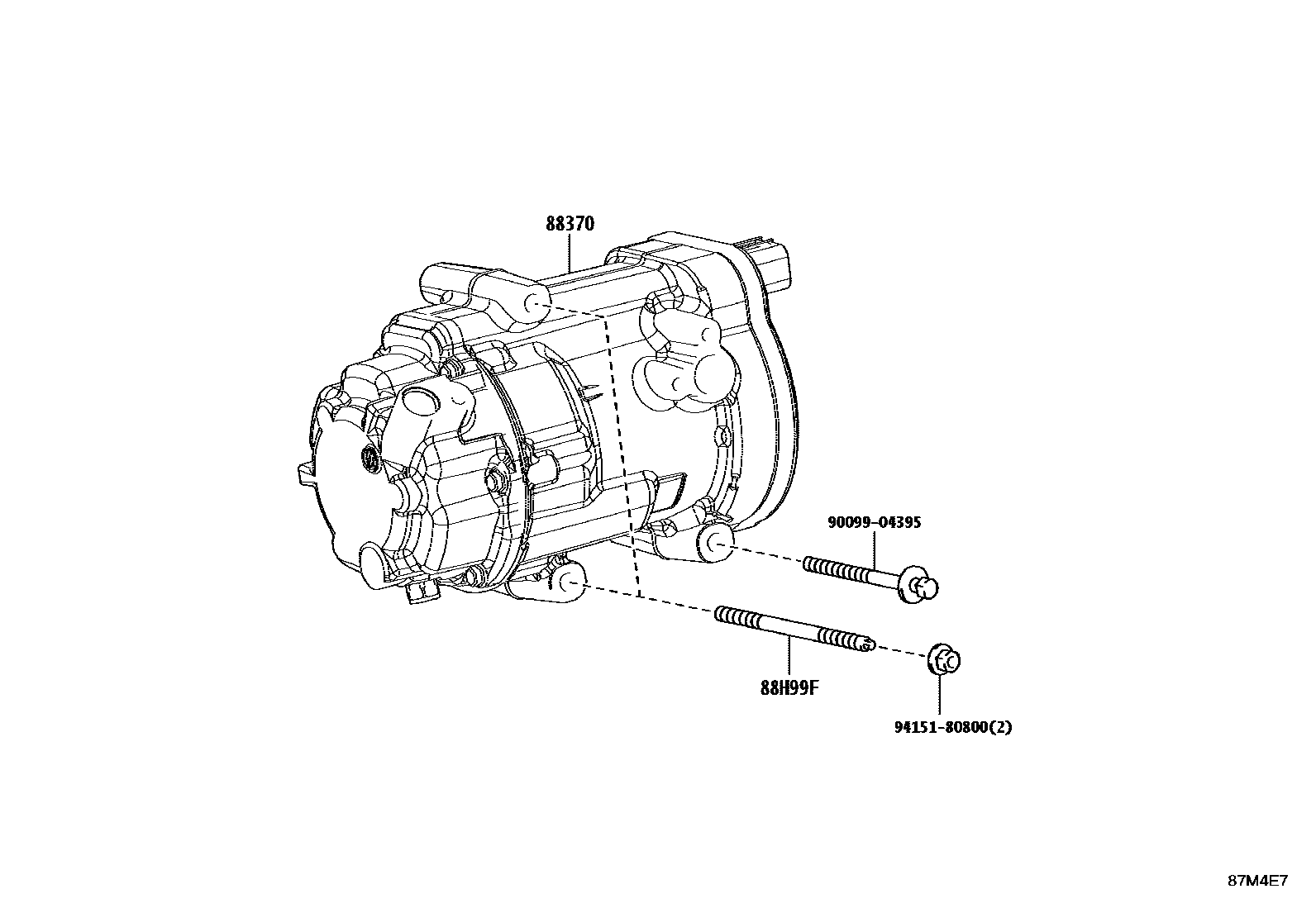

| 88370 | Compressor assembly with motor | 88370-33051 |
| 88446D | cooler bolt | 88446-42030 |
| 88H99F | GOUJON PRISONNIER | 88899-44010 |
