Toyota CAMRY 暖风和空调系统 - 控制器和风管 — Figure 8715

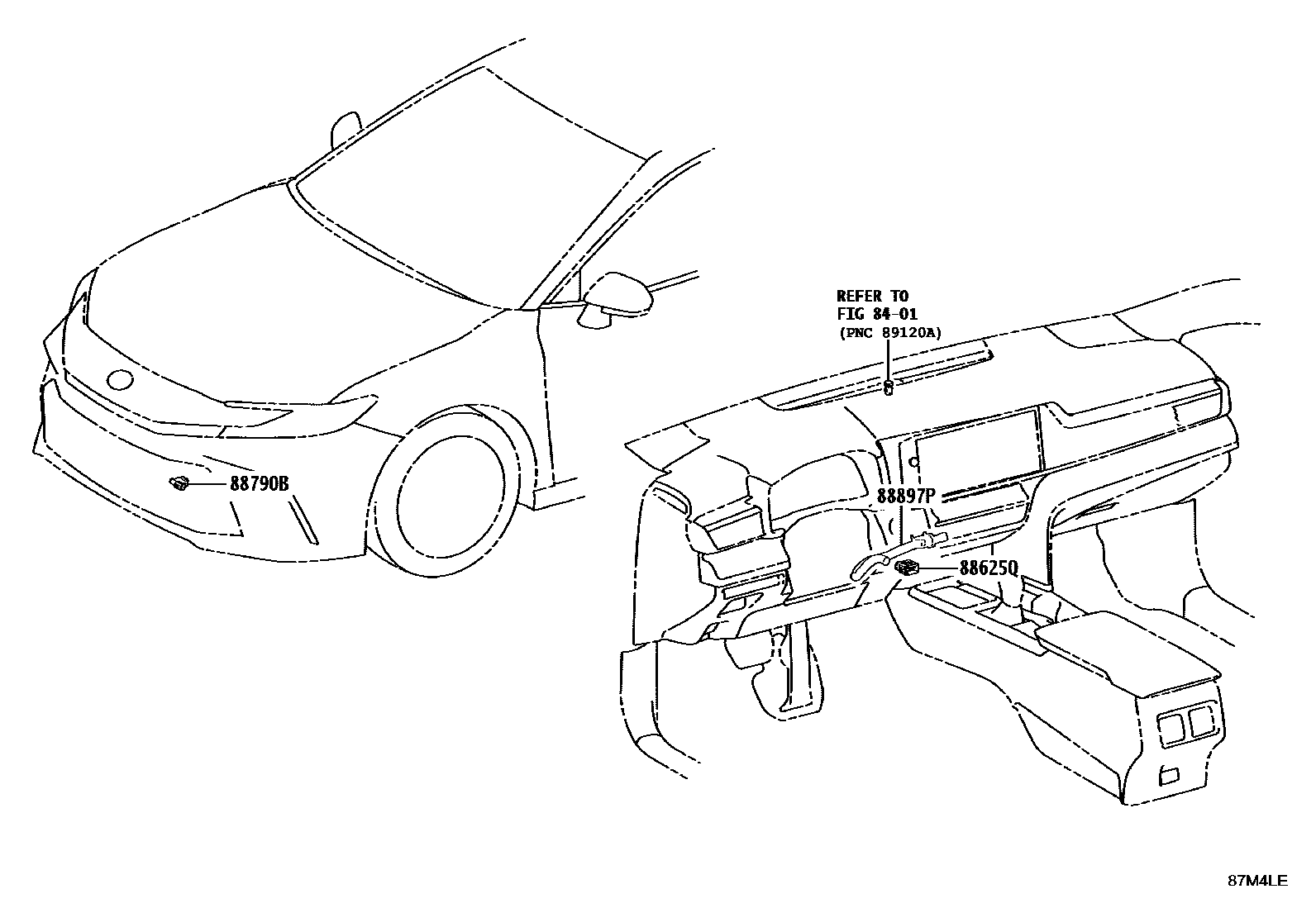

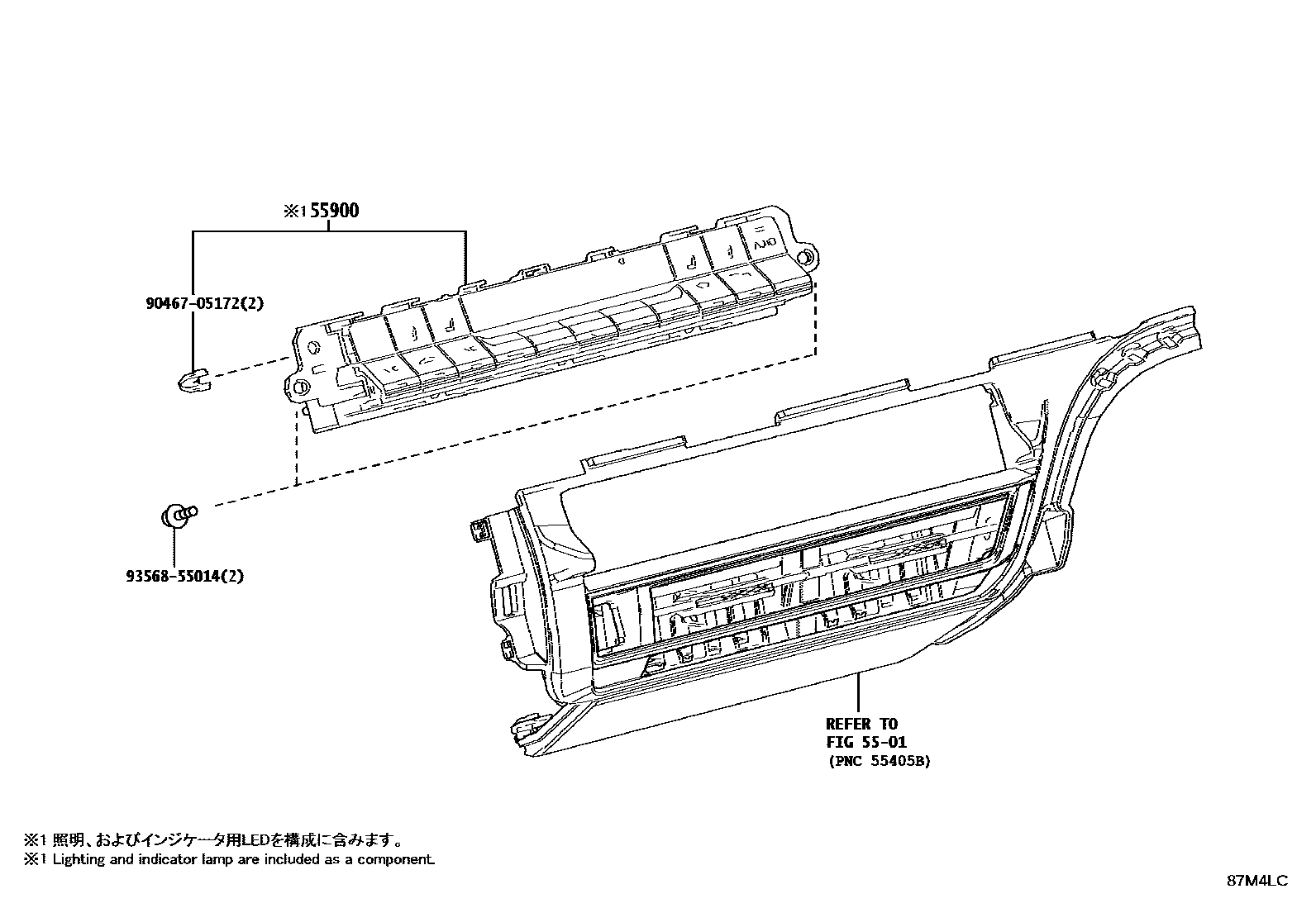

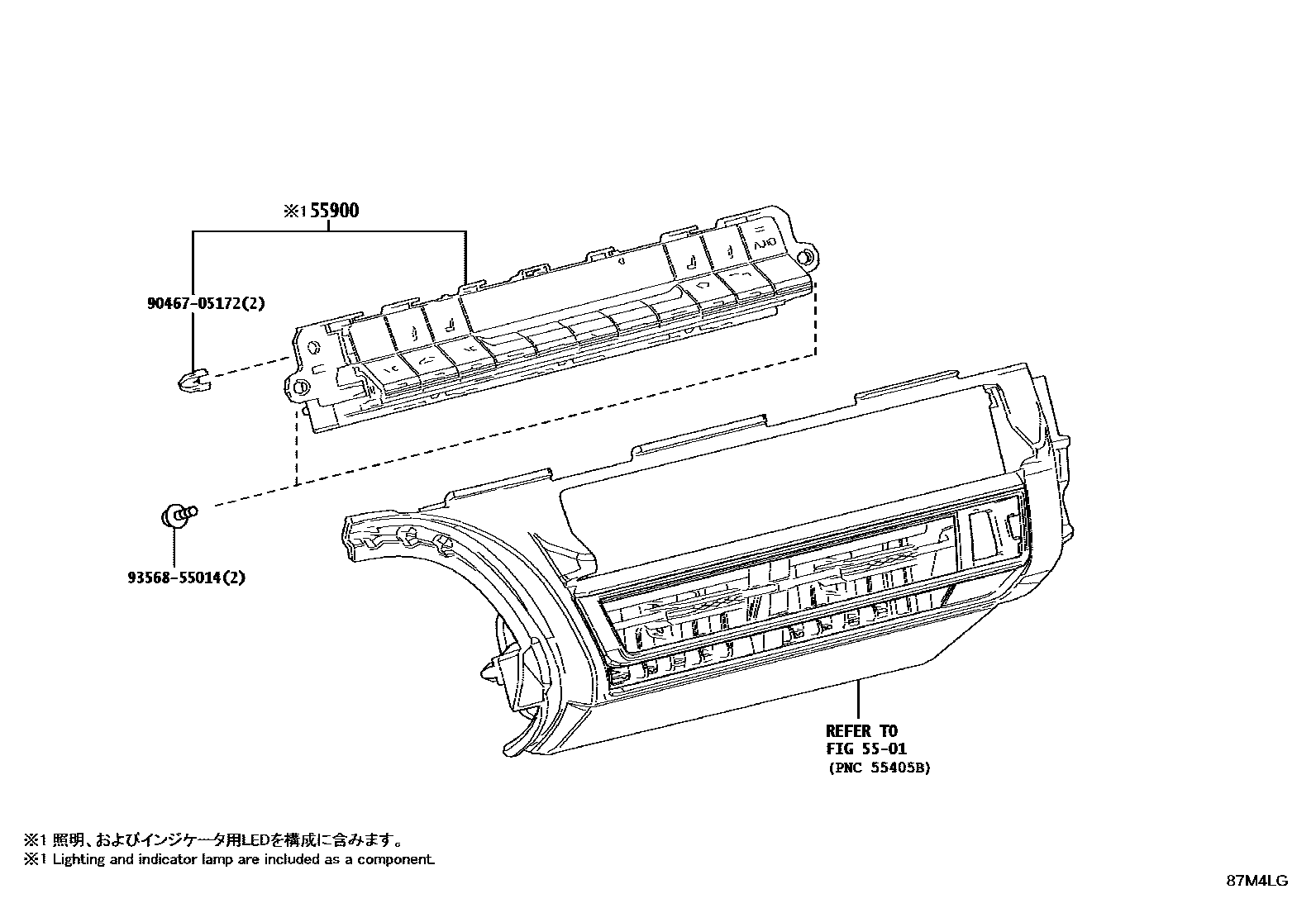

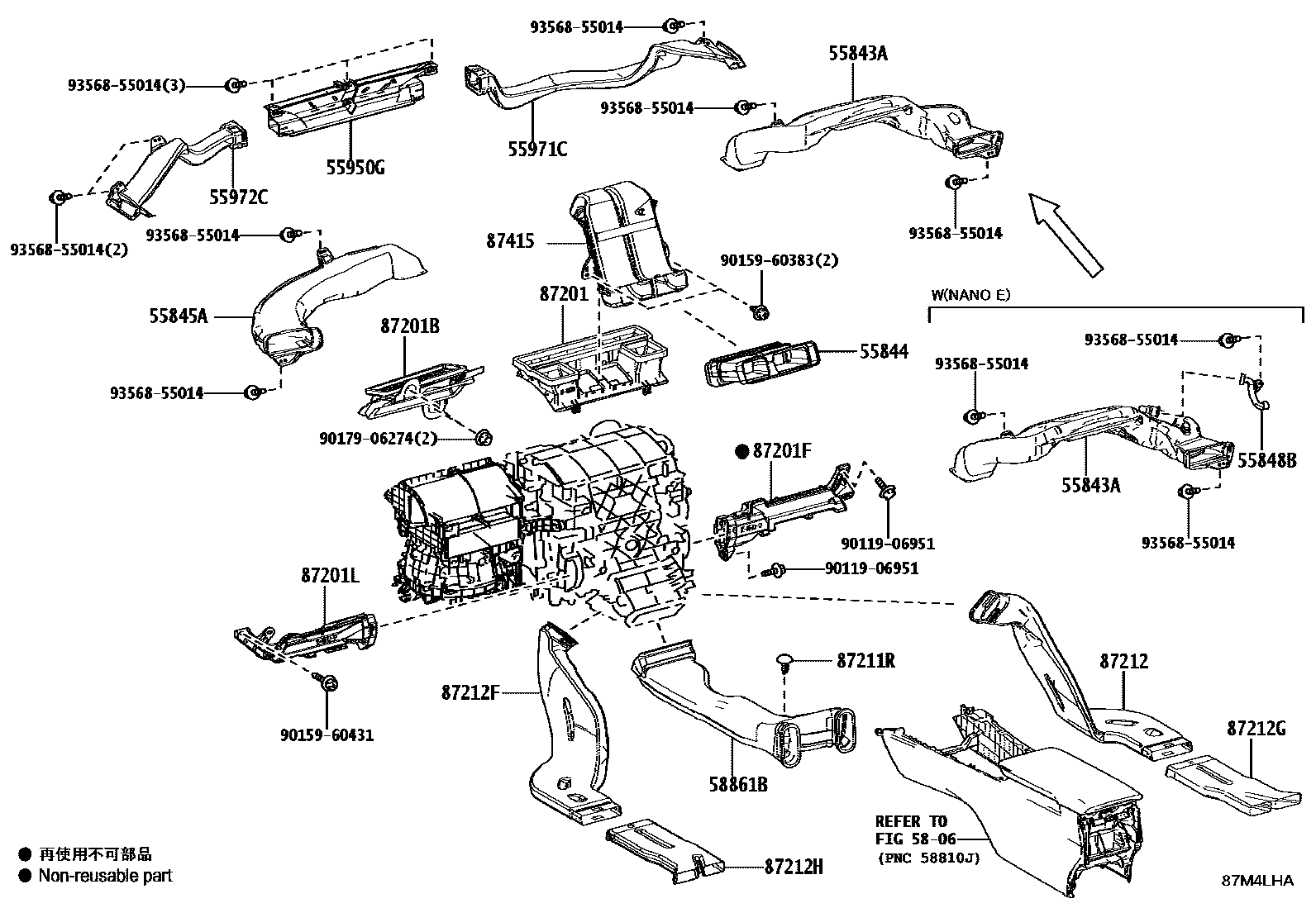

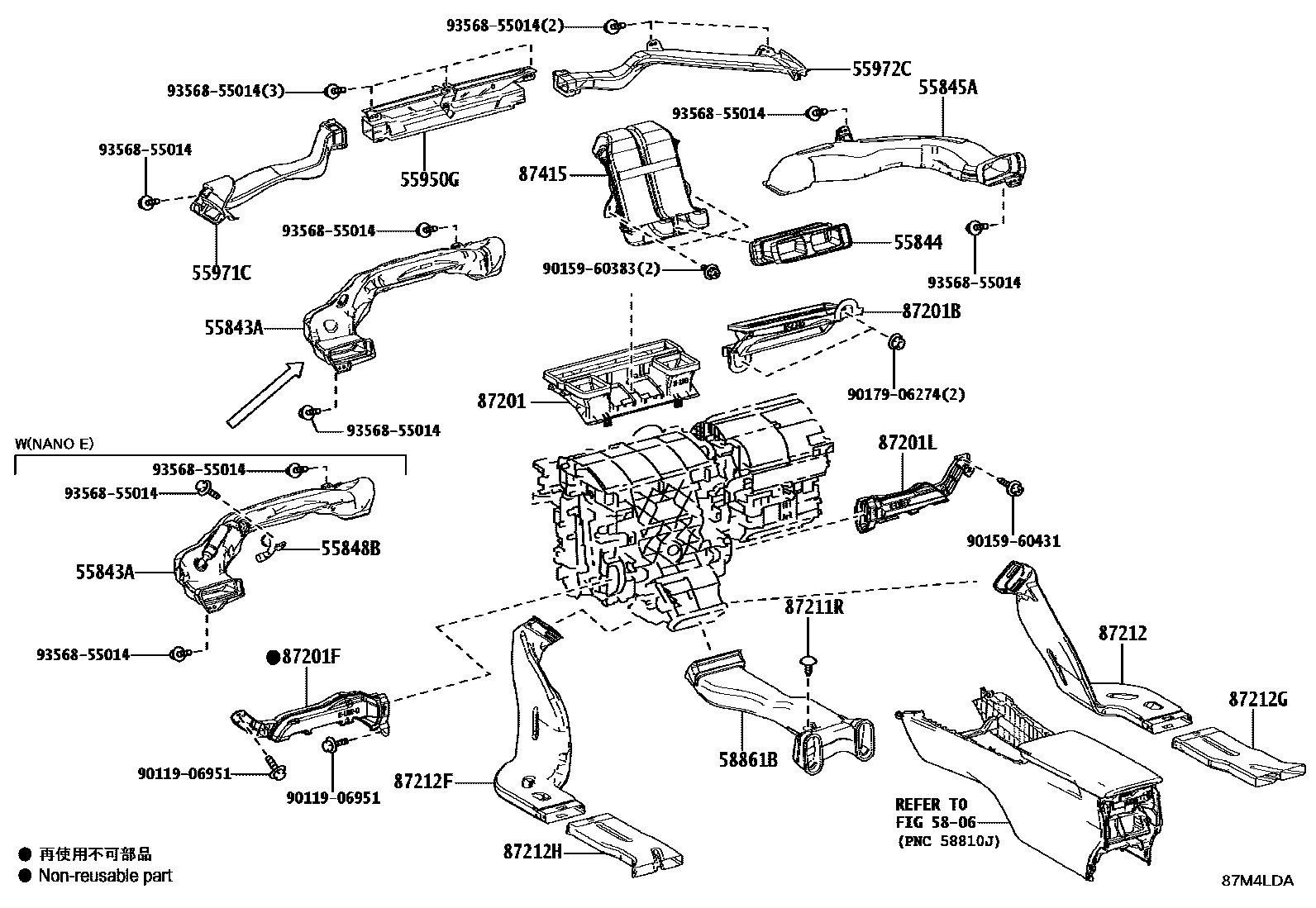

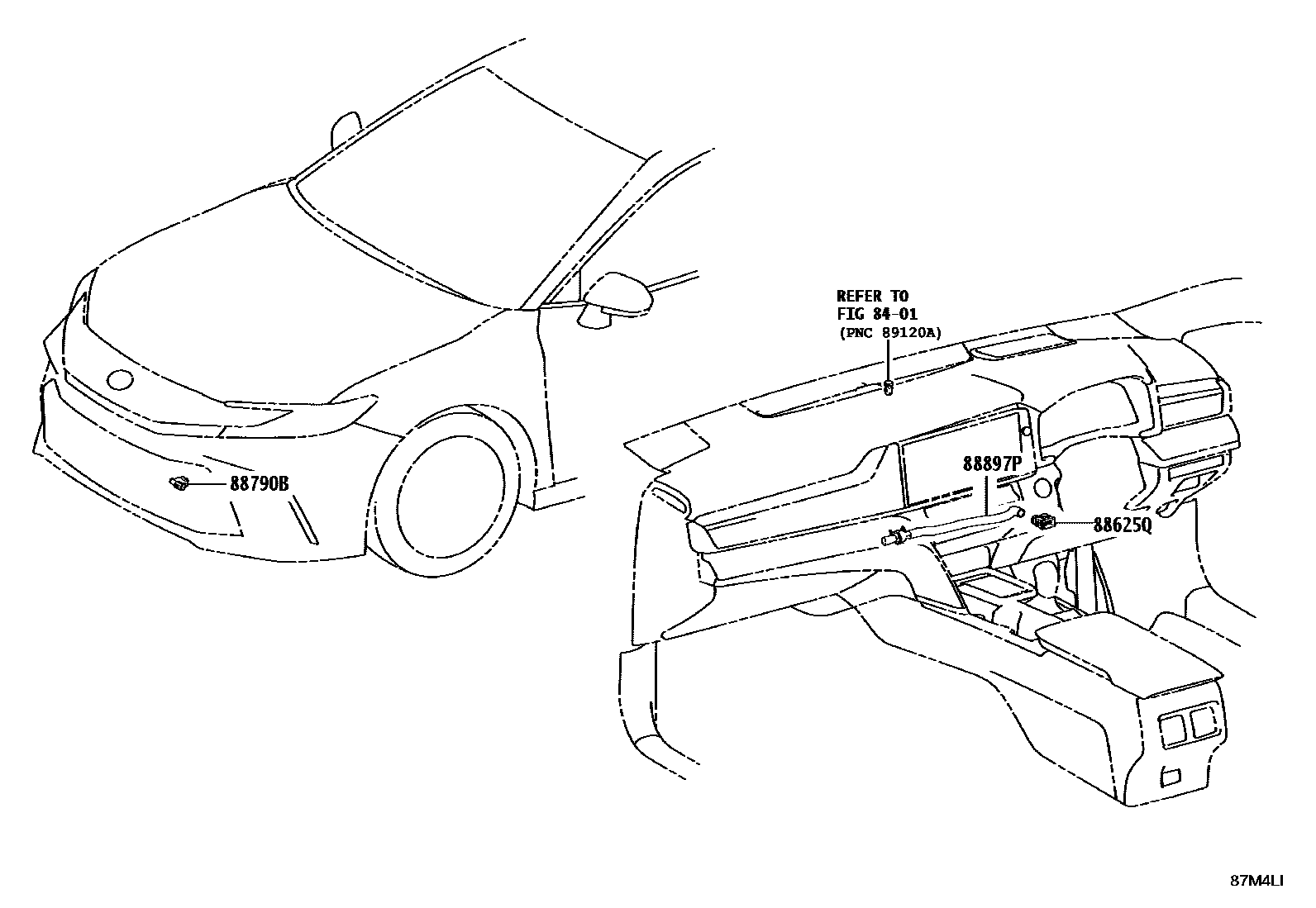

Toyota CAMRY EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 6 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55843A | Air duct No. 1 from heater to air register | 55843-33340 · 55843-33350 · 55870-33060 · 55870-33070 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-33330 · 55844-33340 |
| 55845A | Air duct No. 3 from heater to air regulator | 55845-33270 · 55845-33280 |
| 55848B | Air duct No. 6 from heater to air register | 55848-33140 · 55848-33150 |
| 55900 | Air conditioning control assembly | 55900-33N00 · 55900-33N10 · 55900-33N20 · 55900-33N40 · 55900-33N50 · 55900-33N60 · 55900-33N70 · 55900-33N90 · 55900-33P00 · 55900-33P10 · 55900-33P40 · 55900-33P70 · 55900-33Q10 · 55900-33Q50 |
| 55950G | Defroster nozzle assembly | 55950-33140 · 55950-33150 |
| 55971C | Side defroster No. 1 nozzle air duct | 55971-33150 · 55971-33160 |
| 55972C | Side defroster No. 2 nozzle air duct | 55972-33160 · 55972-33170 |
| 58861B | Air duct No. 1 for armrest box | 58861-33110 · 58861-33120 |
| 87201 | No. 1 air duct sub-assembly | 87201-33600 · 87201-33610 |
| 87201B | No. 2 air duct sub-assembly | 87201-33510 · 87220-33010 |
| 87201F | No. 3 air duct sub-assembly | 87201-33410 · 87201-33490 |
| 87201L | No. 4 air duct sub-assembly | 87201-33460 · 87201-33500 |
| 87212 | No. 1 rear air duct | 87212-33050 · 87212-33061 |
| 87212F | No. 2 rear air duct | 87213-33071 · 87213-33080 |
| 87212G | No. 3 rear air duct | 87215-33020 |
| 87212H | No. 4 rear air duct | 87216-33020 |
| 87415 | air duct | 87415-33010 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88790B | Thermistor assembly | 88790-28100 |
| 88897P | aspirator | 87201-33480 · 87201-33520 |
