Toyota CAMRY 暖风和空调系统 - 冷却器组件 — Figure 8714

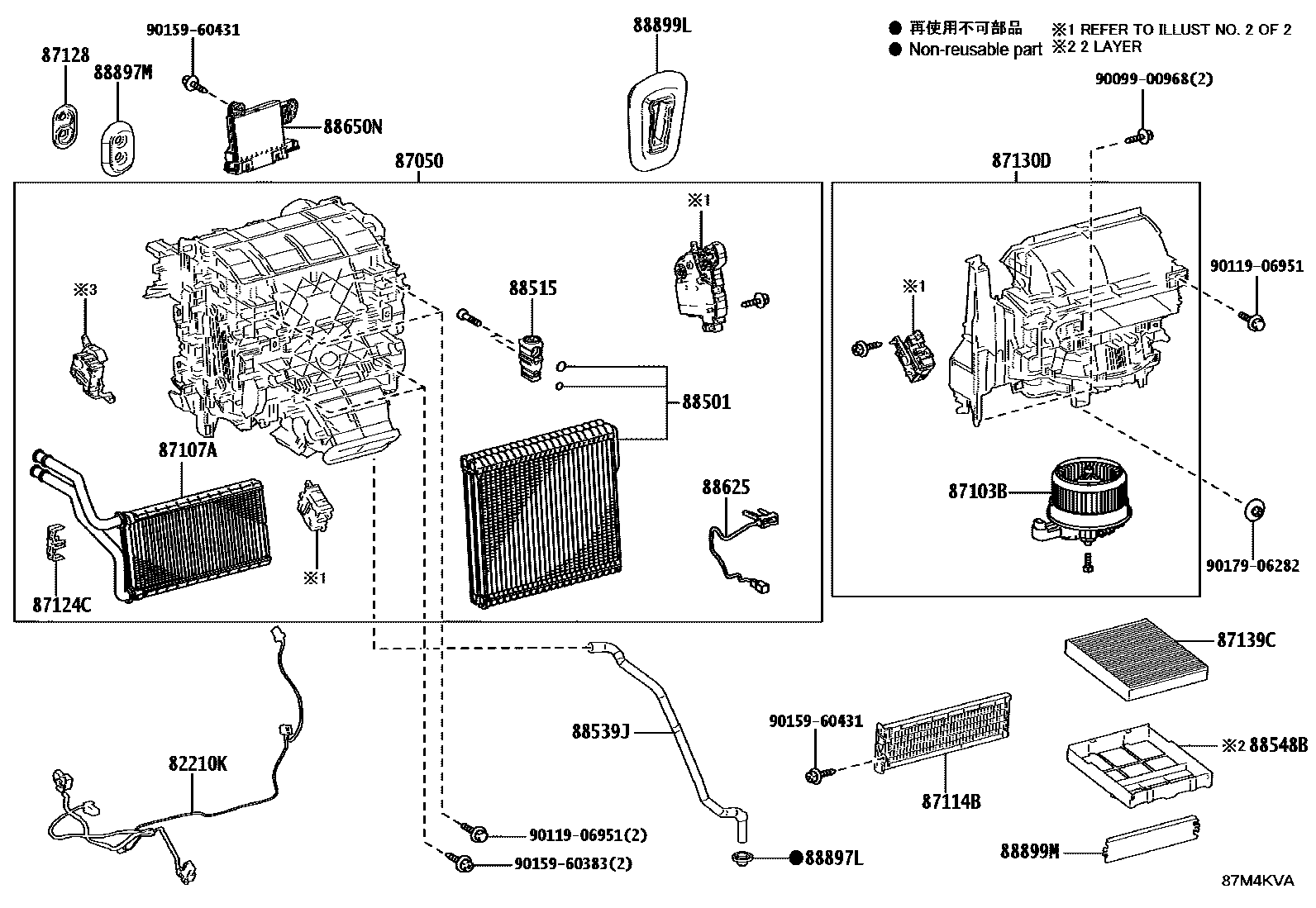

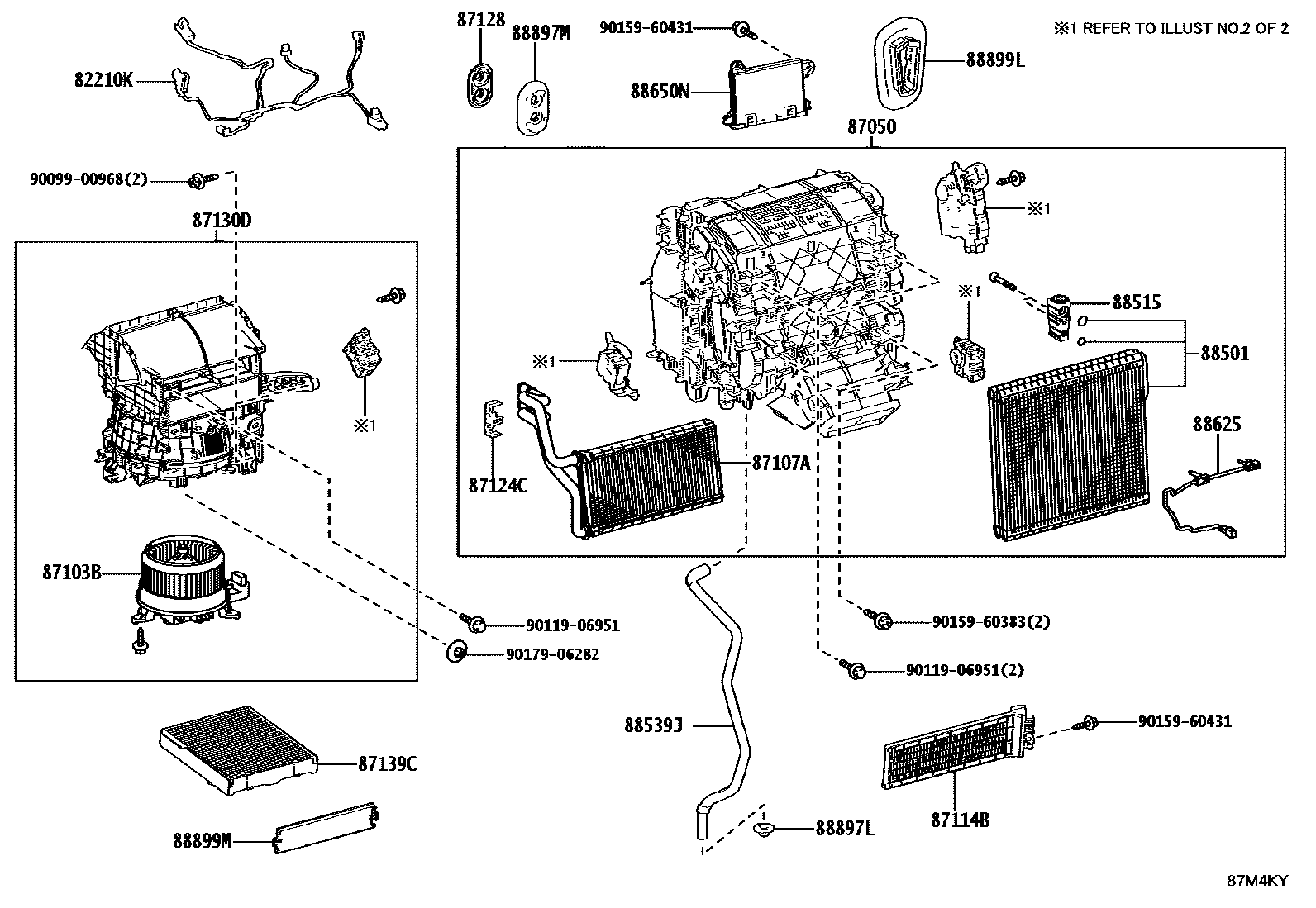

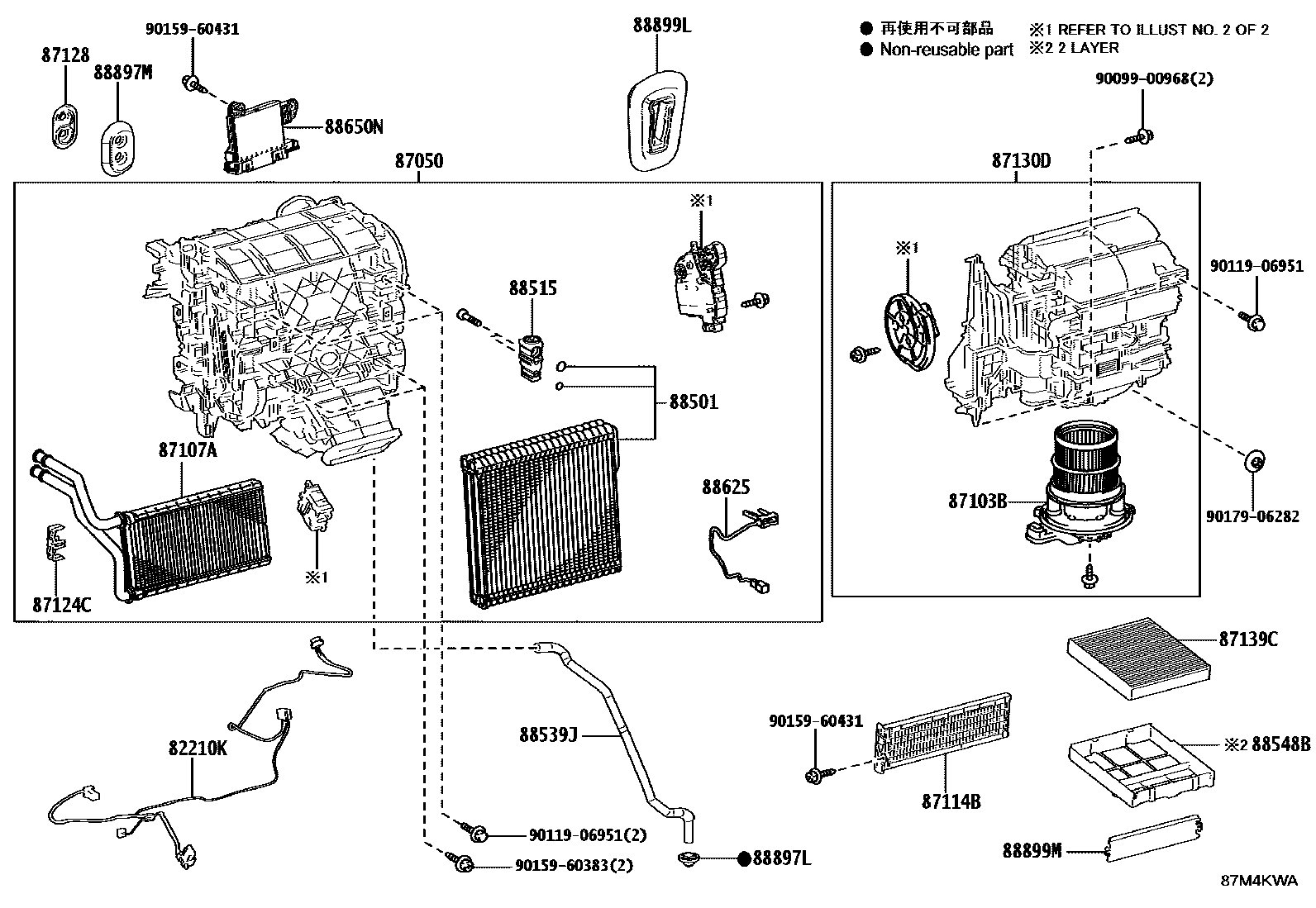

Toyota CAMRY EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 5 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-33110 · 82212-33120 · 82212-33210 · 82212-42050 · 82212-42060 |
| 87050 | Air conditioning radiator assembly | 87050-30820 · 87050-33C31 · 87050-33C52 · 87050-33C62 · 87050-33F91 · 87050-33G80 · 87050-33G90 · 87050-33J00 · 87050-33J10 · 87050-42A11 · 87050-48A70 · 87050-V2200 |

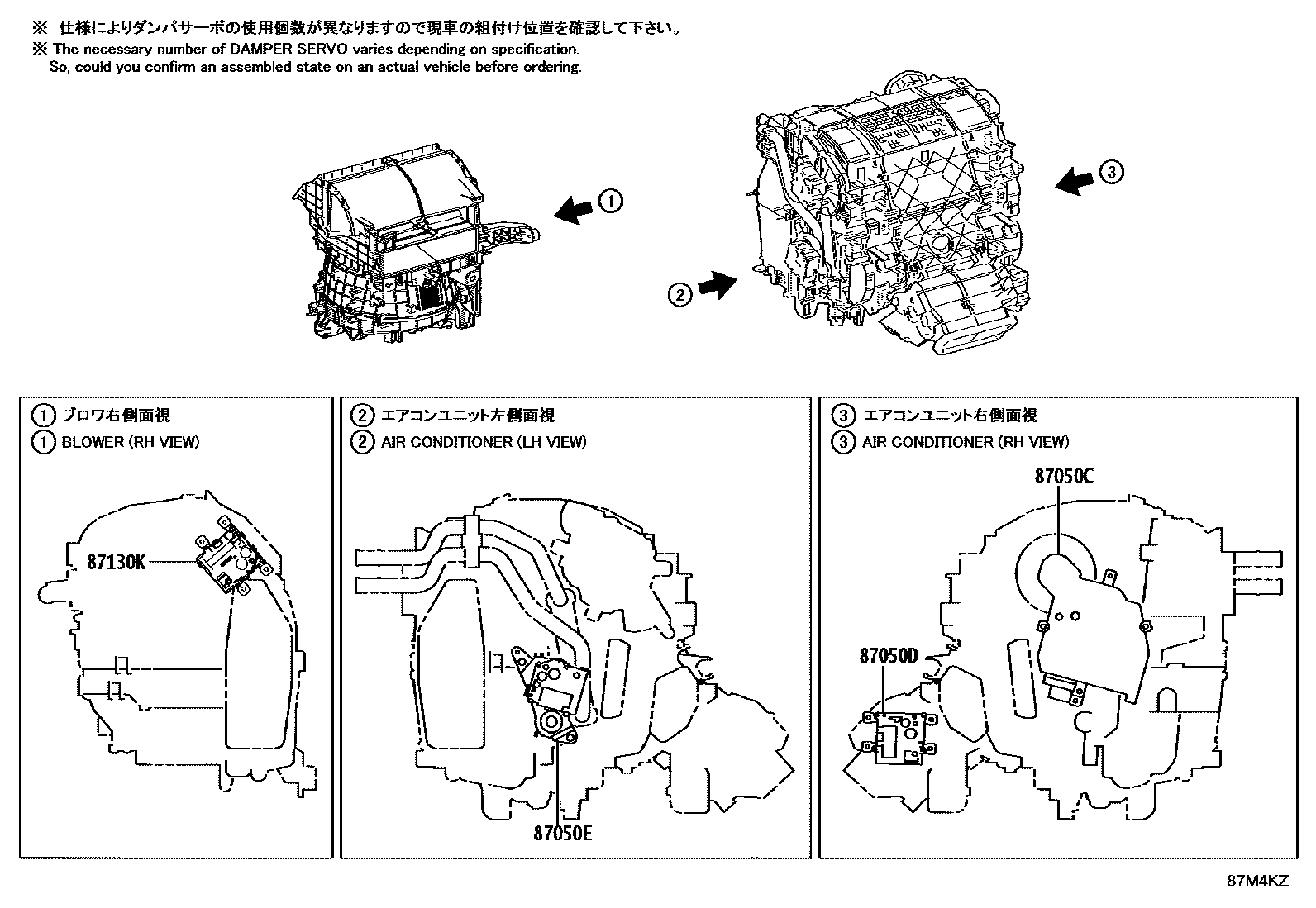

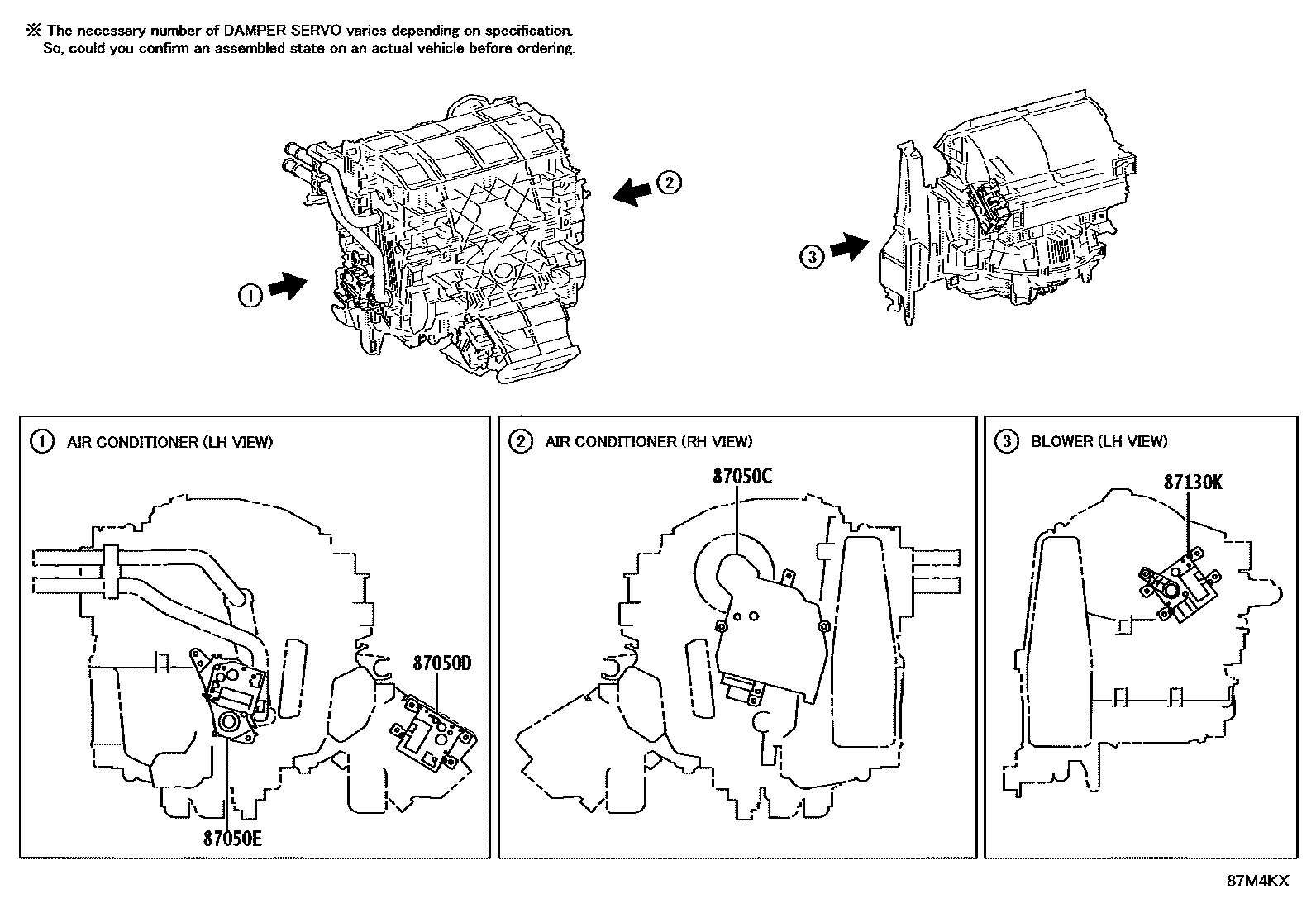

| 87050C | No. 1 air conditioner radiator damper servo mechanism sub-assembly | 87106-42230 · 87106-42240 · 87106-48170 |
| 87050D | No. 2 air conditioner radiator damper servo mechanism sub-assembly | 87106-33340 · 87106-48200 |
| 87050E | No. 3 air conditioner radiator damper servo mechanism sub-assembly | 87106-33310 |
| 87103B | Blower motor sub-assembly with fan | 87103-52290 · 87103-52310 · 87103-78040 |
| 87107A | Heater radiator device sub-assembly | 87107-33130 · 87107-33140 |
| 87114B | heater cover | 87114-33050 |
| 87124C | heater clip | 87124-33070 |
| 87128 | heater seal | 87128-28010 |
| 87130D | Blower assembly | 87130-33281 · 87130-42491 · 87130-V1010 |
| 87130K | No. 1 blower damper servo mechanism sub-assembly | 87106-33320 · 87106-33330 · 87106-58050 |
| 87139C | air purification filter | 87139-33040 · 87139-76020 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-33340 · 88501-33350 |
| 88515 | Cooler expansion valve | 88515-52120 · 88515-58050 |
| 88539J | Cooler drain hose | 88539-33170 · 88539-33180 |
| 88548B | air filter housing | 88899-33120 · 88899-76020 |
| 88625 | Cooler No. 1 Thermistor | 88620-28050 |
| 88650N | Air conditioning amplifier assembly | 886H0-33010 · 886H0-33020 · 886H0-33030 |
| 88897L | Seal (for discharge hose) | 88888-47010 |
| 88897M | Seals (for heater tubes) | 87128-33020 |
| 88899L | Cooling unit parts | 88899-33080 |
| 88899M | cover (for air cleaner) | 88899-47120 |
