Toyota CAMRY 车载电话和呼救装置 — Figure 8615

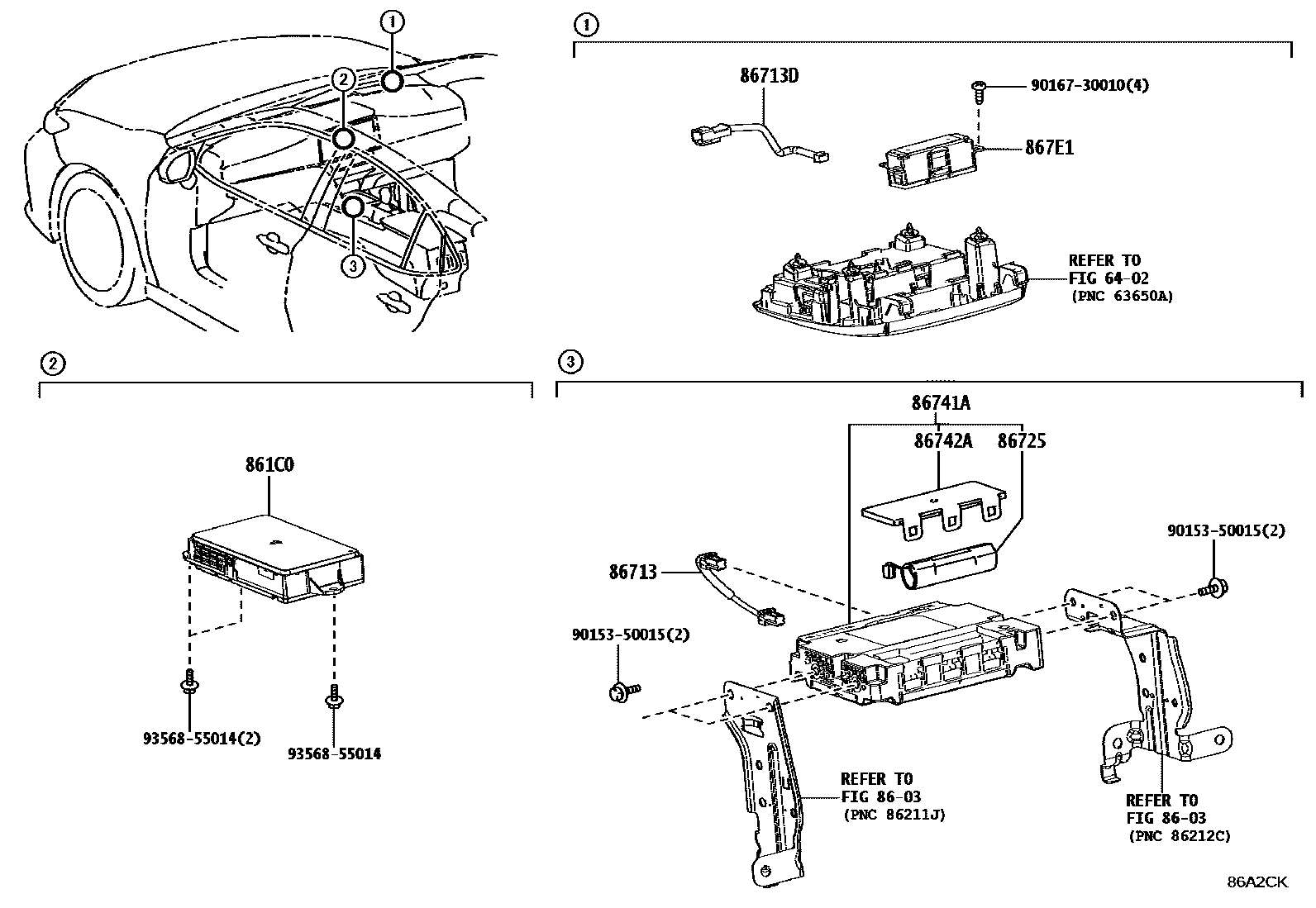

Toyota CAMRY EPC diagram 8615, 车载电话和呼救装置, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 861C0 | ENSEMBLE CHASSIS, CHARGEUR SANS FIL PORTABLE | 861C0-58050 |
| 86713 | Telephone ECU wiring harness | 86713-33240 |
| 86713D | Distress signal wiring harness | 86713-33120 |
| 86725 | mobile phone battery | 86725-06020 · 86725-78010 · 86725-78011 |
| 86741A | Telecommunications transceiver | 86740-33320 · 86740-78200 · 86740-78210 · 86740-78220 · 86741-78150 · 86741-78250 |
| 86742A | transceiver cover | 86742-0D020 · 86742-78010 |
| 867E1 | BOITIER, TELEMATIQUE COMMUNICATION | 867E1-60020 |
