Toyota CAMRY 收音机、放大器和冷凝器 — Figure 8601

Toyota CAMRY EPC diagram 8601, 收音机、放大器和冷凝器, with 1 images and 8 PNC and OE references.

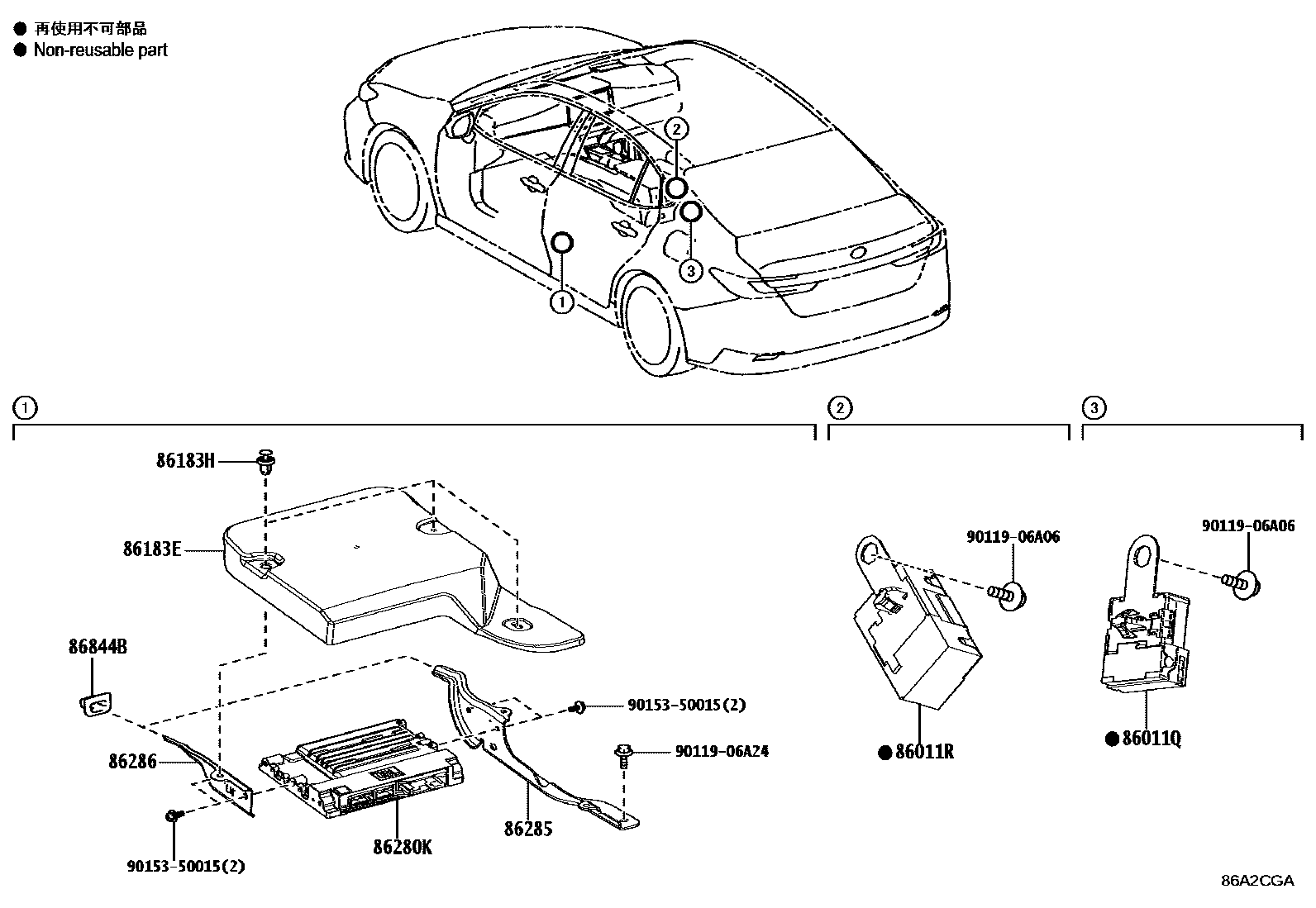

Toyota CAMRY 收音机、放大器和冷凝器 EPC diagram — 86A2CGA
收音机、放大器和冷凝器 — 86A2CGA (202406 – 999999)

PNC and OE references

PNCPart nameOE numbers
86011Qradio settings phase modulator90980-04213
86011Rradio settings phase modulator90980-04211
86183Eaudio amplifier cover86183-33130
86183HATTACHE, CACHE AMPLIFICATEUR AUDIO90467-07214
86280KStereo parts amplifier assembly86280-33480
86285Amplifier Stand No. 186285-33200
86286Amplifier Stand No. 286286-33210
86844BARRETOIR, COUVERCLE DES ENCEINTES55217-32010
