Toyota CAMRY 前大灯清洗器 — Figure 8505

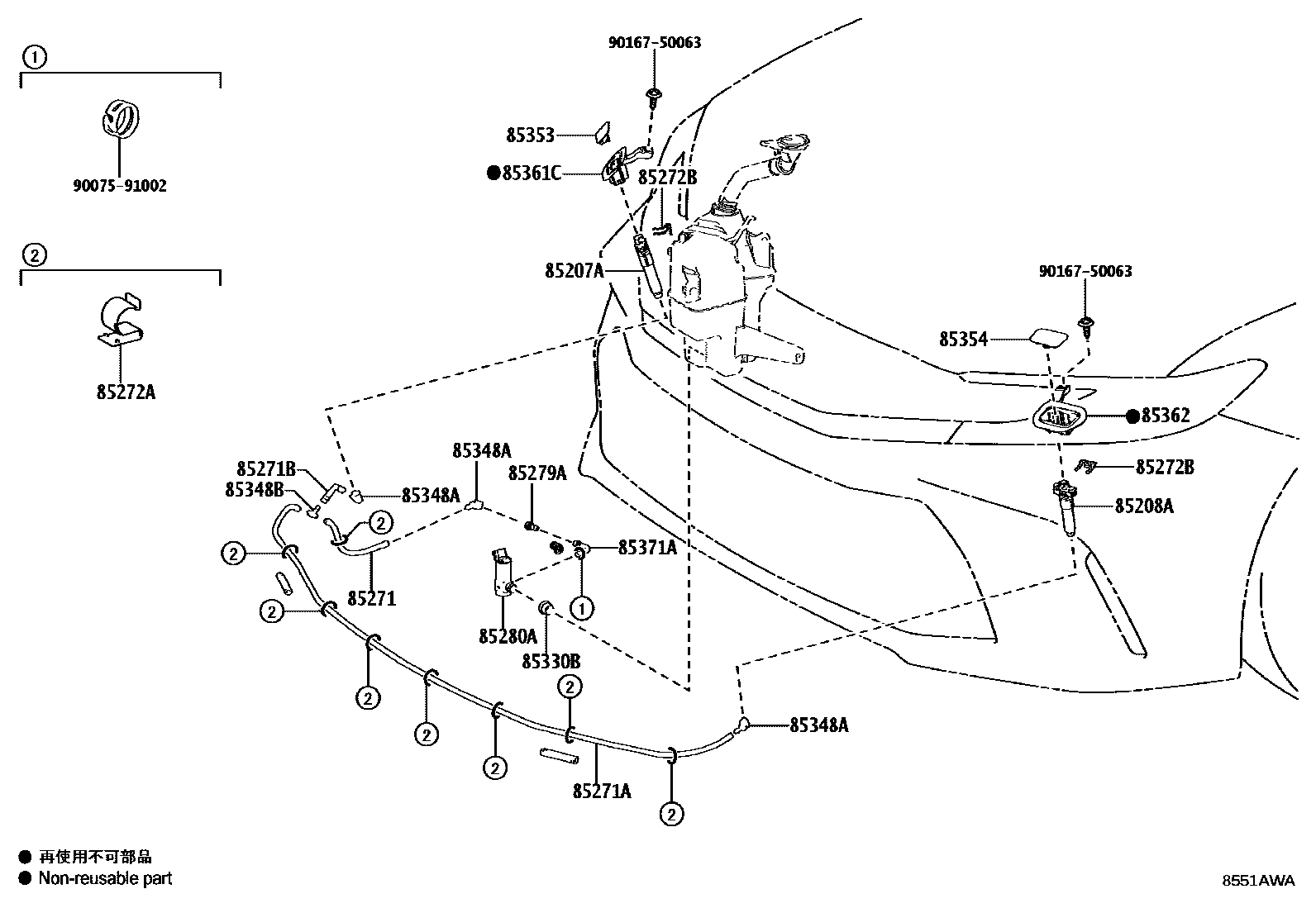

Toyota CAMRY EPC diagram 8505, 前大灯清洗器, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85207A | Right headlight washer actuator sub-assembly | 85207-33160 |
| 85208A | Left headlight washer actuator sub-assembly | 85208-33160 |
| 85271 | No. 1 headlight washer hose | 90075-15098 |
| 85271A | No. 2 headlight washer hose | 90075-15073 |
| 85271B | No. 3 headlight washer hose | 90075-15055 |
| 85272A | Headlight washer No. 1 clip | 90075-90516 |
| 85272B | Headlight washer clip No. 2 | 85272-75050 |
| 85279A | Headlight washer hose connector | 90075-17012 |
| 85280A | Headlight washer motor and pump assembly | 85280-47010 |
| 85330B | Headlight washer washer fluid tank bushing | 90099-32089 |
| 85348A | Headlight washer hose connector No. 1 | 90075-17009 |
| 85348B | No. 2 headlight washer hose connector | 90075-17020 |
| 85361C | Cleaner stand | 85361-33060 |
| 85362 | RONDELLE PLATINE FIXATION, NO.2 | 85362-33060 |
| 85371A | Headlight washer hose (from motor to connector) | 90075-15059 |
