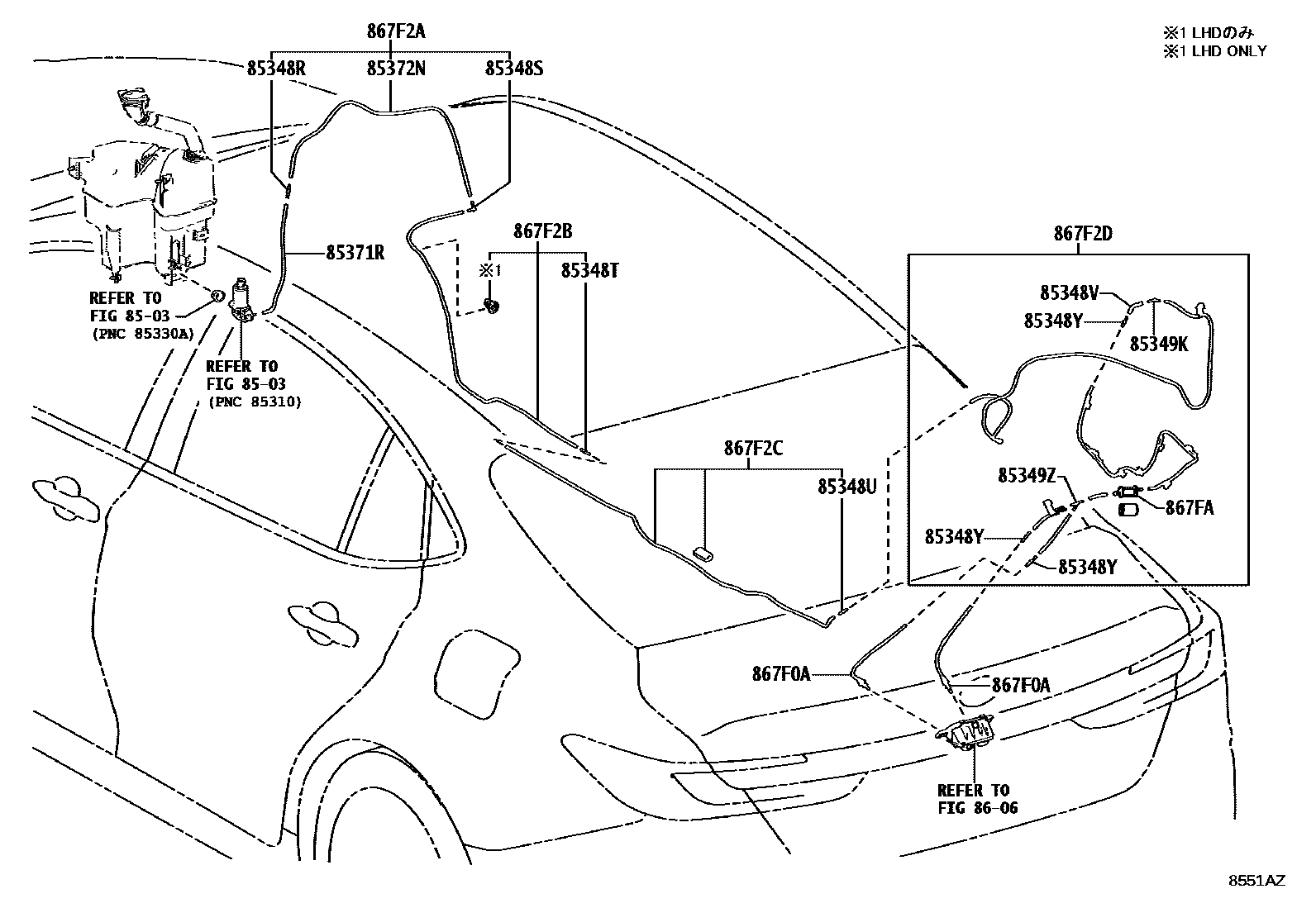

Toyota CAMRY 后清洗器 — Figure 8504
Toyota CAMRY EPC diagram 8504, 后清洗器, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85348R | No. 1 rear washer hose connector | 85349-89122 |
| 85348S | No. 1 rear cleaner elbow joint | 85355-20200 |
| 85348T | No. 2 rear washer hose connector | 85376-V2070 |
| 85348U | No. 3 rear washer hose connector | 85376-V2070 |
| 85348V | No. 4 rear washer hose connector | 867FD-30020 |
| 85348Y | No. 5 rear washer hose connector | 85376-V2070 |
| 85349K | No. 2 rear cleaner elbow joint | 85395-16030 |
| 85349Z | No. 6 rear washer hose connector | 867FD-30040 |
| 867F0A | ENS. BUSE, NETTOYEUR CAMERA, NO.1 | 867F0-30030 |
| 867F2A | ENS. FLEXIBLE, NETTOYEUR CAMERA | 867F2-33080 |
| 867F2B | FLEX, NETTOYEUR CAMERA, NO.1 | 867F2-33090 · 867F2-33100 · 867F2-33230 |
| 867F2C | FLEXIBLE, NETTOYEUR CAMERA, NO.2 | 867F2-33120 |
| 867F2D | FLEXIBLE, NETTOYEUR CAMERA, NO.3 | 867F2-33150 |
| 867FA | FILTRE, FLEXIBLE NETTOYEUR | 867FA-30030 |
