Toyota CAMRY 遥控门锁 — Figure 8420

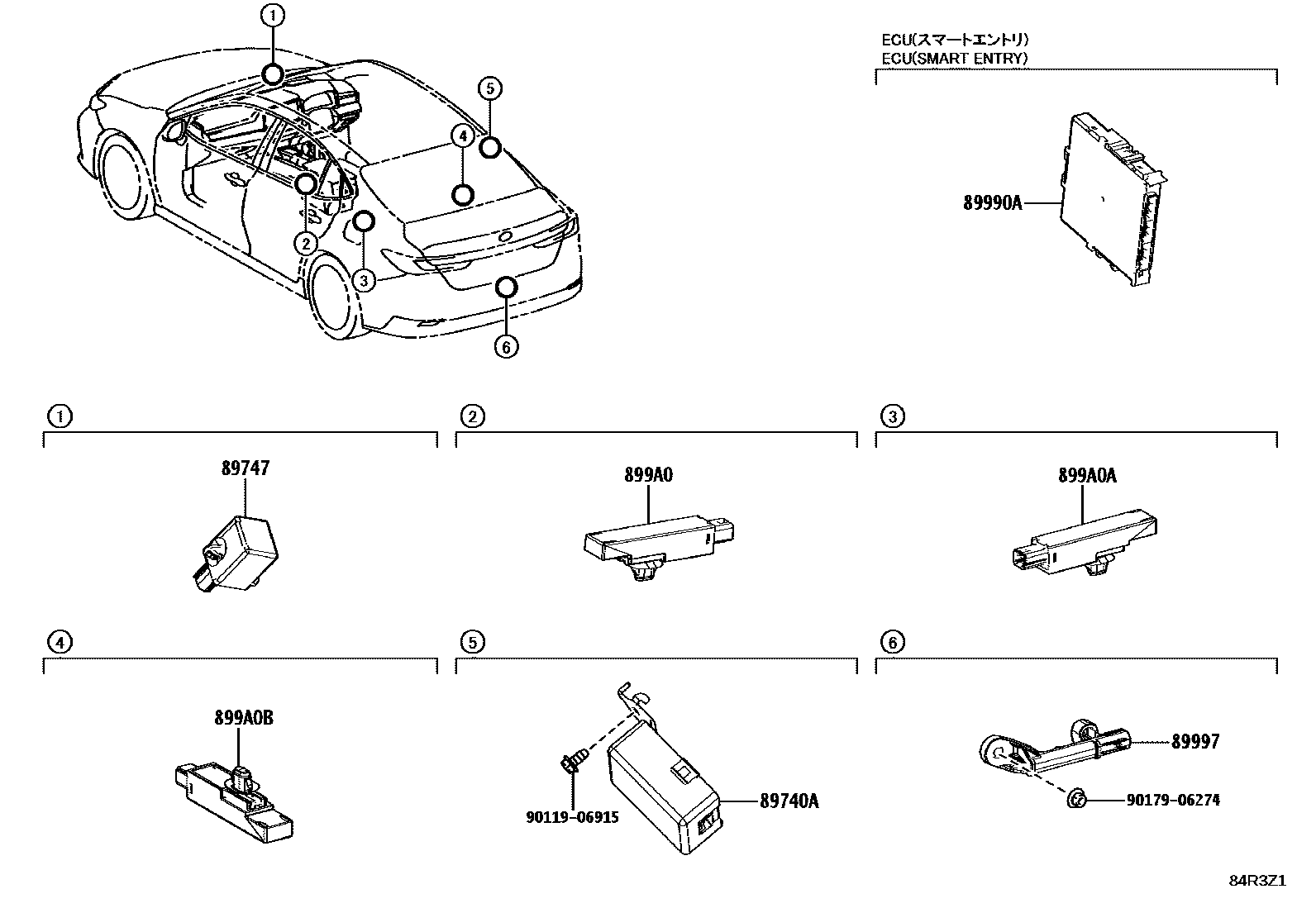

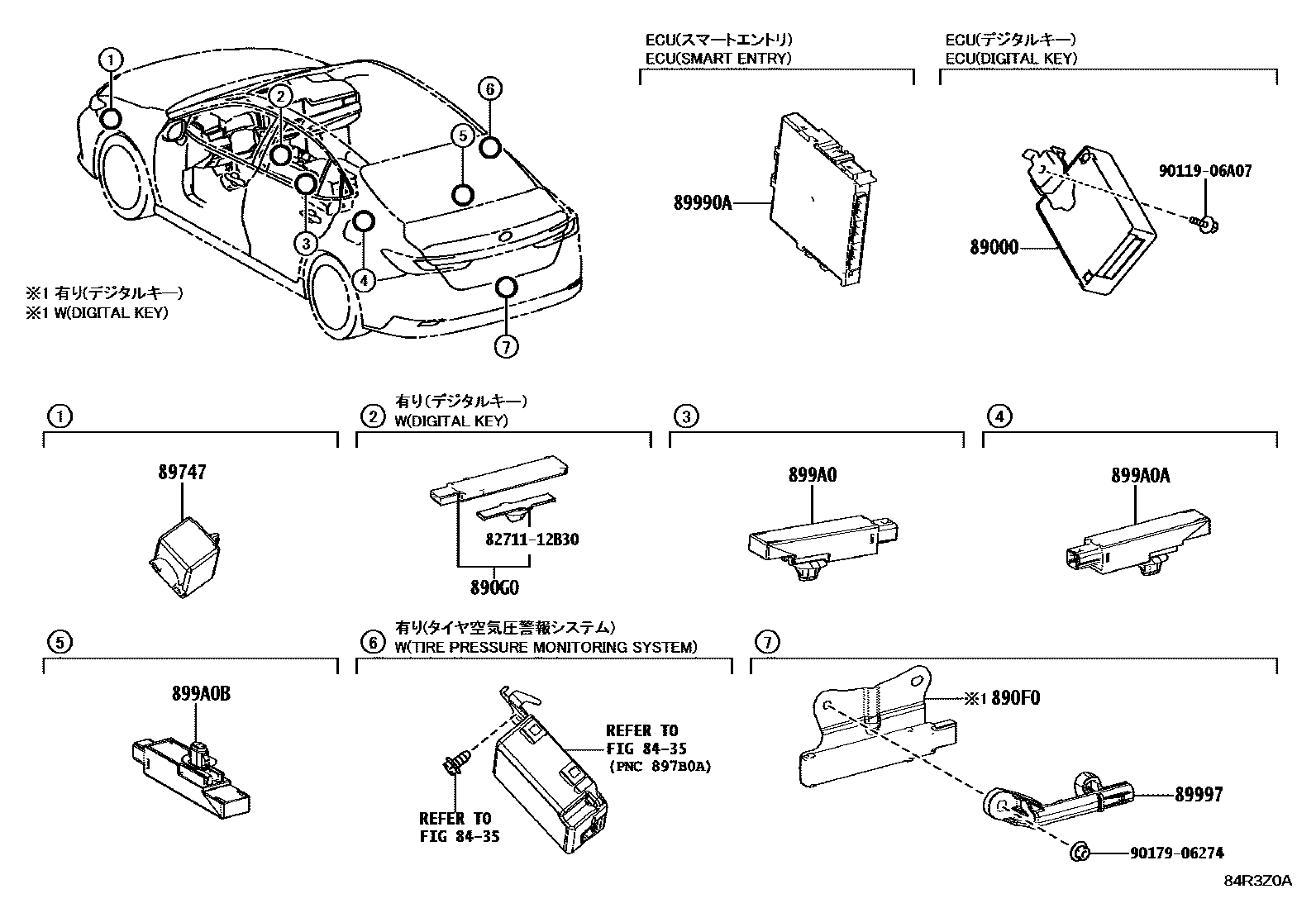

Toyota CAMRY EPC diagram 8420, 遥控门锁, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89000 | ENS. ORDINATEUR, CLE NUMERIQUE | 89000-33100 |
| 890F0 | ENS. RECEPTEUR, CLE NUMERIQUE DE COFFRE BLE | 890F0-47010 |
| 890G0 | ENS. RECEPTEUR, CLE NUMERIQUE INT BLE | 890G0-V1010 |
| 89740A | ENSEMBLE RECEPTEUR, COMMANDE INTELLIGENTE DES PORTES | 89740-33530 · 89740-33540 |
| 89747 | Remote door lock buzzer | 89747-30040 |
| 89990A | Smart key ECU assembly | 899H0-33200 · 899H0-33210 · 899H0-33220 |
| 89997 | electronic key antenna | 89997-30100 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-12130 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-12130 |
| 899A0B | Electronic key antenna assembly in car No. 3 | 899A0-12130 |
