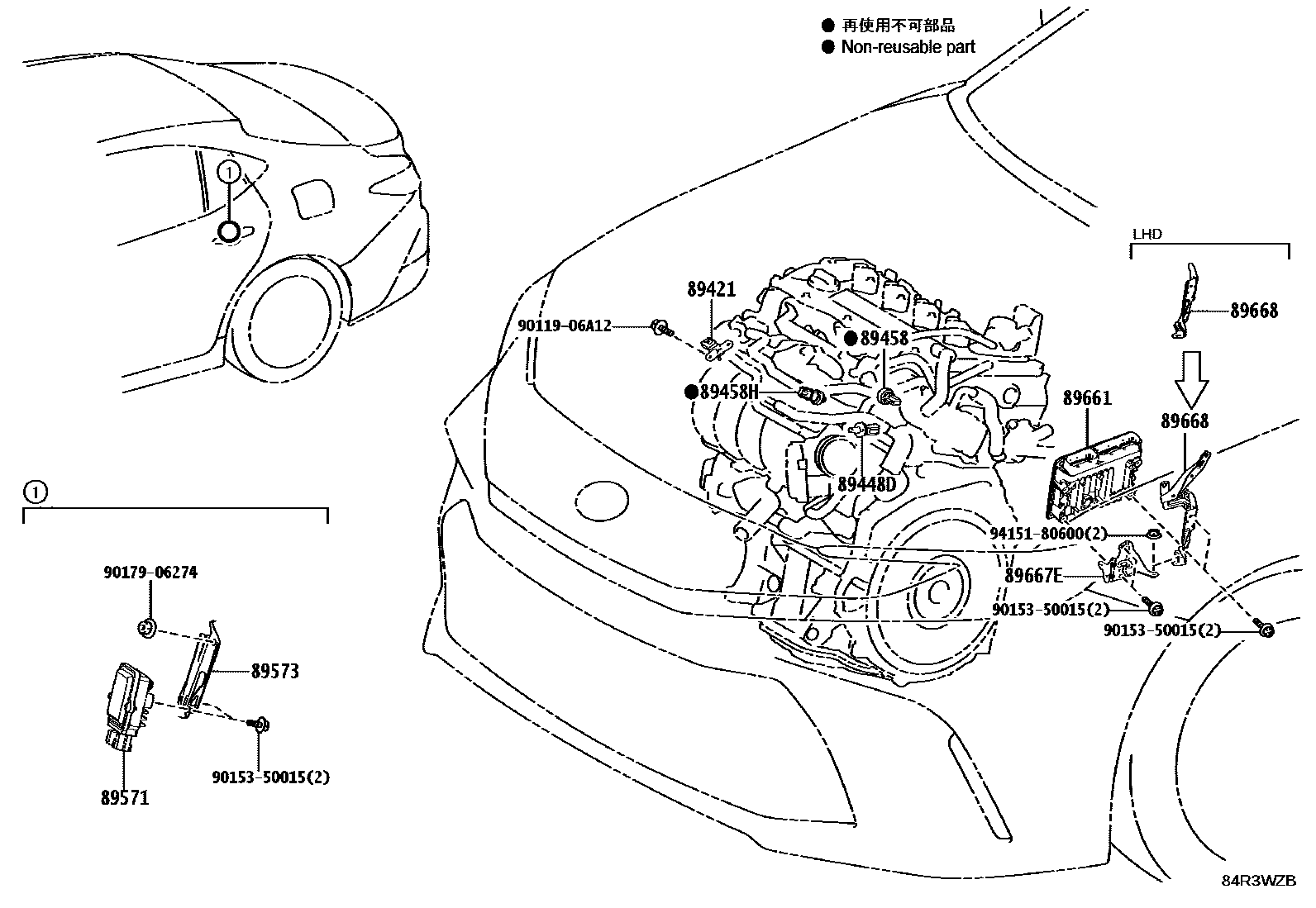

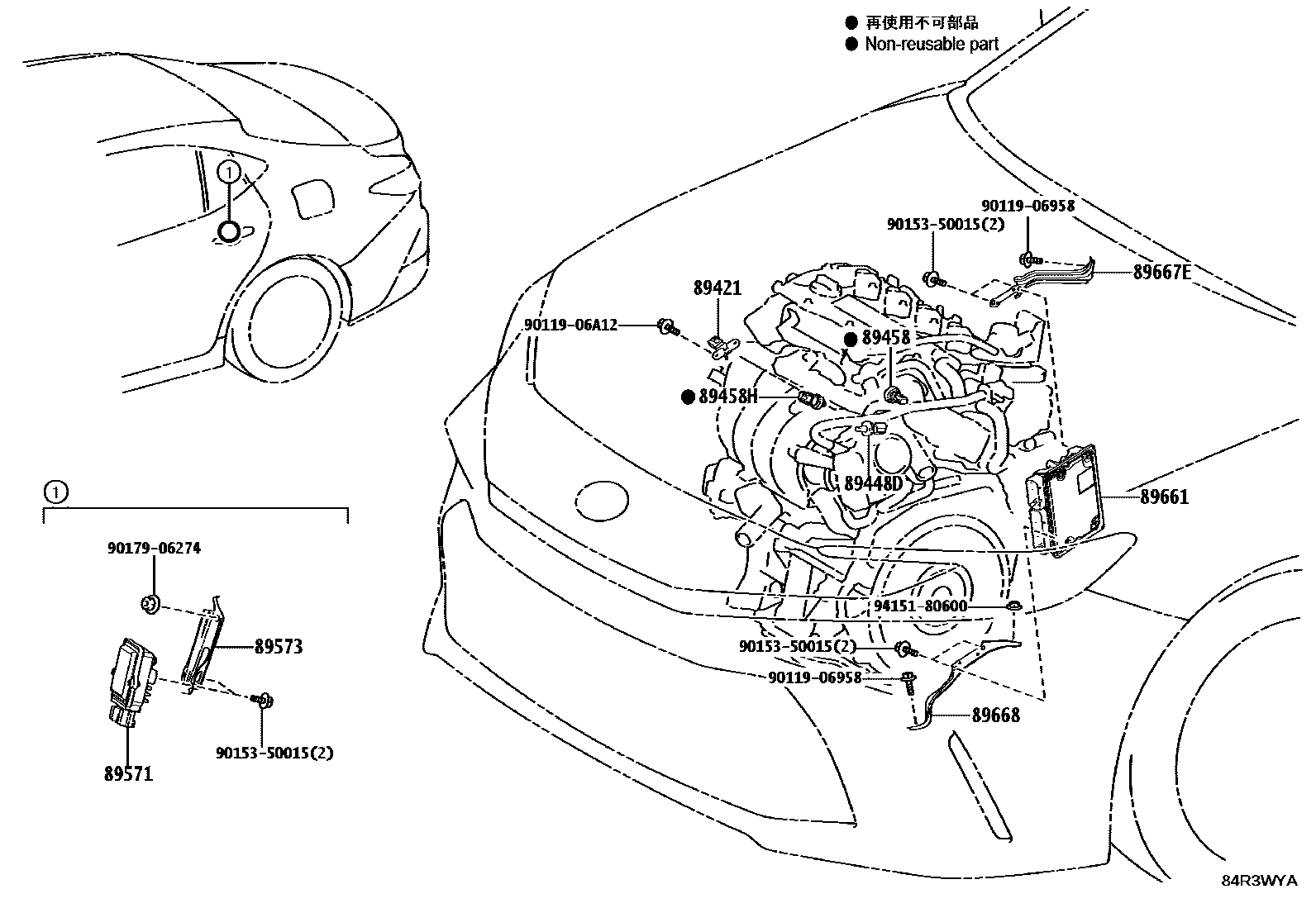

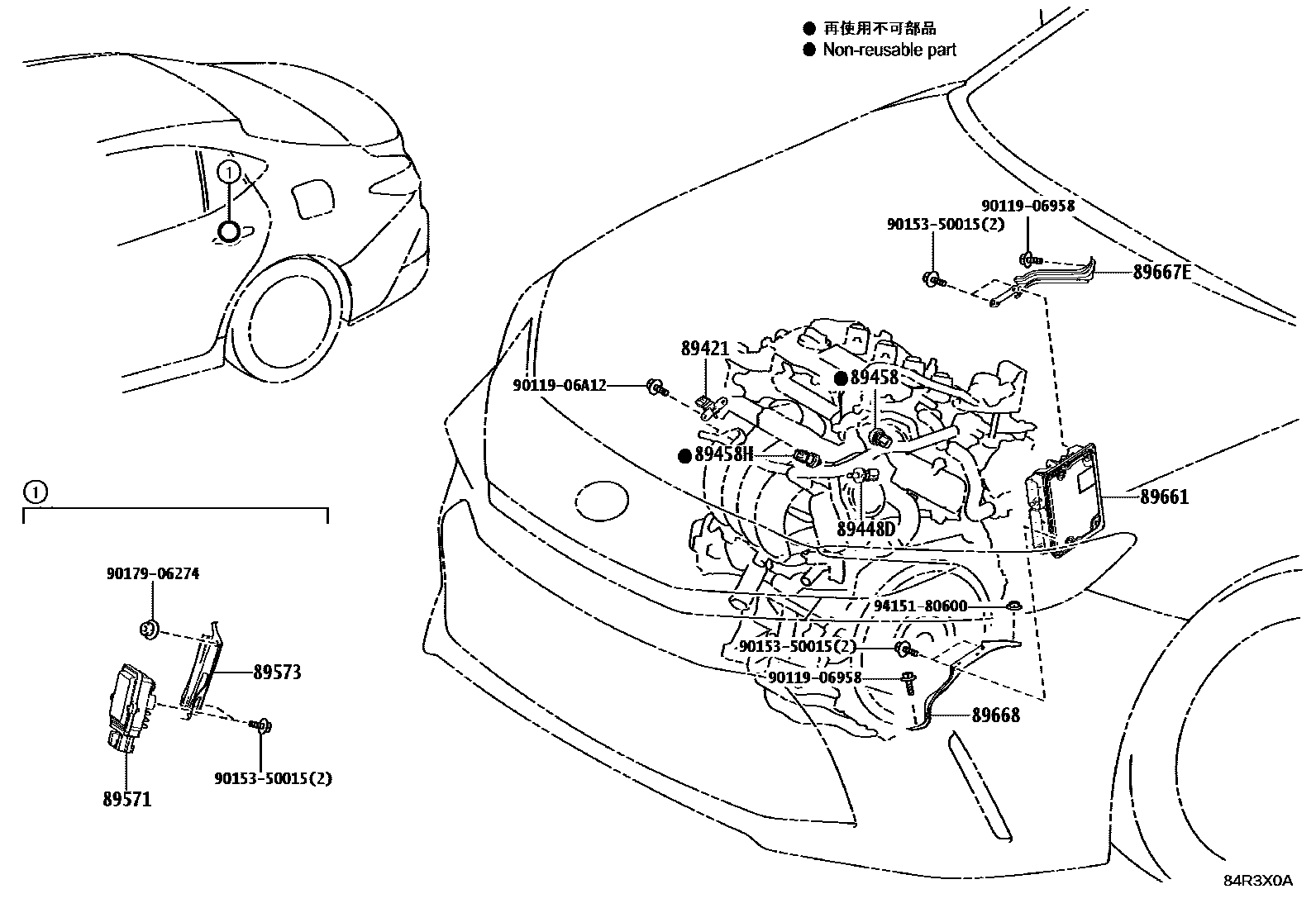

Toyota CAMRY 电子燃油喷射系统 — Figure 8404
Toyota CAMRY EPC diagram 8404, 电子燃油喷射系统, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89421 | Vacuum sensor assembly (for E.F.I.) | 89421-33010 |
| 89448D | CAPTEUR, PRESSION & TEMPERATURE HUILE | 89448-33010 |
| 89458 | fuel pressure sensor | 89458-33030 |
| 89458H | CAPTEUR, PRESSION ESSENCE, NO.2 | 89458-33042 |
| 89571 | Fuel pump control ECU | 89571-42010 |
| 89573 | Fuel pump control ECU bracket | 89573-33070 |
| 89661 | Engine control ECU | 89661-3TM20 · 89661-3TM30 · 89661-3TM40 · 89661-3TM50 |
| 89667E | No. 1 engine control ECU bracket | 89667-33190 · 89667-33300 |
| 89668 | No. 2 engine control ECU bracket | 89668-33240 · 89668-33300 · 89668-33310 |
