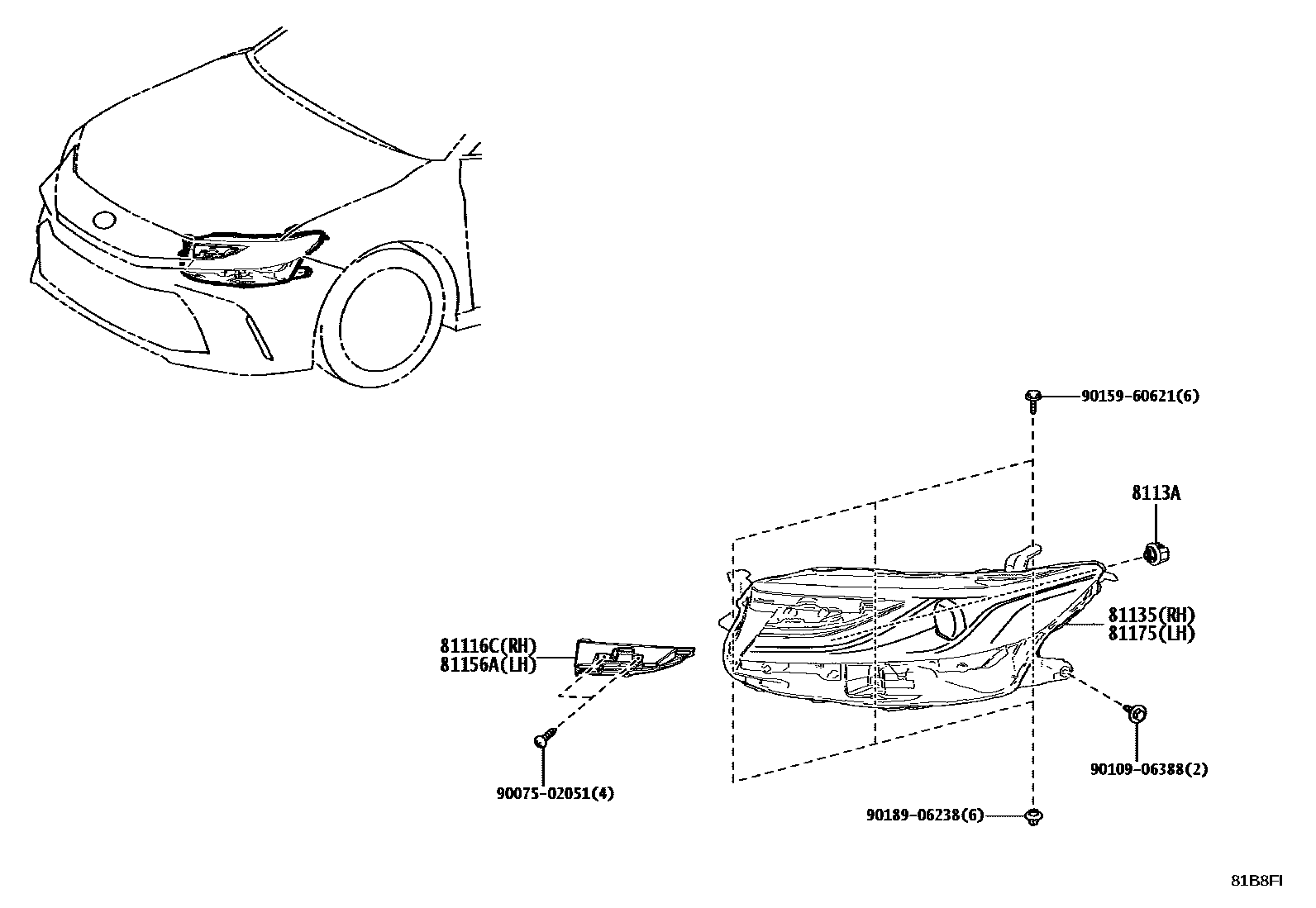

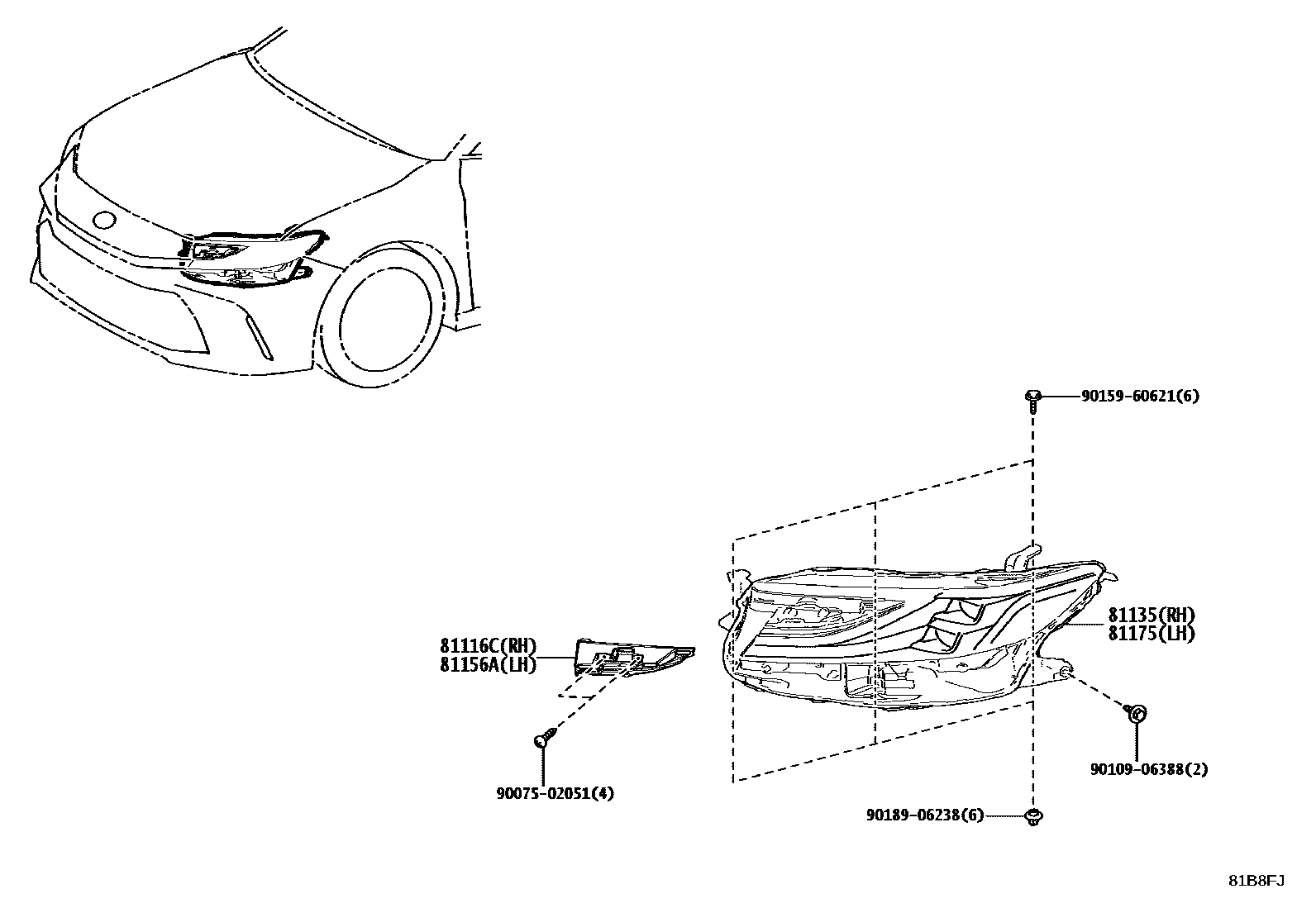

Toyota CAMRY Headlamp — Figure 8101
Toyota CAMRY EPC diagram 8101, Headlamp, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81116C | Right headlight bracket | 81116-33N30 |
| 81135 | Right headlight assembly | 81140-33N30 · 81140-33N40 · 81140-33N50 · 81140-33N60 · 81140-33N70 |
| 8113A | LED, CLIGNOTANT AV PHARE | 81965-48030 |
| 81156A | Left headlight bracket | 81156-33N30 |
| 81175 | Left headlight assembly | 81070-33N30 · 81070-33N40 · 81070-33N50 · 81070-33N60 · 81070-33N70 |
