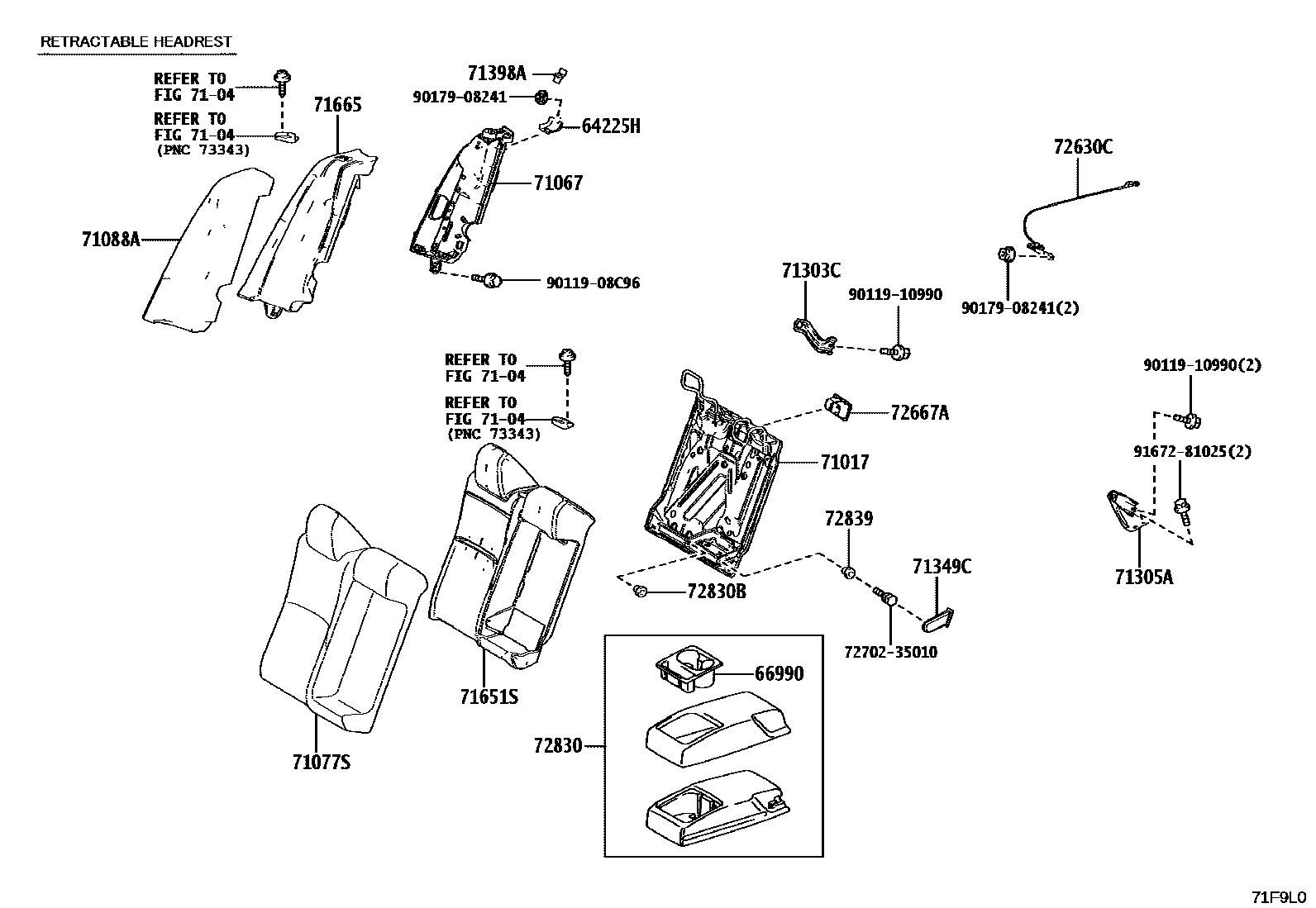

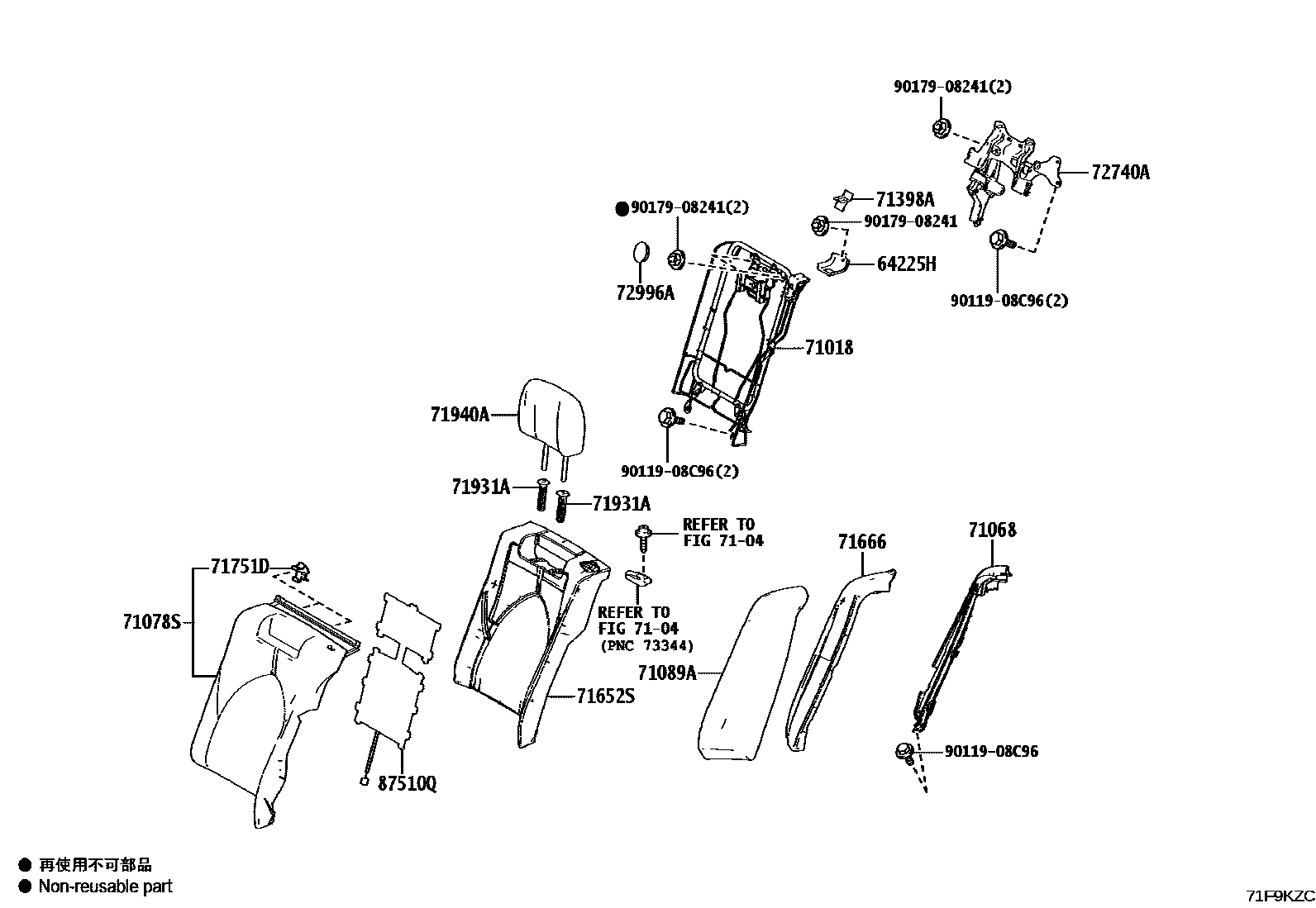

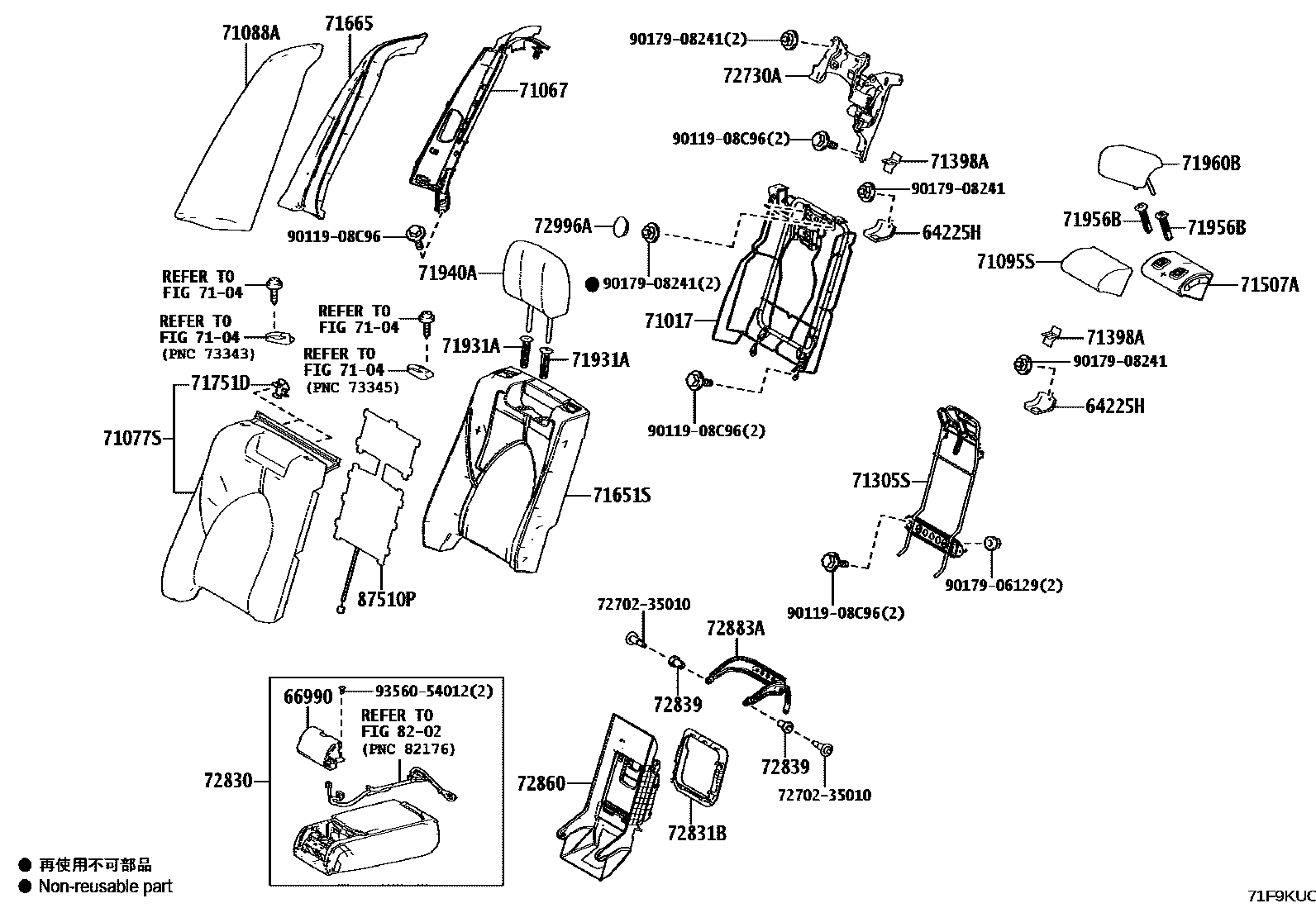

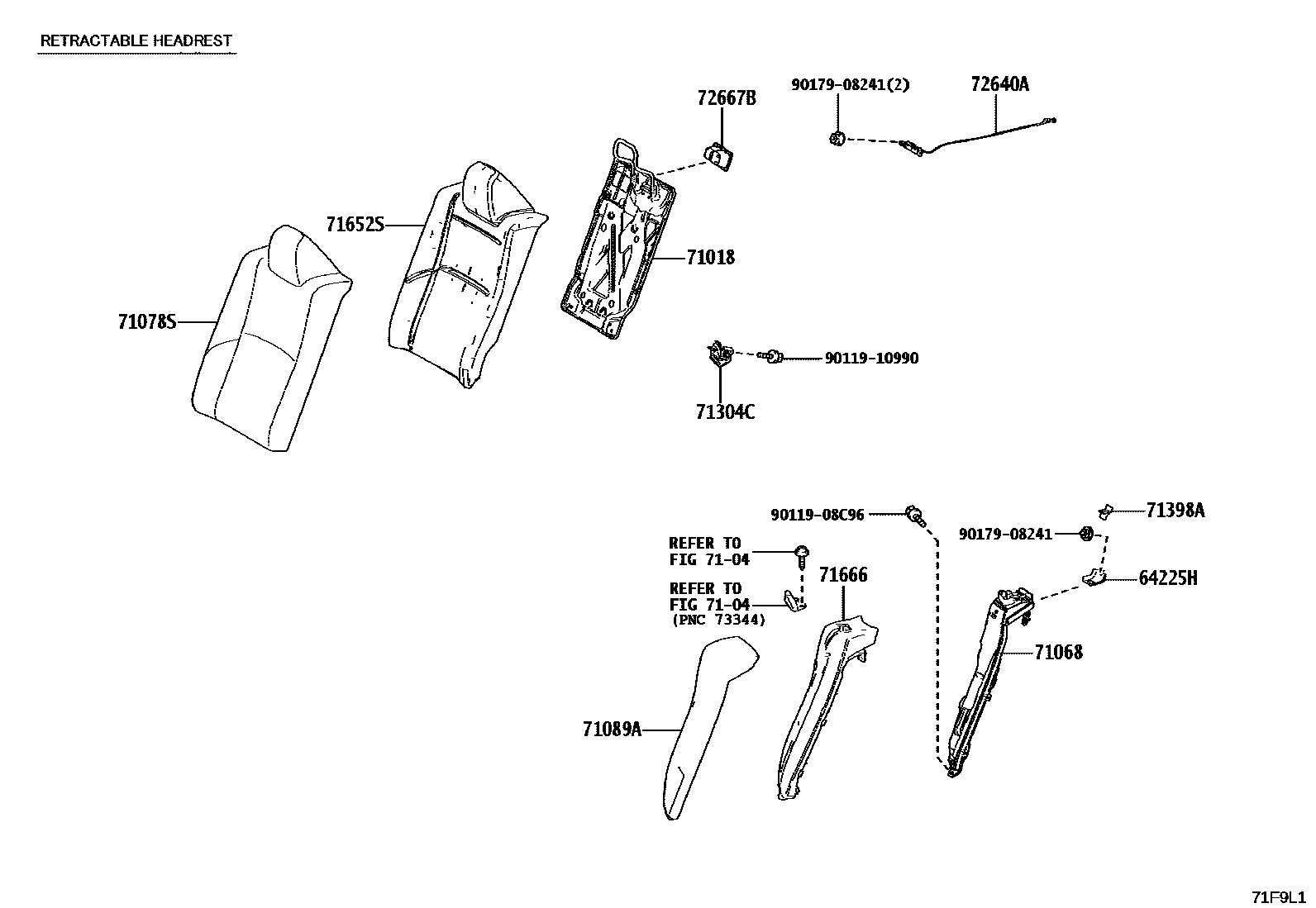

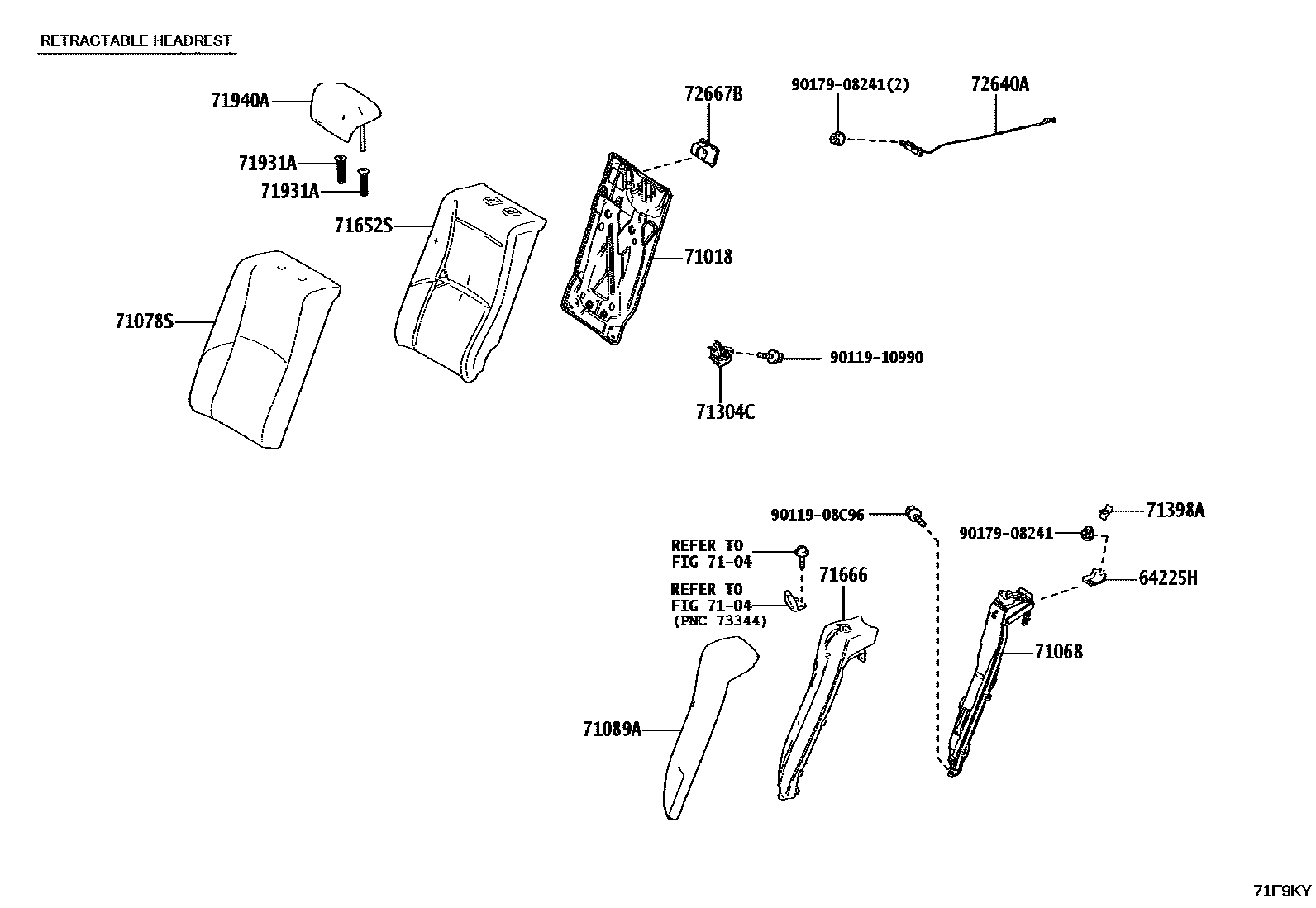

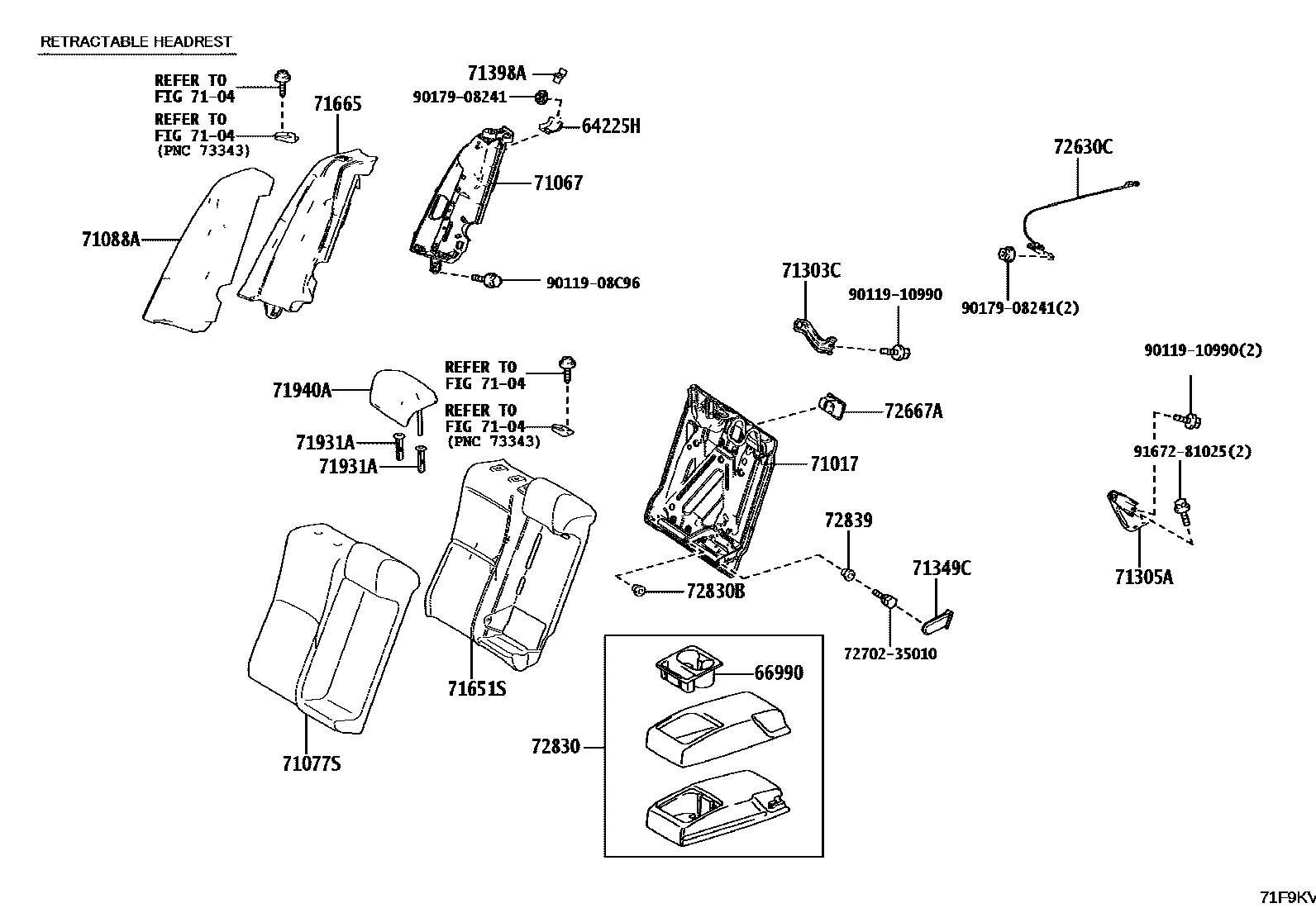

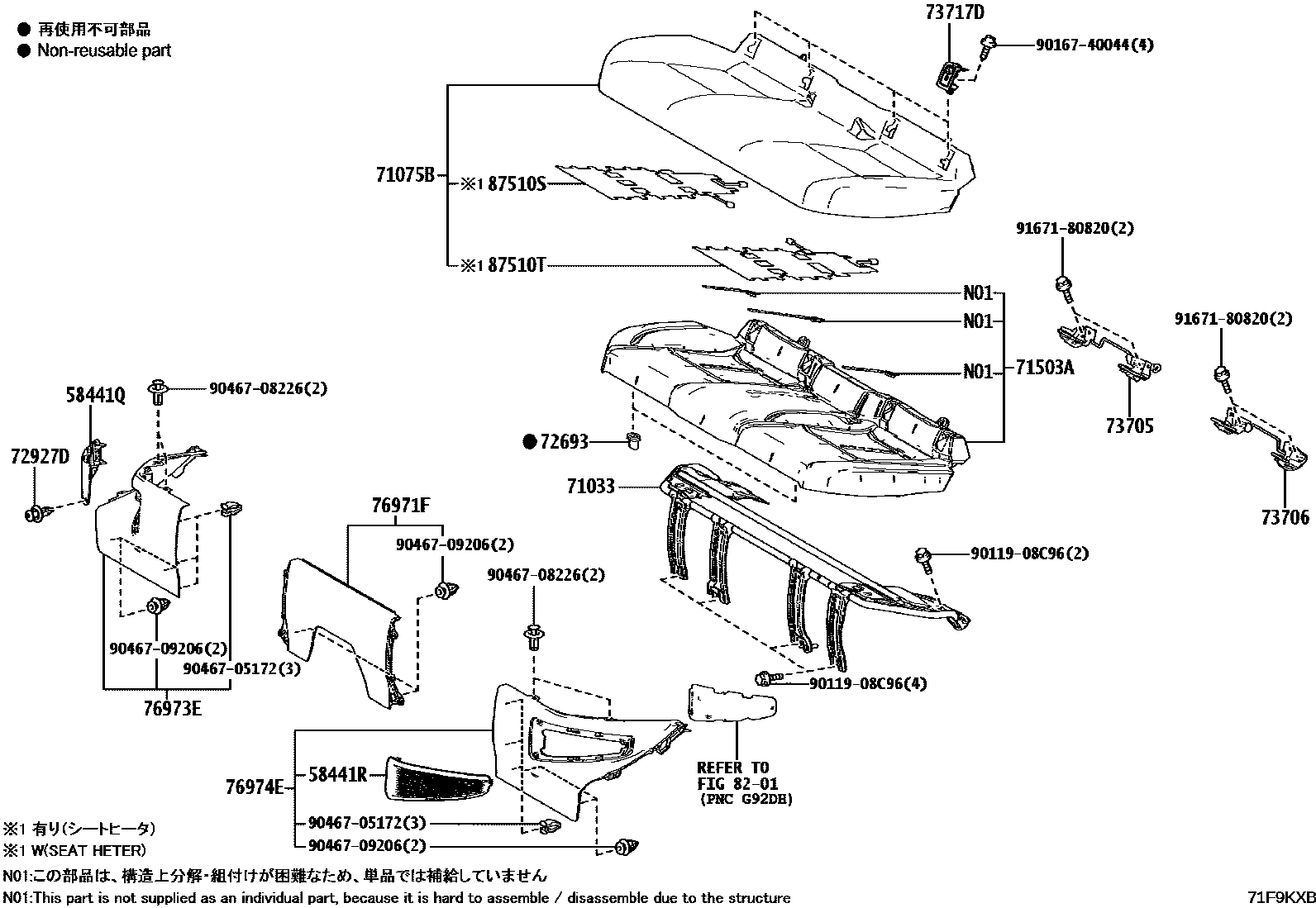

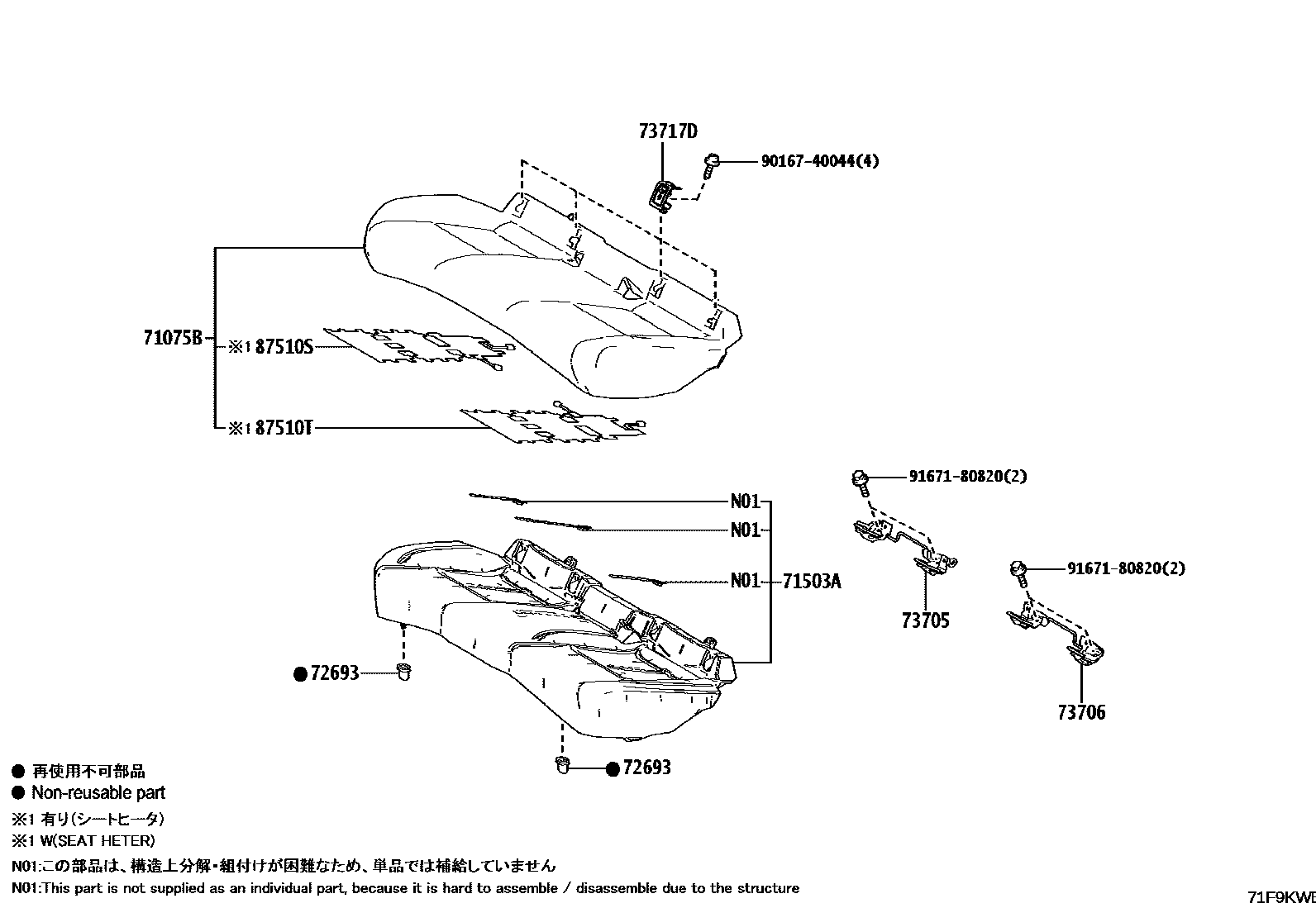

Toyota CAMRY 后排座椅和座椅滑轨 — Figure 7102
Toyota CAMRY EPC diagram 7102, 后排座椅和座椅滑轨, with 8 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64225H | CROCHET SUPPORT COUSSIN BANQUETTE ARRIERE | 64225-33050 |
| 71017 | Right rear seat back frame sub-assembly | 71017-33231 · 71017-33241 · 71017-33250 |
| 71018 | Rear left seat back frame sub-assembly | 71018-33160 · 71018-33170 · 71018-33180 |
| 71033 | Rear seat cushion and leg sub-assembly | 71033-33040 |
| 71067 | Rear right side seat back frame sub-assembly | 71067-33030 · 71067-33050 |
| 71068 | Rear left side seat back frame sub-assembly | 71068-33030 · 71068-33050 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-33080 |
| 71304C | Rear left seat back hinge sub-assembly | 71304-33020 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-33110 |
| 71305S | Center seat back frame sub-assembly | 71305-33100 |
| 71398A | Rear seat back retainer | 71398-33010 |
| 71503A | SS-ENS. REMBOURRAGE, COUSSIN SIEGE ARRIERE | 71503-33360 · 71503-33370 · 71509-33030 · 71509-33040 |
| 71507A | SOUS-ENS. REMB. DOSSIER SIEGE ARR | 71507-33100 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-33280 · 71651-33290 · 71651-33300 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-33190 · 71652-33200 · 71652-33210 |
| 71665 | Rear right seat backrest side cushion | 71665-33080 · 71665-33110 |
| 71666 | Rear left seat backrest side cushion | 71666-33090 · 71666-33120 |
| 71751D | Rear seat cover hanger | 71751-33050 |
| 72630C | Rear right seat back lock assembly | 72630-33080 |
| 72640A | Rear left seat back lock assembly | 72640-33090 |
| 72667A | ENJOLIVEUR, VERR ARR SIEGE ARR, SUP MD | 72667-33010 |
| 72667B | ENJOLIVEUR, VERR ARR SIEGE ARR, SUP MG | 72667-33010 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72730A | Rear right seat backrest tilt adjuster assembly | 72730-33070 |
| 72740A | Rear left seat backrest angle adjuster assembly | 72740-33060 |
| 72830B | Bushing (for rear seat center armrest) | 90386-06009 |
| 72831B | No. 1 rear seat center armrest panel | 72831-07030 |
| 72839 | Rear seat armrest hinge gasket | 72839-12010 |
| 72883A | Center armrest bracket for rear seat No. 1 | 72883-33060 |
| 73705 | Child restraint seat anchor right side bracket sub-assembly | 73705-33130 · 73705-33140 |
| 73706 | Child restraint seat anchor left bracket sub-assembly | 73706-33130 · 73706-33140 |
| 87510P | Seat heater assembly | 87530-33370 |
| 87510Q | Seat heater assembly | 87530-33380 |
| 87510S | Seat heater assembly | 87510-33660 |
| 87510T | Seat heater assembly | 87510-33670 |
