Toyota CAMRY 前排座椅和座椅滑轨 — Figure 7101

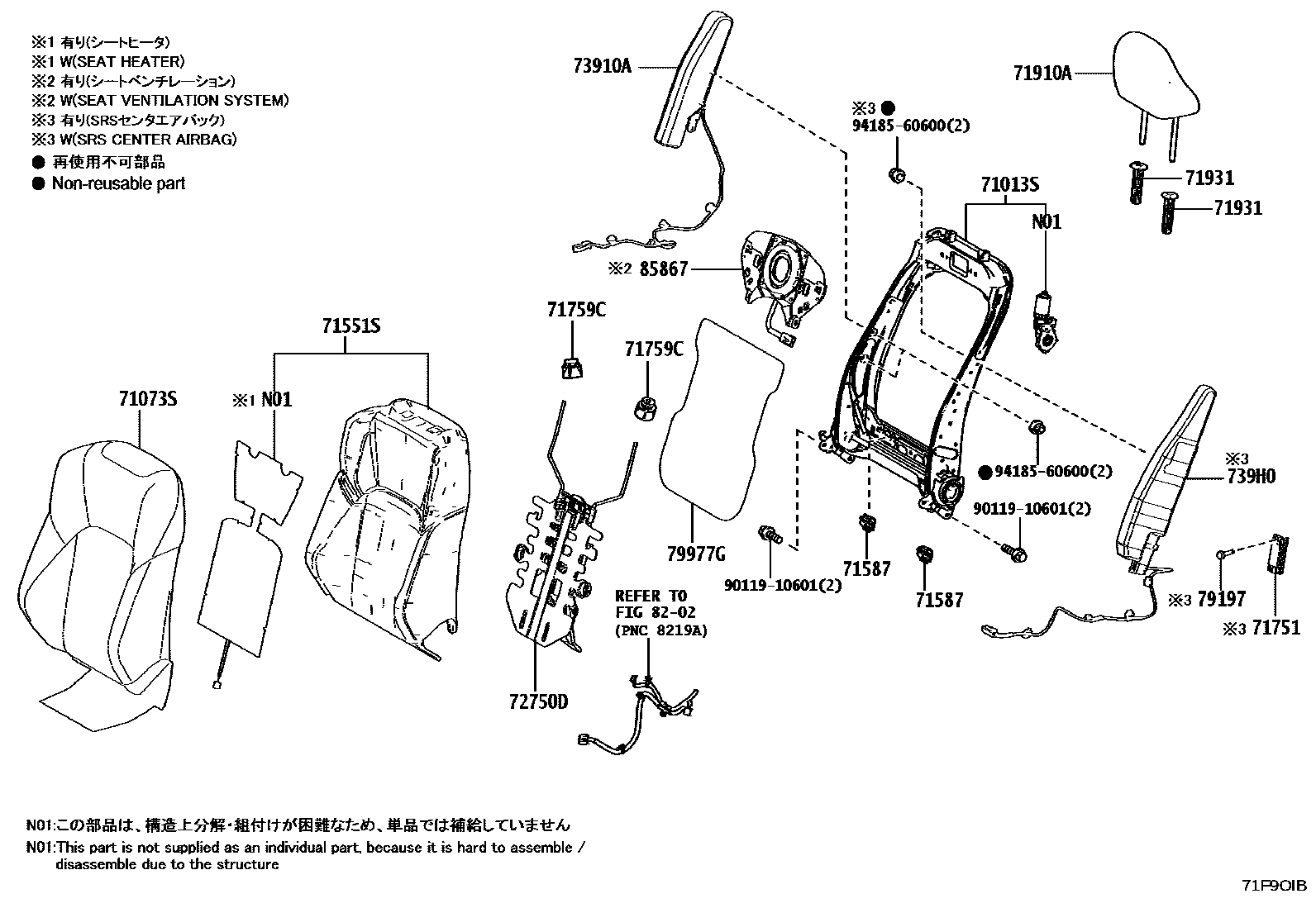

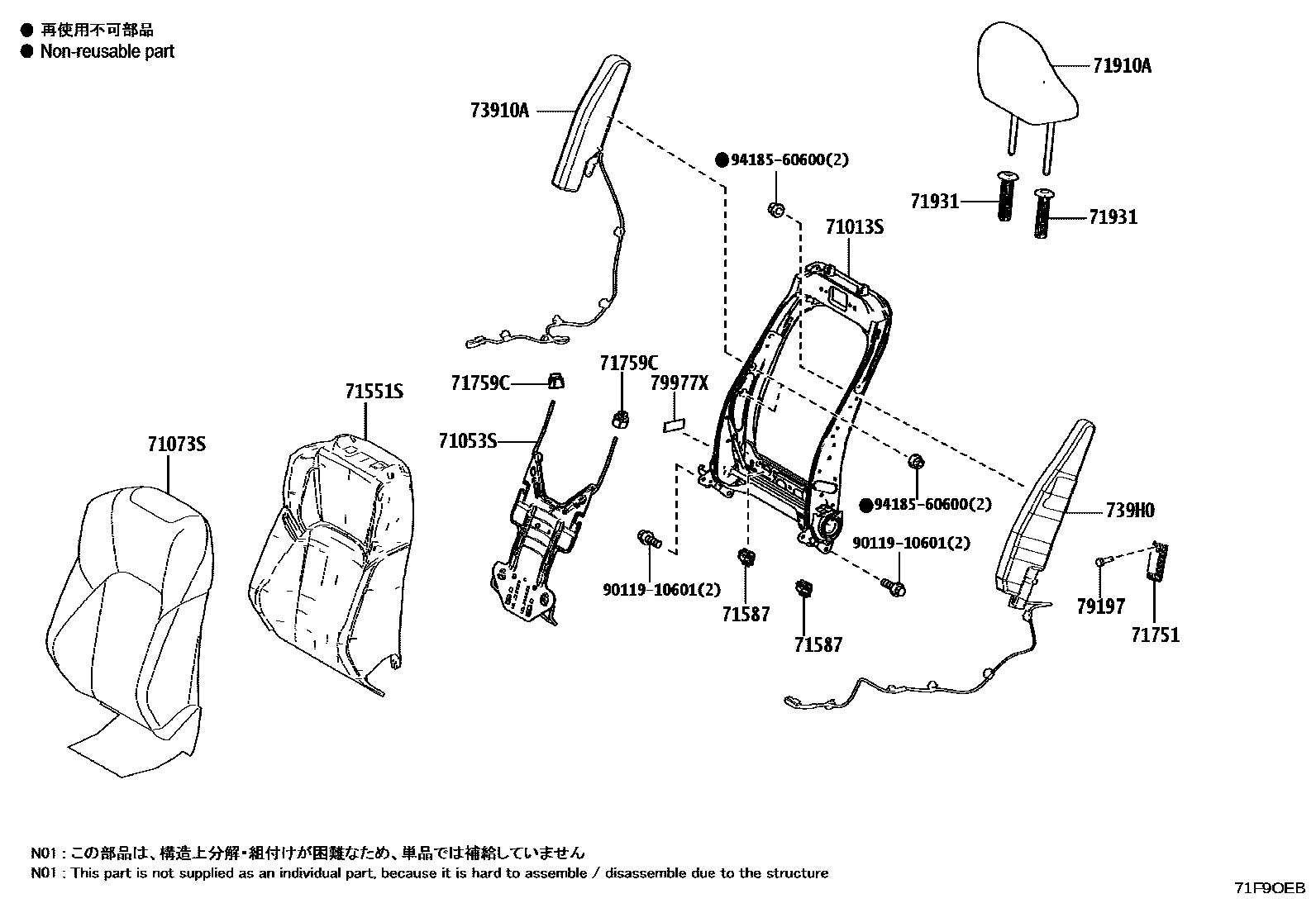

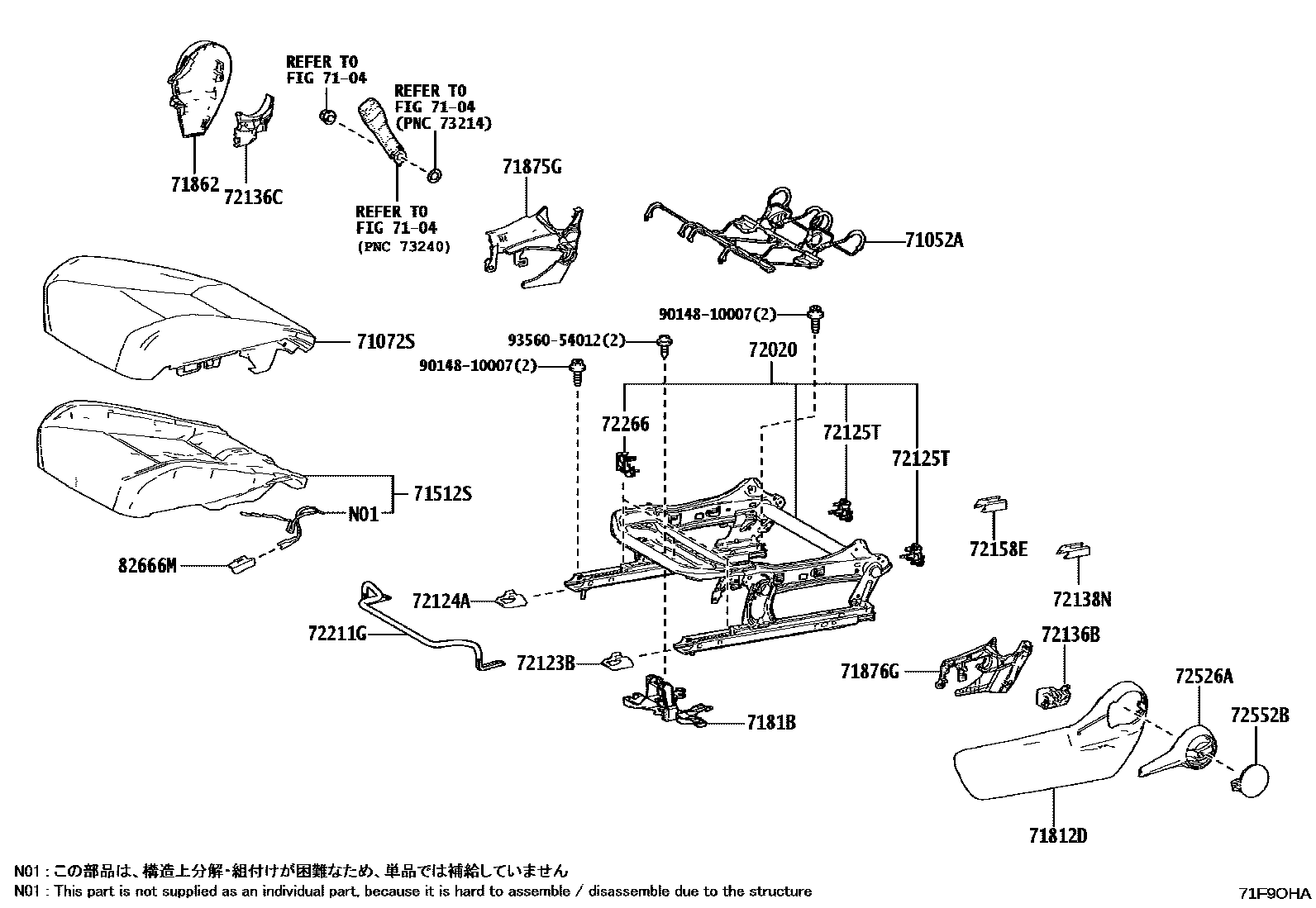

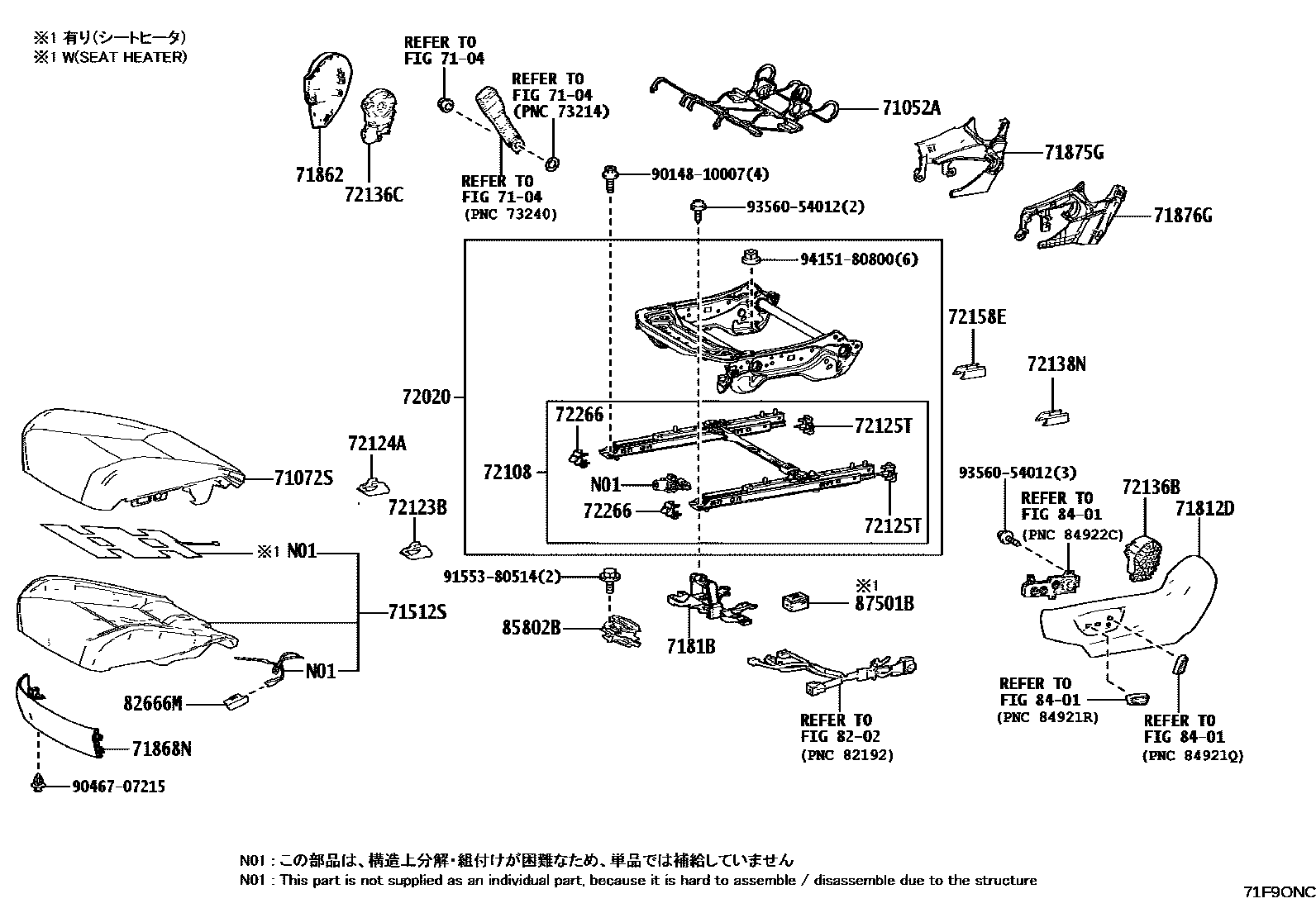

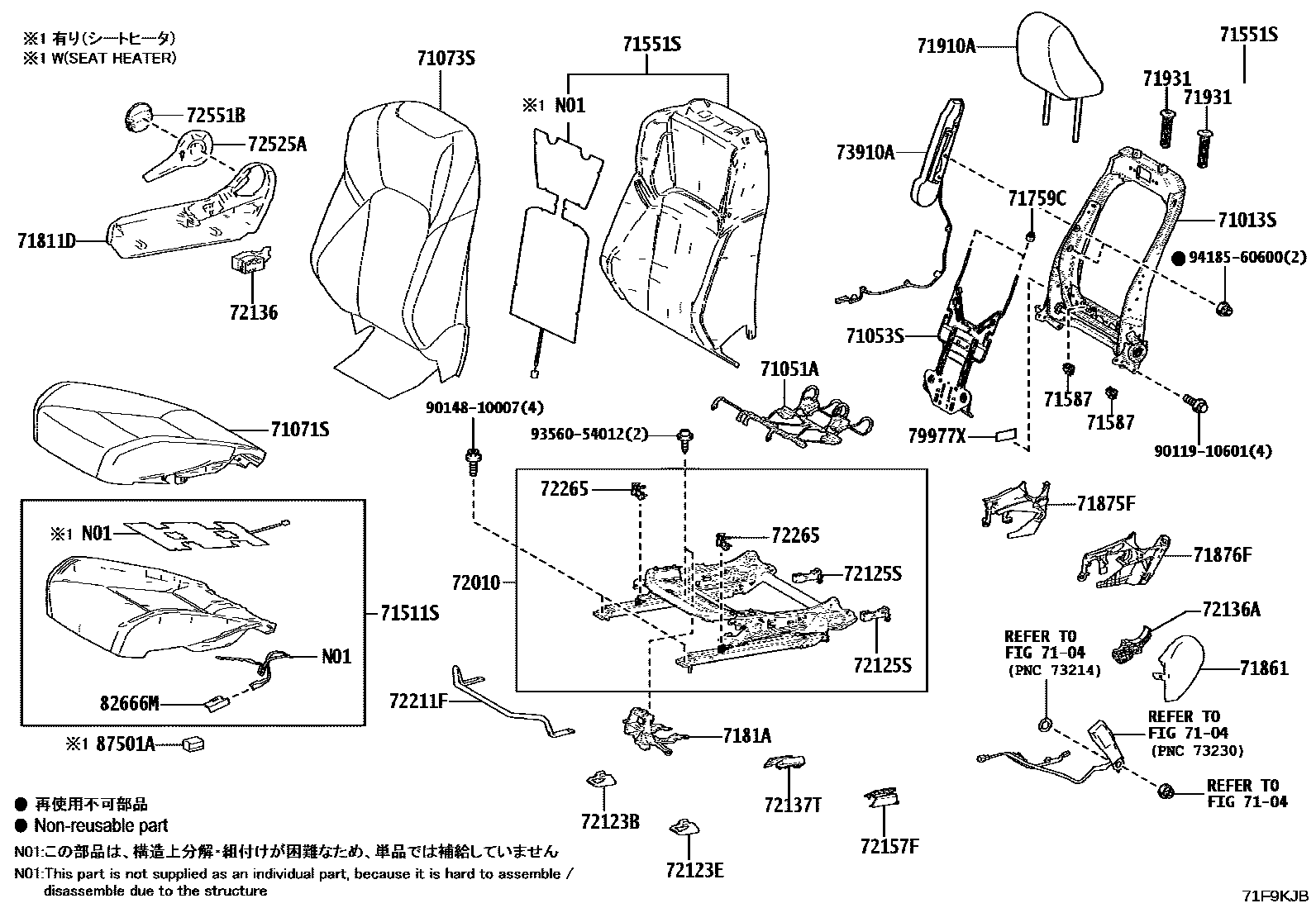

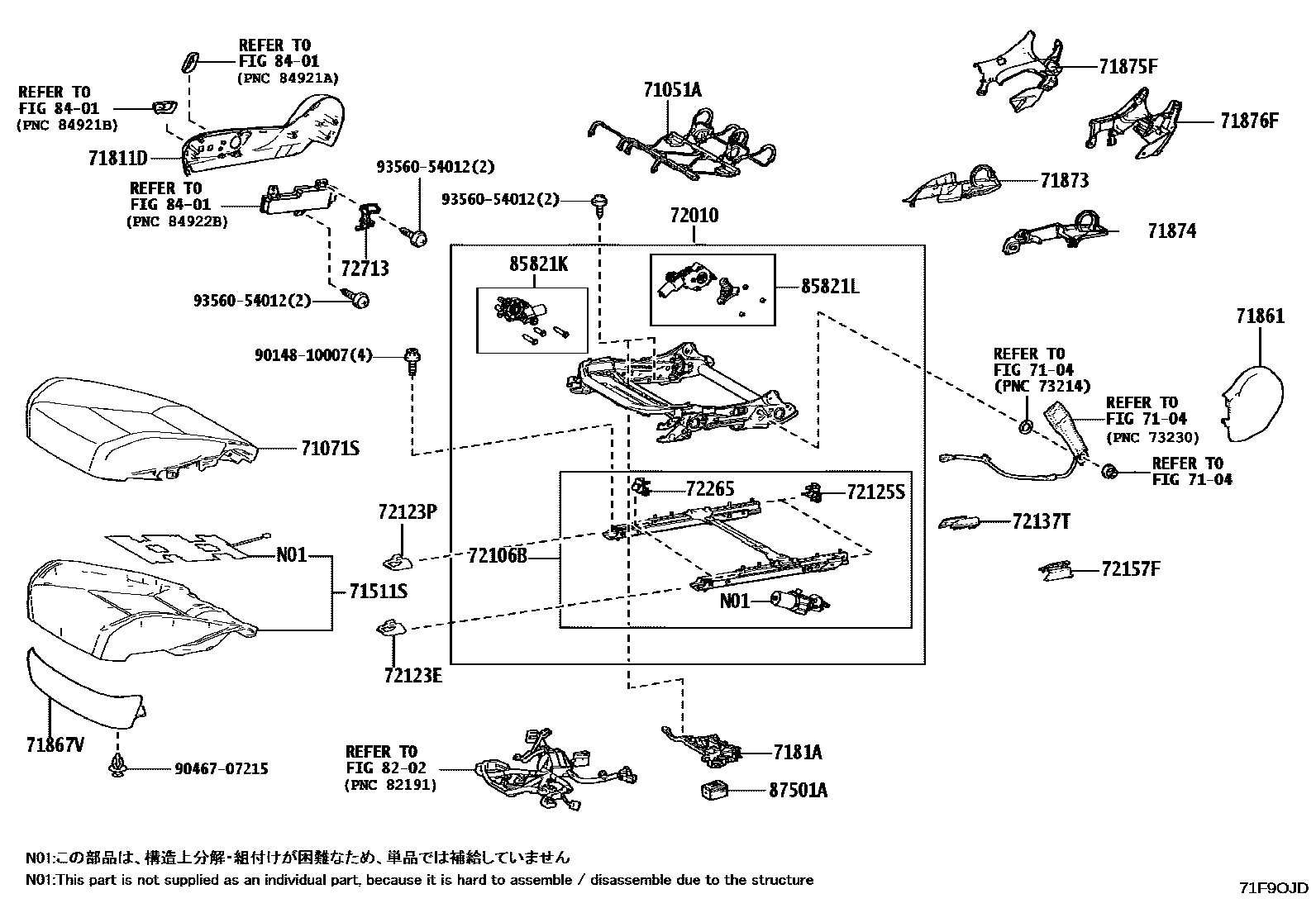

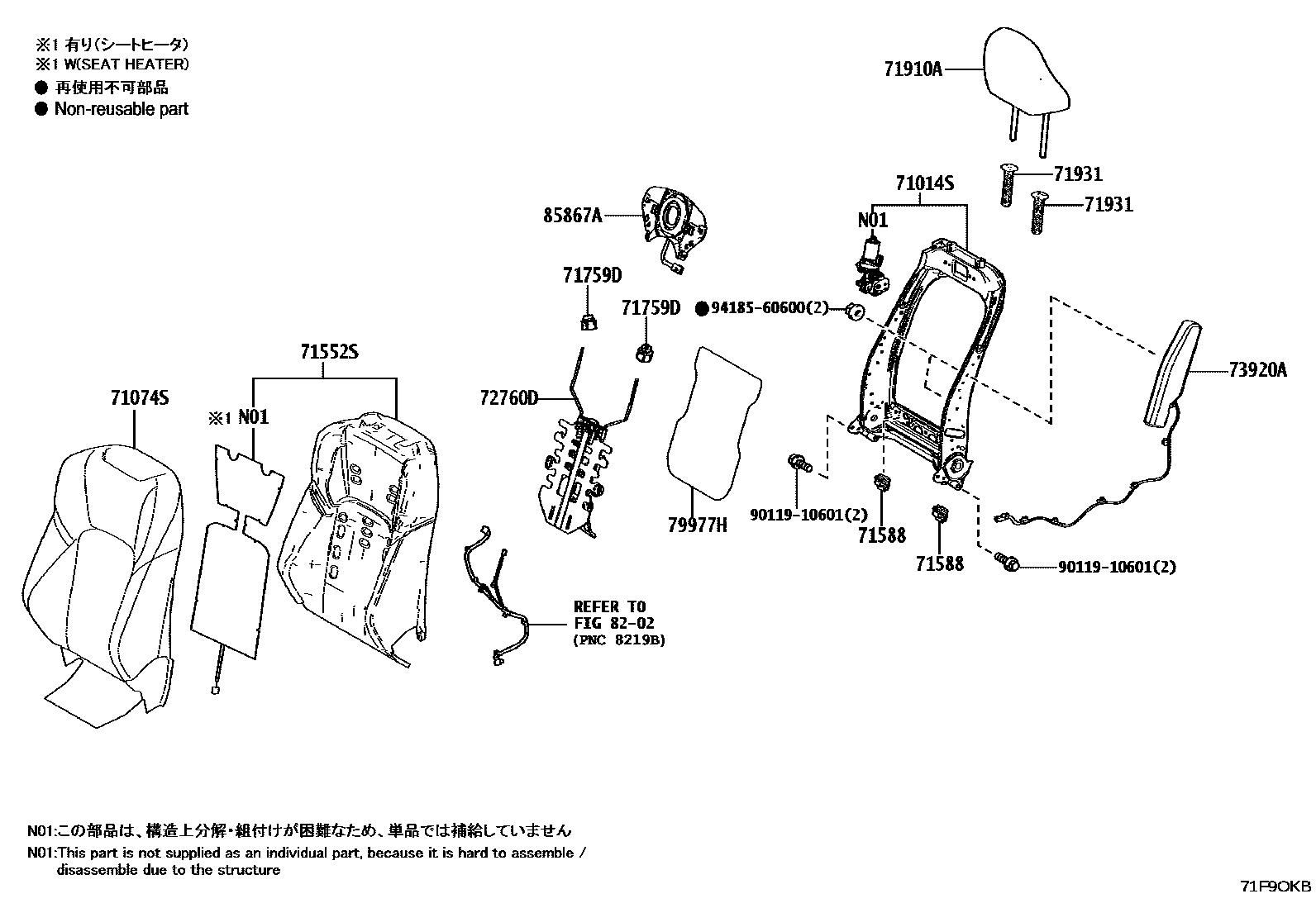

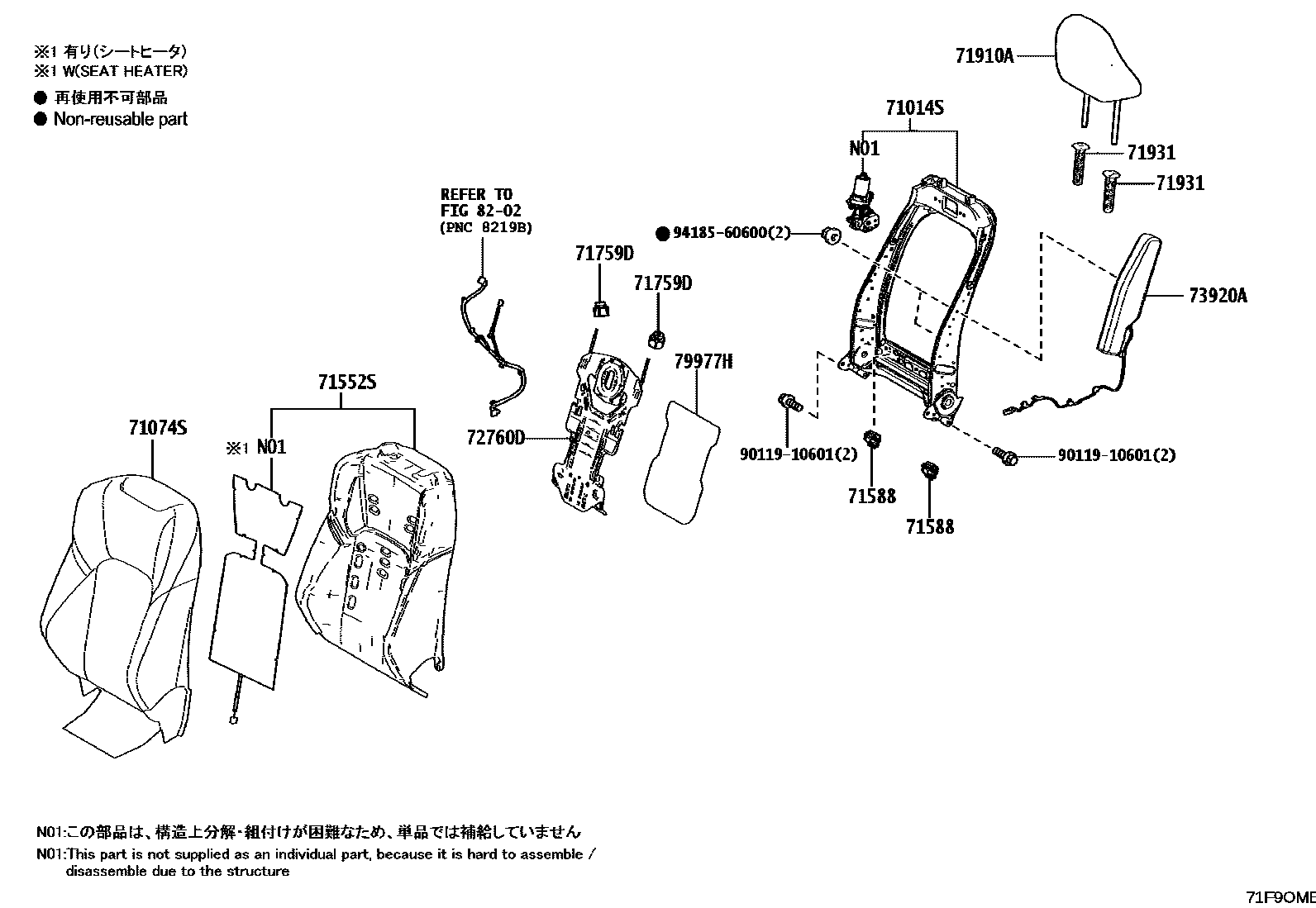

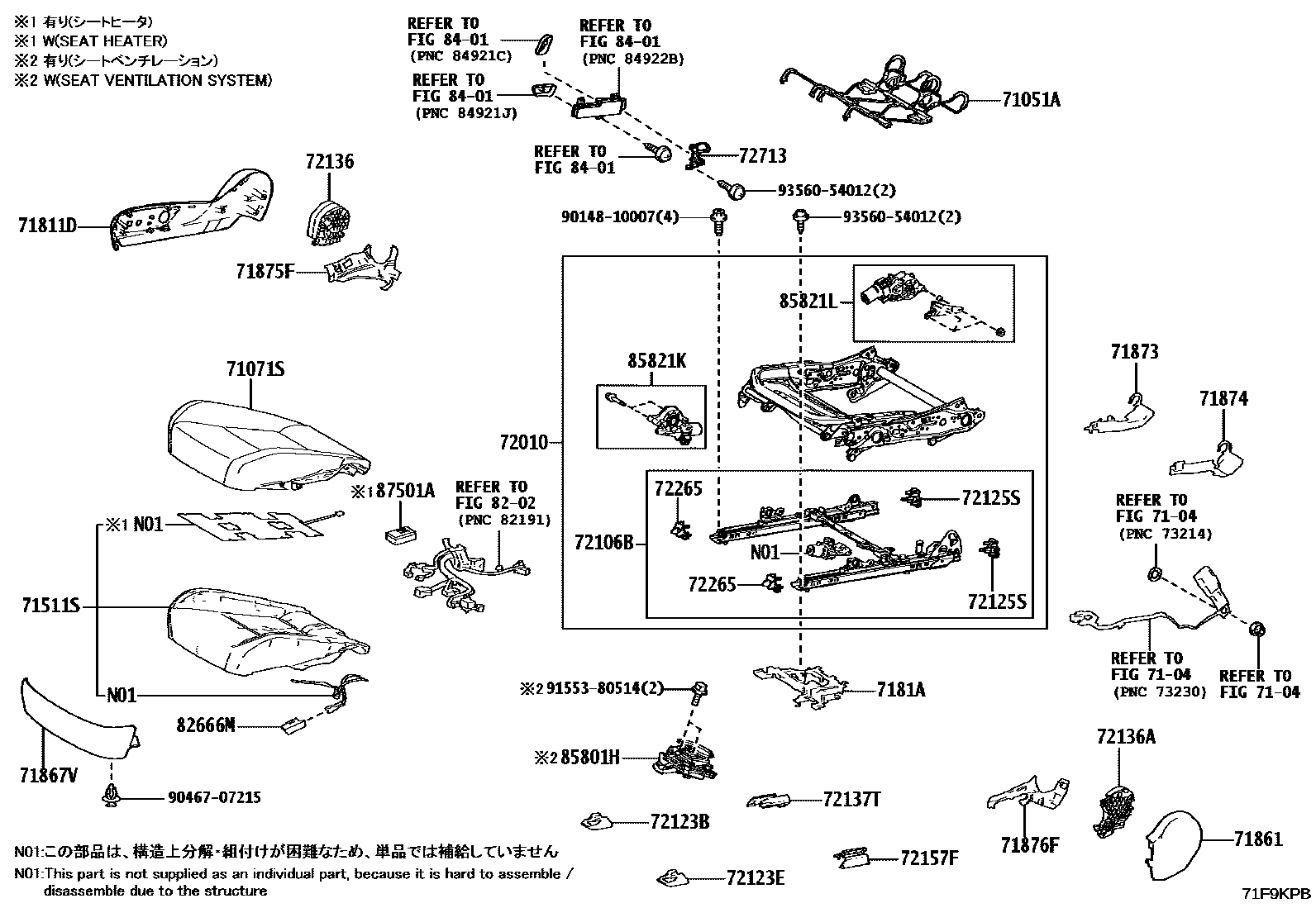

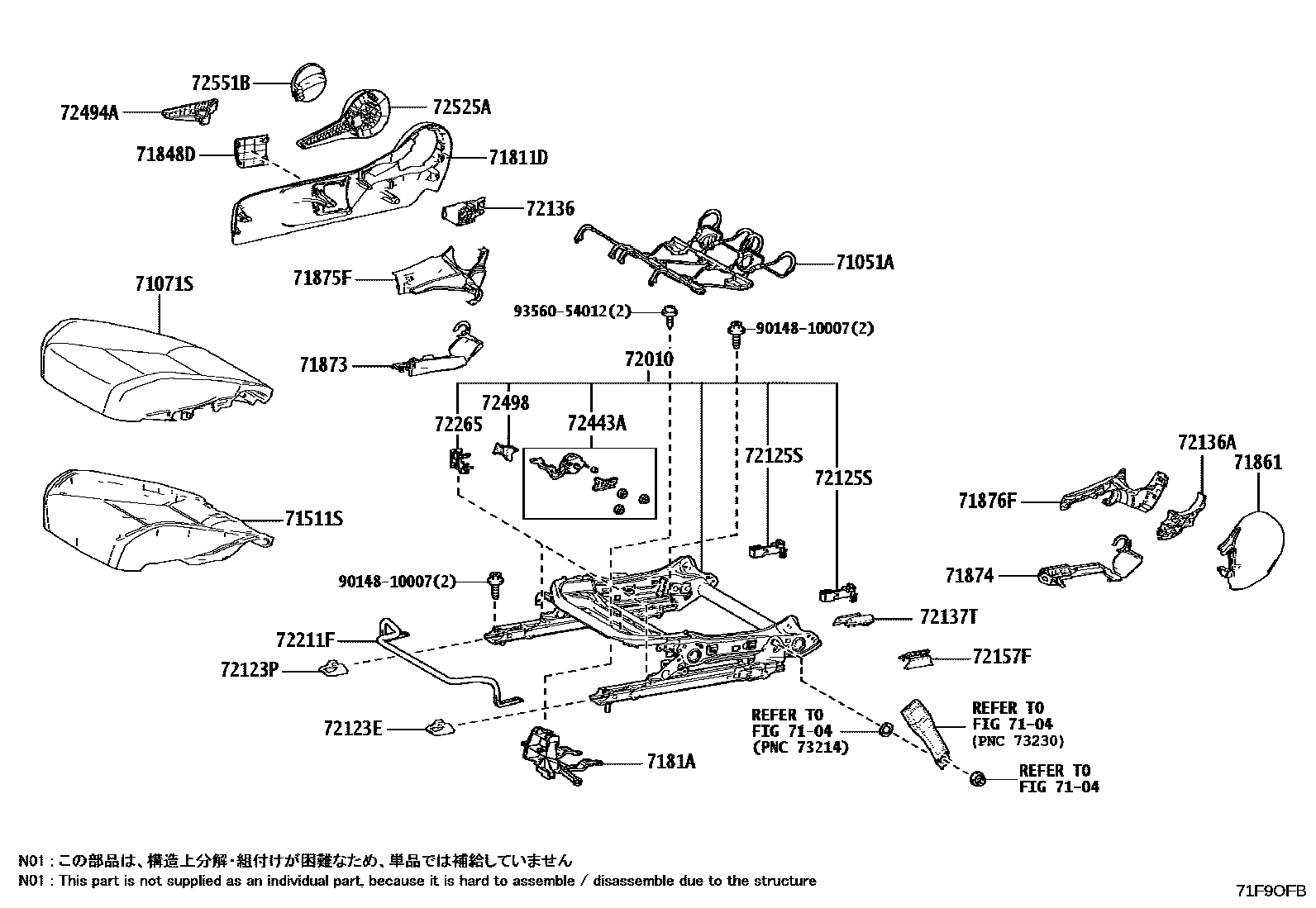

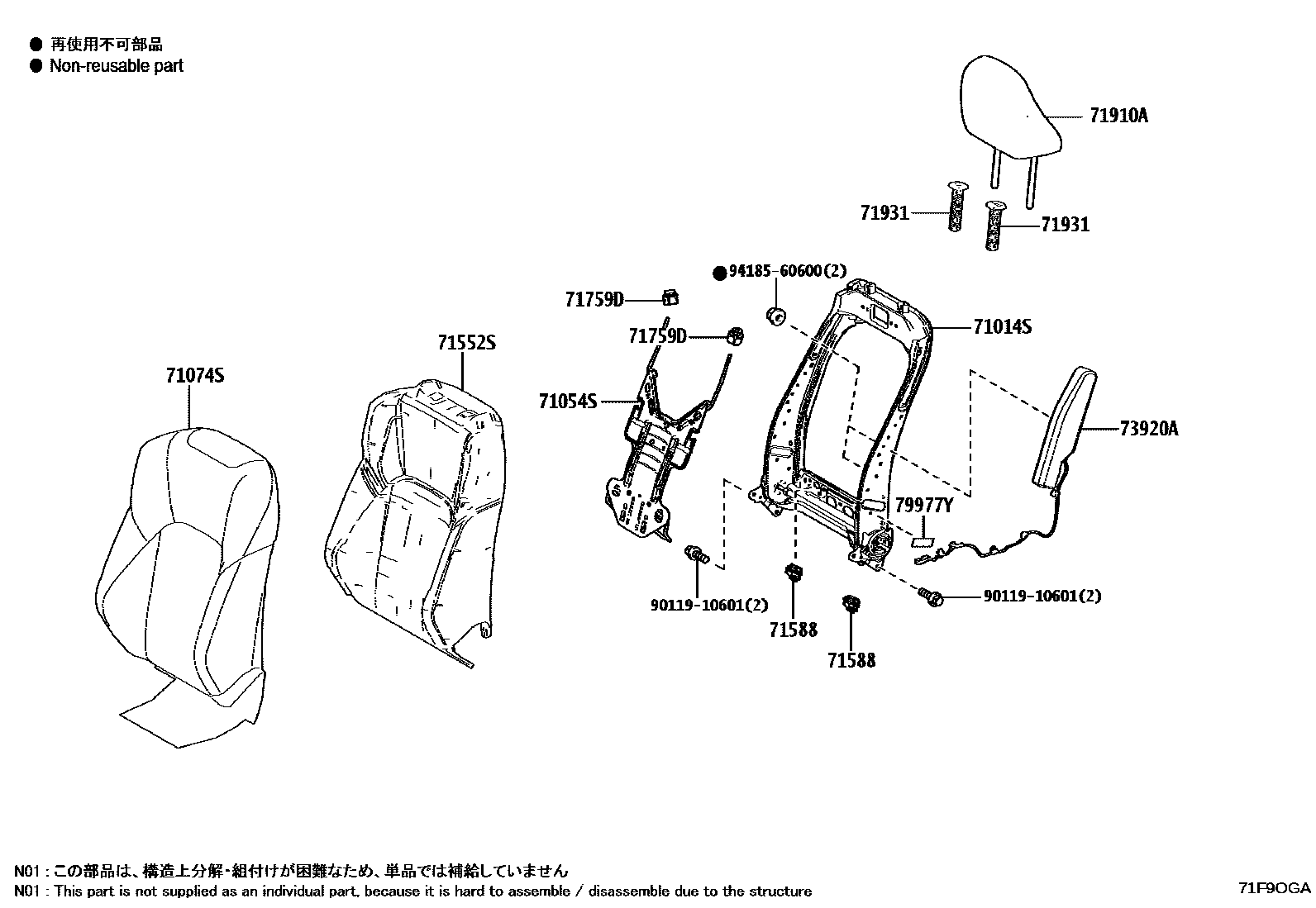

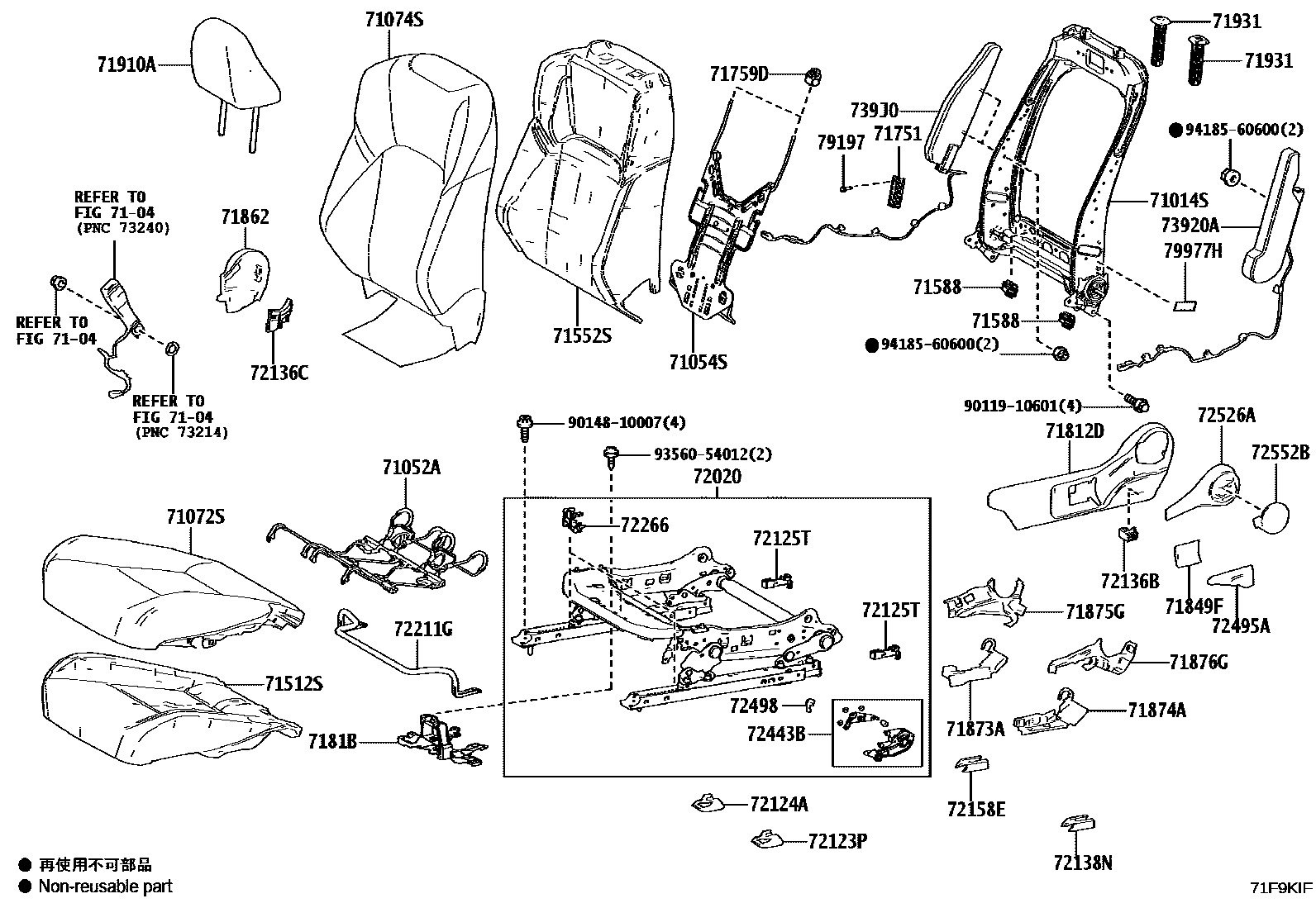

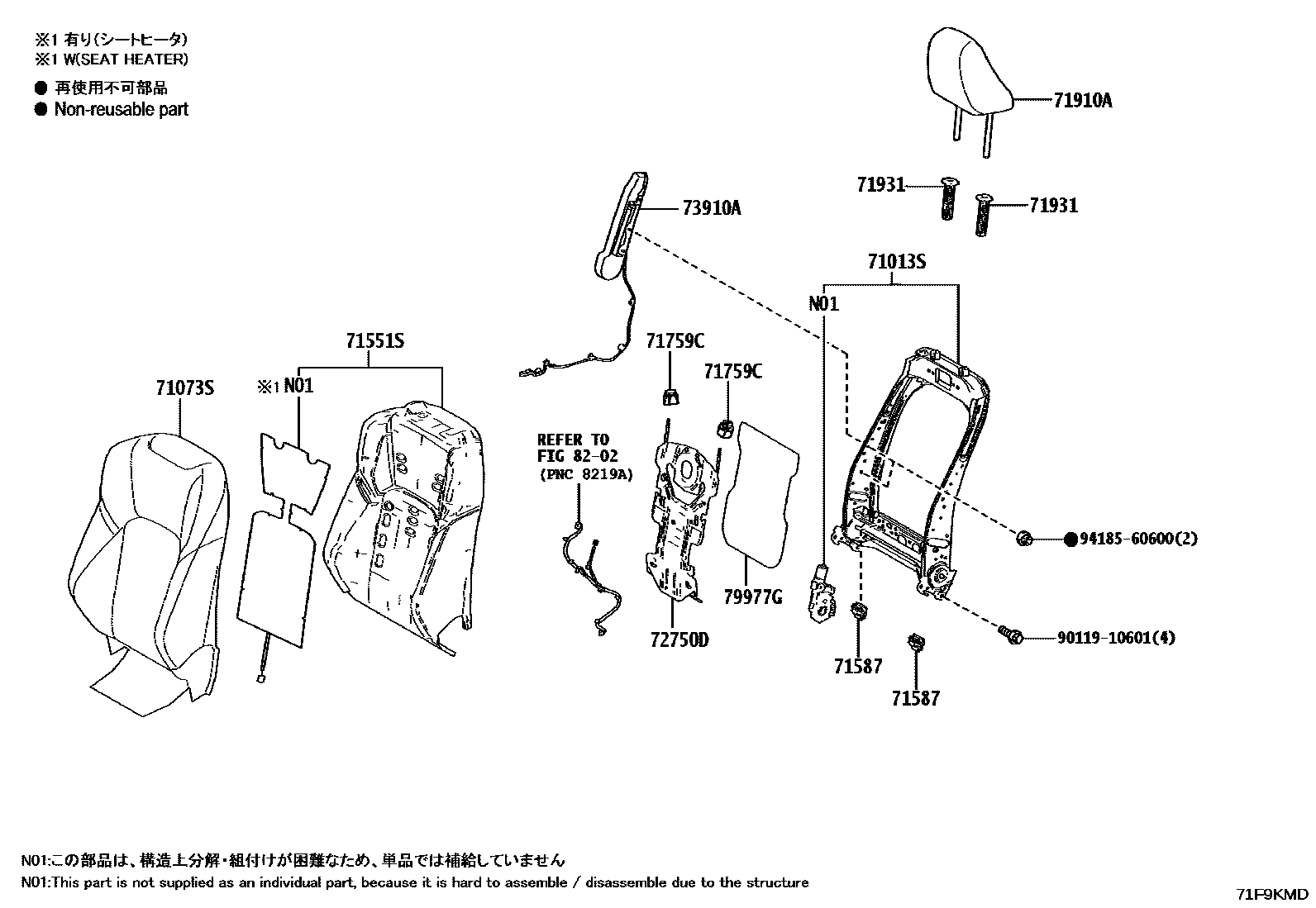

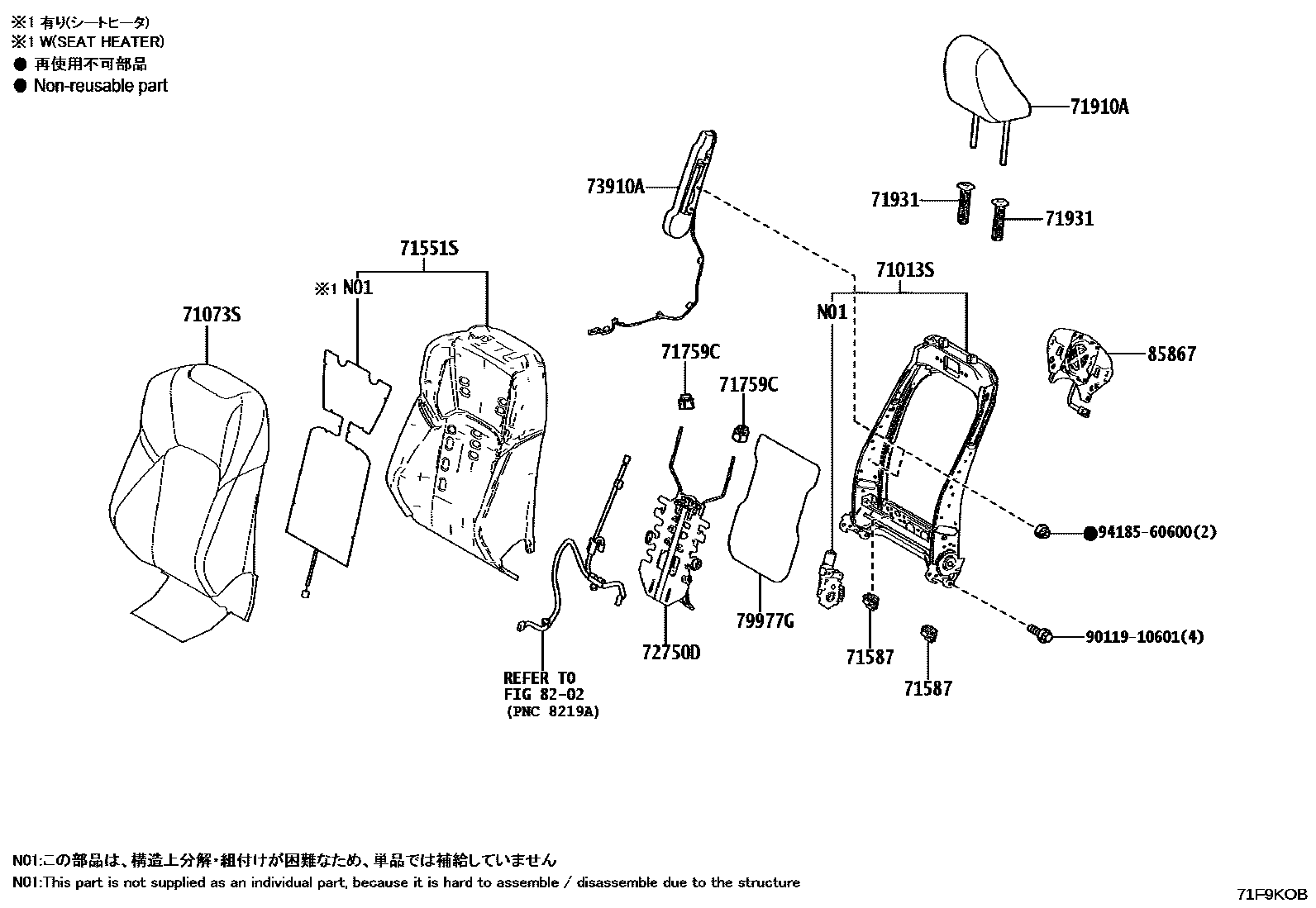

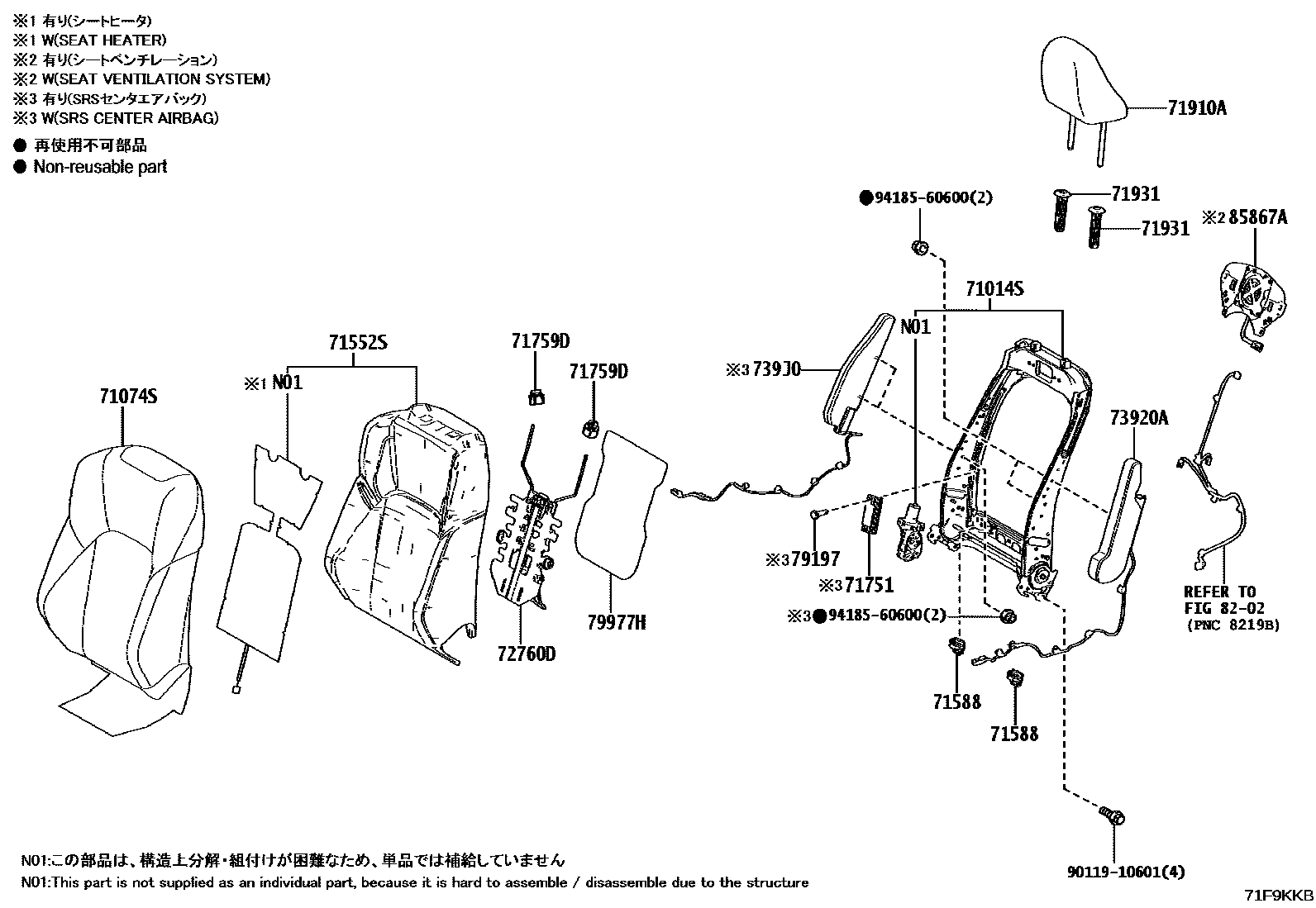

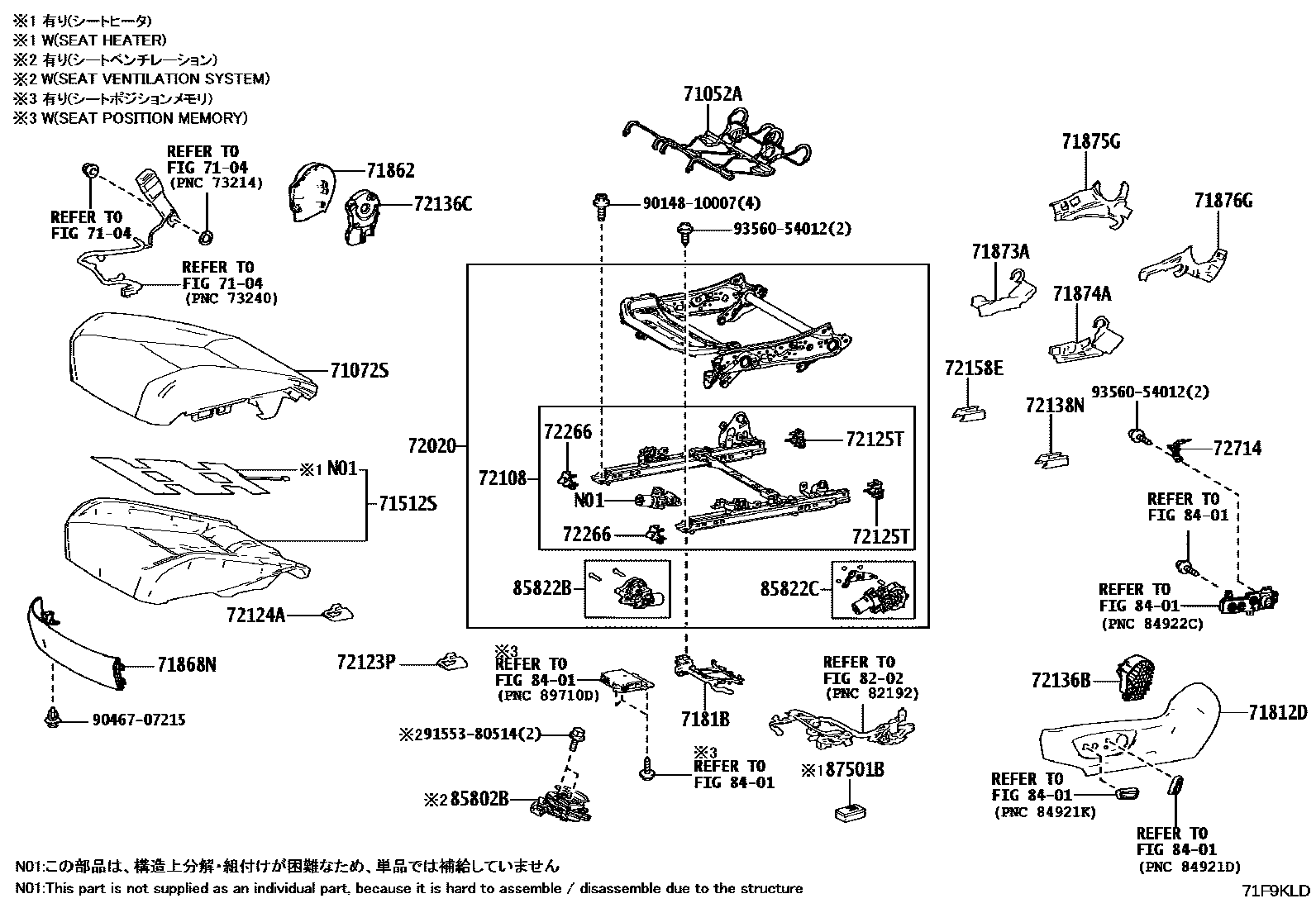

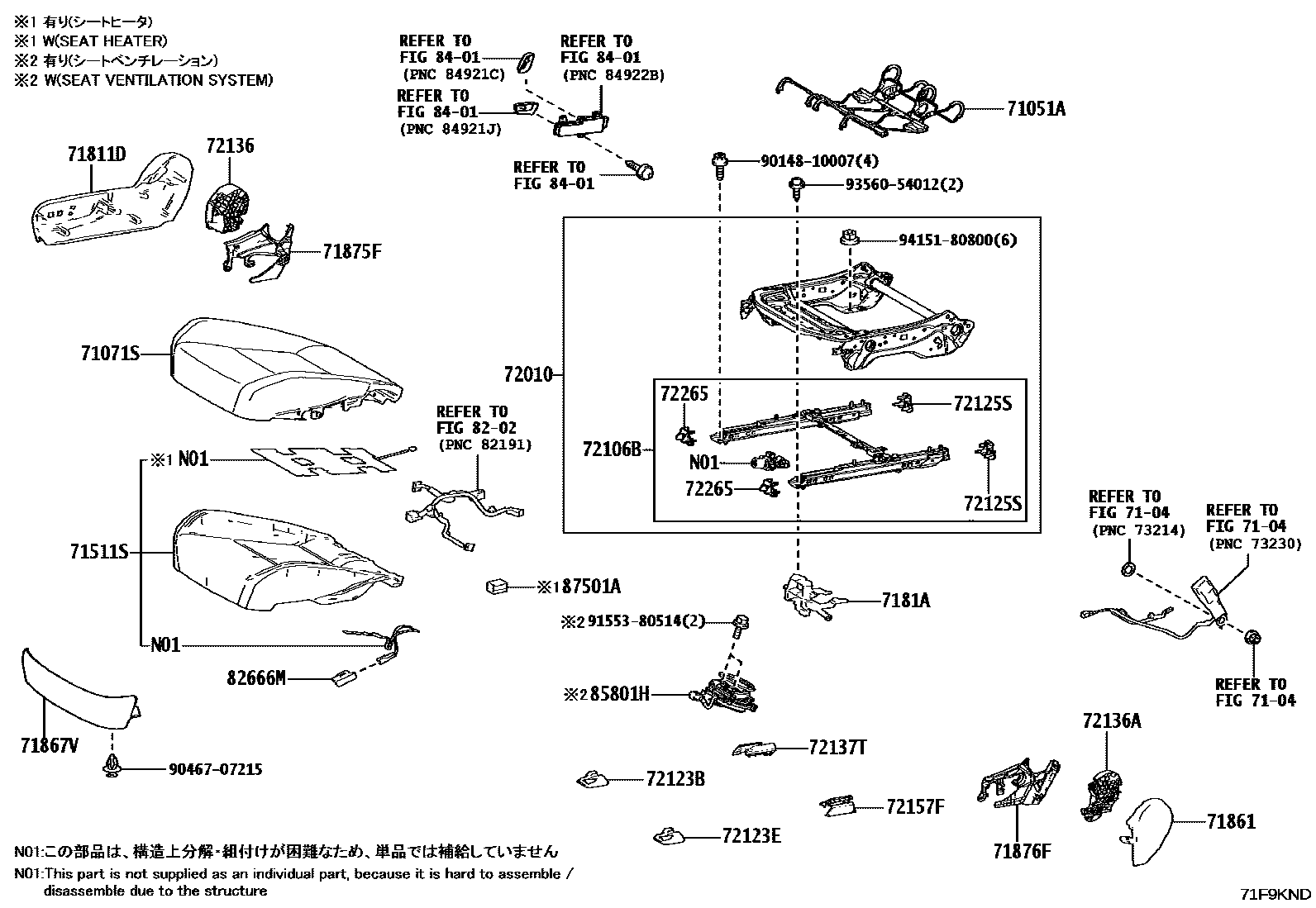

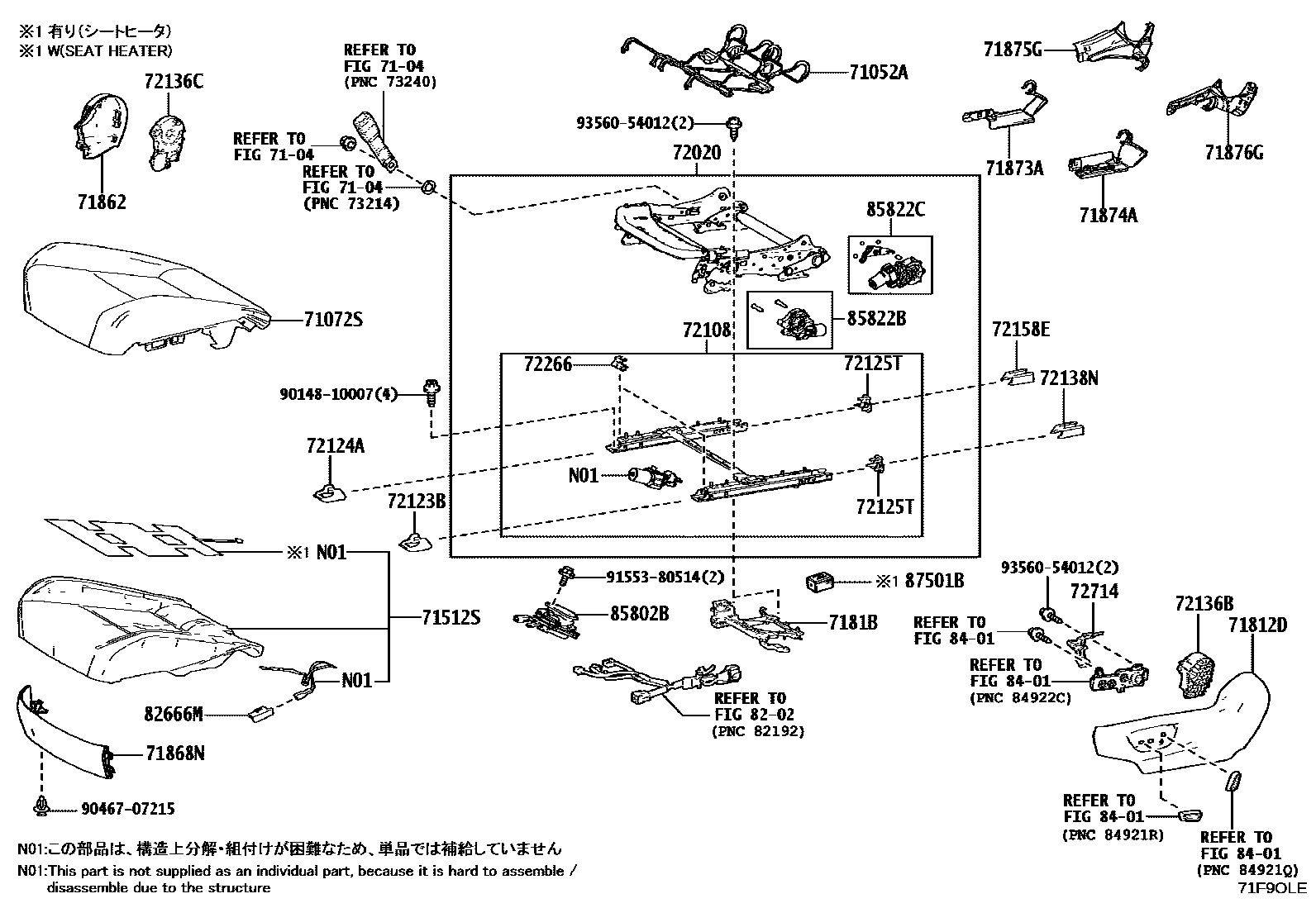

Toyota CAMRY EPC diagram 7101, 前排座椅和座椅滑轨, with 18 images and 70 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-33620 · 71013-33810 · 71013-33820 · 71013-33830 · 71013-33840 |
| 71014S | Front left seat back frame sub-assembly | 71014-33570 · 71014-33580 · 71014-33590 · 71014-33600 · 71014-33610 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-33070 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-33070 |
| 71053S | Front right seat back spring sub-assembly | 71053-47050 |
| 71054S | Front left seat back spring sub-assembly | 71053-47050 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-33360 · 71501-33370 · 71501-33380 · 71511-33590 · 71511-33680 · 79015-33050 · 79015-33060 · 79015-33070 · 79015-33080 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-33280 · 71512-33460 · 71512-33520 · 71512-33530 · 79016-33010 · 79016-33020 · 79016-33030 · 79016-33040 |
| 71551S | Front right seat back cushion (for split seats) | 71551-33550 · 71551-33560 · 71551-33570 · 79017-33040 · 79017-33050 · 79017-33060 |
| 71552S | Front left seat back cushion (for split seats) | 71552-33420 · 71552-33430 · 71552-33440 · 71552-33450 · 79018-33010 · 79018-33020 · 79018-33030 |
| 71587 | Front seat back edge protective cover | 71587-47010 |
| 71588 | Front seat back edge protective cover No. 2 | 71587-47010 |
| 71751 | CROCHET, HOUSSE DE SIEGE | 71751-47050 |
| 71759C | Front seat back hook No. 1 | 71759-50040 |
| 71759D | Front seat back hook 2 | 71759-50040 |
| 7181A | SUPPORT, FAISCEAU CABLE COUSSIN SIEGE AVANT, MD | 7181A-33020 · 7181A-47010 |
| 7181B | SUPPORT, FAISCEAU CABLE COUSSIN SIEGE AVANT, MG | 7181B-33020 · 7181B-47010 |
| 71873 | Front right seat cushion lower guard panel | 71873-33160 |
| 71873A | Front seat cushion lower guard | 71874-33150 |
| 71874 | Front left seat cushion lower guard | 71873-33170 |
| 71874A | Front left seat cushion lower guard | 71874-33140 |
| 72010 | Front right seat adjuster assembly | 72010-33650 · 72010-33660 · 72010-33670 · 72010-33680 · 72010-33690 |
| 72020 | Front left seat adjuster assembly | 72020-33550 · 72020-33580 · 72020-33590 · 72020-33600 · 72020-33610 |
| 72106B | SOUS-ENS. RAIL, COULISSE SIEGE, SUP MD | 72106-33030 · 72106-33040 · 72106-33050 |
| 72108 | SOUS-ENS. RAIL, COULISSE SIEGE, SUP MG | 72108-33060 · 72108-33070 · 72108-33080 |
| 72123B | Front seat outer slide rail bracket cover | 72123-47060 |
| 72123E | COUV. EXT. ARRIERE DROIT PLATINE FIX. GLISSIERE SIEGE | 72123-47060 |
| 72123P | CACHE, SUPPORT GLISSIERE SIEGE, EXT AVANT, NO.2 | 72123-33110 · 72123-47060 |
| 72124A | COUV. EXT. ARRIERE GAUCHE PLATINE FIX. GLISSIERE SIEGE | 72123-47060 |
| 72125S | CACHE, GLISSIERE SIEGE AV, SUP ARR MD | 72125-47010 · 72125-47020 |
| 72125T | CACHE, GLISSIERE SIEGE AV, SUP ARR MG | 72125-47010 · 72125-47020 |
| 72136 | No. 1 seat slide rail lower rail | 72136-33360 · 72136-33380 |
| 72136A | No. 2 seat slide rail lower rail | 72136-33370 · 72136-33390 |
| 72136B | No. 3 seat slide rail lower rail | 72136-33410 · 72136-33440 |
| 72136C | No. 4 seat slide rail lower rail | 72136-33420 · 72136-33450 |
| 72137T | CACHE, SUPPORT GLISSIERE SIEGE, ARR EXT MD | 72137-47060 |
| 72138N | CACHE, SUPPORT GLISSIERE SIEGE, ARR EXT MG | 72137-47060 |
| 72157F | CACHE, SUPPORT GLISSIERE SIEGE, ARR INT MD | 72157-47080 |
| 72158E | CACHE, SUPPORT GLISSIERE SIEGE, ARR INT MG | 72158-47080 |
| 72211F | POIGNEE, REGL GLISSIERE SIEGE, MD | 72211-33050 |
| 72211G | POIGNEE, REGL GLISSIERE SIEGE, MG | 72211-33050 |
| 72265 | Right seat rail upper rail cover | 72265-47010 · 72265-47020 |
| 72266 | Left seat rail upper rail cover | 72265-47010 · 72265-47020 |
| 72443A | ENGRENAGE, REGLEUR VERTICAL, MD | 72443-33010 |
| 72443B | ENGRENAGE, REGLEUR VERTICAL, MG | 72443-33020 |
| 72498 | Height adjuster bracket cover | 72498-33040 |
| 72713 | SUPPORT, COLLIER RENFORT AJUSTEUR SIEGE, MD | 72713-33010 |
| 72714 | SUPPORT, COLLIER RENFORT AJUSTEUR SIEGE, MG | 72714-33020 |
| 72750D | Right lumbar support adjuster assembly | 72750-33140 · 72750-33150 · 72760-30200 |
| 72760D | Left lumbar support adjuster assembly | 72750-33140 · 72750-33150 · 72760-30200 |
| 73910A | Front right seat airbag assembly | 73910-33100 |
| 73920A | Front left seat airbag assembly | 73920-33100 |
| 739H0 | ENS. AIRBAG, CTRL SIEGE AV, MD | 739H0-33010 · 739H0-33020 |
| 739J0 | ENS. AIRBAG, CTRL SIEGE AV, MG | 739J0-33010 · 739J0-33020 |
| 79197 | CROCHET, HOUSSE DOSSIER SIEGE | 79197-47010 |
| 79977G | FEUTRE, DOSSIER DE SIEGE AVANT, MD | 79977-33030 |
| 79977H | FEUTRE, DOSSIER DE SIEGE AVANT, MG | 79977-33030 |
| 79977X | FEUTRE, DOSSIER SIEGE, DR | 79977-12090 |
| 79977Y | FEUTRE, DOSSIER SIEGE, GA | 79977-12090 |
| 82666M | Connector holder | 82666-47630 |
| 85801H | SOUS-ENS. SOUF., CLIMAT.COUSSIN SIEGE, DROIT | 85801-33080 · 85801-42030 |
| 85802B | SOUS-ENS. SOUF., CLIMAT.COUSSIN SIEGE, GAUCHE | 85802-33020 · 85802-42010 |
| 85821K | Right electric seat tilt adjustment motor assembly | 85801-33120 · 85801-33140 |
| 85821L | Right electric seat height adjustment motor assembly | 85801-33110 · 85801-33130 |
| 85822B | Left electric seat tilt adjustment motor assembly | 85801-33160 · 85801-33180 |
| 85822C | Left electric seat height adjustment motor assembly | 85801-33150 · 85801-33170 |
| 85867 | Right seat back temperature control blower | 85867-30040 |
| 85867A | Left-hand seat back temperature control blower | 85867-30040 |
| 87501A | Right seat heater control sub-assembly | 87501-33010 |
| 87501B | Left side seat heater control sub-assembly | 87501-33010 |
