Toyota CAMRY 杂物箱板和行李箱垫 — Figure 6403

Toyota CAMRY EPC diagram 6403, 杂物箱板和行李箱垫, with 3 images and 10 PNC and OE references.

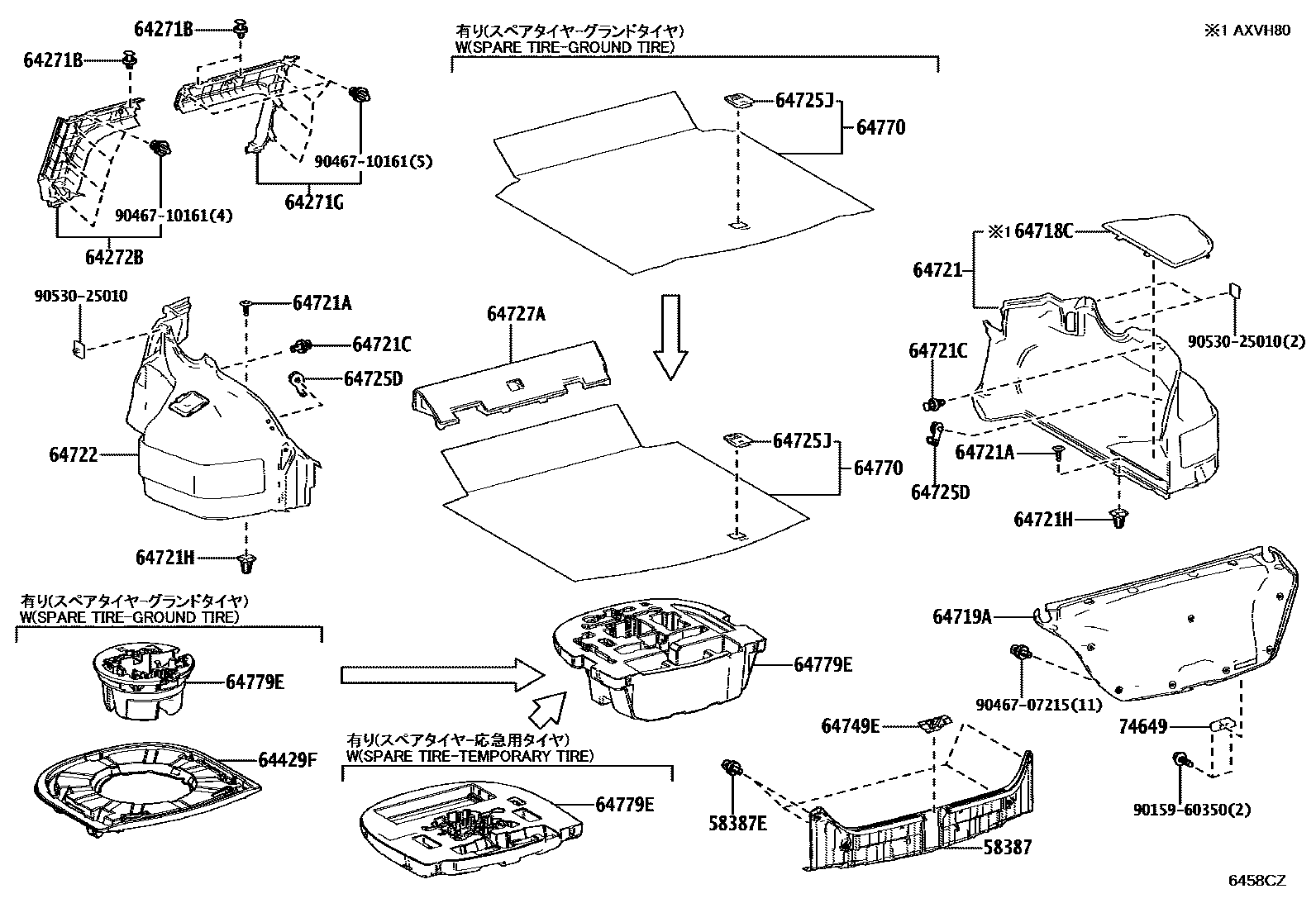

Toyota CAMRY 杂物箱板和行李箱垫 EPC diagram — 6458CZ
杂物箱板和行李箱垫 — 6458CZ (202406 – 999999)

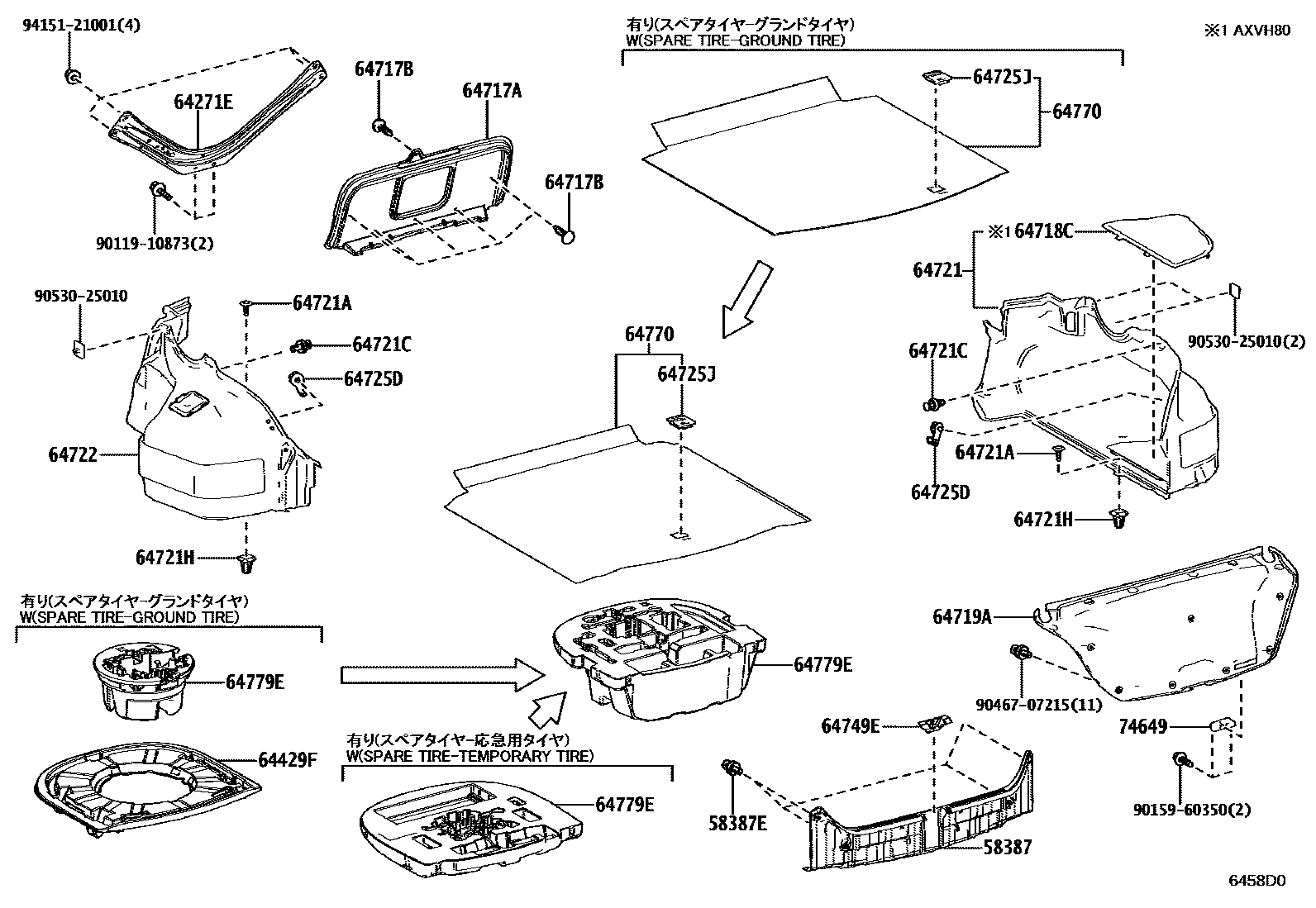

Toyota CAMRY 杂物箱板和行李箱垫 EPC diagram — 6458D0
杂物箱板和行李箱垫 — 6458D0 (202406 – 999999)

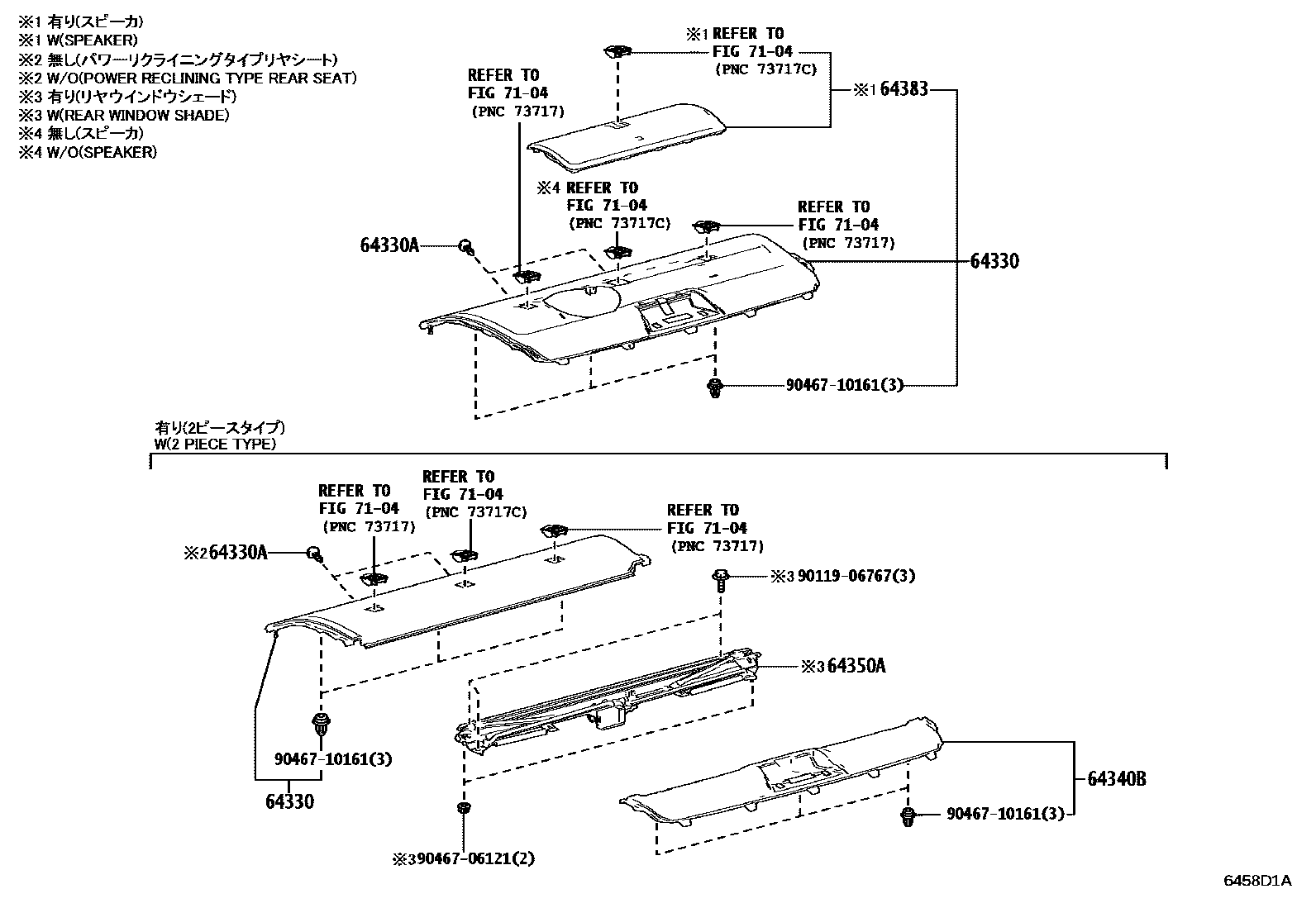

Toyota CAMRY 杂物箱板和行李箱垫 EPC diagram — 6458D1A
杂物箱板和行李箱垫 — 6458D1A (202406 – 999999)

PNC and OE references

PNCPart nameOE numbers
58387EClip (for rear floor trim panel)90467-07215
64271BClip (for compartment partition)90467-07220
64271Ecompartment partition64241-33070
64350ARear window sun visor assembly64350-33030
64429Fsuitcase decorative box64429-33020
64721CClip (suitcase)90467-07215
64721HClip (suitcase)90467-10023
64725JLuggage decorative hook No. 164725-33100
64727ALuggage interior decorative mat64727-33060
64779ESpare tire cover bracket64779-33220 · 64779-33320 · 64779-33330
