Toyota CAMRY 车顶内衬和消声垫 — Figure 6402

Toyota CAMRY EPC diagram 6402, 车顶内衬和消声垫, with 3 images and 6 PNC and OE references.

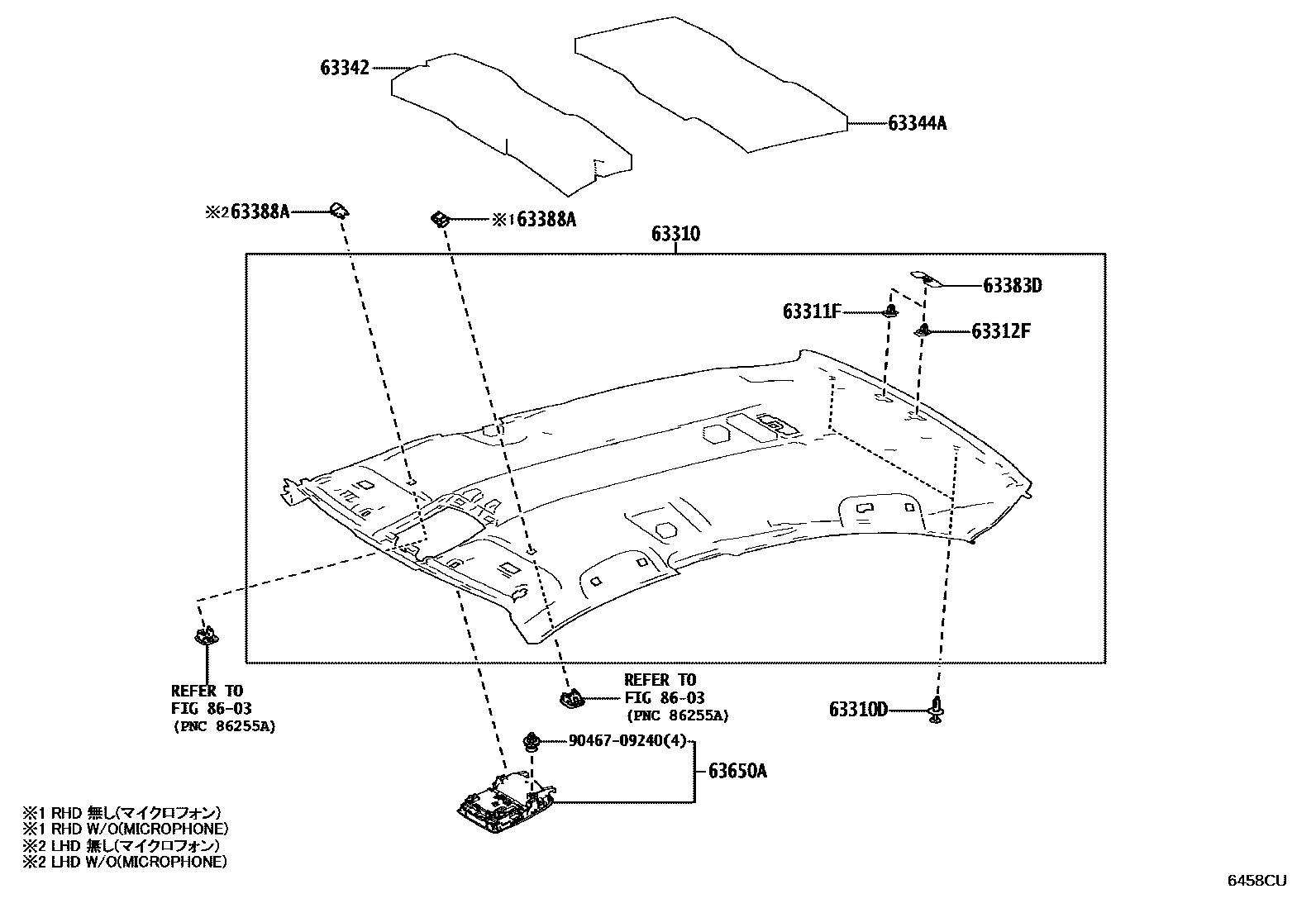

Toyota CAMRY 车顶内衬和消声垫 EPC diagram — 6458CU
车顶内衬和消声垫 — 6458CU (202406 – 999999)

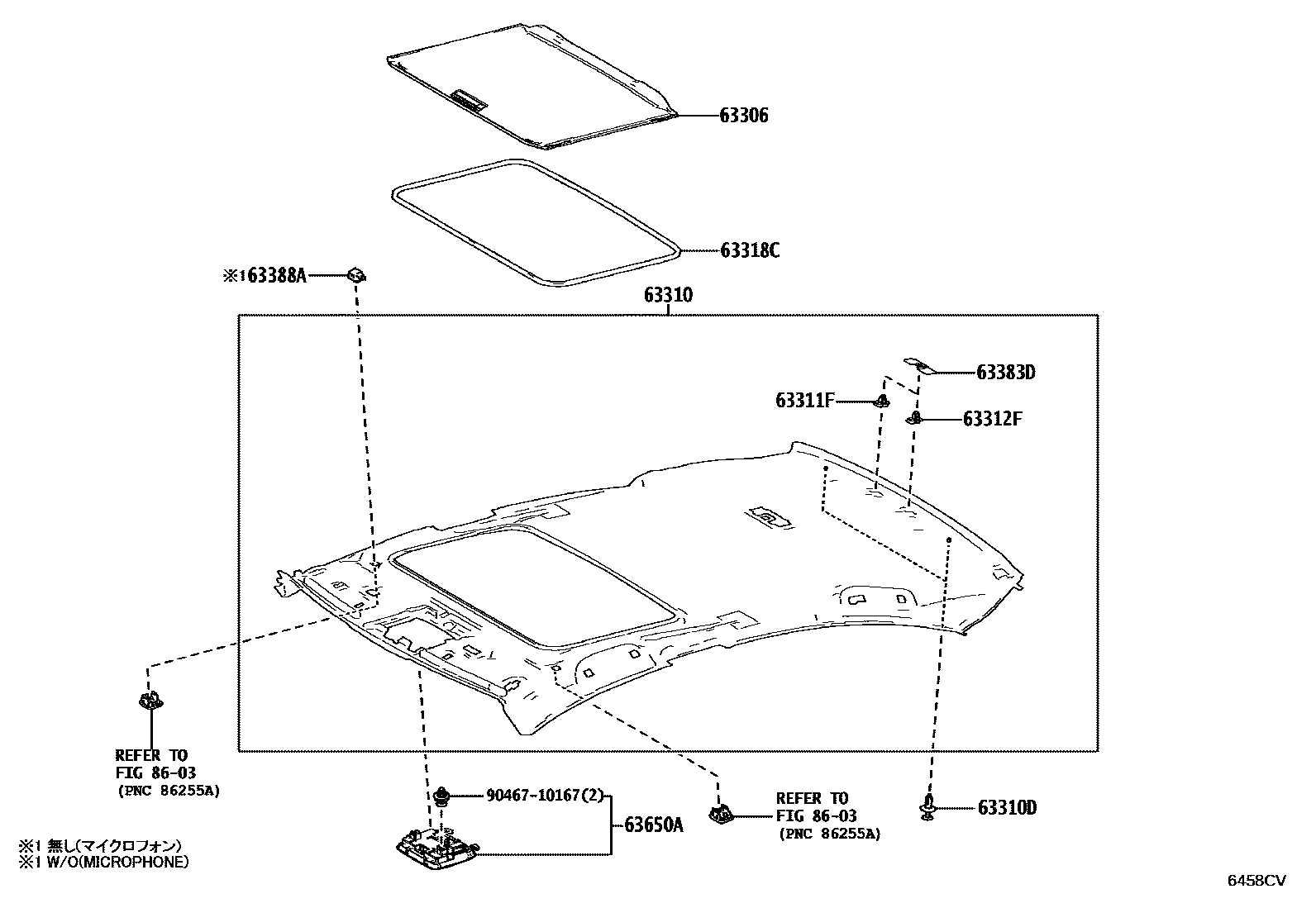

Toyota CAMRY 车顶内衬和消声垫 EPC diagram — 6458CV
车顶内衬和消声垫 — 6458CV (202406 – 999999)

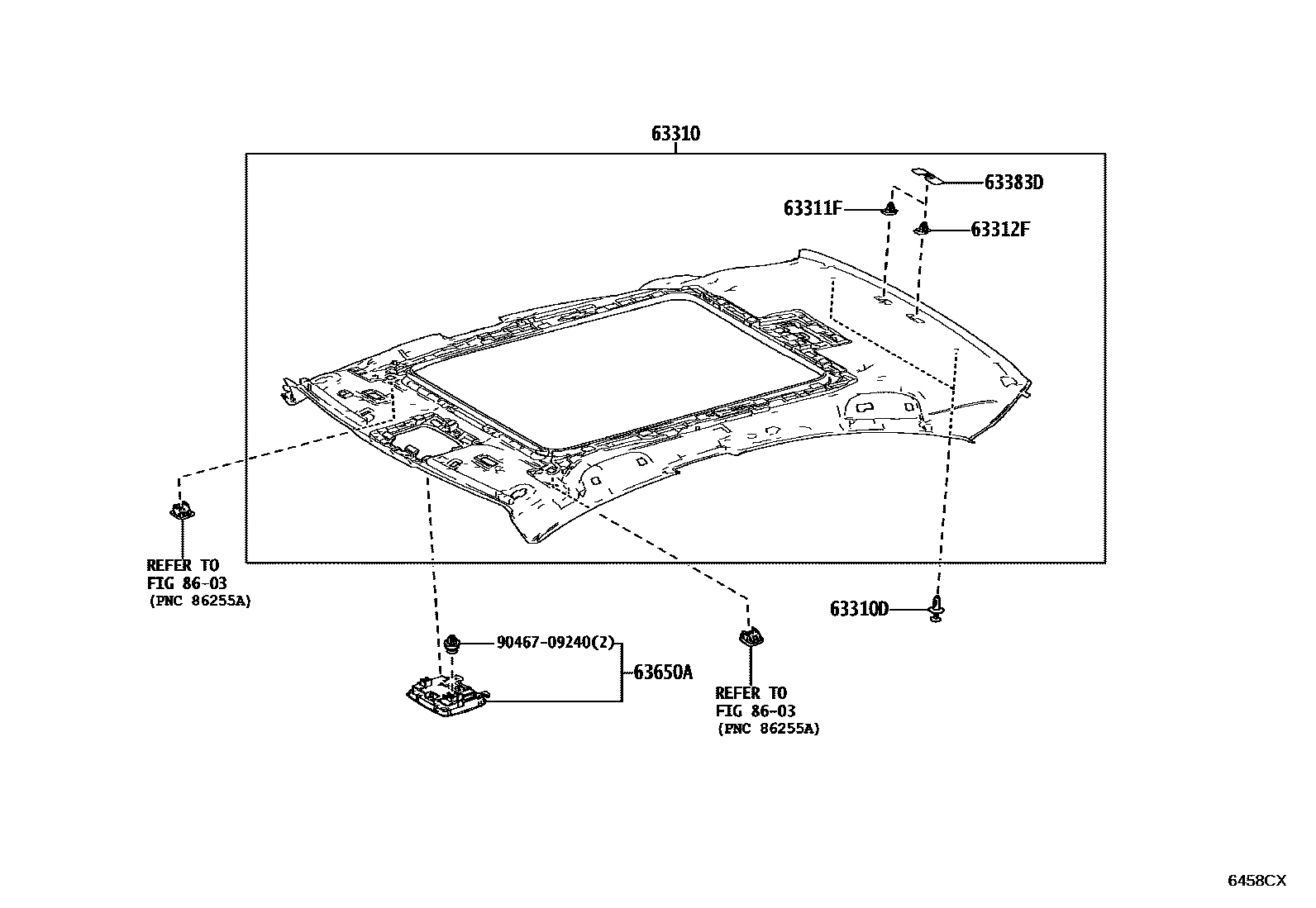

Toyota CAMRY 车顶内衬和消声垫 EPC diagram — 6458CX
车顶内衬和消声垫 — 6458CX (202406 – 999999)

PNC and OE references

PNCPart nameOE numbers
63311FNo. 1 headliner clip90467-10181
63312FNo. 2 headliner clip90467-09126
63342No. 2 roof muffler pad63342-33070
63344ANo. 4 roof silencer63344-33060
63383DRear headliner fixings63383-24030
63388Aheadliner fixing cover63388-52030
