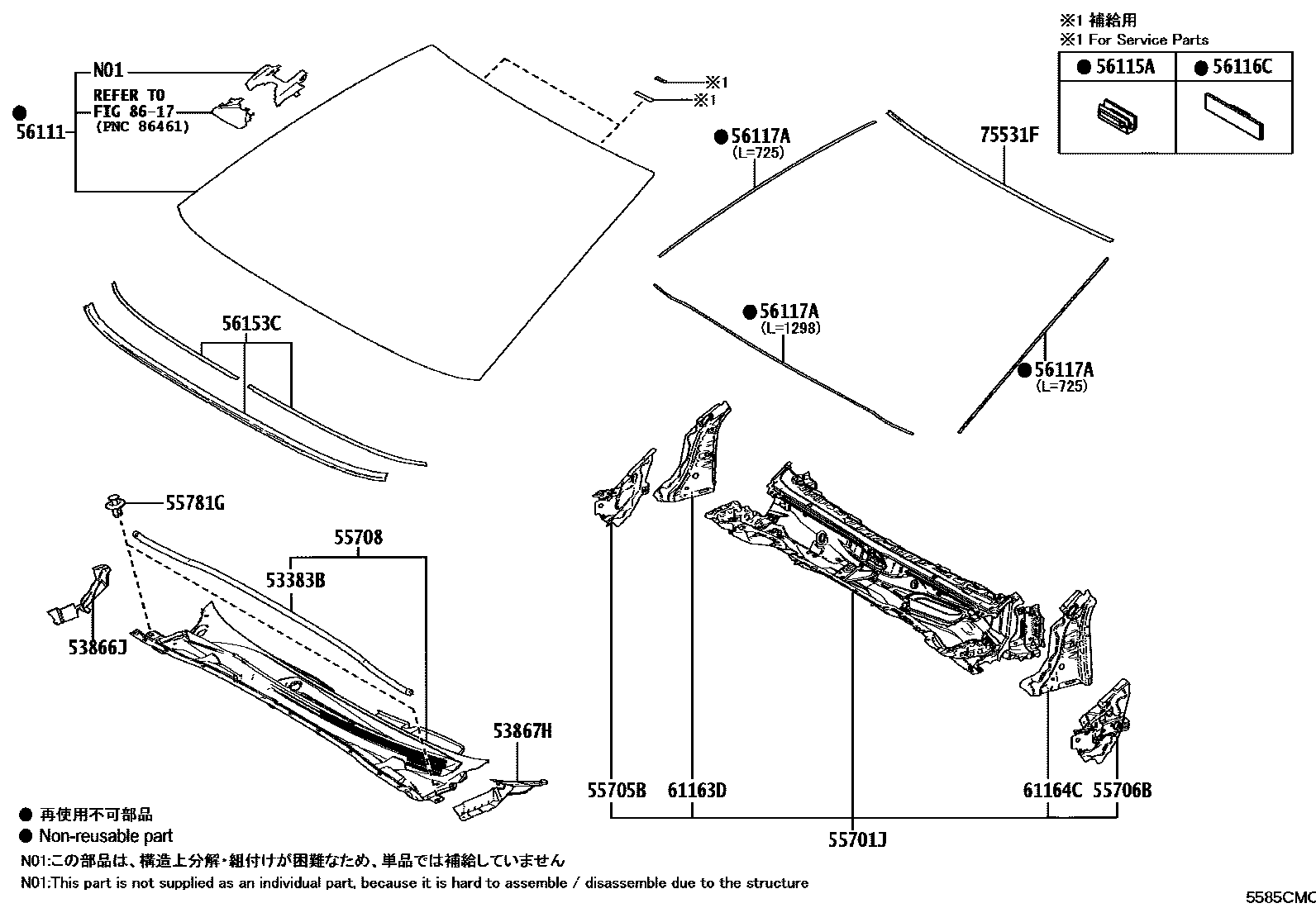

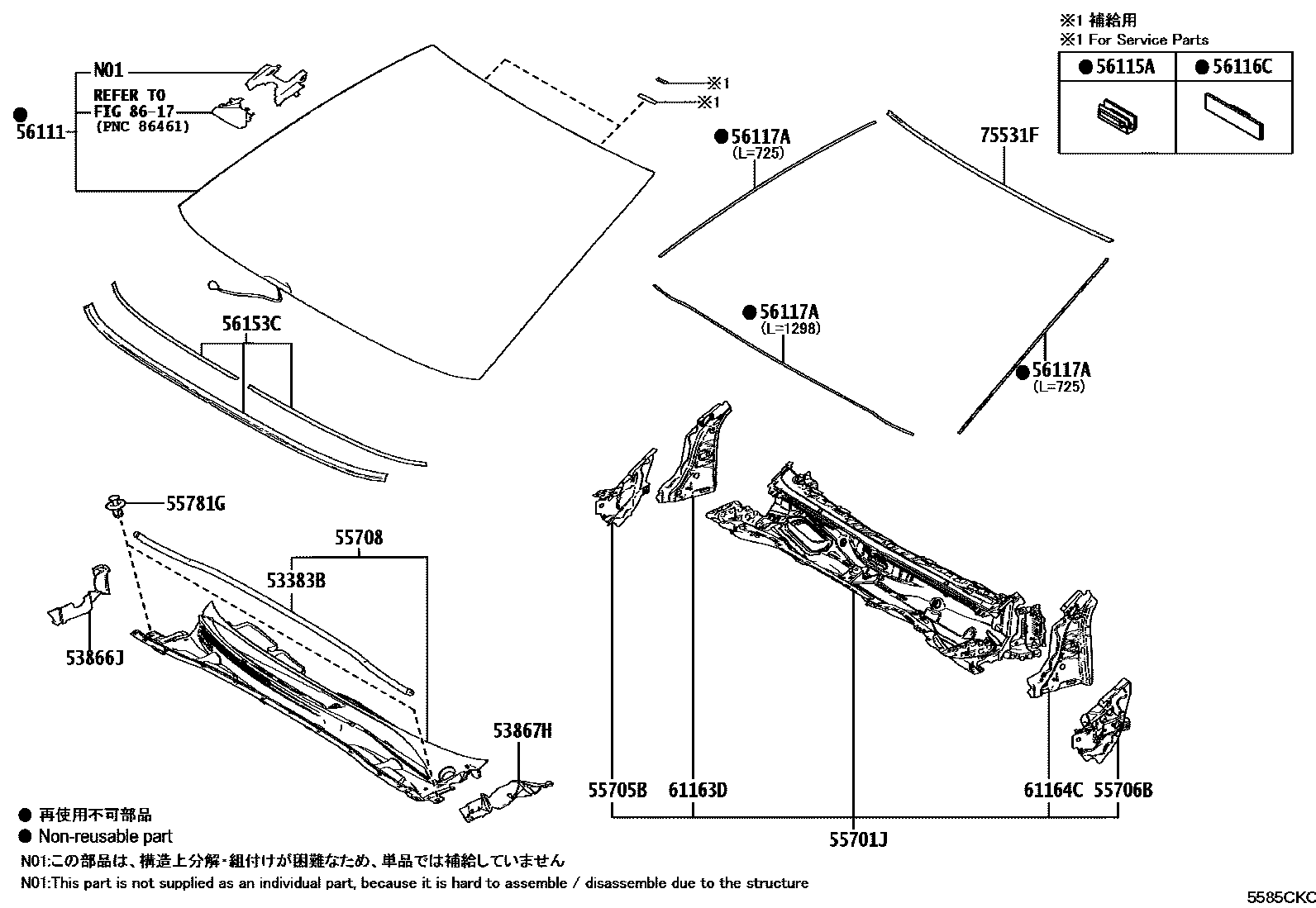

Toyota CAMRY 前围板和挡风玻璃 — Figure 5503
Toyota CAMRY EPC diagram 5503, 前围板和挡风玻璃, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-33140 |
| 53866J | Right front fender to cowl side seal | 53866-33090 · 53866-33100 |
| 53867H | Left front fender to cowl side seal | 53867-33090 · 53867-33100 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-33250 · 55701-33260 · 55701-33270 · 55701-33280 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-33040 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-33040 |
| 55708 | SOUS-ENS. AERATEUR, VENTILATEUR DESSUS DE TABLIER | 55708-33282 · 55708-33302 |
| 55781G | Ventilation grille clips on front apron | 90467-09242 |
| 56111 | windshield | 56101-3Y983 · 56101-3Y985 · 56101-3Y986 · 56101-3Y987 · 56101-3Y988 · 56101-3Y989 · 56101-3Y990 · 56101-3Y991 · 56101-3Y992 · 56101-3Y993 · 56101-3Y995 · 56101-3Y996 · 56101-3Y997 · 56101-3Y998 · 56101-3Y999 · 56103-33900 · 56103-33901 |
| 56115A | Windshield block No. 1 | 56115-30120 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56153C | Front center window inner protective strip | 56153-33070 |
| 61163D | MONTANT, CARROSSERIE AVANT, INT INF MD | 61163-33020 · 61163-33030 |
| 61164C | MONTANT, CARROSSERIE AVANT, INT INF MG | 61164-33020 · 61164-33030 |
| 75531F | MOULURE, PARE-BRISE, SUP EXT | 75531-33150 |
