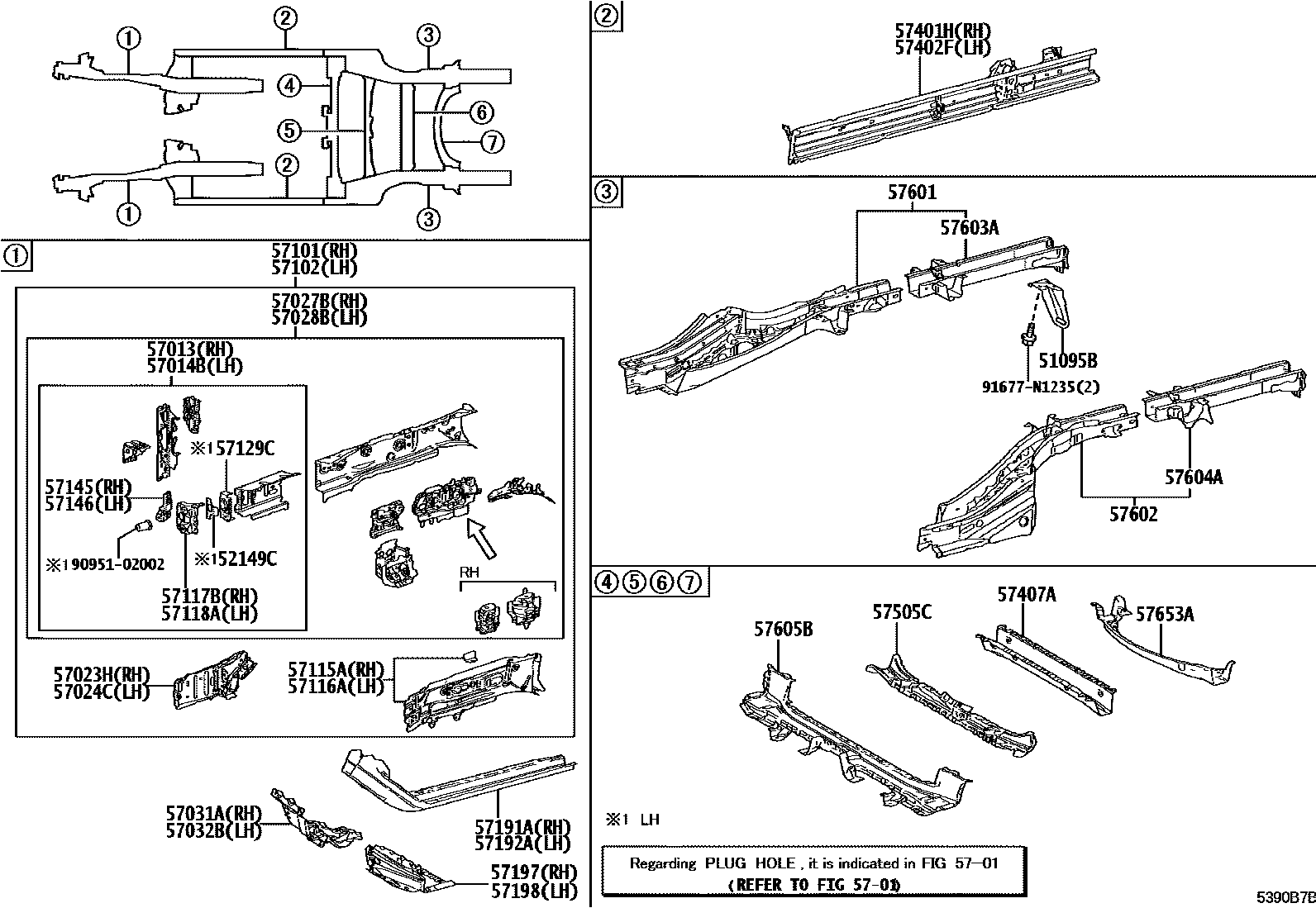

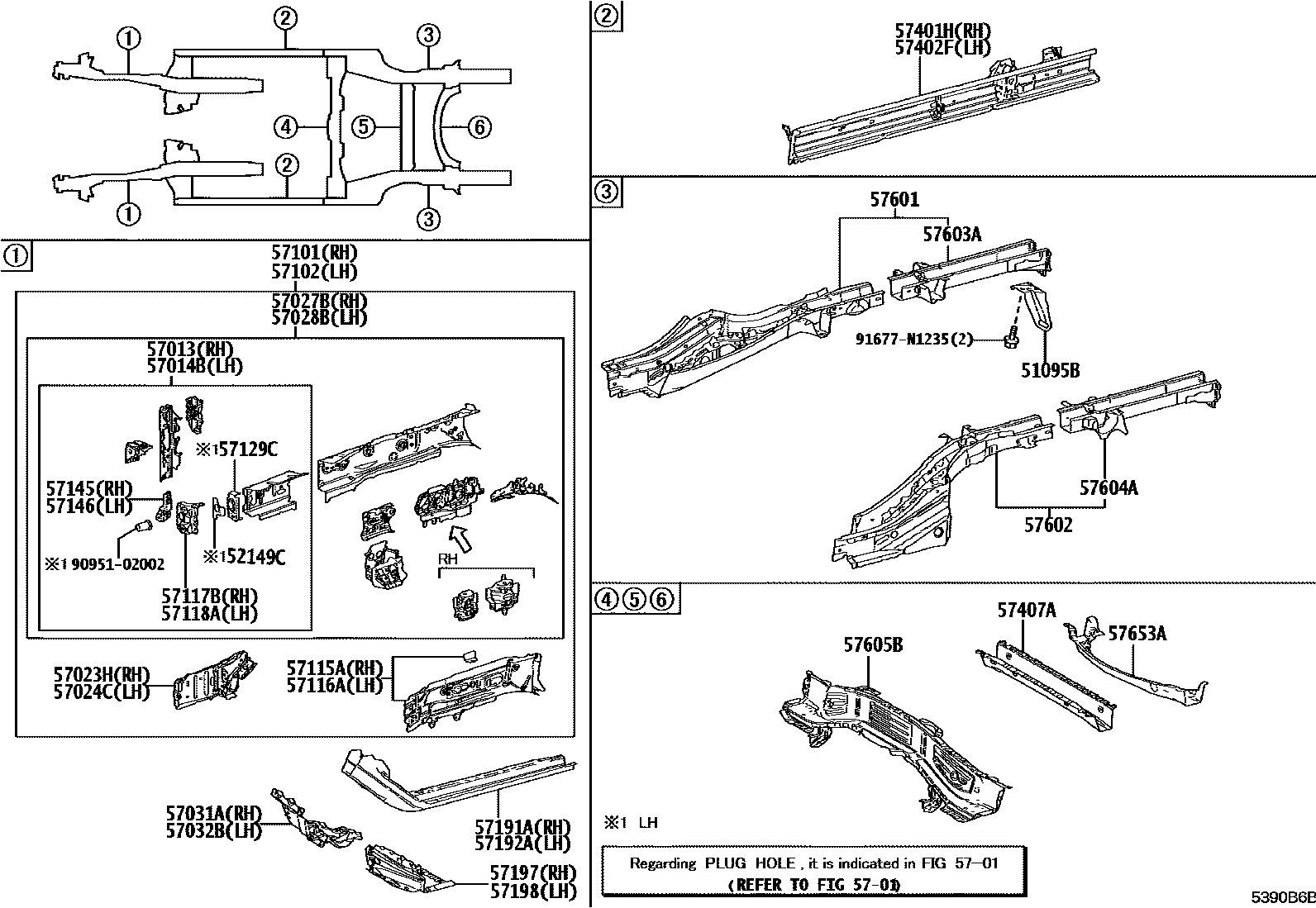

Toyota CAMRY Floor stringers — Figure 5305
Toyota CAMRY EPC diagram 5305, Floor stringers, with 2 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51095B | Right rear transport hook sub-assembly | 51095-33030 |
| 52149C | BUTEE, RENFORT PARE-CHOCS AVANT, MG | 52149-33020 |
| 57013 | SOUS-ENSEMBLE SUPPORT, ELEMENT DE COTE AVANT, MD | 57013-33031 |
| 57014B | SOUS-ENSEMBLE SUPPORT, ELEMENT DE COTE AVANT, MG | 57014-33011 |
| 57023H | SUPPORT, SOUS-ENS., MONTAGE CARROSSERIE NO.2 DR | 57023-33010 · 57023-33020 |
| 57024C | SUPPORT, SOUS-ENS., MONTAGE CARROSSERIE NO.2 GA | 57024-33010 · 57024-33020 |
| 57027B | Right front inner longitudinal beam sub-assembly | 57027-33070 · 57027-33080 |
| 57028B | Left front inner longitudinal beam sub-assembly | 57028-33070 · 57028-33080 |
| 57031A | No. 2 right front longitudinal beam reinforcement sub-assembly | 57031-33020 |
| 57032B | No. 2 left front longitudinal beam reinforcement sub-assembly | 57032-33020 |
| 57101 | Right front longitudinal beam sub-assembly | 57025-33901 · 57025-33902 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-33907 · 57102-33908 |
| 57115A | Right front longitudinal beam outer panel | 57115-33900 |
| 57116A | Left front longitudinal beam outer panel | 57116-33900 |
| 57117B | Install reinforcement on the right side of the front bumper | 57117-33060 |
| 57118A | Install reinforcement on the left side of the front bumper | 57118-33060 |
| 57129C | PLAQUE, LONGERON AVANT, AVANT MG | 57129-33010 |
| 57145 | Right front longitudinal beam center panel | 57145-33041 |
| 57146 | Left front longitudinal beam center panel | 57146-33041 |
| 57191A | Right rear longitudinal member inside front floor | 57191-33020 · 57191-33030 |
| 57192A | Left rear longitudinal member inside front floor | 57192-33020 · 57192-33030 |
| 57197 | Right front torsion box section piece | 57197-33060 |
| 57198 | Left front anti-torsion box section piece | 57198-33060 |
| 57401H | Floor right inner longitudinal beam sub-assembly | 57401-33160 · 57401-33170 |
| 57402F | Floor left inner longitudinal beam sub-assembly | 57402-33150 · 57402-33160 |
| 57407A | Center floor beam sub-assembly | 57407-33011 |
| 57505C | SOUS-ENSEMBLE DE RENFORT INFERIEUR DE PLANCHER AVANT | 57505-33030 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-33240 · 57601-33250 · 57601-33280 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-33190 · 57602-33230 · 57602-33260 |
| 57603A | Rear floor right rear longitudinal beam sub-assembly | 57603-33030 · 57603-33040 |
| 57604A | Rear floor left rear longitudinal beam sub-assembly | 57604-33030 · 57604-33040 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-33131 · 57605-33140 |
| 57653A | No. 2 rear floor cross member | 57653-33100 |
