Toyota CAMRY 前翼子板挡泥板和前围板 — Figure 5304
Toyota CAMRY EPC diagram 5304, 前翼子板挡泥板和前围板, with 5 images and 54 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

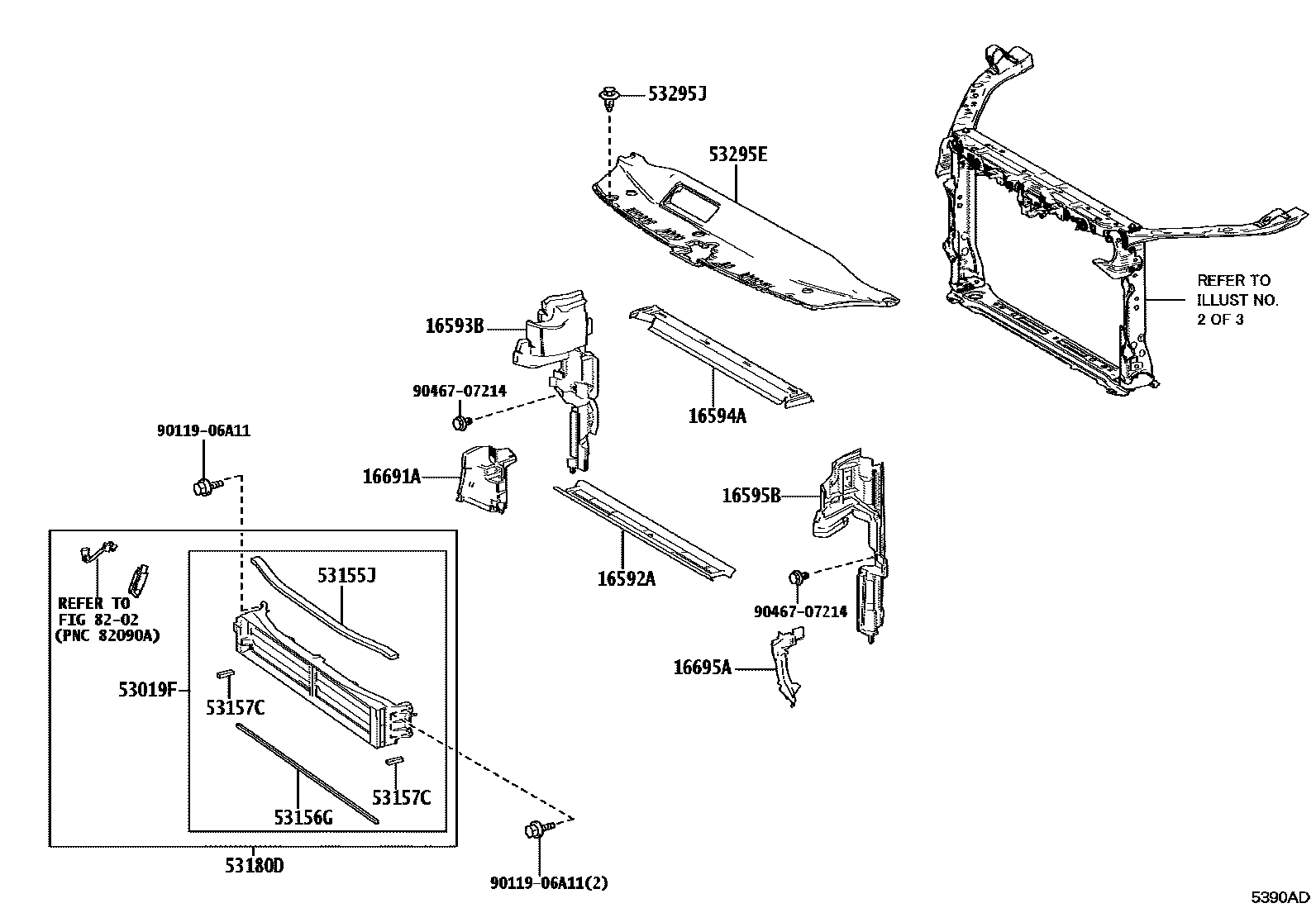

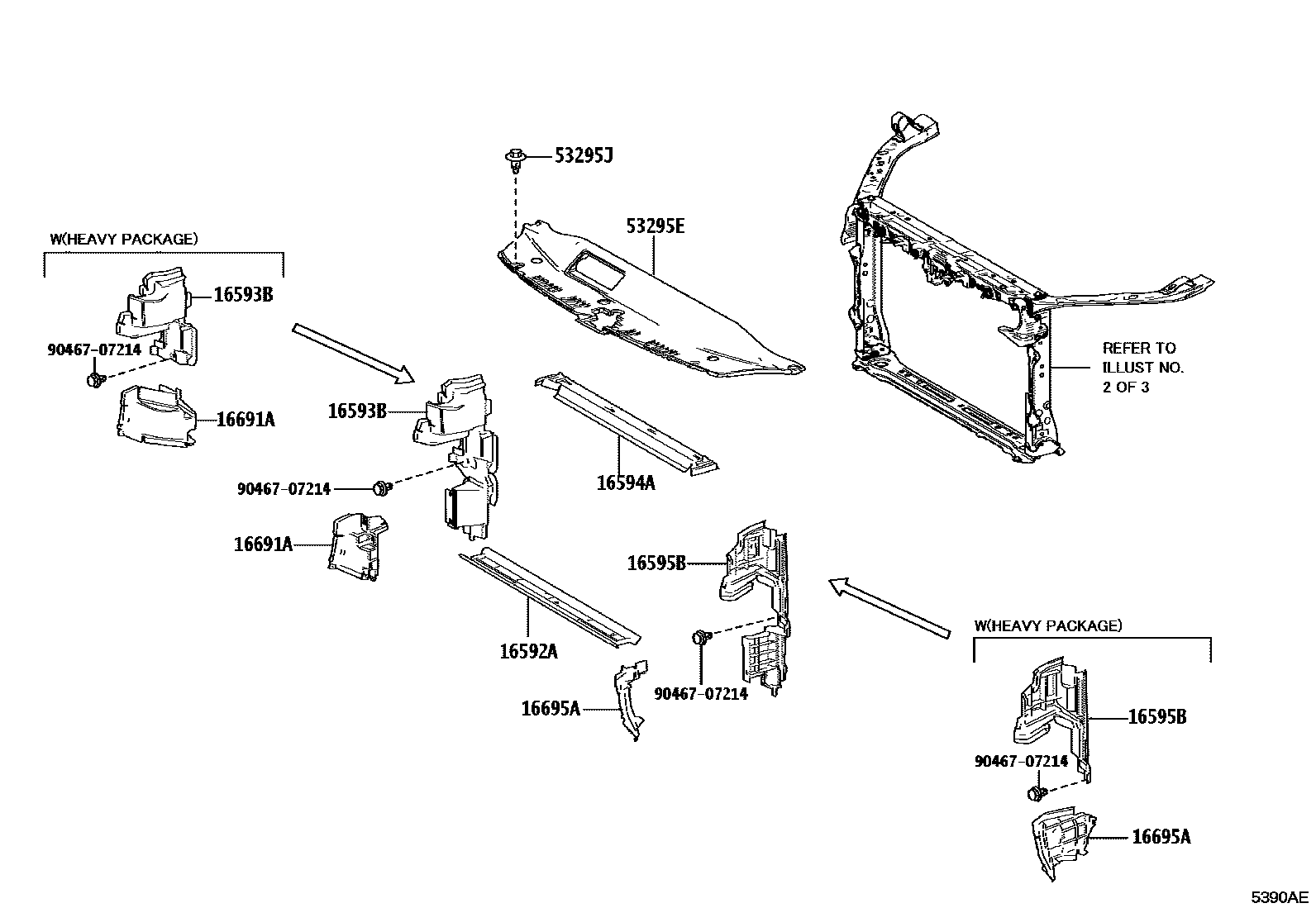

| 16592A | GUIDE, AIR DU RADIATEUR, NO.3 | 16592-25010 |
| 16593B | GUIDE, AIR DU RADIATEUR, NO.1 MD | 16593-25430 · 16593-25440 · 16593-25540 |
| 16594A | GUIDE, AIR DU RADIATEUR, NO.2 | 16594-25010 |
| 16595B | GUIDE, AIR DU RADIATEUR, NO.1 MG | 16595-25410 · 16595-25420 · 16595-25510 |
| 16691A | PLATEAU, DIFFUSEUR D'AIR DE COTE DU RADIATEUR, AVANT MD | 16691-25200 · 16691-25230 |
| 16695A | PLATEAU, DIFFUSEUR D'AIR DE COTE DU RADIATEUR, AVANT MG | 16695-25110 · 16695-25210 |
| 52141H | Front bumper right upper arm | 52141-33170 |
| 52142J | Front bumper left upper arm | 52142-33140 |
| 53019F | OBTURAT SS-ASS, RADIATEUR | 53019-33020 |
| 53155J | JOINT ETANCHEITE NO.1 CALANDRE RADIATEUR | 53155-33120 |
| 53156G | JOINT ETANCHEITE NO.2 CALANDRE RADIATEUR | 53156-33010 |
| 53157C | JOINT, GRILLE DE CALANDRE, NO.3 | 53157-33010 |
| 53180D | ENS. DE VOLET DE RADIATEUR | 53180-33092 |

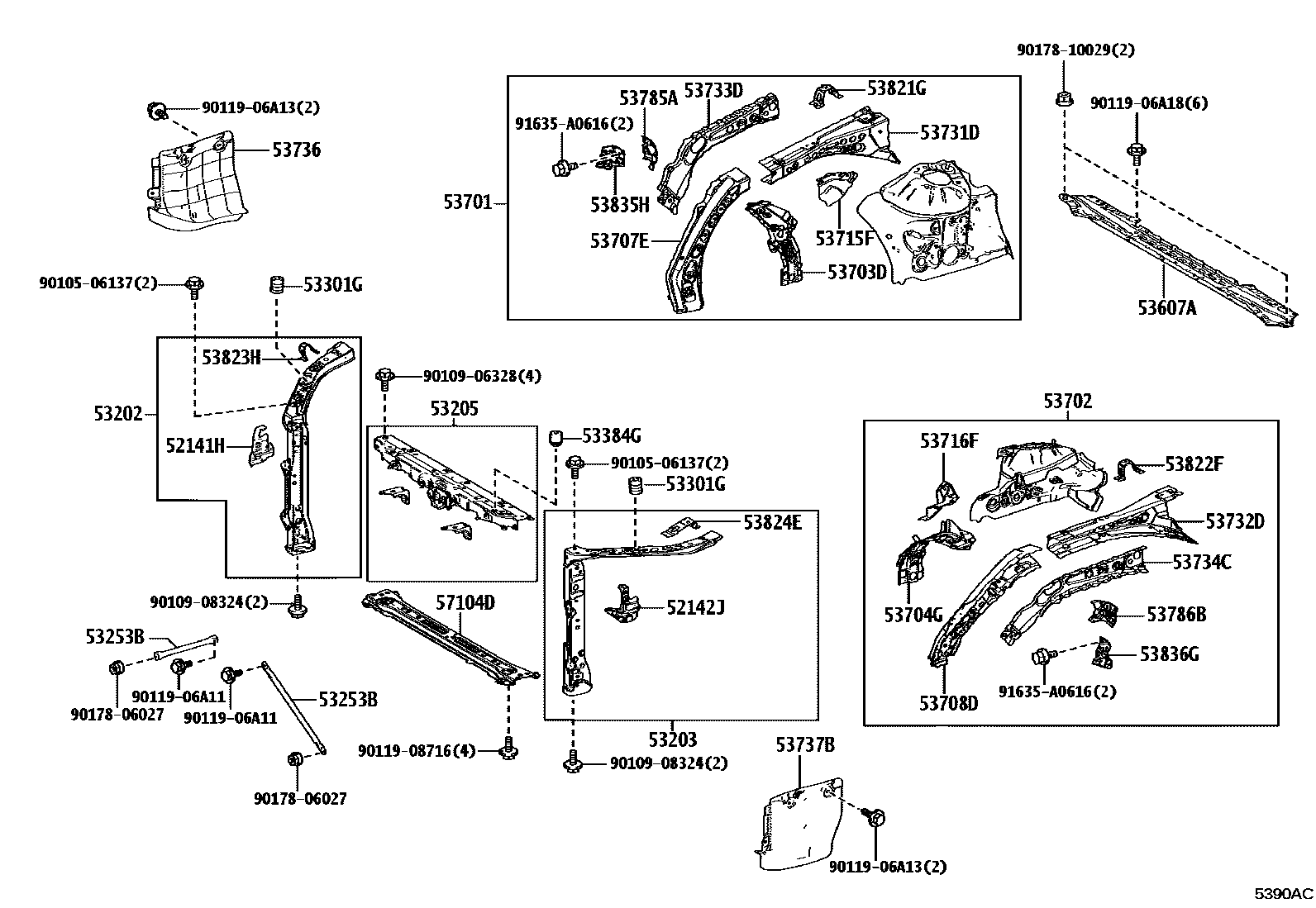

| 53202 | Radiator right side bracket sub-assembly | 53202-33904 |
| 53203 | Radiator left bracket sub-assembly | 53203-33903 |
| 53205 | Radiator upper bracket sub-assembly | 53205-33901 |
| 53253B | Radiator mounting bracket | 53253-33010 |
| 53295E | Cold air intake pipe seal | 53295-33180 |
| 53295J | CLIP, JOINT CONDUIT ADMISSION AIR FRAIS | 90467-07217 |
| 53301G | engine cover cushion | 90541-15033 |
| 53384G | COUSSIN, CAPOT, CENTRAL | 90541-09145 |
| 53607A | Front suspension center upper bracket sub-assembly | 53607-33010 |
| 53701 | Right front fender fender sub-assembly | 53701-33190 |
| 53702 | Left front fender fender sub-assembly | 53702-33150 · 53702-33170 |
| 53703D | SOUS-ENS. TABLIER, AILE AVANT, NO.2 MD | 53703-33060 |
| 53704G | SOUS-ENS. TABLIER, AILE AVANT, NO.2 MG | 53704-33060 |
| 53707E | Fender right fender sub-assembly | 53707-33020 |
| 53708D | Fender left fender sub-assembly | 53708-33010 |
| 53715F | Right fender fender | 53715-33010 |
| 53716F | Left fender fender | 53716-33010 |
| 53731D | Right front fender to cowl side upper beam | 53731-33100 |
| 53732D | Left front fender to cowl side upper beam | 53732-33090 |
| 53733D | Right front fender to cowl side front lower beam | 53733-33060 |
| 53734C | Left front fender to cowl side front lower beam | 53734-33060 |
| 53736 | Right front fender fender seal | 53736-33050 |
| 53737B | Left front fender fender seal | 53737-33030 |
| 53785A | Right front fender corner plate | 53785-33010 |
| 53786B | Left front fender corner plate | 53786-33010 |
| 53821G | Right front fender rear support | 53821-33080 |
| 53822F | Left front fender rear support | 53822-33070 |
| 53823H | Right front fender corner panel | 53823-33050 |
| 53824E | Left front fender corner panel | 53824-33050 |
| 53835H | ENTRETOISE, AILE AVANT A EXTENSION DROITE | 53835-33110 |
| 53836G | ENTRETOISE, AILE AVANT A EXTENSION GAUCHE | 53836-33120 |

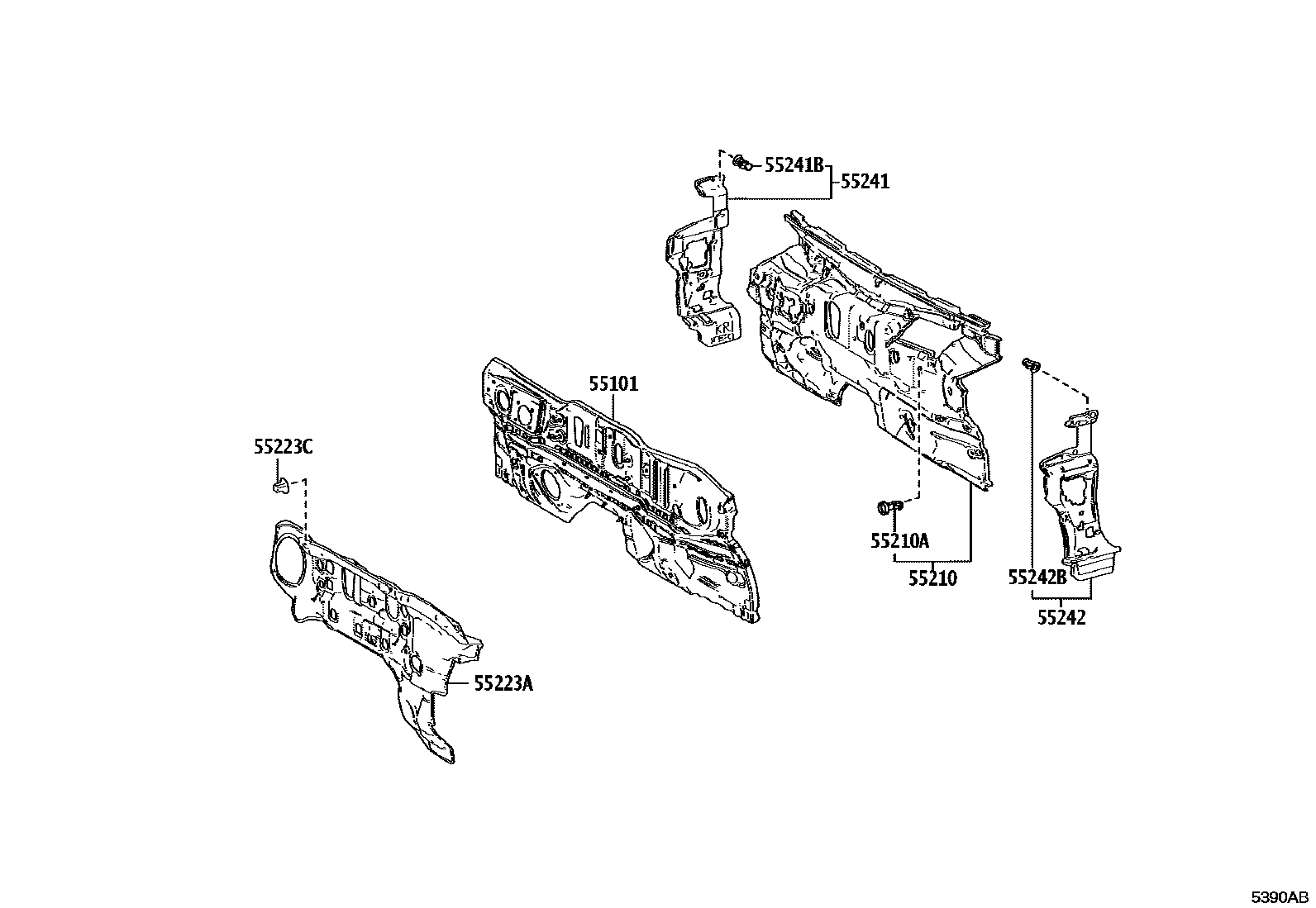

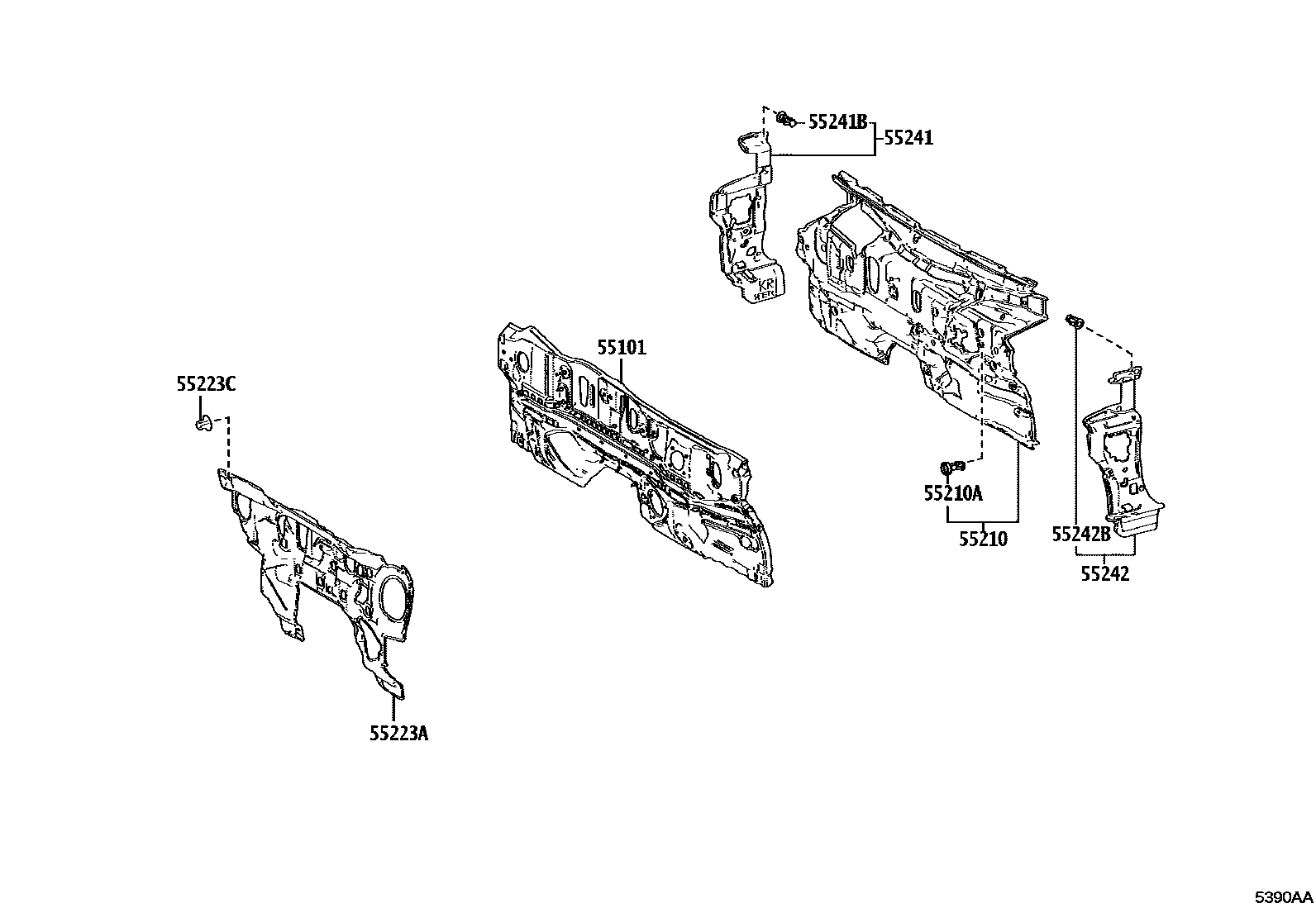

| 55101 | Front apron sub-assembly | 55101-33520 · 55101-33530 |
| 55210 | Front wall insulation pad assembly | 55210-33440 · 55210-33450 |
| 55210A | clip | 90467-11122 |
| 55223A | Front wall outer heat insulation pad | 55223-33330 · 55223-33340 |
| 55223C | clip | 90467-06197 |
| 55241 | Front panel No. 1 right side silencer | 55241-33020 |
| 55241B | ATTACHE, SILENCIEUX COTE PANNEAU AVANT | 90467-13079 |
| 55242 | Front panel No. 1 left side silencer | 55242-33020 |
| 55242B | ATTACHE, SILENCIEUX COTE PANNEAU AVANT | 90467-13079 |
| 57104D | Front cross member sub-assembly | 57104-33080 |
