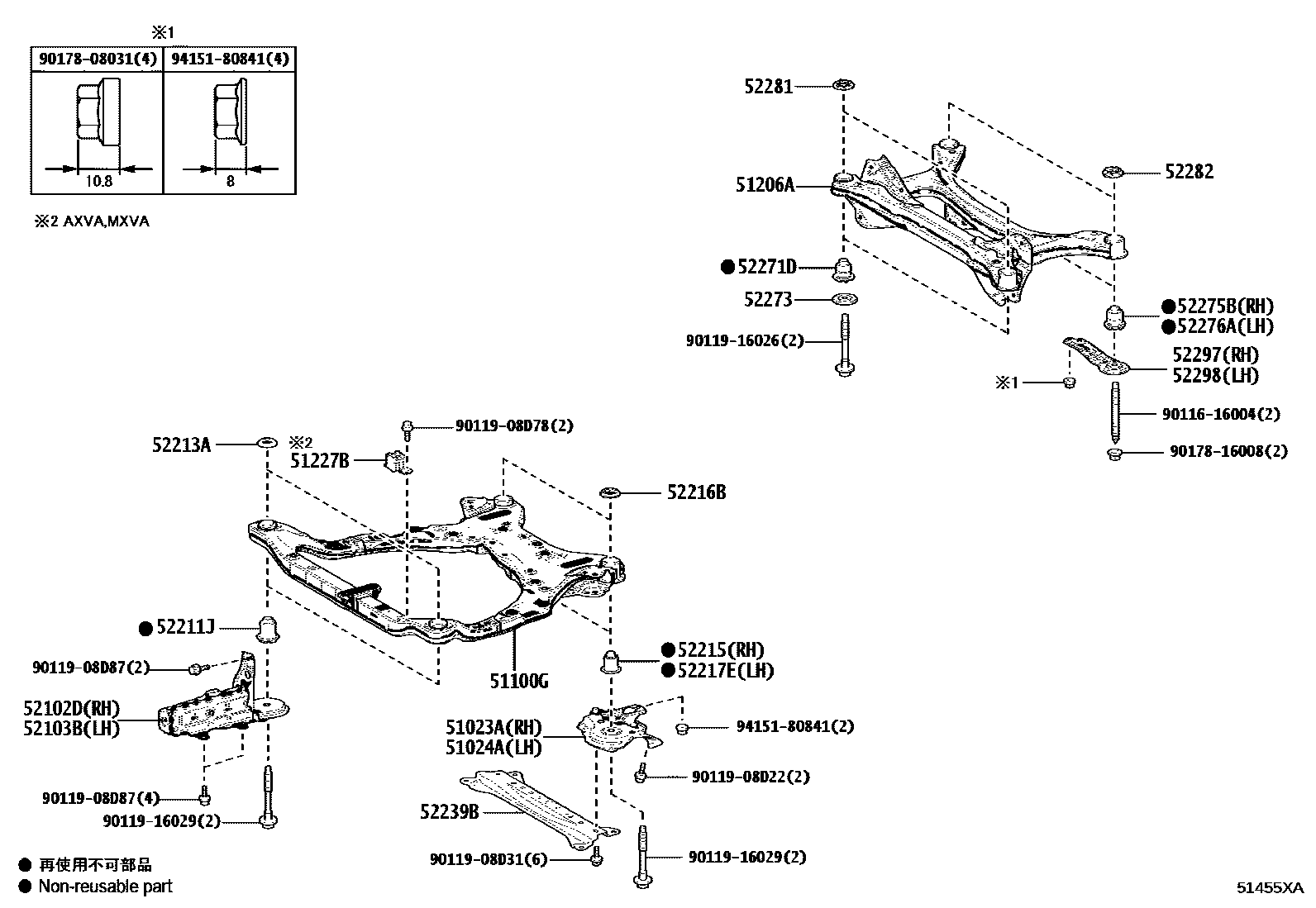

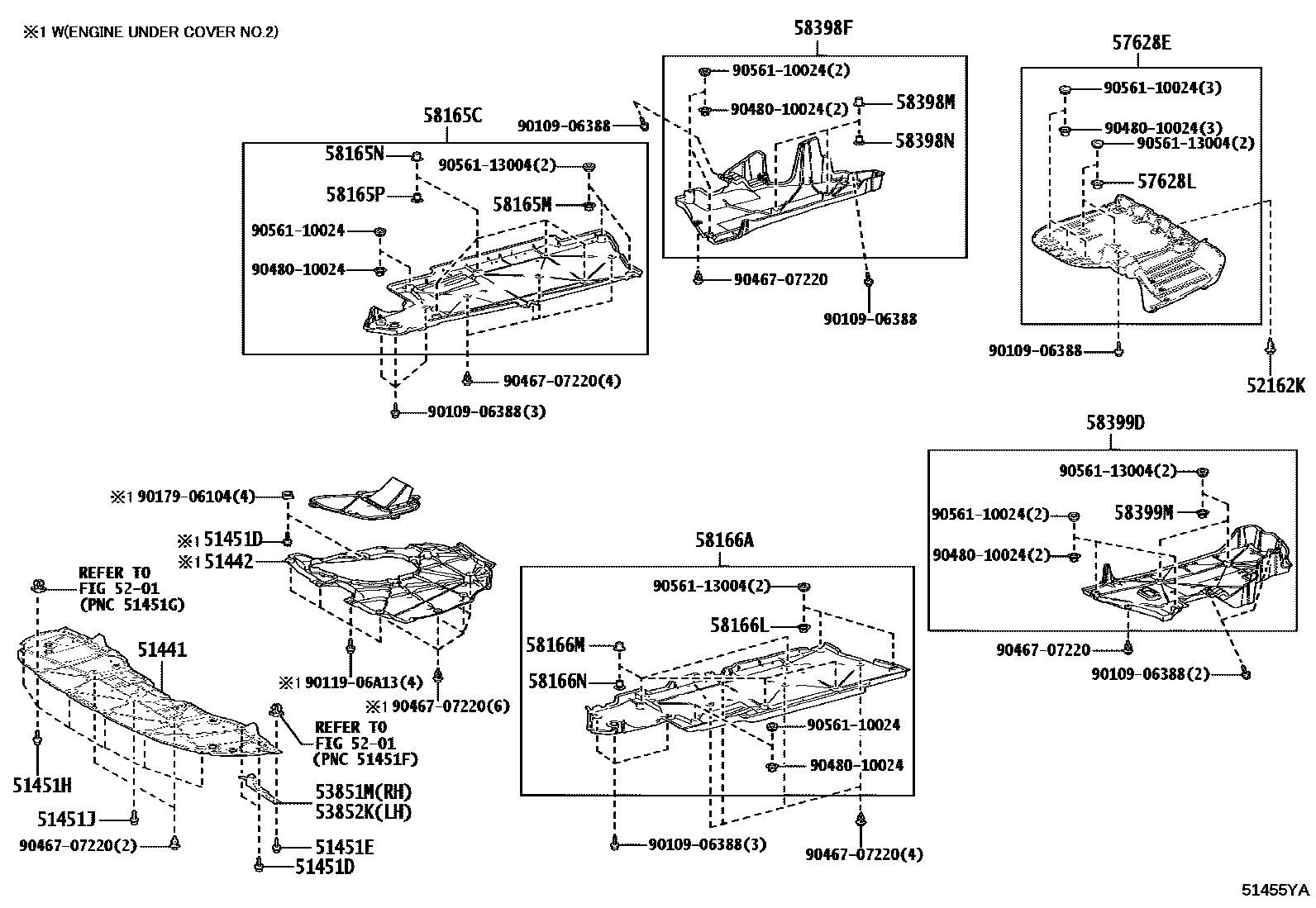

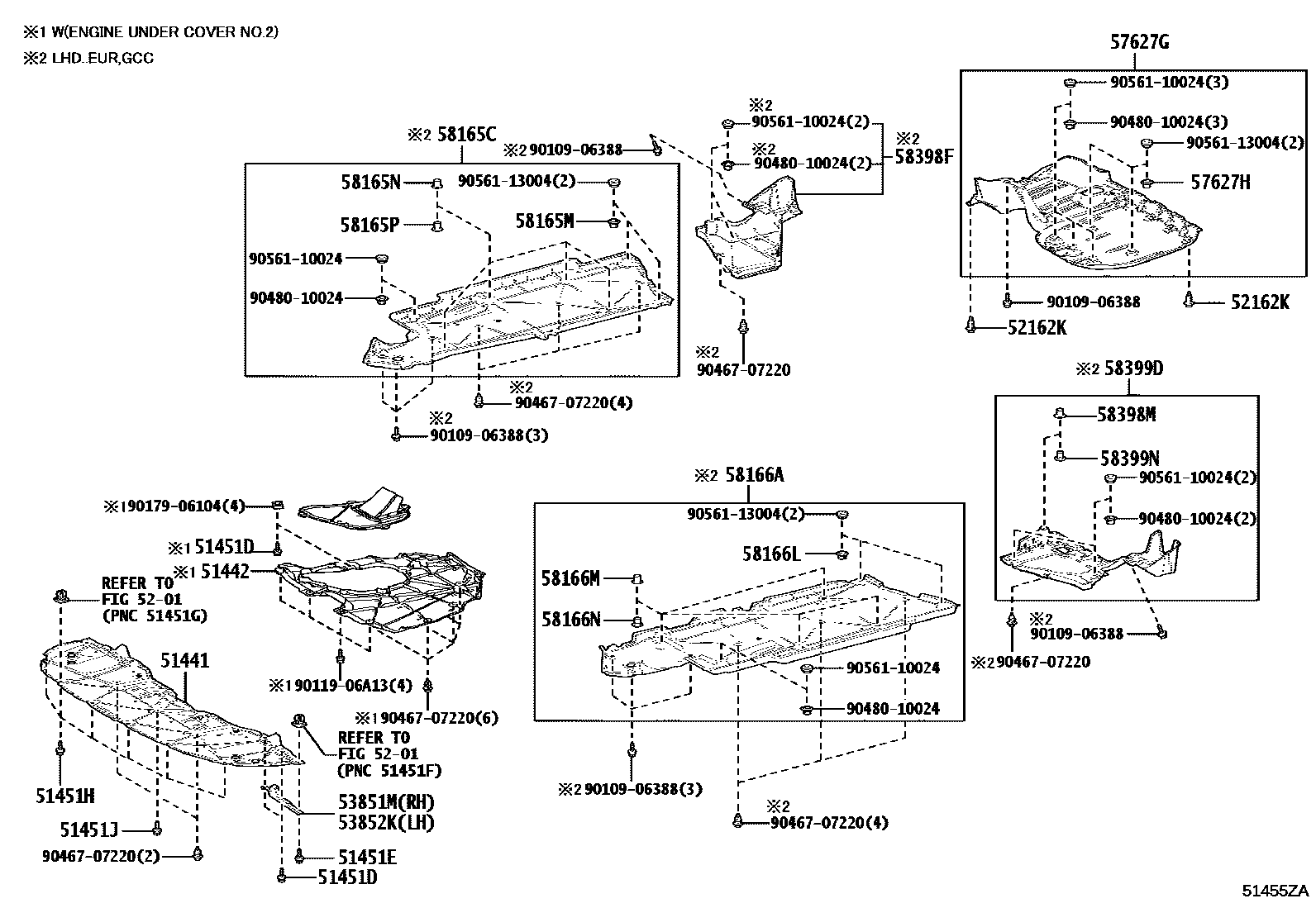

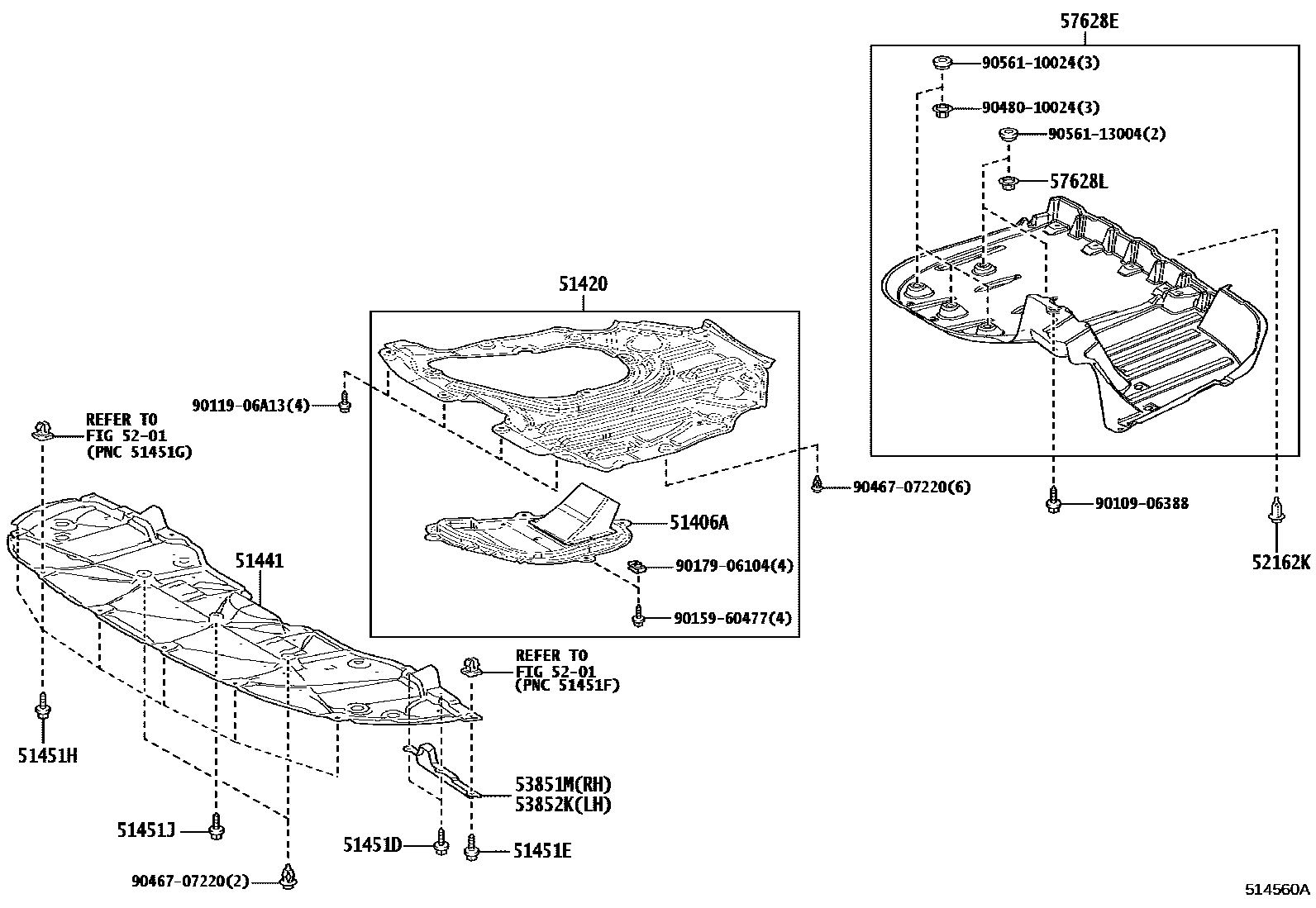

Toyota CAMRY 悬架横梁和发动机底罩 — Figure 5102
Toyota CAMRY EPC diagram 5102, 悬架横梁和发动机底罩, with 4 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51023A | Front suspension cross member right side bracket sub-assembly | 51023-33070 |
| 51024A | Front suspension cross member left bracket sub-assembly | 51024-33080 |
| 51100G | Front frame assembly | 51100-33130 |
| 51206A | Rear suspension cross member sub-assembly | 51206-33120 |
| 51227B | Front suspension beam dynamic damper | 51227-33120 |
| 51406A | No. 2 engine bottom cover sub-assembly | 51406-33010 |
| 51420 | COUV ASS, SOUS MOT, NO.2 | 51420-33030 |
| 51441 | No. 1 engine bottom cover | 51441-33221 |
| 51442 | No. 2 engine bottom cover | 51442-33220 |
| 51451D | VIS, NO.1 | 90159-60477 |
| 51451E | VIS, NO.2 | 90159-60477 |
| 51451H | VIS, NO.3 | 90159-60477 |
| 51451J | BOULON, NO.1 | 90119-06A13 |
| 52102D | S-ENS. PROL., PARE-CHOCS AVANT, DROIT | 52102-33010 |
| 52103B | S-ENS. PROL., PARE-CHOCS AVANT, GAUCHE | 52103-33010 |
| 52162K | PIECE PARE-CHOCS ARRIERE | 52161-16010 |
| 52211J | Front suspension cross member, front body fixed cushion | 52211-33100 |
| 52213A | Front suspension cross member, front body fixed stop | 52213-33100 |
| 52215 | Front suspension cross member Rear body fixed cushion | 52215-33110 |
| 52216B | Front suspension cross member, rear body fixed stop | 52216-33090 |
| 52217E | Front suspension cross member left rear body fixed buffer pad | 52217-33040 |
| 52239B | PLAQUE, MONTAGE DE CARROSSERIE | 52239-33020 |
| 52271D | Rear suspension cross member, front body fixed cushion | 52271-33070 |
| 52273 | Rear suspension cross member lower block | 52273-33030 |
| 52275B | Rear suspension cross member right rear body fixed cushion | 52275-33080 |
| 52276A | Rear suspension cross member left rear body fixed buffer pad | 52276-33010 |
| 52281 | Differential support beam cushion | 52281-33020 |
| 52282 | Differential support beam upper stop | 52282-33060 |
| 52297 | Right rear suspension cross member rear lower bracket | 52297-33020 |
| 52298 | Left rear suspension cross member rear lower bracket | 52298-33020 |
| 53851M | PATIN, EXTENSION PASSAGE ROUE AVT, RH | 53851-33070 · 53851-33080 |
| 53852K | Left front fender exterior panel pad | 53852-33070 · 53852-33080 |
| 57627G | COUVERCLE DE MEMBRE LATERAL DROIT DE PLANCHER AR | 57628-33120 |
| 57627H | ATTACHE, CACHE LONGERON PLANCHER ARR, NO.1 | 90467-14053 |
| 57628E | Rear floor left longitudinal member cover | 57628-33110 |
| 57628L | ATTACHE, CACHE LONGERON PLANCHER ARR, NO.1 | 90467-14053 |
| 58165C | Front floor right cover | 58165-33020 |
| 58165M | ATTACHE, REVETEMENT DE PLANCHER AVANT, NO.1 | 90467-14053 |
| 58166A | Front floor left cover | 58166-33030 |
| 58166L | ATTACHE, REVETEMENT DE PLANCHER AVANT, NO.1 | 90467-14053 |
| 58398F | No. 1 floor under cover | 58398-33060 · 58398-33070 |
| 58399D | Floor No. 2 lower cover | 58399-33070 · 58399-33080 |
| 58399M | CLIP, CACHE SOUS PLANCHER, NO.1 | 90467-14053 |
