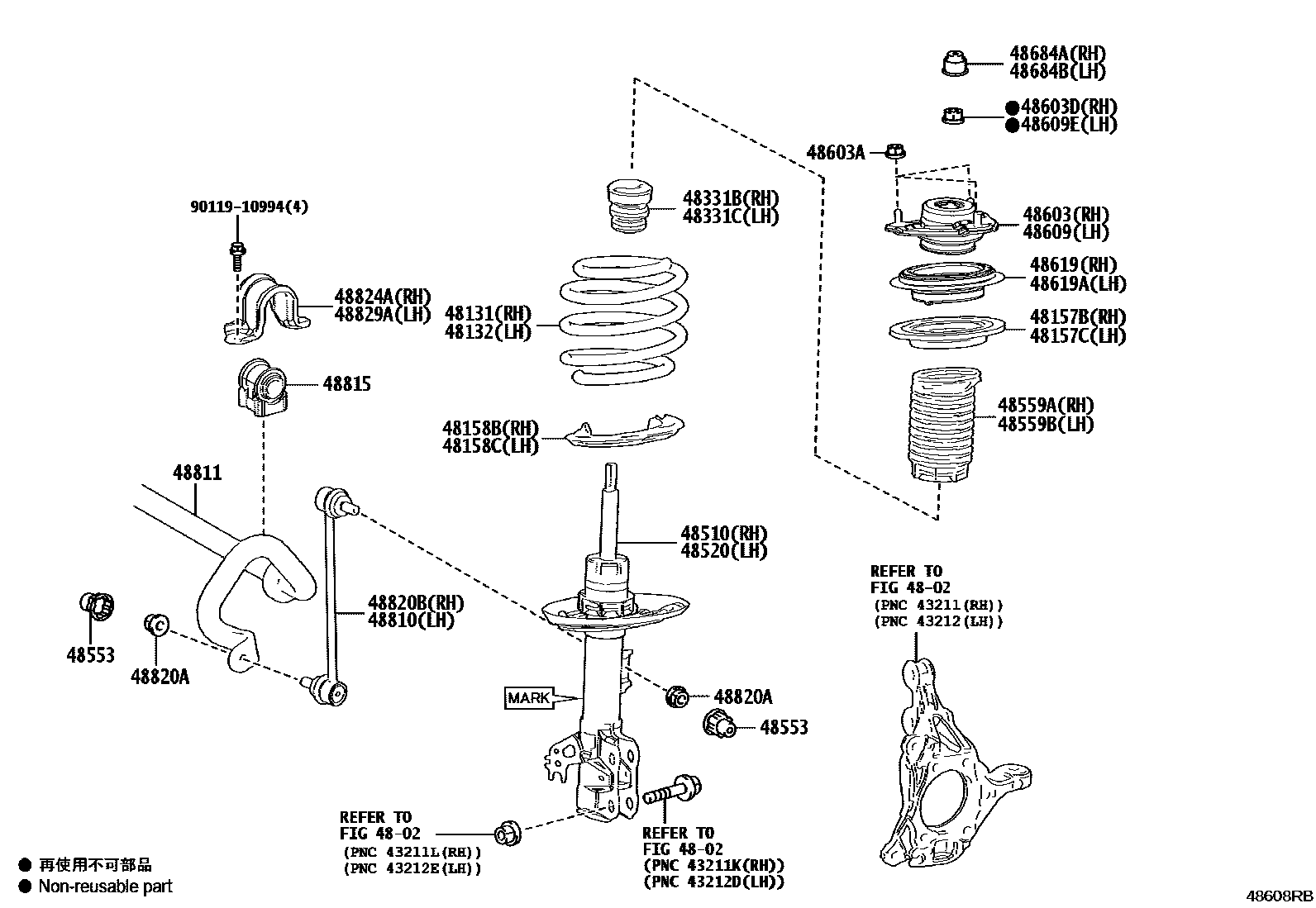

Toyota CAMRY Front Spring & Shock Absorber — Figure 4803
Toyota CAMRY EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-33E10 · 48131-33E20 · 48131-33E40 |
| 48132 | Left front coil spring | 48131-33E10 · 48131-33E20 · 48131-33E40 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-33090 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-33090 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-33110 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-33110 |
| 48331B | Right front spring buffer block | 48331-33101 |
| 48331C | Left front spring buffer block | 48331-33101 |
| 48510 | Right front shock absorber assembly | 48510-80C78 · 48510-80C80 |
| 48520 | Left front shock absorber assembly | 48520-80822 · 48520-80824 |
| 48553 | Damper upper cover | 48553-52030 |
| 48559A | Right front shock absorber No. 1 dust cover | 48559-33020 |
| 48559B | Left front shock absorber No. 1 dust cover | 48559-33020 |
| 48603 | Right front suspension bearing sub-assembly | 48609-33260 · 48609-33280 |
| 48603A | Nut (for front suspension mount) | 90178-10029 |
| 48603D | Nut (for front mount to right front shock absorber) | 90177-14007 |
| 48609 | Left front suspension bearing sub-assembly | 48609-33260 · 48609-33280 |
| 48609E | Nut (for front mount to left front shock absorber) | 90177-14007 |
| 48619 | Bearing installed on the right sliding column | 48619-33020 |
| 48619A | Bearing installed on the left sliding column | 48619-33020 |
| 48684A | Right front suspension support dust cover | 48684-33030 |
| 48684B | Left front suspension support dust cover | 48684-33030 |
| 48810 | Left front stabilizer bar link assembly | 48820-33090 |
| 48811 | front stabilizer bar | 48811-33200 · 48811-33210 · 48811-33220 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-33150 · 48815-33160 · 48815-33170 |
| 48820A | Nut (for front stabilizer bar link) | 94151-21241 |
| 48820B | Right front stabilizer bar link assembly | 48820-33090 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48824-33040 · 48824-33050 |
| 48829A | Left front stabilizer bar bracket No. 1 | 48824-33040 |
