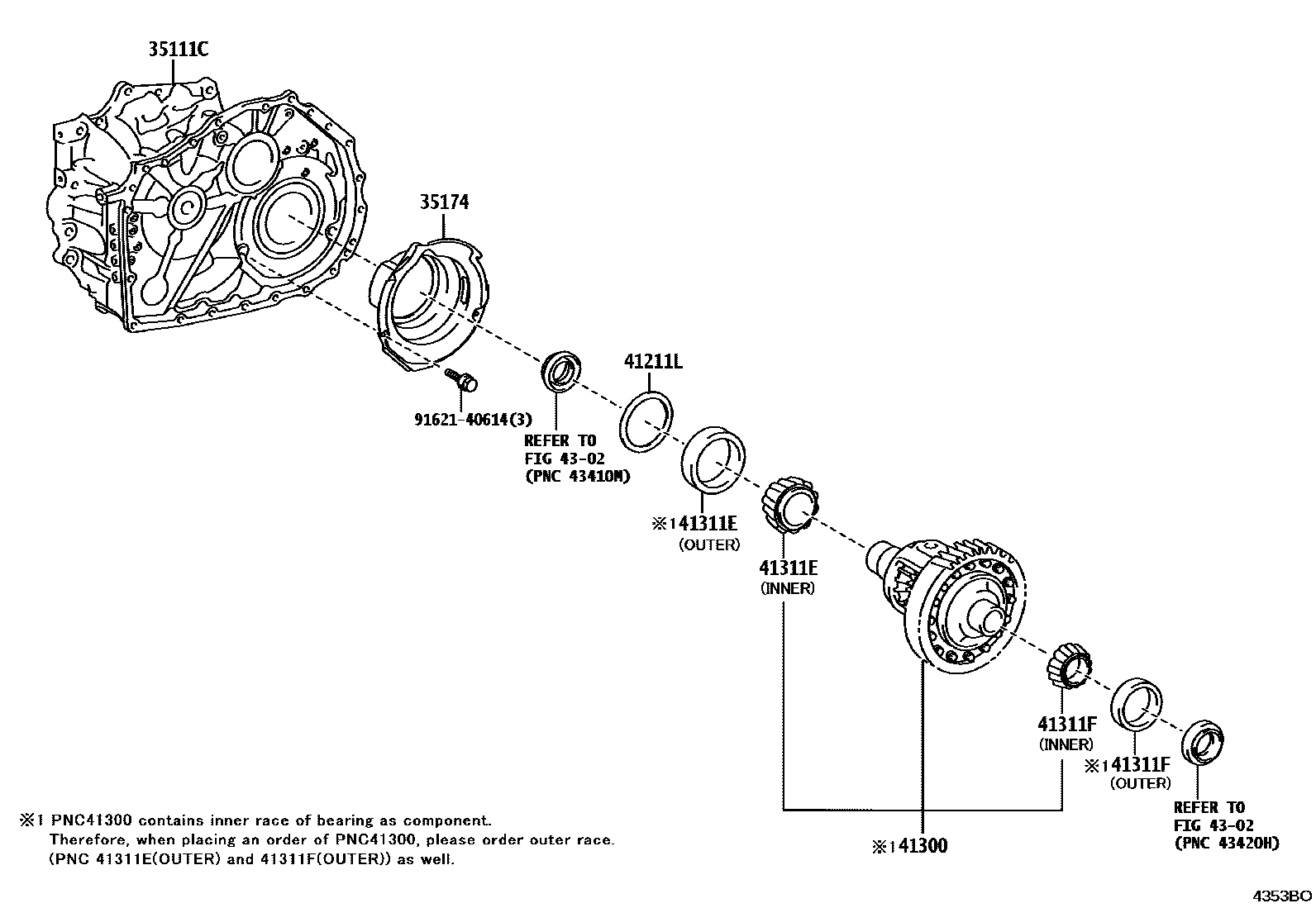

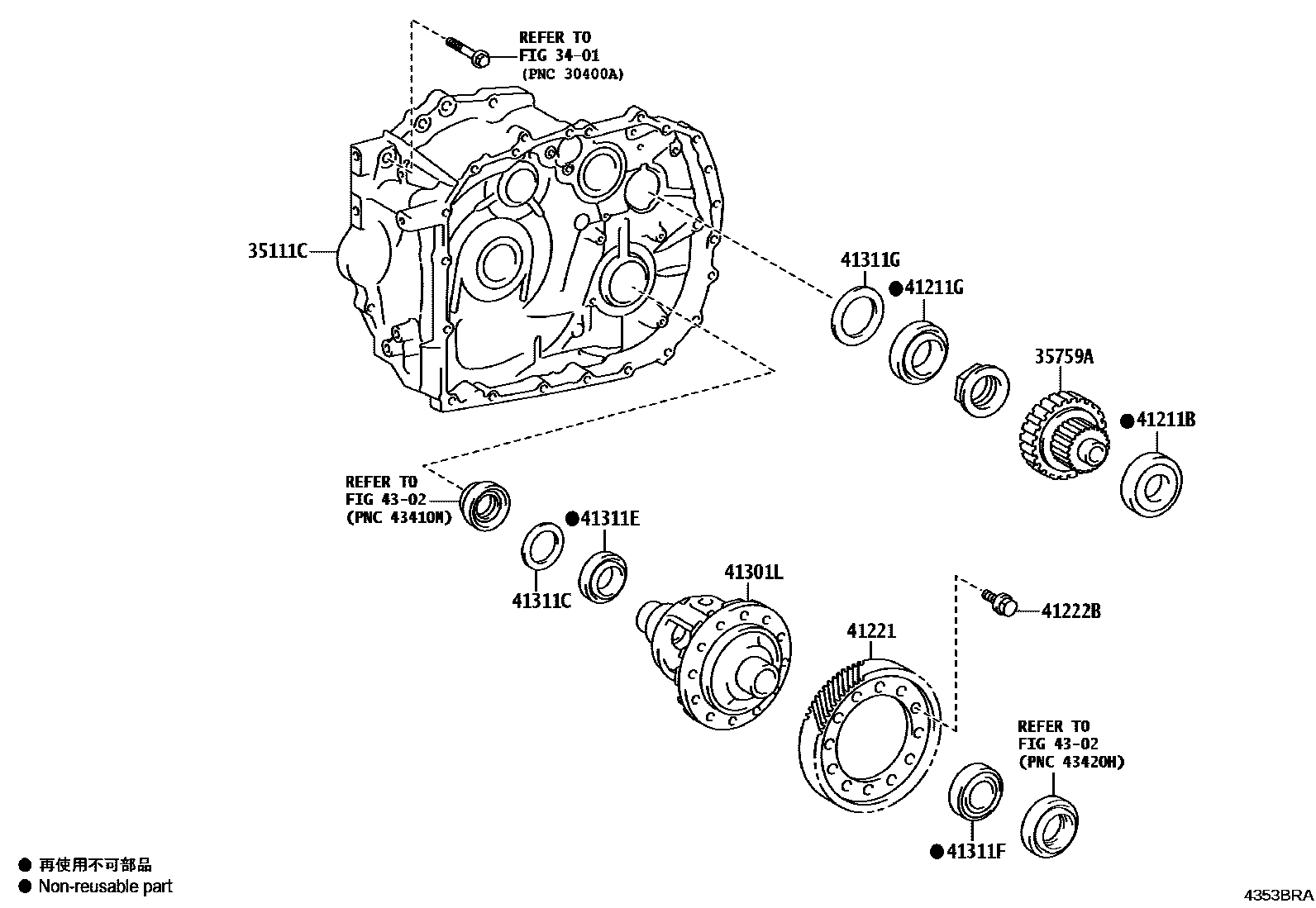

Toyota CAMRY 前桥壳和差速器 — Figure 4301
Toyota CAMRY EPC diagram 4301, 前桥壳和差速器, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35111C | Transmission axle housing | 35105-33040 · 35111-33142 |
| 35174 | Transmission axle housing oil separator | 35174-33030 |
| 35759A | PIGNON, MENANT DEMULTIPLICATEUR | 35705-33140 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90366-29013 |
| 41211G | Left side thrust needle bearing (for front drive pinion) | 90366-25026 |
| 41211L | Spacer (for differential drive pinion) | 90564-75002 · 90564-75003 · 90564-75004 · 90564-75005 · 90564-75006 · 90564-75007 · 90564-75008 · 90564-75009 · 90564-75010 · 90564-75011 · 90564-75012 · 90564-75013 · 90564-75014 · 90564-75015 · 90564-75016 · 90564-75017 · 90564-75018 · 90564-75019 · 90564-75023 · 90564-75024 · 90564-75025 · 90564-75026 · 90564-75027 · 90564-75028 · 90564-75029 · 90564-75030 · 90564-75031 · 90564-75032 · 90564-75033 · 90564-75034 · 90564-75035 |
| 41221 | Front differential ring gear | 41221-33360 |
| 41222B | Bolt (for front differential ring gear assembly) | 90105-12303 |
| 41300 | Front differential case assembly with ring gear | 41300-33071 |
| 41301L | No. 1 front differential housing sub-assembly | 41301-12450 |
| 41311C | Rear gasket (for front differential case) | 90564-66038 · 90564-66039 · 90564-66067 · 90564-66068 · 90564-66069 · 90564-66070 · 90564-66071 · 90564-66072 · 90564-66073 · 90564-66074 · 90564-66075 · 90564-66076 · 90564-66077 · 90564-66078 · 90564-66079 · 90564-66080 · 90564-66081 · 90564-66082 · 90564-66083 · 90564-66084 |
| 41311E | Front roller tapered bearing (for front differential housing) | 90366-50172 · 90366-57048 · 90366-57049 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-50189 · 90366-50206 · 90366-51007 |
| 41311G | Front flat washer (for front differential case) | 90564-44070 · 90564-44071 · 90564-44072 · 90564-44073 · 90564-44074 · 90564-44075 · 90564-44076 · 90564-44077 · 90564-44078 · 90564-44079 · 90564-44080 · 90564-44081 · 90564-44082 · 90564-44083 · 90564-44084 · 90564-44085 · 90564-44086 · 90564-44087 · 90564-44088 · 90564-44089 · 90564-44090 · 90564-44091 · 90564-44092 |
