Toyota CAMRY 车轮和车轮盖 — Figure 4103

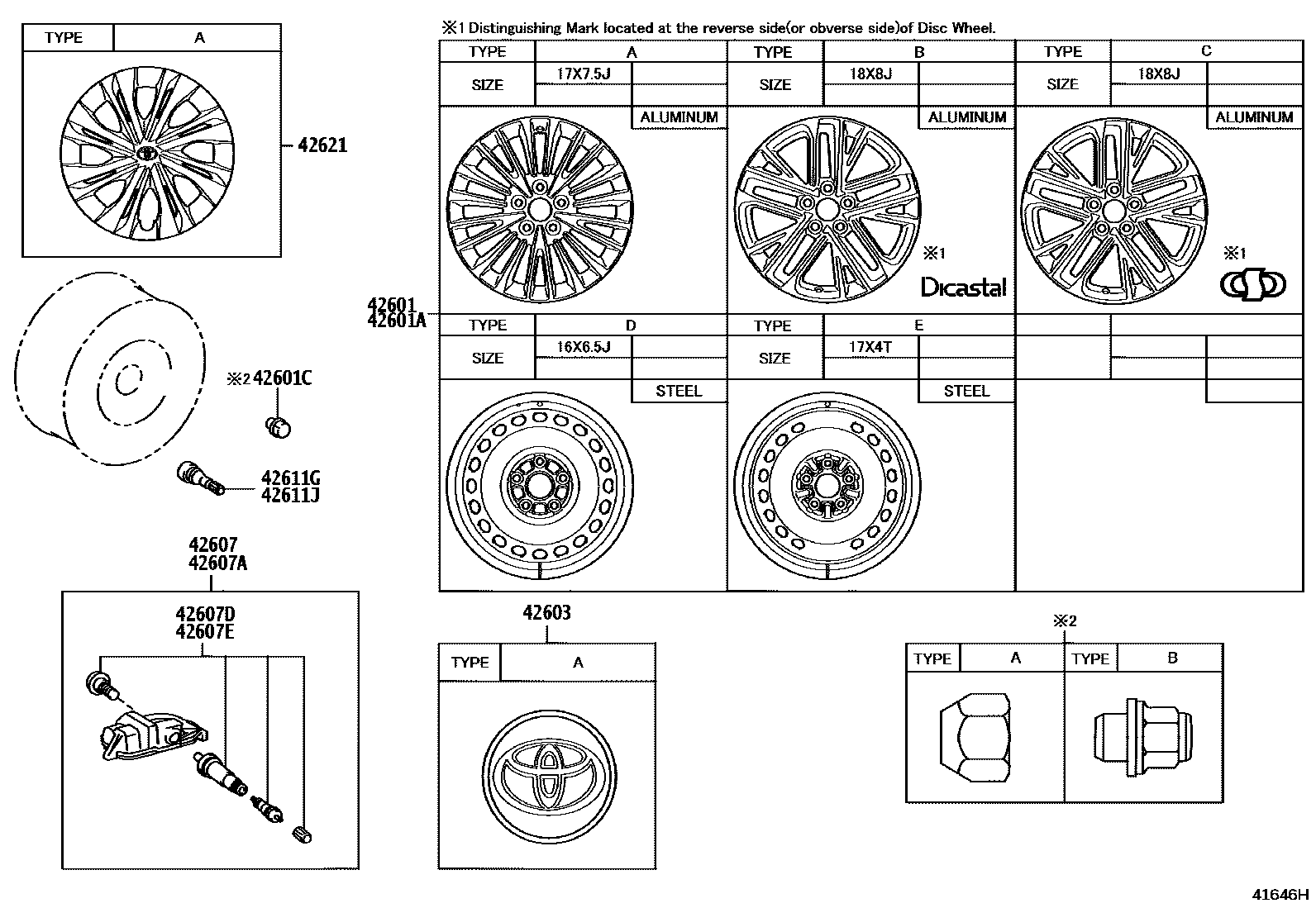

Toyota CAMRY EPC diagram 4103, 车轮和车轮盖, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42611-33B81 · 42611-33J60 · 42611-33J70 · 42611-33J80 · 42611-33K10 · 42611-33K20 |
| 42601A | Spoke wheel (for spare tire) | 42611-33B81 · 42611-33E20 · 42611-33J60 · 42611-33J70 · 42611-33J80 · 42611-33K10 · 42611-33K20 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01033 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-42170 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-47020 |
| 42607A | Tire pressure monitoring valve sub-assembly (for spare tire) | 42607-47020 |
| 42607D | SOUPAPE, CONTROLE PRESSION PNEU | 90942-05047 |
| 42607E | SOUPAPE, CONTROLE PRESSION PNEU (ROUE SECOURS) | 90942-05047 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42621 | wheel cover | 42602-28440 |
