Toyota CAMRY 变速器油冷却器和配管(ATM) — Figure 3514

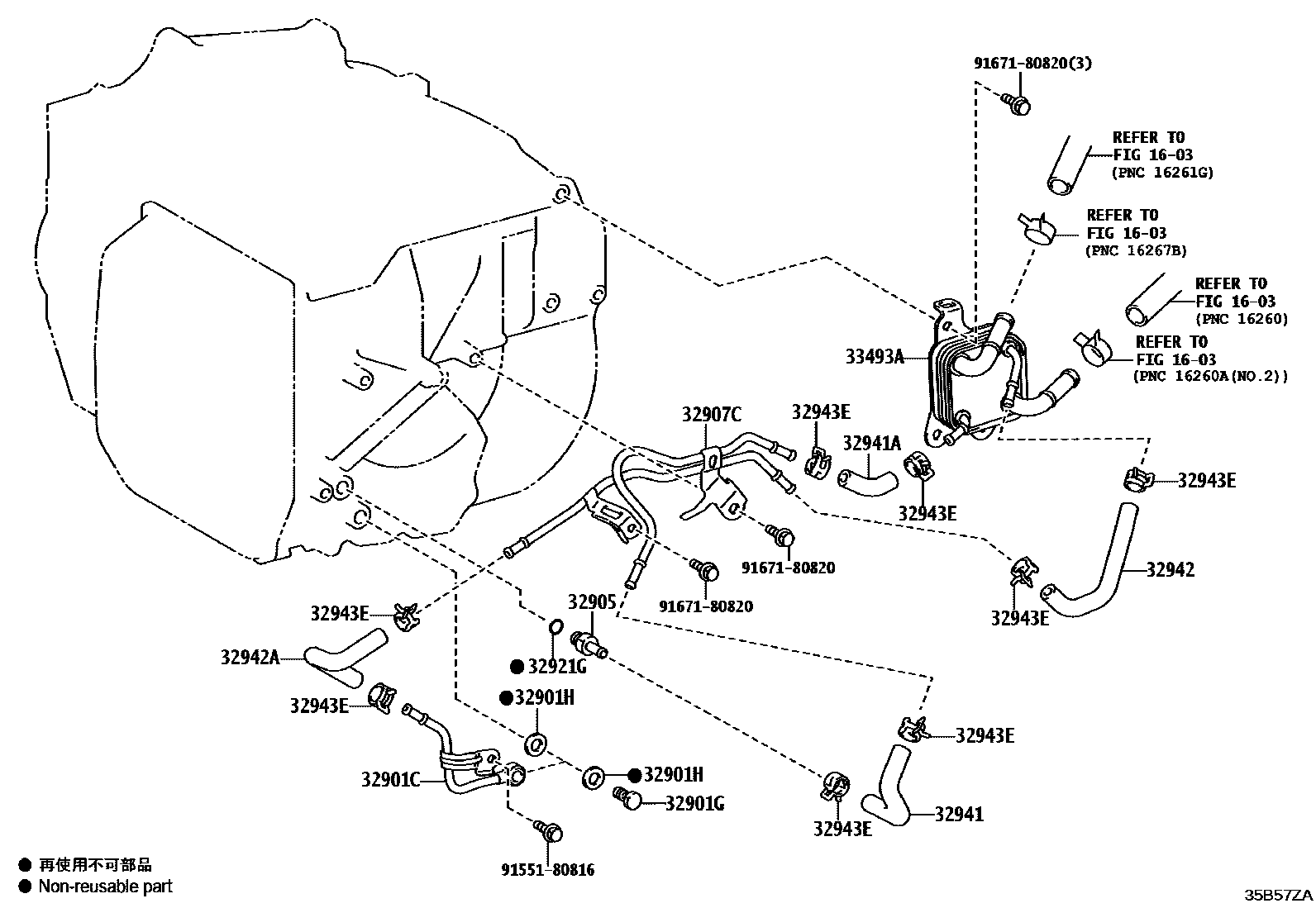

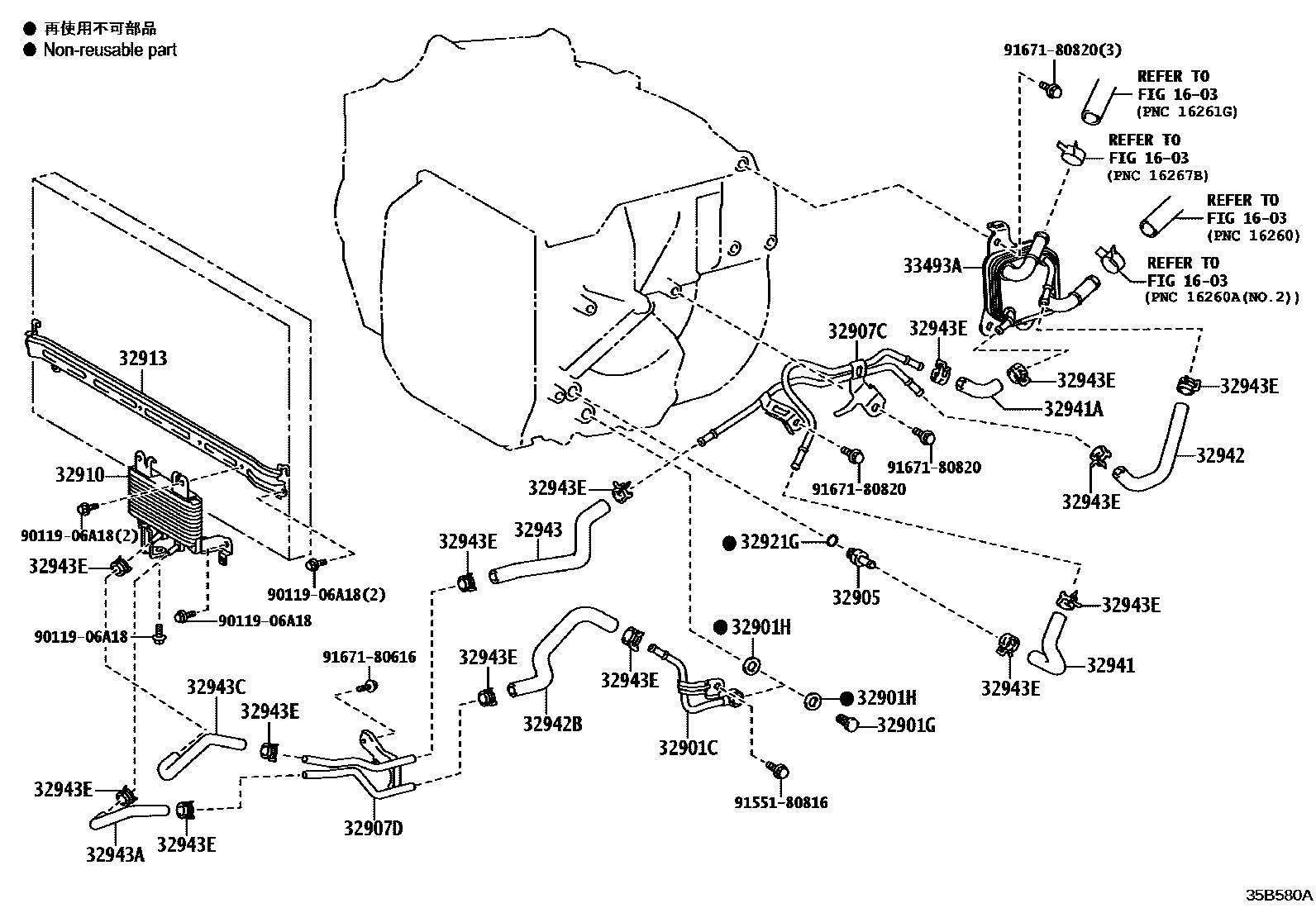

Toyota CAMRY EPC diagram 3514, 变速器油冷却器和配管(ATM), with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32901C | Transmission oil cooler joint sub-assembly | 32901-48020 |
| 32901G | BOULON, RACCORD (POUR RADIATEUR REFROID. D'HUILE) | 90401-14003 |
| 32901H | JOINT ETANCH. (POUR RADIATEUR REFROID. D'HUILE) | 90430-14016 |
| 32905 | No. 1 transmission oil cooler oil outlet pipe sub-assembly | 90404-14030 |
| 32907C | No. 1 transmission oil cooler pipe sub-assembly without hose | 32907-42070 |
| 32907D | No. 2 transmission oil cooler pipe sub-assembly without hose | 32907-33201 |
| 32910 | Oil cooler assembly | 32910-33110 |
| 32913 | Transmission oil cooler bracket | 32913-33080 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-11031 |
| 32941 | No. 1 transmission oil cooler oil inlet hose | 32941-42170 |
| 32941A | No. 2 transmission oil cooler oil inlet hose | 32941-33190 |
| 32942 | No. 1 transmission oil cooler oil outlet hose | 32942-33230 |
| 32942A | No. 2 transmission oil cooler oil outlet hose | 32942-33240 |
| 32942B | No. 3 transmission oil cooler oil outlet hose | 32942-33100 |
| 32943 | No. 1 transmission oil cooler hose | 32943-33320 |
| 32943A | No. 2 transmission oil cooler hose | 32943-33300 |
| 32943C | No. 3 transmission oil cooler hose | 32943-33290 |
| 32943E | Clamp No. 3 (for transmission oil cooler hose) | 90466-16004 |
| 33493A | Transmission oil cooler | 33493-33061 |
