Toyota CAMRY Shift Lever & Retainer — Figure 3312

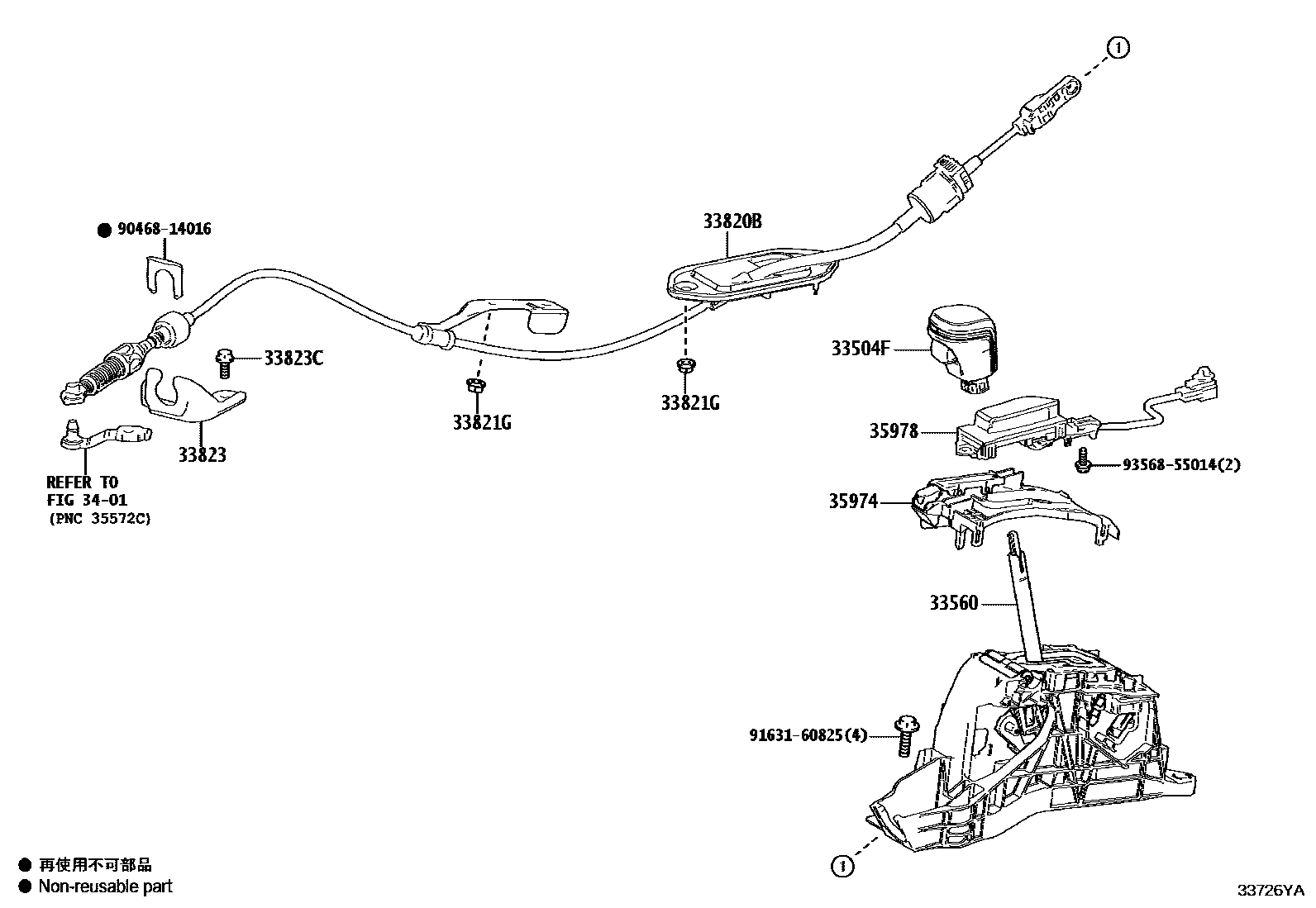

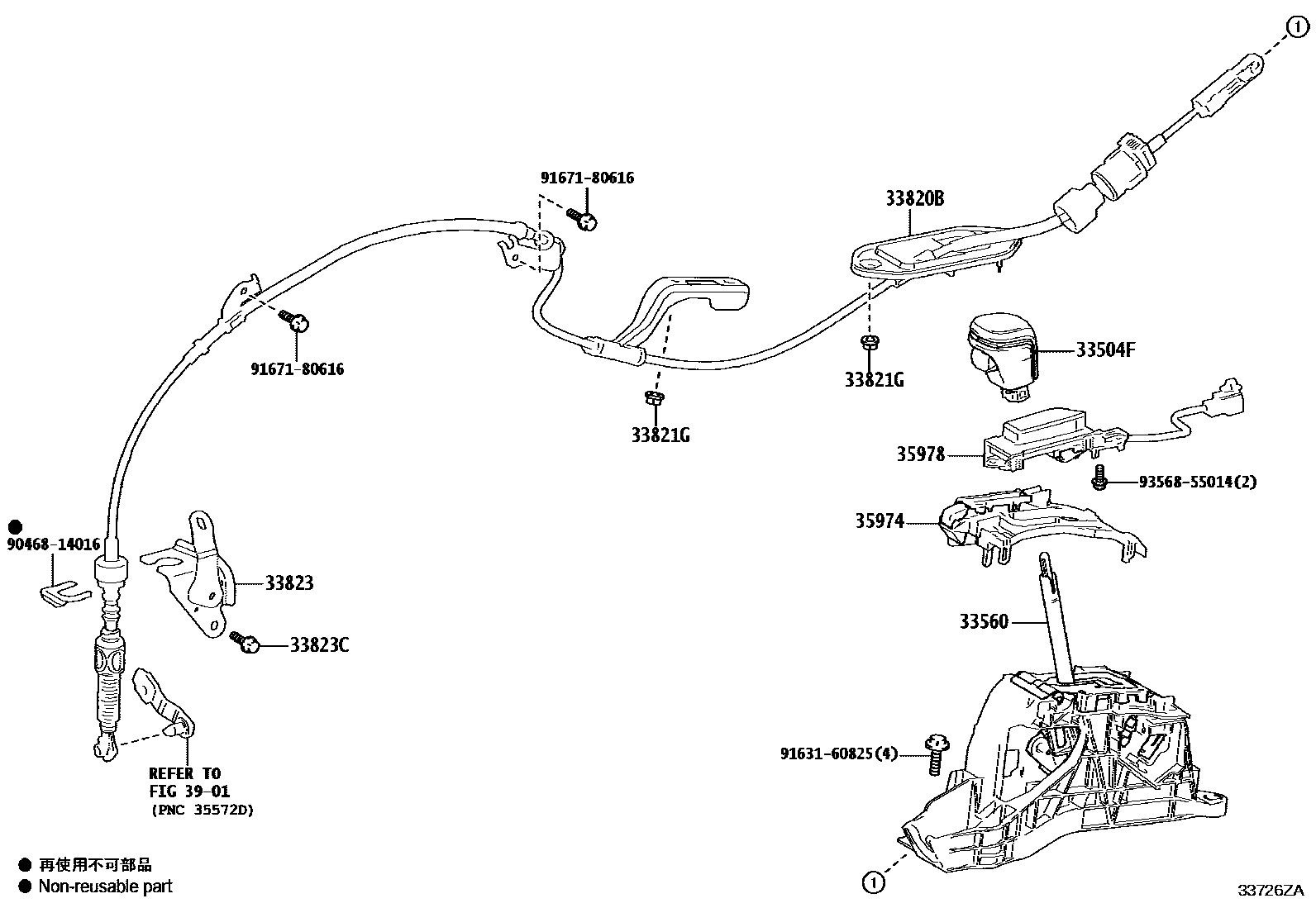

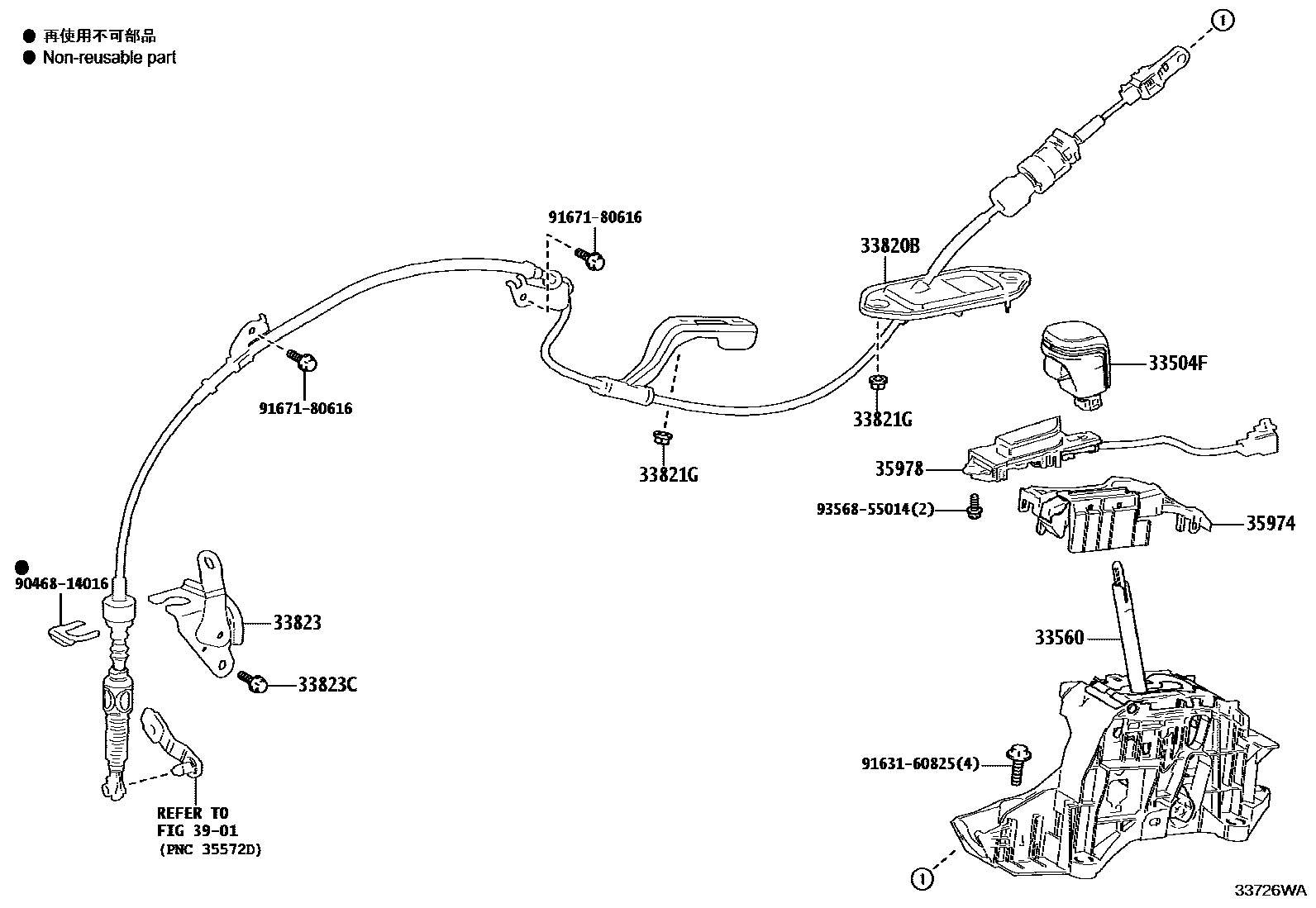

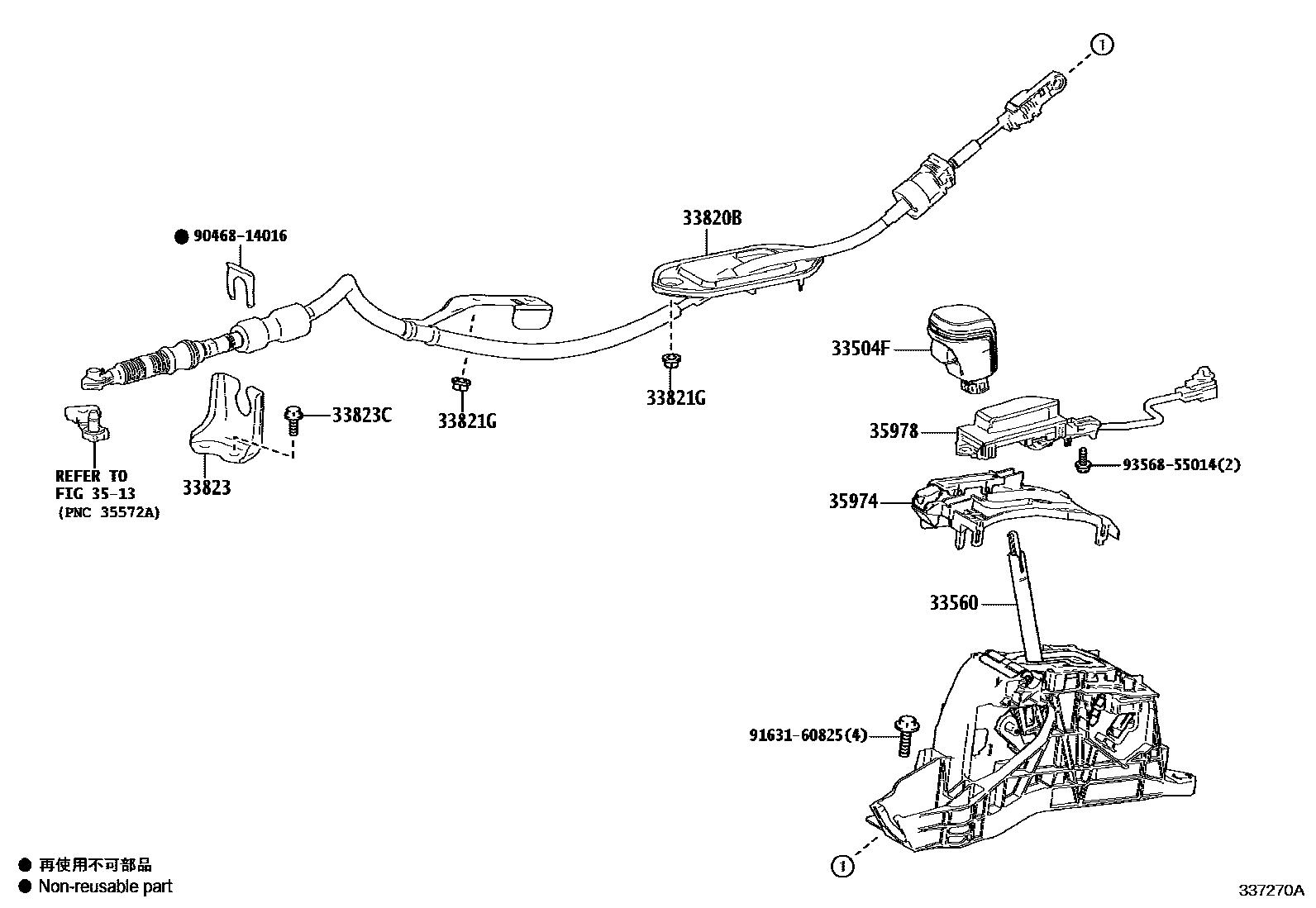

Toyota CAMRY EPC diagram 3312, Shift Lever & Retainer, with 4 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33560 | Shift lock control unit assembly | 33560-33380 · 33560-33400 |
| 33820B | Transmission control cable assembly | 33820-33520 · 33820-33540 · 33820-33550 · 33820-33560 |
| 33821G | Nut (for transmission control cable) | 90179-06274 |
| 33823 | No. 1 transmission control cable bracket | 33823-12310 · 33823-16070 · 33823-33070 |
| 33823C | Bolt (for transmission control cable bracket) | 91671-80820 |
| 35974 | Position indicator light lower shell | 35974-33240 · 35974-33250 |
| 35978 | Shift lever position indicator light | 35978-33180 · 35978-33190 · 35978-33210 · 35978-33430 |
