Toyota CAMRY 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712

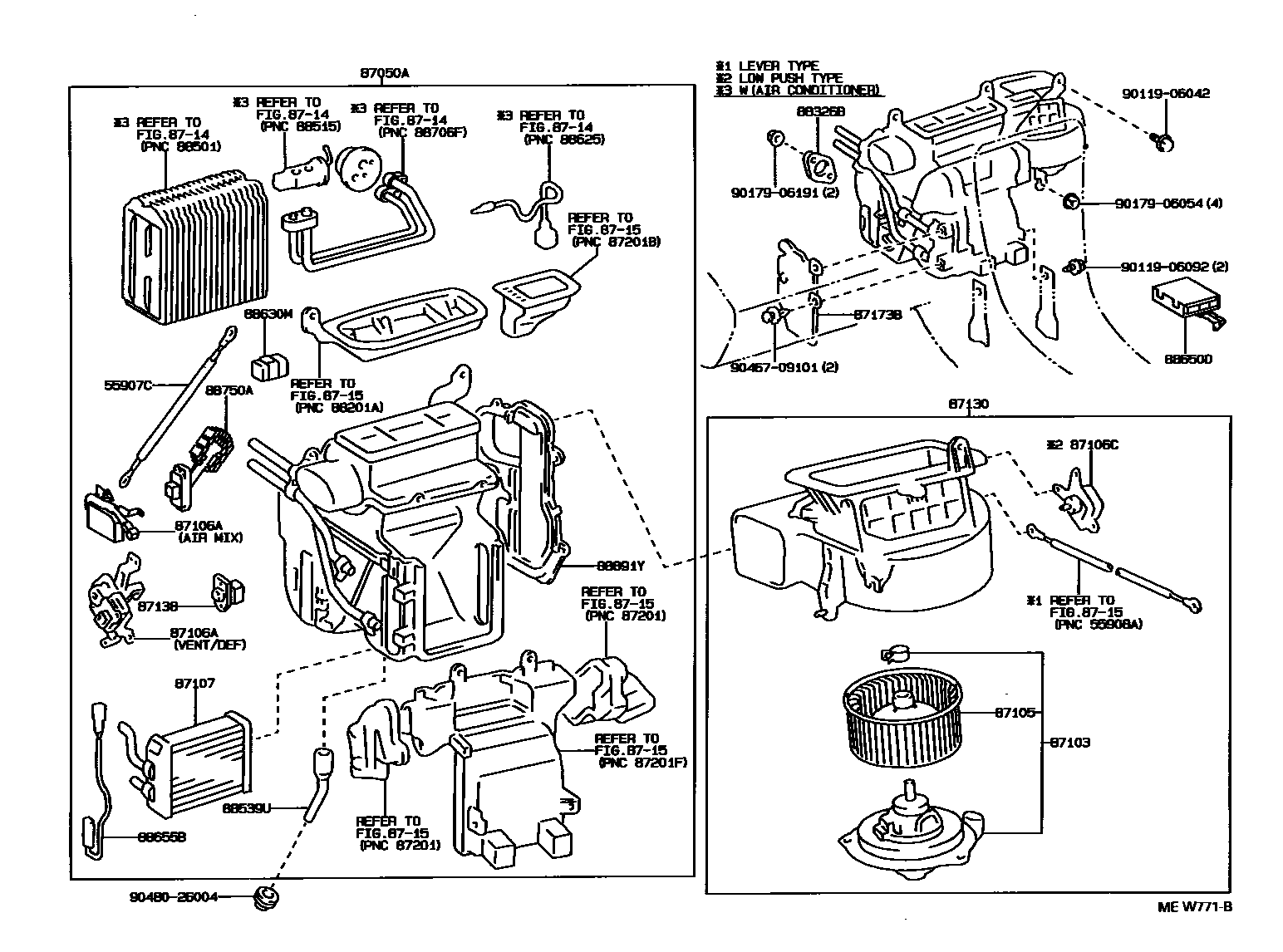

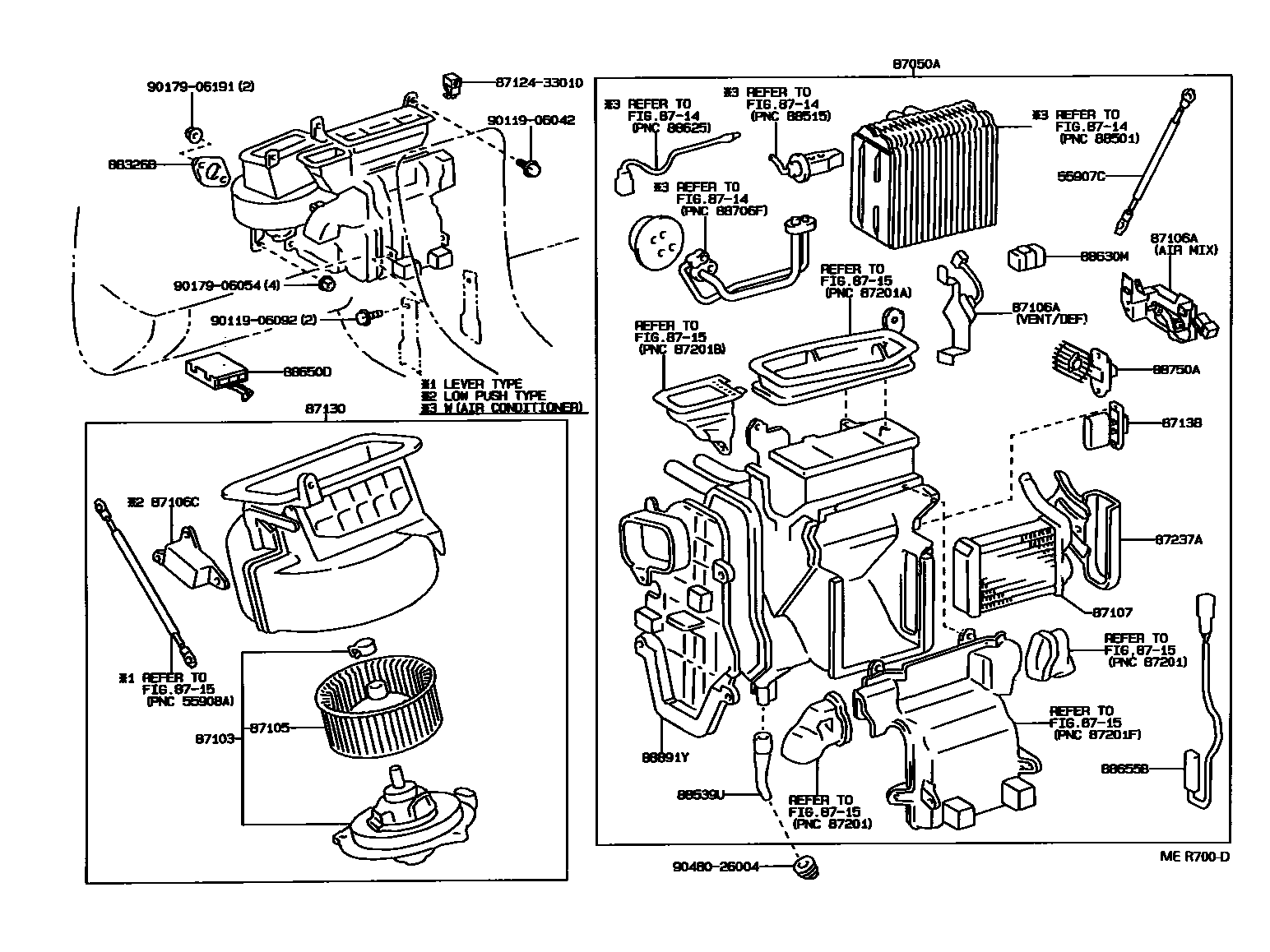

Toyota CAMRY EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55907C | Water valve control cable sub-assembly | 87286-06010 · 87286-33020 |
| 87050A | Air conditioning radiator assembly | 87050-06010 · 87050-06020 · 87050-06030 · 87050-06040 · 87050-06050 · 87050-06060 · 87050-06070 · 87050-06080 · 87050-06130 · 87050-06140 · 87050-06150 · 87050-06160 · 87050-33010 · 87050-33020 · 87050-33080 · 87050-33090 · 87050-33240 · 87050-33250 |
| 87103 | Heater blower motor sub-assembly with fan | 87103-06010 · 87103-06011 · 87103-22110 · 87103-33010 |
| 87105 | Heater blower fan sub-assembly | 87105-06010 · 87105-33010 |
| 87106A | Damper servo mechanism sub-assembly | 87106-06010 · 87106-06040 · 87106-06050 · 87106-33010 · 87106-33100 · 87106-33120 |
| 87106C | Damper servo mechanism sub-assembly (for blower) | 87106-06030 · 87106-33060 |
| 87107 | Heater radiator device sub-assembly | 87107-06010 · 87107-33010 |
| 87130 | Front heater blower assembly | 87130-06010 · 87130-06020 · 87130-06040 · 87130-33010 · 87130-33020 · 87130-33070 |
| 87138 | Heater Blower Resistor | 87138-06010 · 87138-06020 · 87138-33010 · 87138-33020 |
| 87173B | Heater protection device | 87173-06010 |
| 87237A | Heater connection cover | 87237-33010 |
| 88326B | Cover plate | 88326-06010 · 88326-06020 |
| 88539U | Cooler drain hose | 88539-06010 · 88539-33010 · 88539-33020 |
| 88630M | Cooler relay assembly | 88630-28040 |
| 88650D | amplifier assembly | 88650-06010 · 88650-06020 · 88650-06040 · 88650-33010 · 88650-33020 · 88650-33030 · 88650-33050 · 88650-33060 |
| 88655B | Water temperature switch | 88790-33010 · 88790-33020 |
| 88750A | Blower resistor transistor assembly | 88750-06010 · 88750-33010 |
| 88891Y | Cooler cover No. 1 | 88891-06010 · 88891-33010 · 88891-33011 · 88891-33030 |
