Toyota CAMRY 喇叭 — Figure 8611

Toyota CAMRY EPC diagram 8611, 喇叭, with 1 images and 4 PNC and OE references.

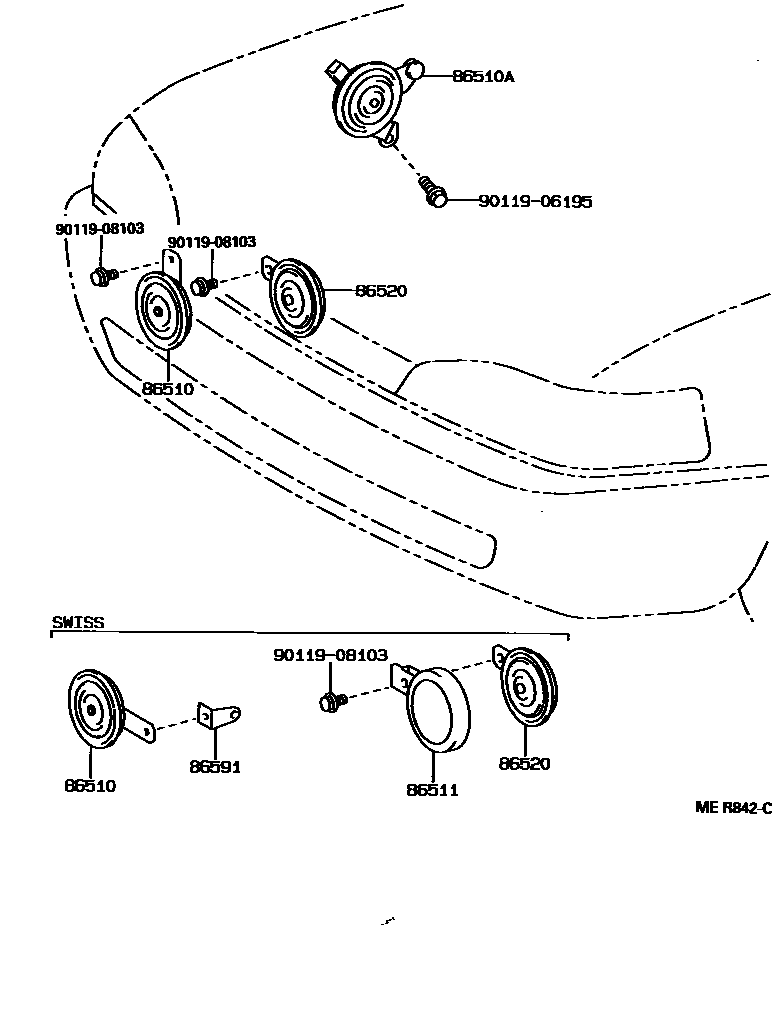

Toyota CAMRY 喇叭 EPC diagram — MER842C
喇叭 — MER842C (199106 – 199608)

PNC and OE references

PNCPart nameOE numbers
86510tweeter assembly86510-33080
86510AAlarm horn assembly86510-33100
86511tweeter cover86511-20160
86520Subwoofer assembly86520-33030
