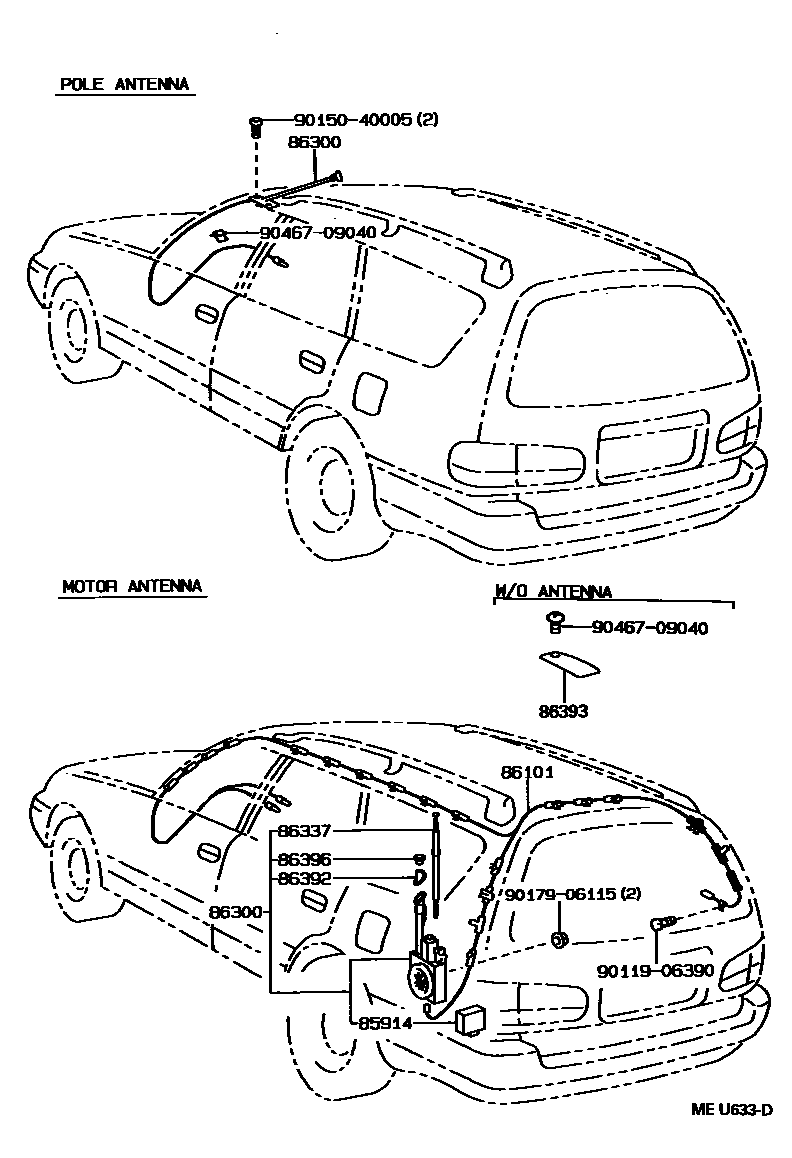

Toyota CAMRY antenna — Figure 8604
Toyota CAMRY EPC diagram 8604, antenna, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85914 | Electric antenna control relay | 85914-06020 · 85914-AC010 |
| 86101 | Antenna wire sub-assembly | 86101-06050 · 86101-06070 · 86101-06090 · 86101-06110 |
| 86300 | Antenna assembly with fixing parts | 86300-06010 · 86300-06030 · 86300-06040 · 86300-06041 |
| 86337 | Sealing rods and sealing tubes with cables | 86337-06020 |
| 86392 | Antenna decorative parts | 86392-06040 |
| 86393 | Antenna decorative parts | 86392-33020 · 86392-33030 |
| 86396 | Antenna nut | 86396-06010 |
