Toyota CAMRY 前大灯清洗器 — Figure 8505

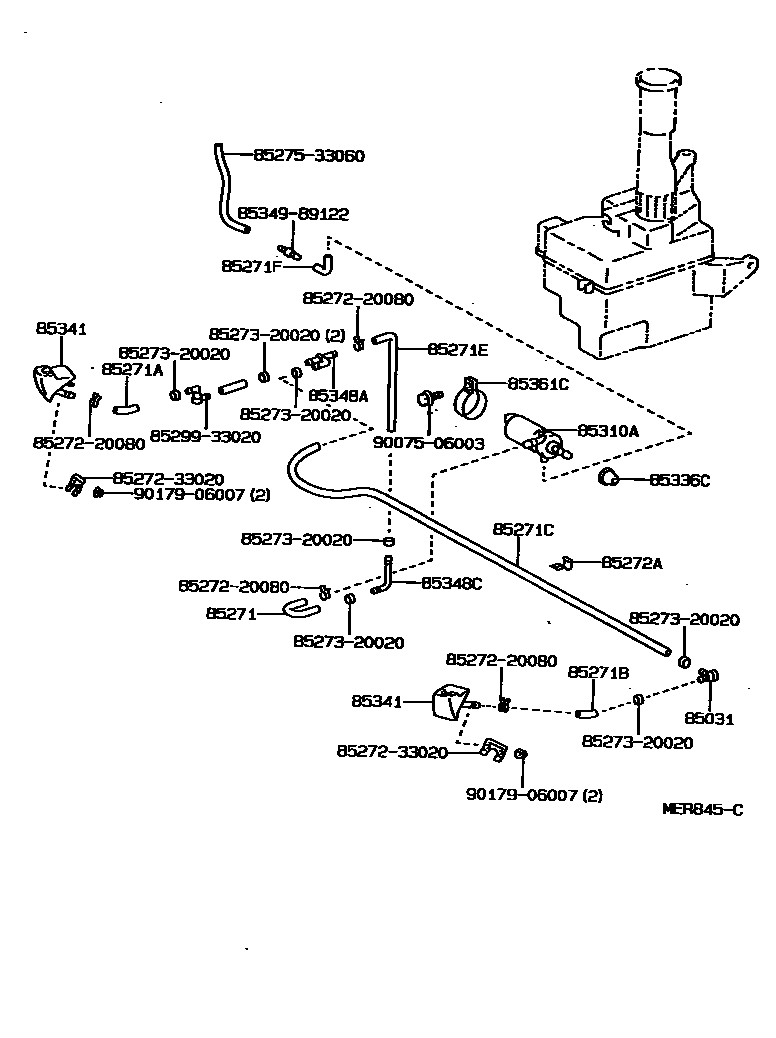

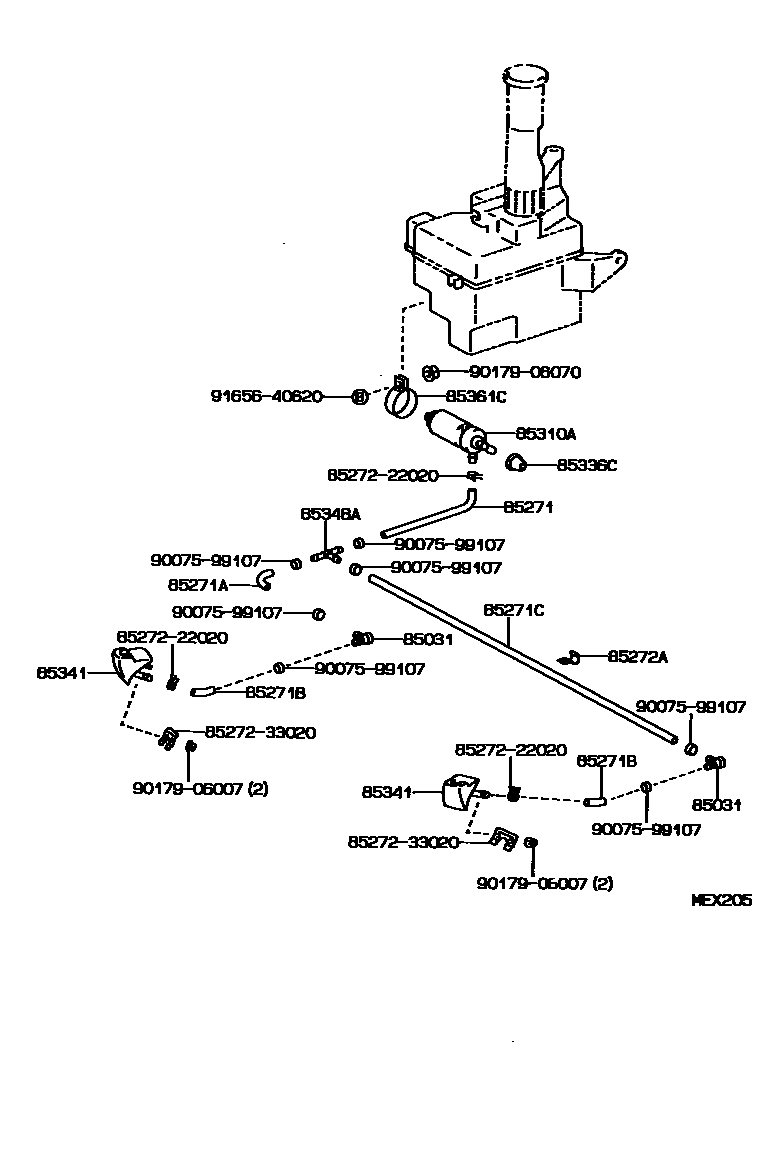

Toyota CAMRY EPC diagram 8505, 前大灯清洗器, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031 | Headlight washer hose valve | 85031-30020 |
| 85271 | No. 1 headlight washer hose | 85271-14100 · 85376-12380 |
| 85271A | No. 2 headlight washer hose | 85271-22020 · 85376-14301 |
| 85271B | No. 3 headlight washer hose | 85375-16020 |
| 85271C | No. 4 headlight washer hose | 90445-14072 |
| 85271E | No. 6 headlight washer hose | 85375-89133 |
| 85271F | No. 7 headlight washer hose | 85336-12230 |
| 85272A | Headlight washer No. 1 clip | 85272-20050 |
| 85310A | Headlight washer motor and pump assembly | 85280-33010 · 85280-33011 · 85280-33020 |
| 85336C | Headlight washer motor seal | 85336-10010 |
| 85341 | Headlight washer nozzle | 85044-33011 |
| 85348A | Headlight washer hose connector No. 1 | 85279-33020 · 85352-12010 |
| 85348C | No. 3 headlight washer hose connector | 85279-14130 · 85279-30010 |
| 85361C | Cleaner stand | 85361-33020 |
