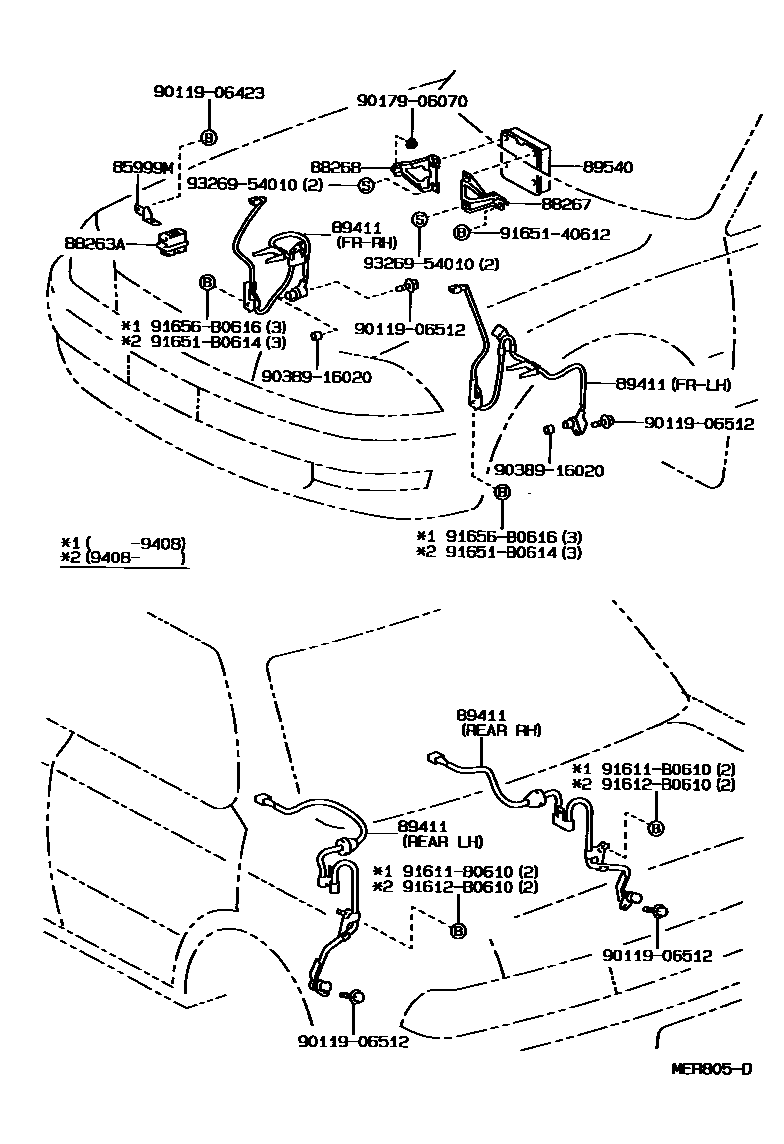

Toyota CAMRY ABS 和 VSC — Figure 8414
Toyota CAMRY EPC diagram 8414, ABS 和 VSC, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85999M | Relay bracket | 85999-33020 · 85999-33110 |
| 88263A | Anti-skid control relay | 88263-12070 · 88263-12080 · 88263-32060 |
| 88267 | No. 1 anti-skid control ECU bracket | 88267-33010 |
| 88268 | No. 2 anti-skid control ECU bracket | 88268-33010 · 88268-33020 |
| 89411 | Speed sensor | 89542-33010 · 89543-33010 · 89545-33010 · 89546-33010 |
| 89540 | Anti-skid control ECU assembly | 89541-33010 |
