Toyota CAMRY 超速档和电子控制变速器 — Figure 8410

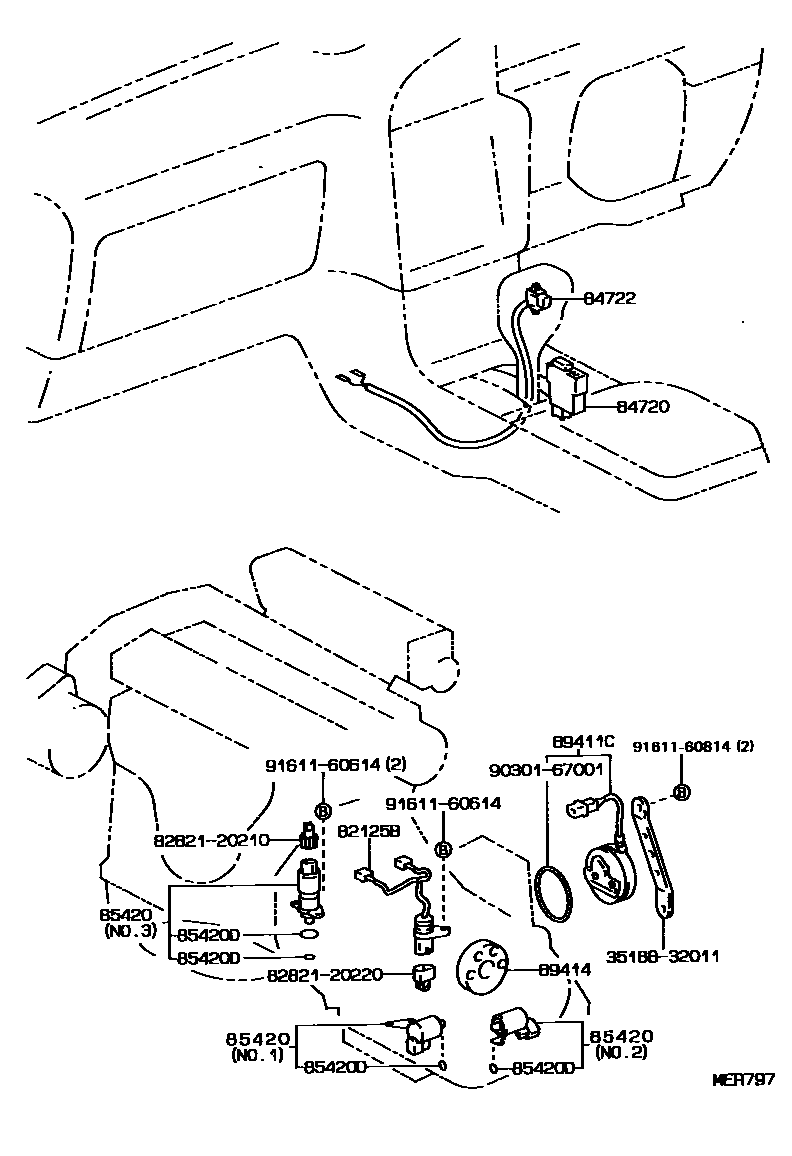

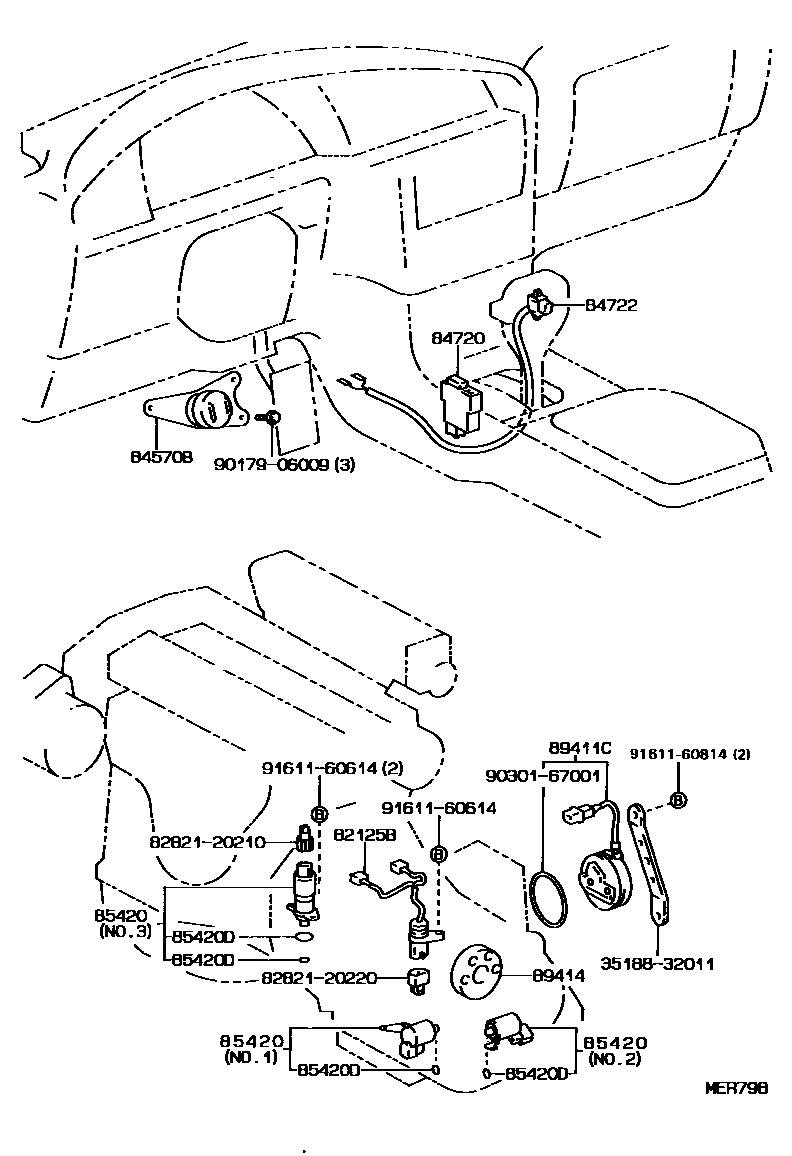

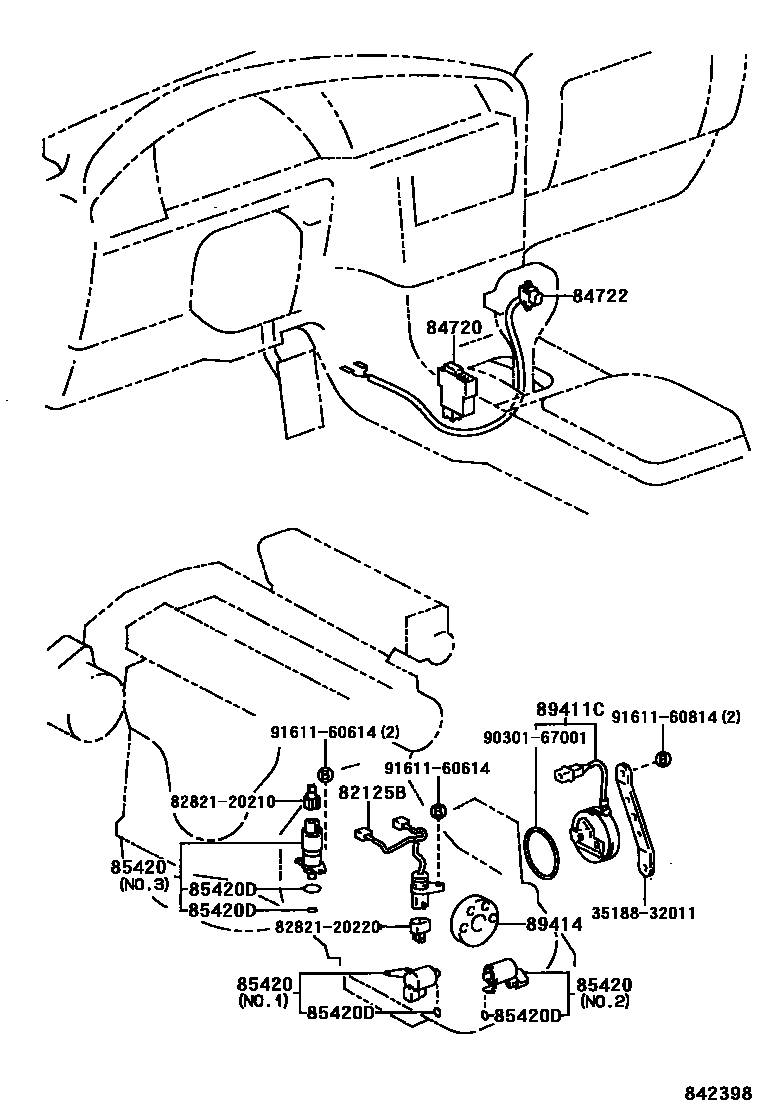

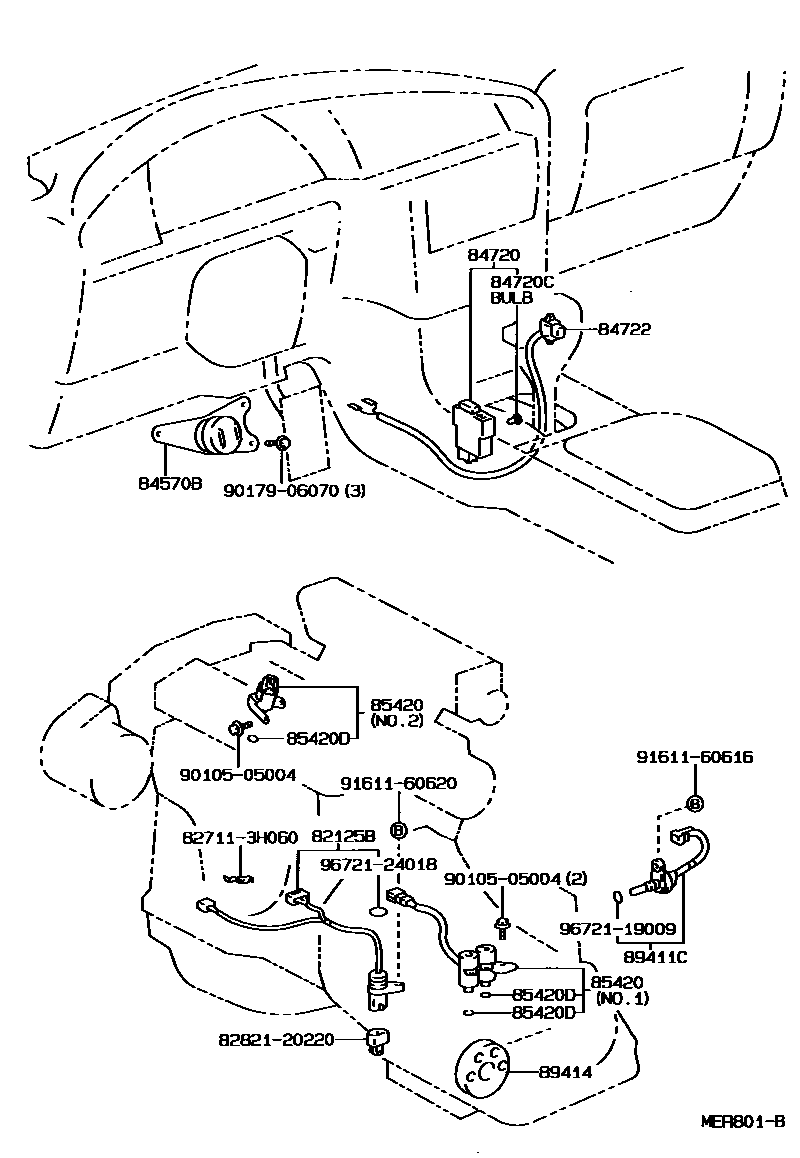

Toyota CAMRY EPC diagram 8410, 超速档和电子控制变速器, with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82125B | Transmission wiring harness | 82125-20150 · 82125-32050 |
| 84570B | Forced downshift switch assembly | 84570-33010 |
| 84720 | Mode selection switch assembly | 84720-33020 · 84720-33030 · 84720-AA010 |
| 84720C | Light bulb (for mode selector switch) | 90010-09004 |
| 84722 | transmission control switch | 84722-33020 |
| 85420 | Transmission solenoid valve assembly | 85420-20110 · 85420-20130 · 85420-32021 · 85420-32102 · 85420-32120 · 85420-32140 |
| 85420D | O-ring (for transmission solenoid valve) | 90301-06004 · 90301-06005 · 96721-19009 · 96721-19017 · 96721-24018 |
| 89411C | Speed sensor | 89411-20060 · 89411-32020 |
| 89414 | sensor rotor | 89414-32010 · 89414-33010 |
