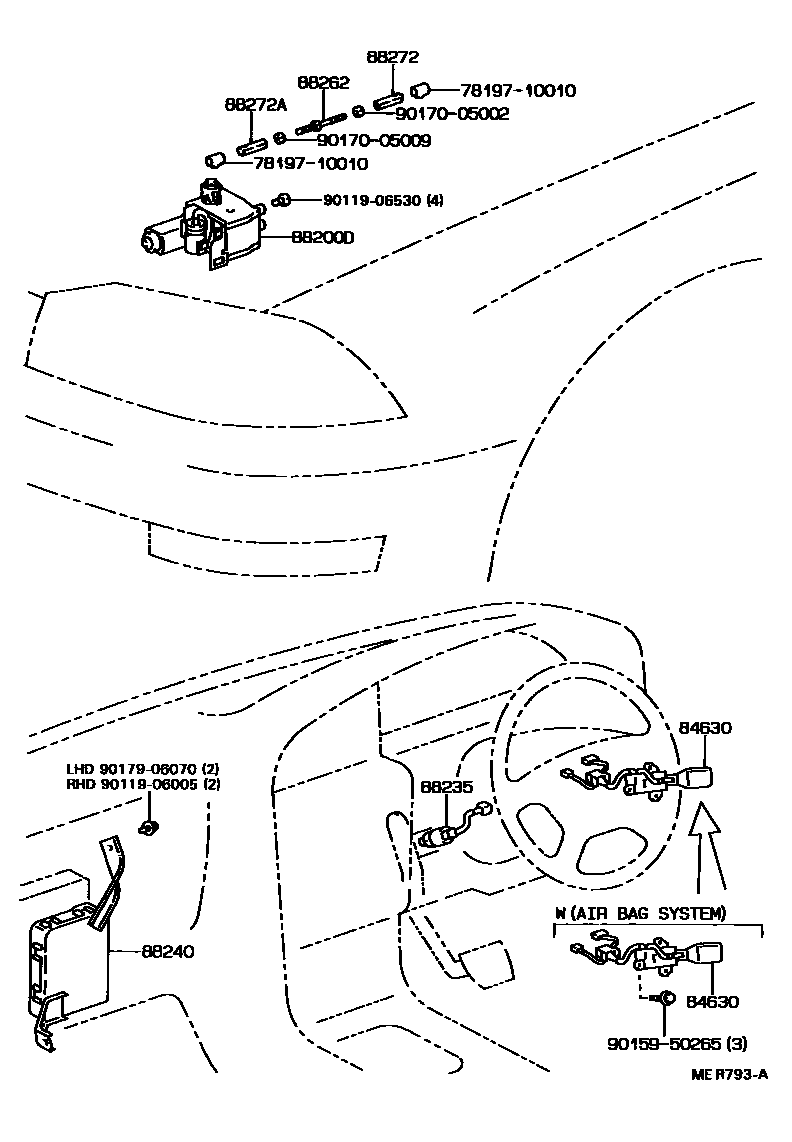

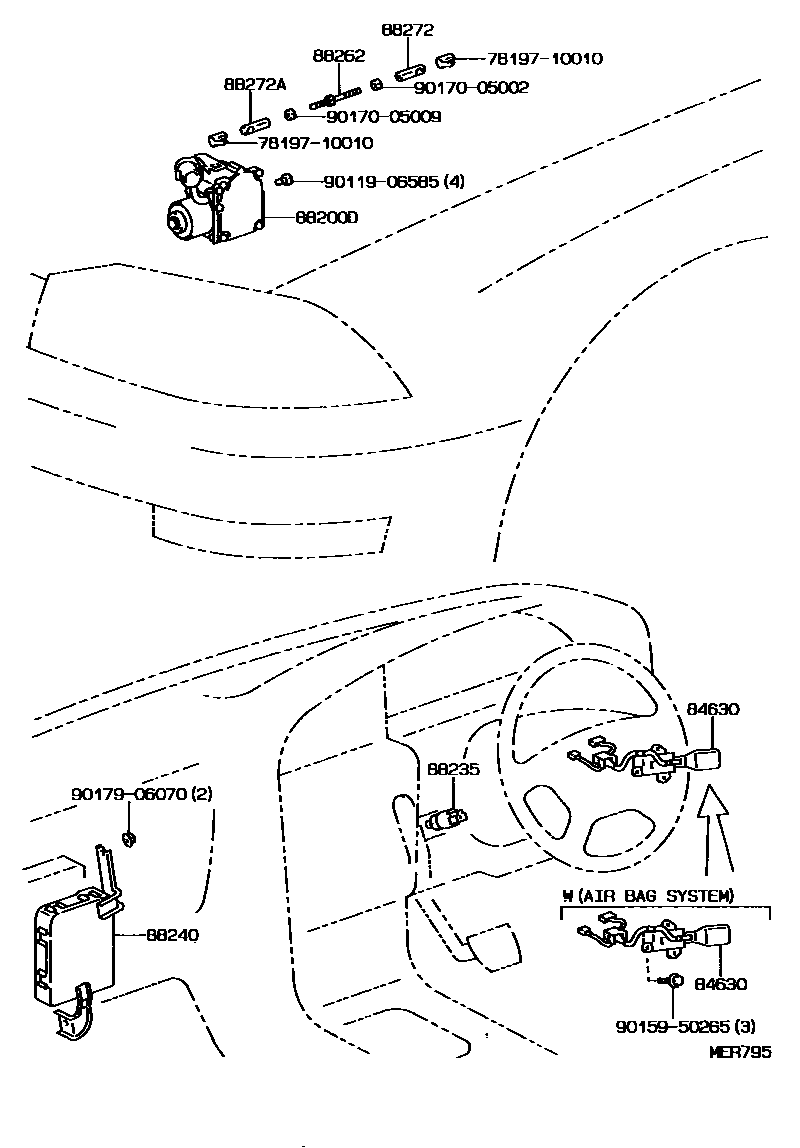

Toyota CAMRY 巡航控制(自动行驶) — Figure 8408
Toyota CAMRY EPC diagram 8408, 巡航控制(自动行驶), with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84630 | Cruise control main switch assembly | 84630-33030 · 84630-33040 |
| 88200D | Cruise control actuator assembly | 88200-33010 · 88200-33020 |
| 88235 | Cruise control (automatic driving) release switch assembly | 88280-32010 · 88280-33010 |
| 88240 | Cruise control ECU assembly | 88240-33010 · 88240-33020 · 88240-33030 · 88240-33060 · 88240-33070 |
| 88262 | speed control lever | 88206-33010 |
| 88272 | Speed control lever end | 88272-33010 |
| 88272A | Speed control lever end | 88272-33020 |
