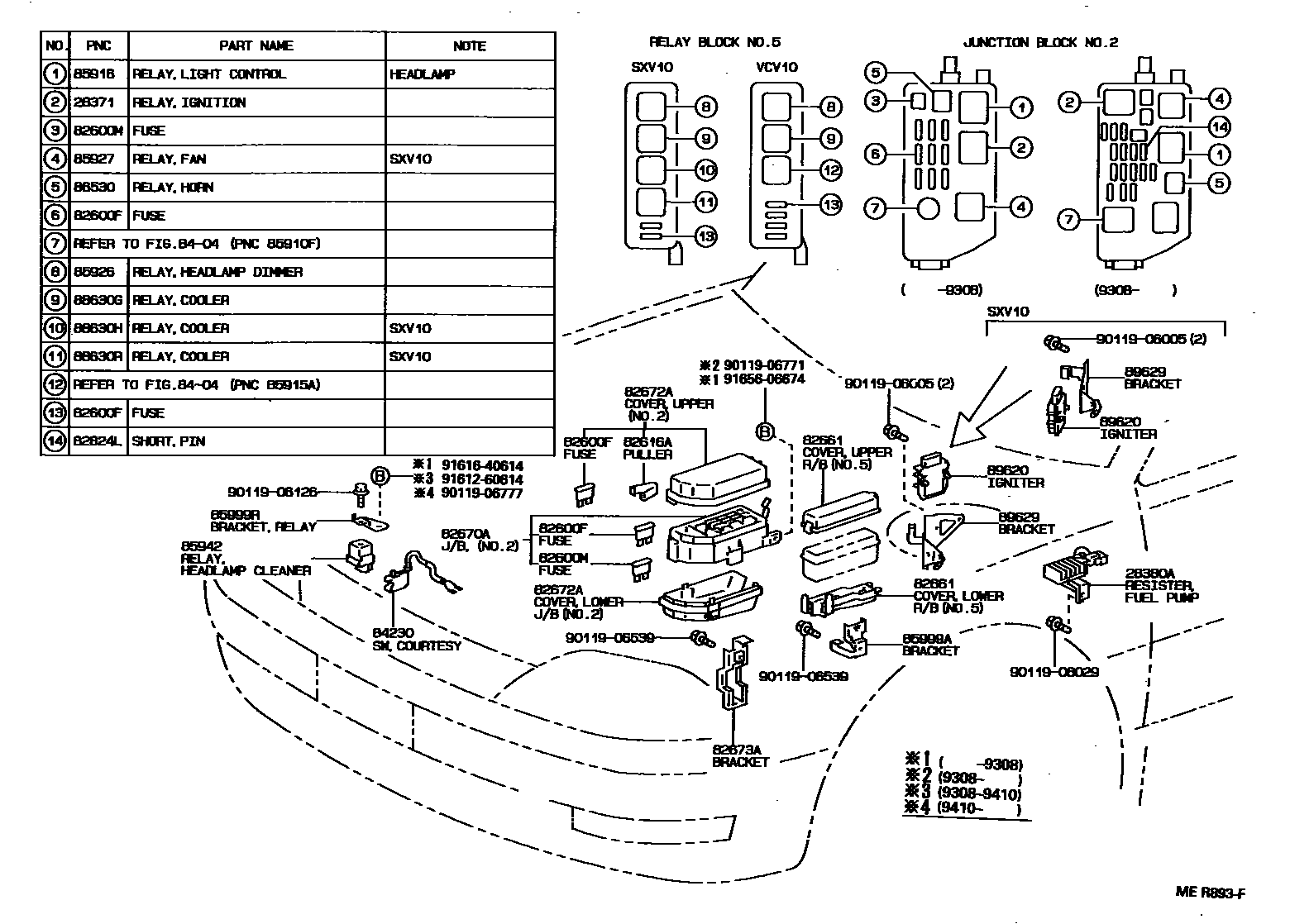

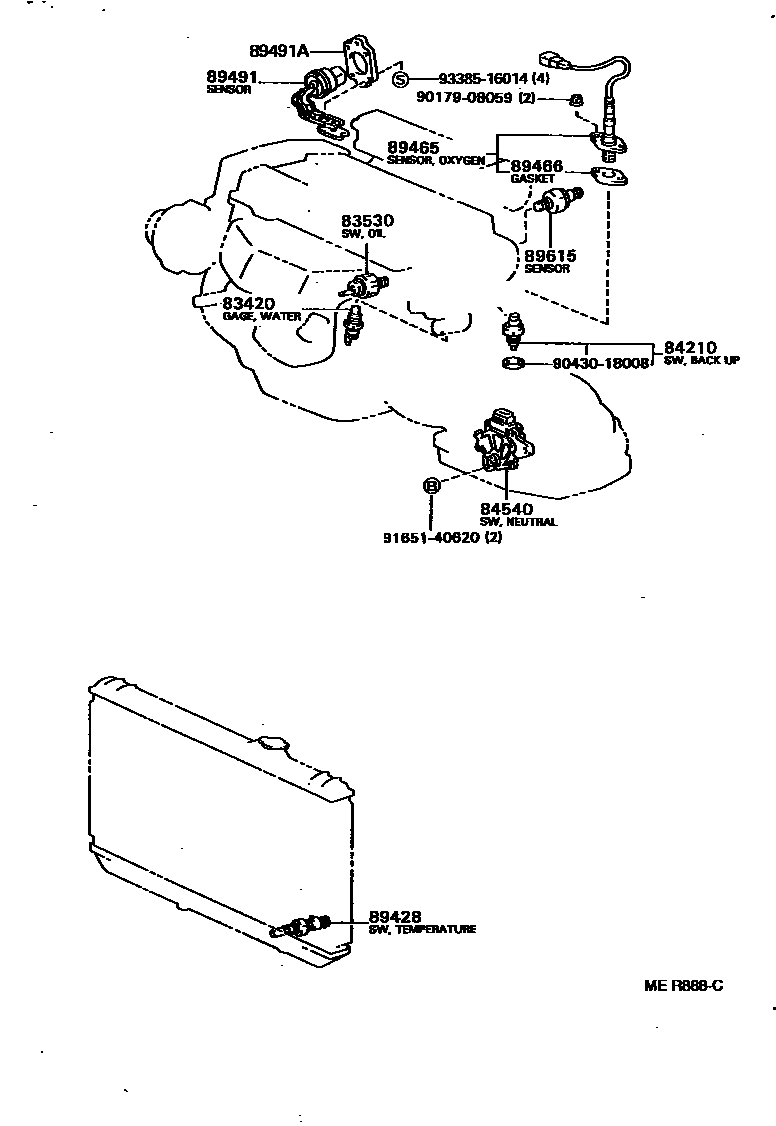

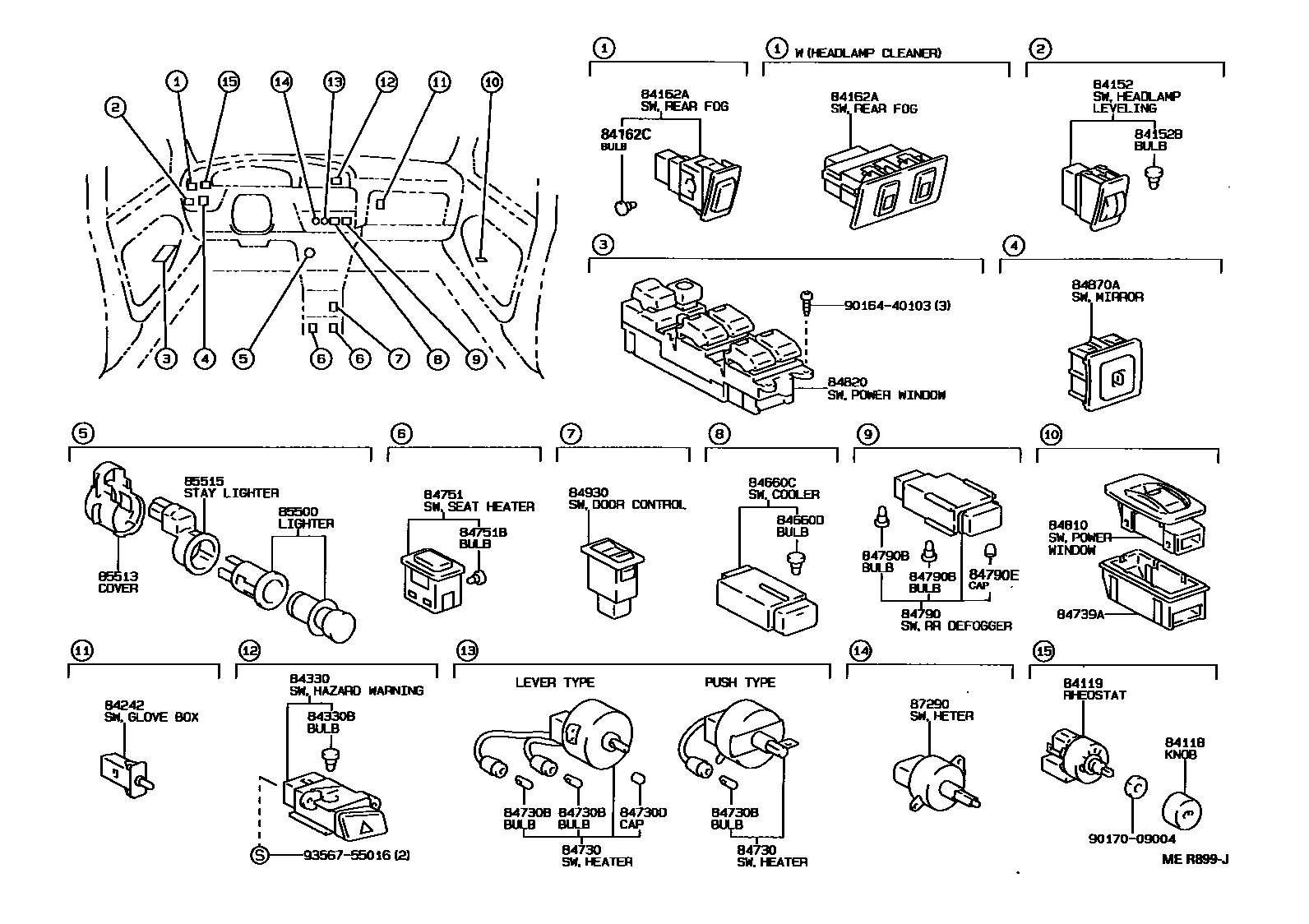

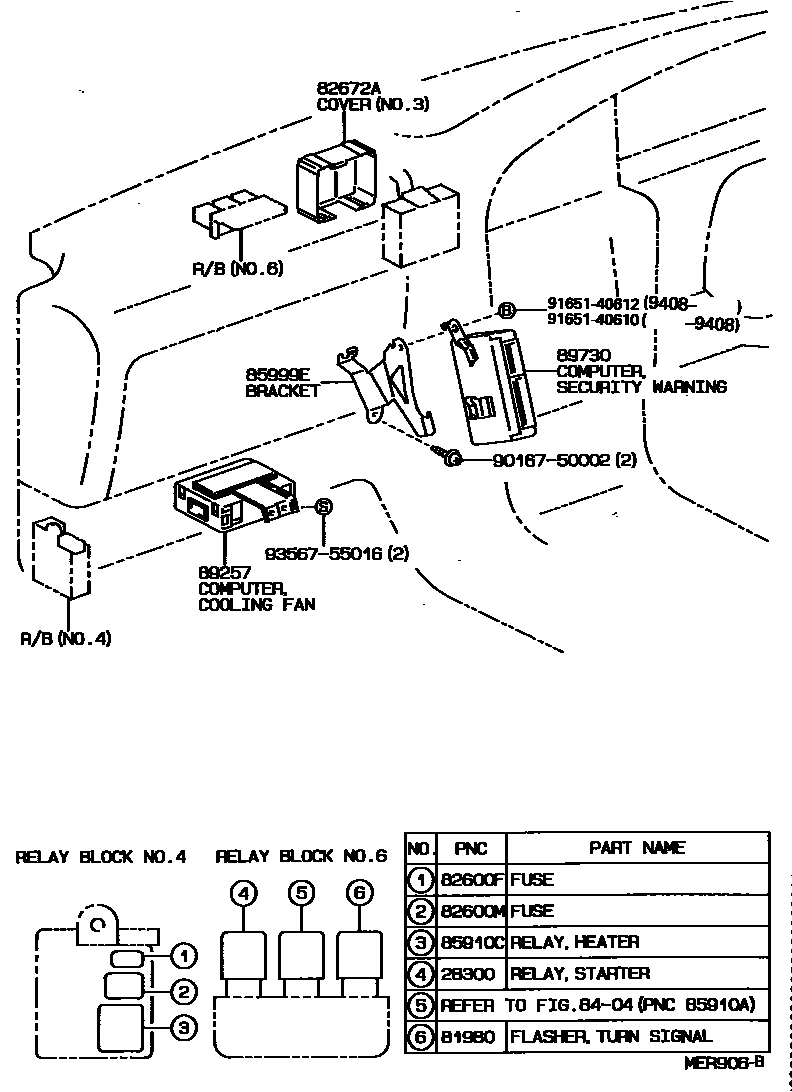

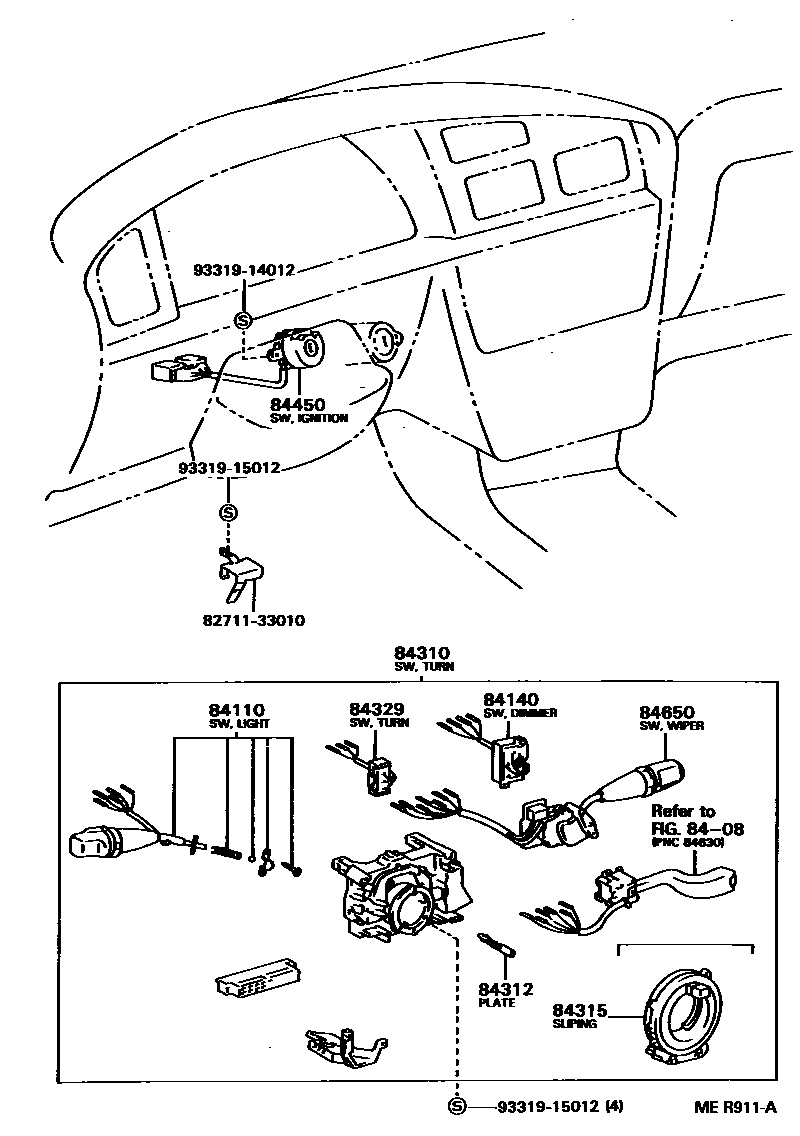

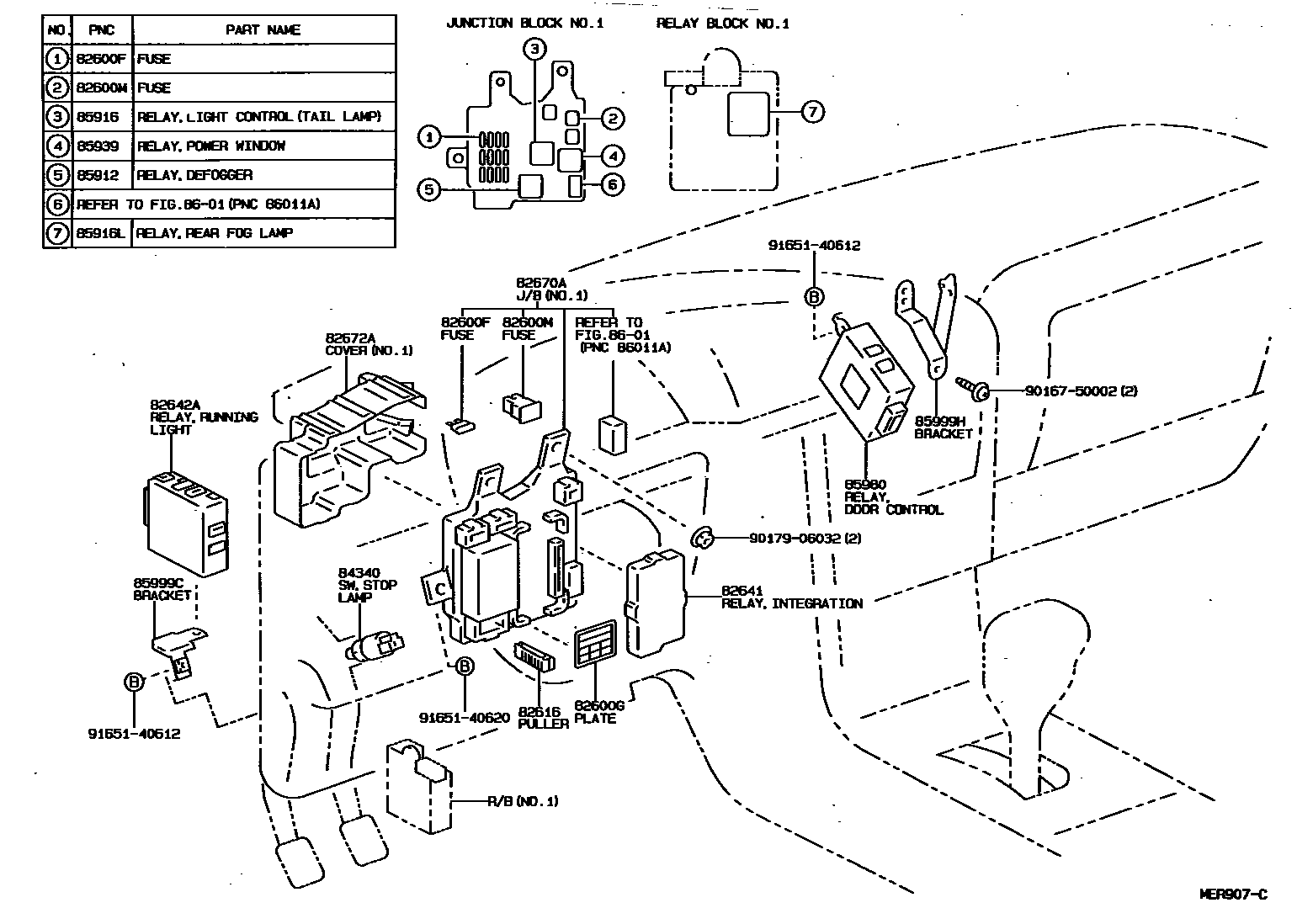

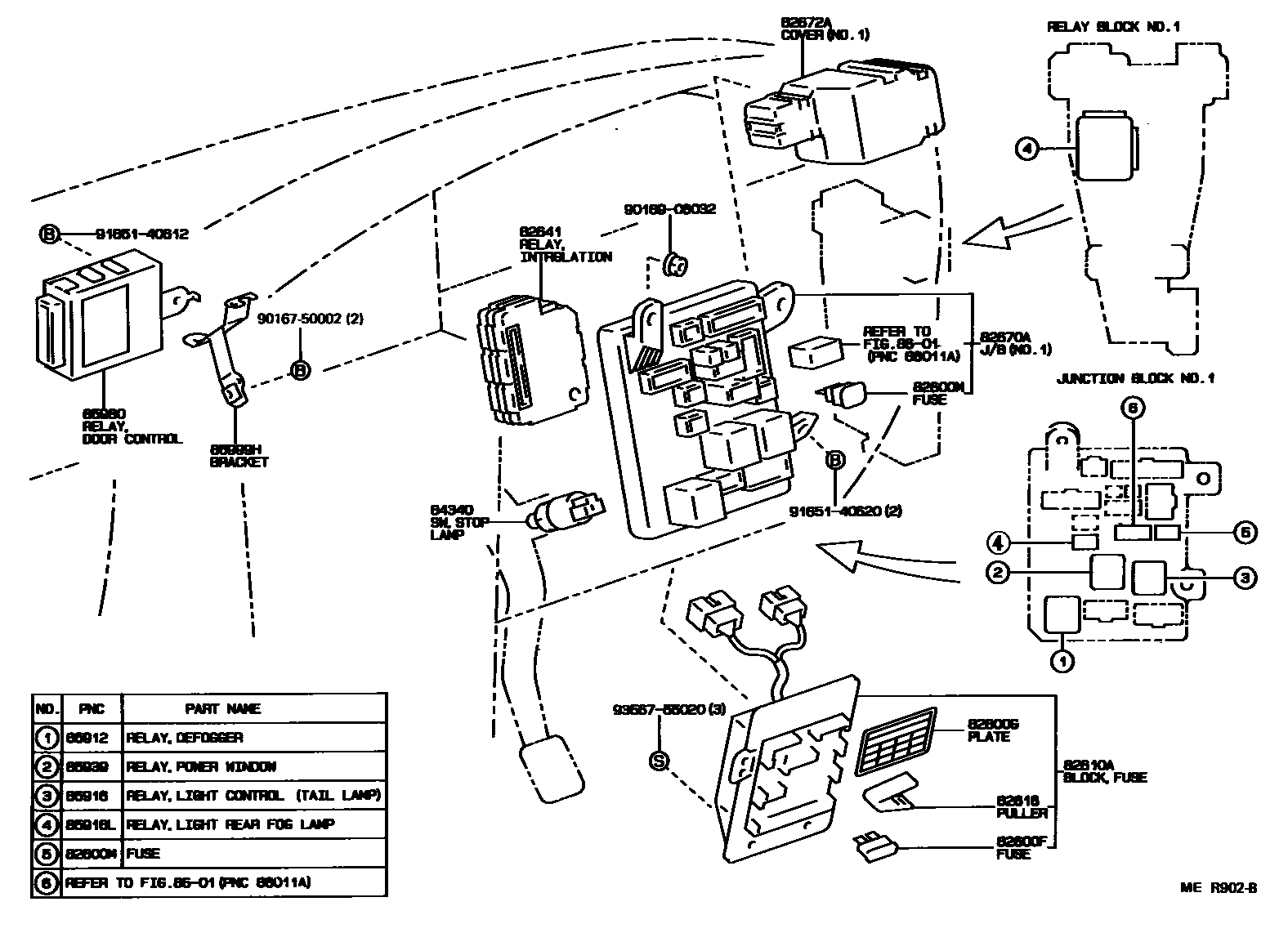

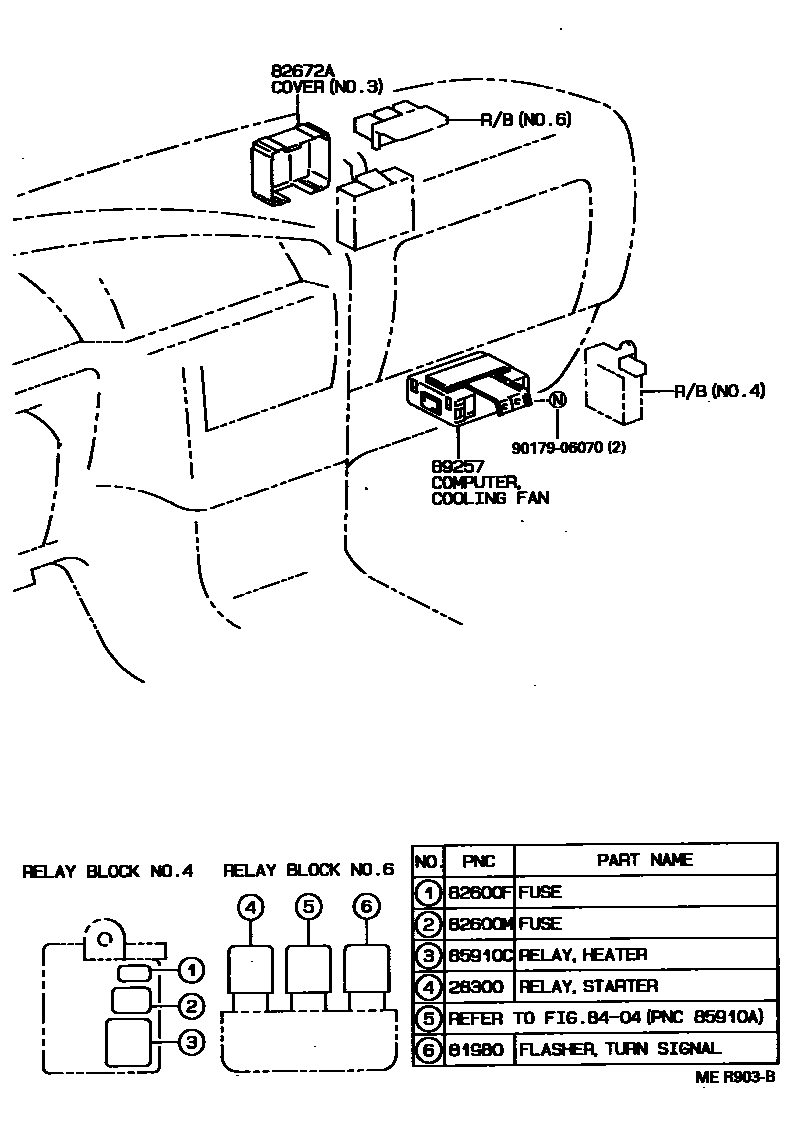

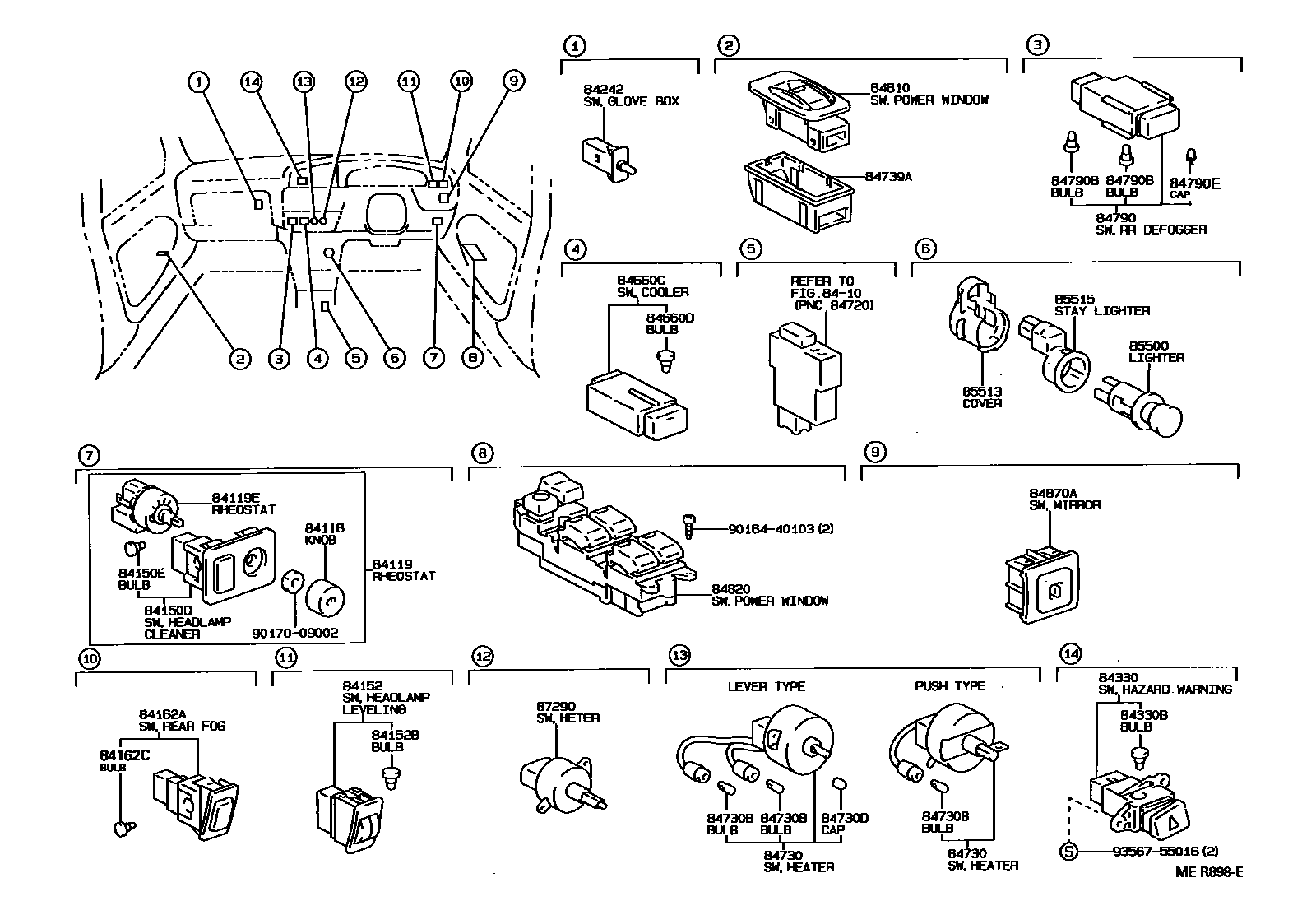

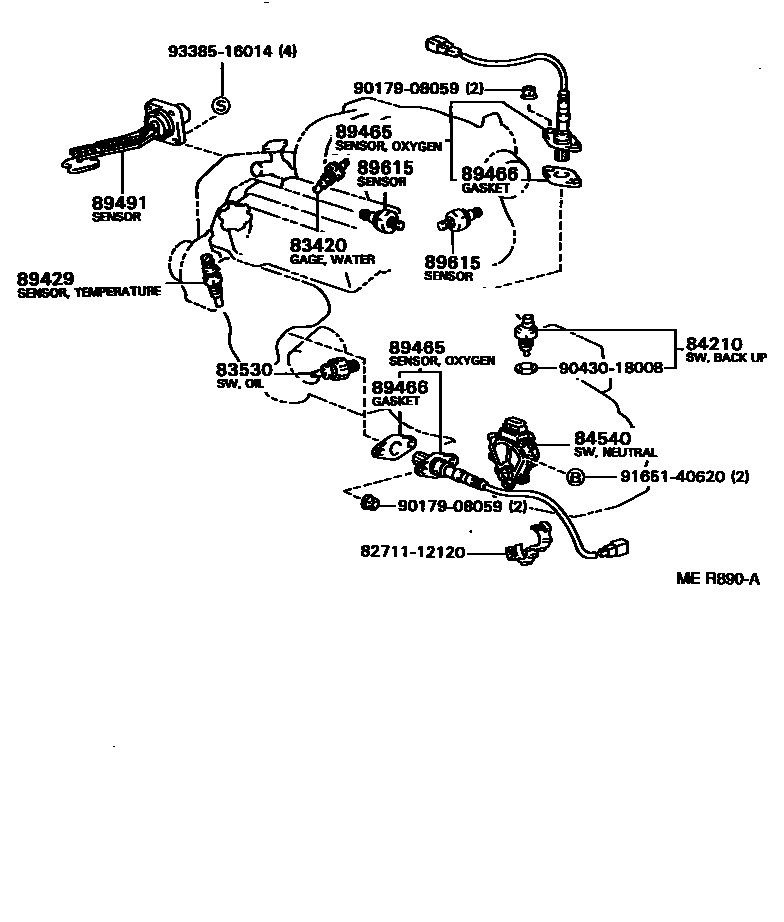

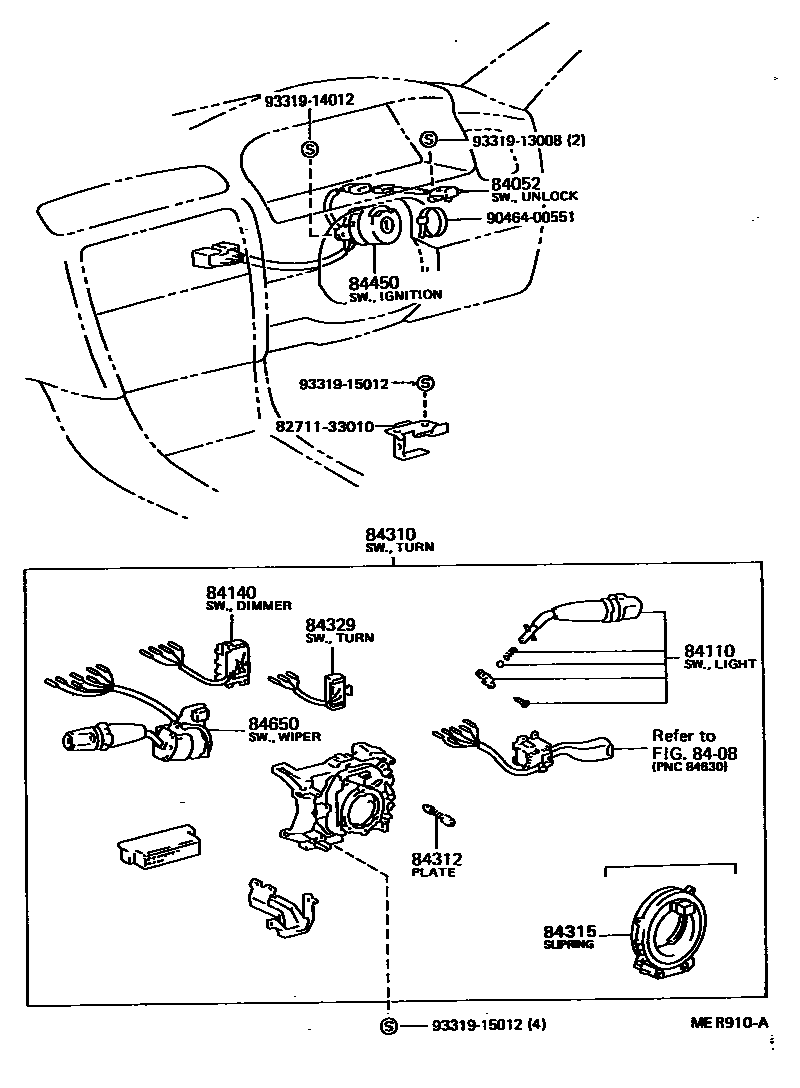

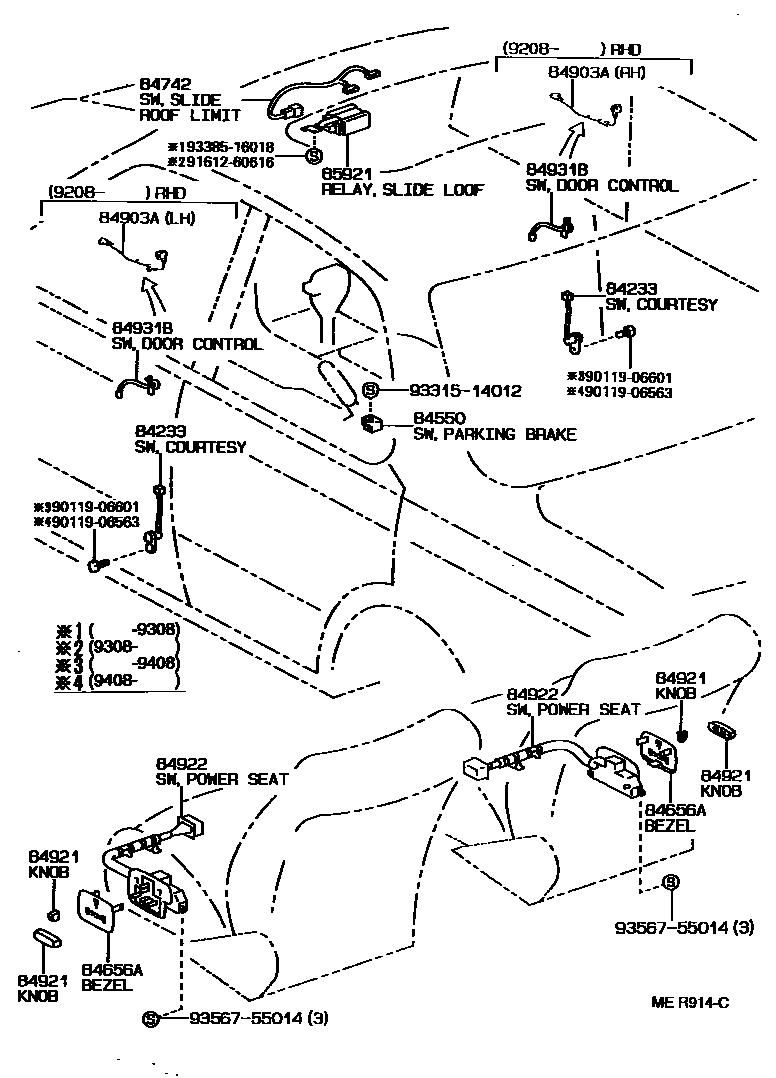

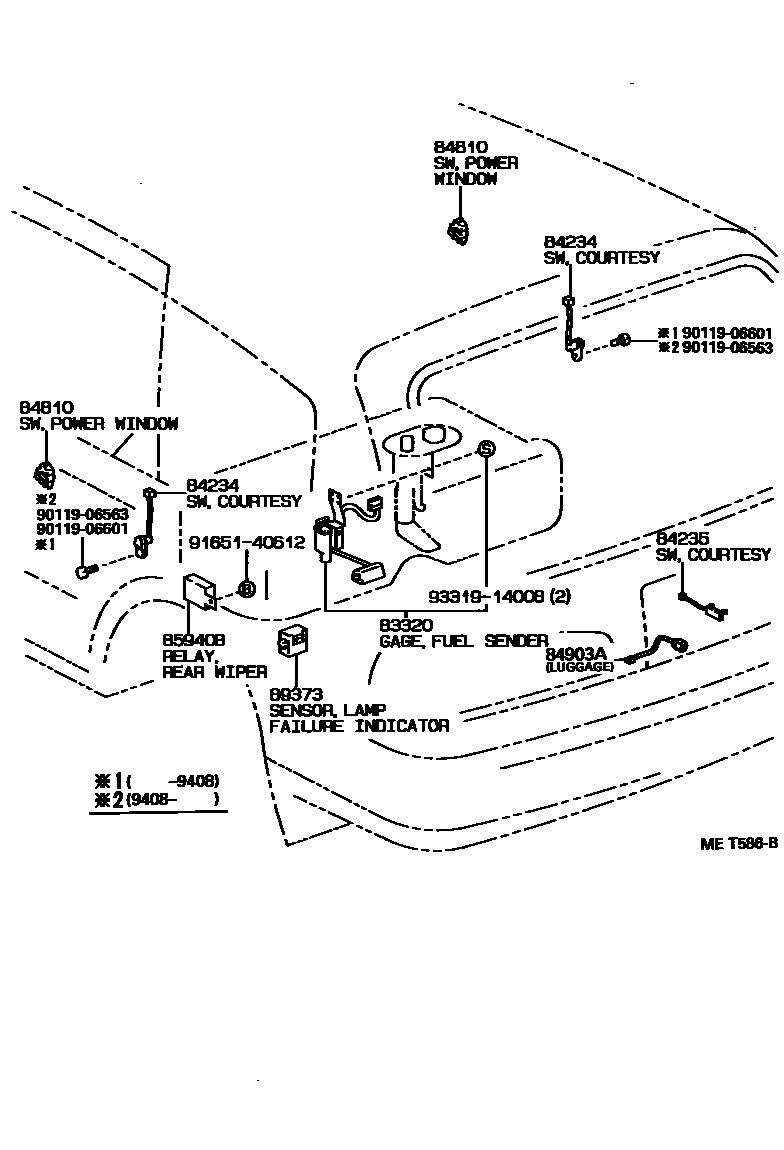

Toyota CAMRY 开关和继电器和ECU — Figure 8401
Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 13 images and 104 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-10020 · 28300-16010 |
| 28371 | No. 1 ignition relay | 85925-17010 · 90987-04002 |
| 28380A | fuel pump resistor | 23080-62010 |
| 81980 | Turn signal flasher relay assembly | 81980-12070 · 81980-50010 |
| 82600F | Spare fuse | 90080-82005 · 90080-82012 · 90080-82013 · 90080-82014 · 90080-82015 · 90080-82020 · 90080-82021 · 90080-82022 · 90080-82023 · 90080-82024 |
| 82600G | Warning nameplate (for fuses) | 82683-33030 · 82683-33040 · 82683-33070 · 82683-33080 · 82683-33110 |
| 82600M | medium current fuse | 90982-10001 · 90982-10002 |
| 82610A | Fuse box assembly | 82610-06010 · 82610-06020 · 82610-06030 |
| 82616 | fuse puller | 82616-12020 |
| 82616A | No.2 fuse puller | 82616-20010 |
| 82641 | Integrated relay No. 1 | 82641-14050 · 82641-20100 · 82641-20110 · 82641-33030 |
| 82642A | driving light relay | 82642-13010 |
| 82661 | No. 1 relay box cover | 82662-33010 · 82662-33020 · 82662-33030 · 82662-33031 · 82662-33040 · 82662-33080 · 82662-33090 · 82662-33100 · 82663-33010 |
| 82670A | No. 1 junction box assembly | 82670-33030 · 82670-33040 · 82670-33070 · 82670-33090 · 82670-33091 · 82720-33030 · 82720-33040 |
| 82672A | Junction box cover | 82672-33030 · 82672-33040 · 82672-33050 · 82672-33060 · 82672-33070 · 82672-33100 · 82672-33101 · 82672-33110 · 82672-33111 · 82674-33010 · 82674-33020 |
| 82673A | Junction box bracket | 82673-33010 |
| 82824L | Shorting pin | 82824-20140 |
| 83320 | Fuel gauge sensor assembly | 83320-80204 |
| 83420 | Water temperature sensor assembly | 83420-16020 · 83420-16030 · 83420-16040 · 83420-20020 · 83420-20030 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-14060 · 83530-30080 · 83530-30090 |
| 84052 | Unlock warning switch assembly | 84052-32020 |
| 84110 | No. 1 light control switch assembly | 84112-80073 · 84112-80075 · 84112-80094 · 84112-80095 · 84112-80096 · 84112-80097 · 84112-80127 · 84112-80128 · 84112-80129 · 84112-80130 |
| 84118 | Light control rheostat button | 84118-06010 |
| 84119 | Light control rheostat | 84119-33030 · 84119-33040 · 84119-33060 |
| 84119E | No. 2 light controlled rheostat | 84119-20082 |
| 84140 | Headlight dimmer switch assembly | 84140-20350 · 84140-20370 · 84140-20380 · 84140-20400 · 84140-33080 · 84140-33090 |
| 84150D | Headlight washer switch assembly | 84150-33020 |
| 84150E | Headlight washer switch bulb | 84999-10310 |
| 84152 | Headlight beam height adjustment switch | 84152-33010 · 84152-33020 |
| 84152B | Bulb (for headlight beam height adjustment switch) | 84999-10630 |
| 84162A | Rear fog light switch | 84165-33010 · 84165-33020 · 84165-33030 |
| 84162C | Bulb (for rear fog light switch) | 84999-10310 · 84999-10490 · 84999-10700 |
| 84210 | Reversing light switch assembly | 84210-12040 |
| 84230 | Door control light switch assembly (for engine room) | 84231-33030 |
| 84233 | Door control light switch assembly (for front door) | 84231-32040 |
| 84234 | Door control light switch assembly (for rear door) | 84231-12080 |
| 84235 | Door control light switch assembly (for back door) | 84231-33021 |
| 84242 | Glove box light switch | 84242-20030 |
| 84310 | Turn signal switch assembly | 84310-33190 · 84310-33191 · 84310-33220 · 84310-33230 · 84310-33250 · 84310-33251 · 84310-33280 · 84310-33290 |
| 84312 | Speaker contact piece | 84312-12040 · 84312-12050 |
| 84315 | Speaker contact slip ring | 84315-33010 · 84315-33020 |
| 84329 | turn signal switch | 84329-20090 · 84329-20110 |
| 84330 | Hazard warning signal switch assembly | 84332-33020 · 84332-33030 |
| 84330B | Hazard warning signal switch light bulb | 84999-10320 |
| 84340 | brake light switch assembly | 84340-32090 · 84340-32110 |
| 84450 | Ignition or starter switch assembly | 84450-32070 · 84450-33010 · 84450-33020 · 84450-33030 |
| 84540 | Neutral start switch assembly | 84540-20200 · 84540-20220 · 84540-32070 · 84540-32090 |
| 84550 | Parking brake switch assembly | 84550-33010 |
| 84650 | Windshield wiper switch assembly | 84652-33200 · 84652-33210 · 84652-33240 · 84652-33250 · 84652-33270 · 84652-33290 |
| 84660C | Cooler switch | 84660-06010 · 84660-33010 |
| 84660D | Light bulb (for cooler switch) | 88607-06010 · 88607-33010 |
| 84730 | Heater blower switch assembly | 84732-06020 · 84732-06030 · 84732-33030 · 84732-33040 · 84732-33050 · 84732-33060 |
| 84730B | heater blower switch light bulb | 84999-06020 · 90981-11014 |
| 84730D | Heater blower switch bulb cover | 84998-10050 |
| 84739A | switch fixture | 84739-32040 |
| 84742 | Sliding sunroof limit switch | 84742-32031 |
| 84751 | Seat heater switch | 84751-33021 |
| 84751B | Seat heater switch light bulb | 84999-10190 |
| 84790 | Rear window defogger switch assembly | 84790-06010 |
| 84790B | Bulb (for rear window defogger switch) | 84999-10410 · 84999-10450 |
| 84790E | Bulb cover (for rear window defogger switch) | 84998-10060 |
| 84810 | Electric window lift switch assembly | 84810-06010 |
| 84820 | Electric window lift main switch assembly | 84820-06010 · 84820-06011 · 84820-32140 · 84820-33050 · 84820-33060 |
| 84870A | Exterior rearview mirror switch assembly | 84870-33030 · 84870-33040 |
| 84903A | Door unlock switch sub-assembly | 84903-33060 · 84903-33070 · 84903-33080 |
| 84922 | Front electric seat switch | 84922-33020 · 84922-33030 |
| 84930 | Door control switch assembly | 84930-33020 |
| 84931B | door control switch | 84931-32070 · 84931-33010 |
| 85500 | Cigarette lighter assembly | 85500-06011 |
| 85513 | Cigarette lighter cover | 85513-12020 |
| 85515 | Cigarette lighter frame bracket | 85515-06011 |
| 85910C | Relay assembly (for heater blower motor) | 90987-04002 |
| 85912 | defogger relay | 90084-98009 · 90987-02009 |
| 85916 | Light control relay | 90084-98009 · 90987-02006 · 90987-02009 |
| 85916L | Rear fog light relay | 28300-16010 · 90987-02008 · 90987-02009 |
| 85921 | Sliding sunroof control relay | 85921-32040 · 85921-33010 |
| 85926 | Headlight dimmer relay | 85926-30020 |
| 85927 | cooling fan relay | 90084-98011 · 90987-03003 |
| 85939 | Power window relay | 90084-98009 · 90987-02009 |
| 85940B | Rear wiper relay assembly | 85940-33030 |
| 85942 | Headlight washer control relay | 85942-33010 |
| 85980 | Door control relay assembly | 85980-33011 · 85980-33020 |
| 85999A | No. 2 relay bracket | 85999-33050 |
| 85999C | No. 3 relay bracket | 85999-33060 |
| 85999E | No. 5 relay bracket | 85999-33100 |
| 85999H | Relay bracket | 85999-33030 · 85999-33040 |
| 85999R | No. 6 relay bracket | 85999-33070 |
| 86530 | Speaker relay assembly | 86530-20070 |
| 87290 | Heater switch assembly | 87290-33010 |
| 88630G | Cooler relay assembly | 90987-02009 |
| 88630H | Cooler relay assembly | 90987-04003 |
| 88630R | No. 3 cooler relay assembly | 90987-02009 |
| 89257 | Cooling fan ECU | 89257-33010 · 89257-33020 · 89257-33030 |
| 89373 | Malfunction indicator light sensor | 89373-33020 · 89373-33030 · 89373-33040 |
| 89428 | No. 2 temperature detection switch | 89428-33010 |
| 89429 | oil temperature sensor | 89429-33010 |
| 89465 | oxygen sensor | 89465-39405 · 89465-39435 |
| 89466 | Oxygen sensor pad | 89466-20020 |
| 89491 | Engine oil level sensor | 89491-33010 · 89491-33020 |
| 89491A | Engine oil level sensor gasket | 90430-27001 |
| 89615 | knock control sensor | 89615-20030 · 89615-33010 · 89615-33020 |
| 89620 | Ignition assembly | 89621-16020 · 89621-33010 |
| 89629 | Ignition bracket assembly | 89629-33010 · 89629-33020 |
| 89730 | Safety warning ECU assembly | 89730-33040 · 89730-33070 |
