Toyota CAMRY 仪表 — Figure 8301

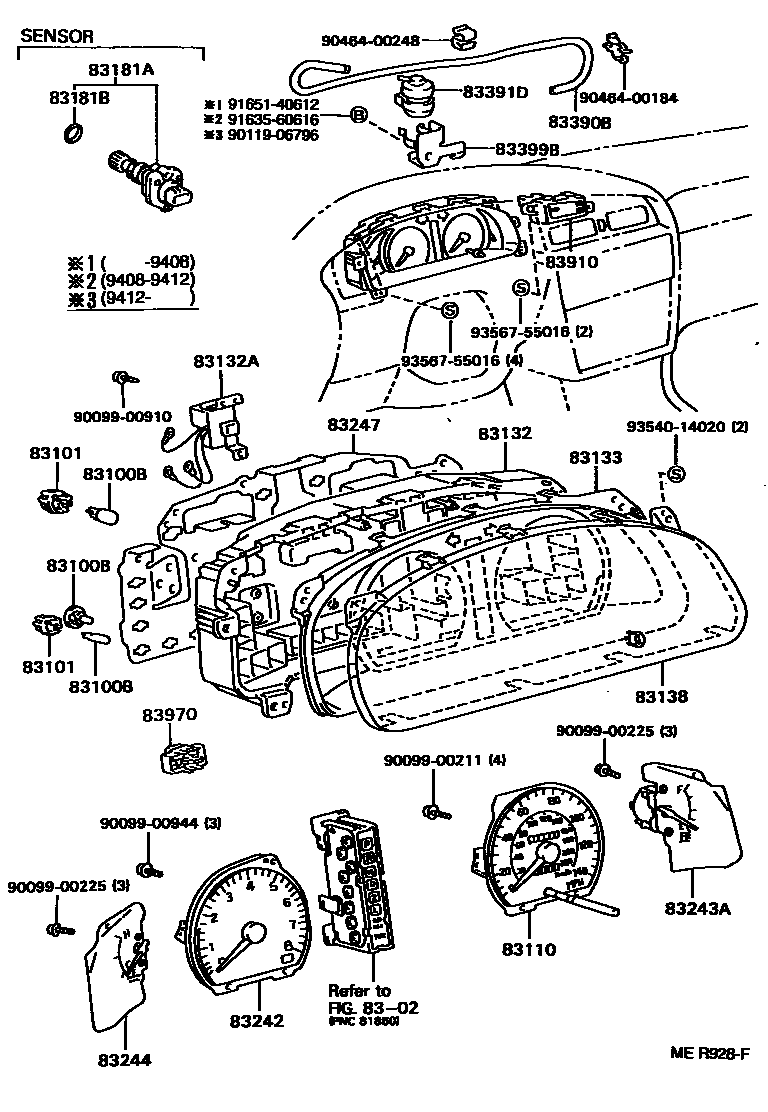

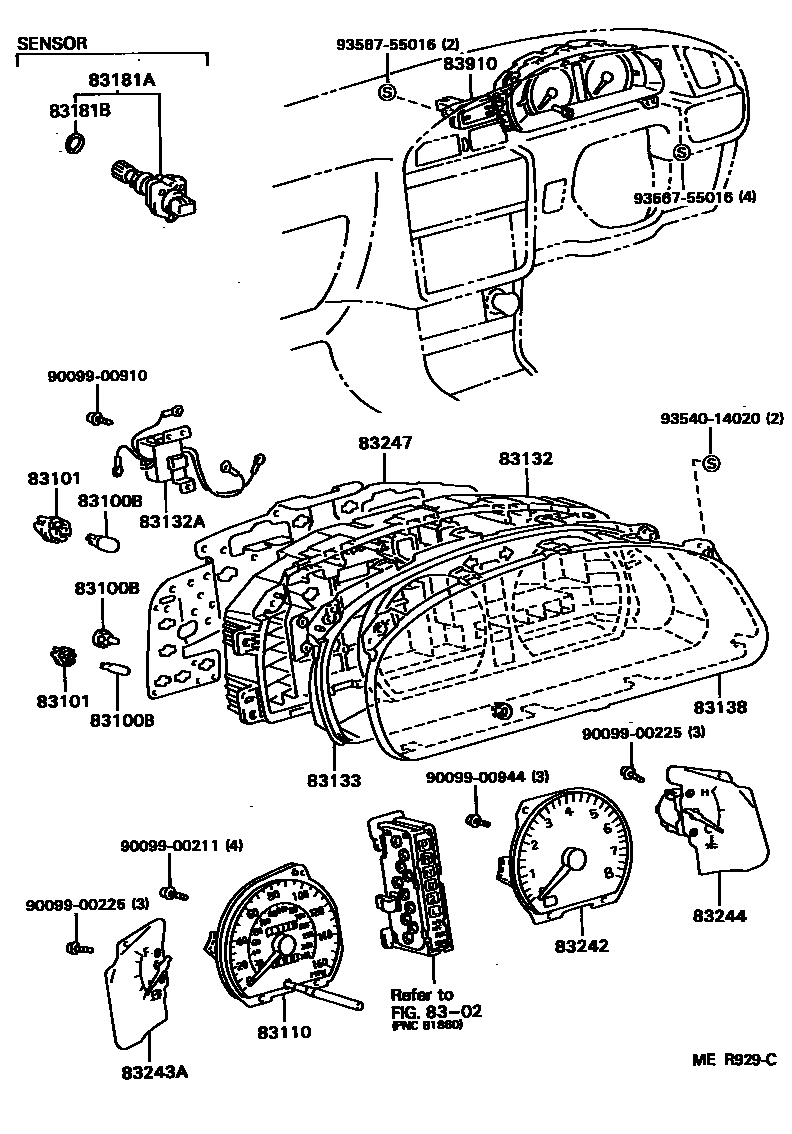

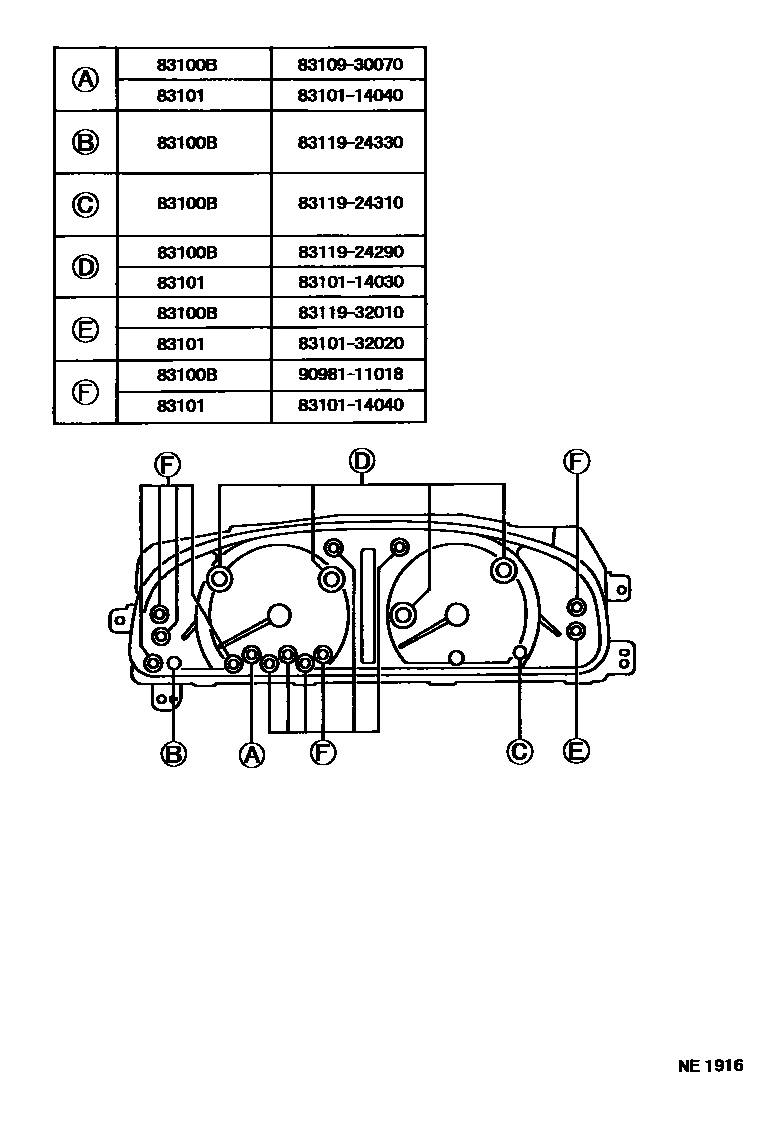

Toyota CAMRY EPC diagram 8301, 仪表, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100B | Combination instrument bulb No. 1 | 83101-20080 · 83109-24020 · 83109-30070 · 83119-06020 · 83119-24290 · 83119-24310 · 83119-24470 · 83119-32010 · 90981-11018 |
| 83101 | Combined instrument lamp holder sub-assembly | 83101-14030 · 83101-14040 · 83101-20080 · 83101-32020 |
| 83110 | Speedometer assembly | 83110-06030 · 83110-06040 · 83110-33050 · 83110-33060 |
| 83132 | Instrument cluster housing | 83132-06010 · 83132-33070 · 83132-33110 |
| 83132A | Instrument case | 83132-33050 · 83132-33090 |
| 83133 | Combined instrument panel No. 1 | 83133-06010 · 83133-06020 · 83133-33030 · 83133-33050 · 83133-33070 · 83133-33090 |
| 83138 | speedometer glass | 83138-06010 · 83138-33030 · 83138-33050 |
| 83181A | speedometer sensor | 83181-12020 · 83181-12030 · 83181-12040 · 83181-12050 · 83181-32020 · 83181-32030 |
| 83181B | O-ring (for speedometer sensor) | 96711-24018 · 96711-24030 |
| 83242 | Engine tachometer assembly | 83242-06050 · 83242-06060 · 83242-33090 · 83242-33110 · 83242-33170 · 83242-33190 · 83242-33250 · 83242-33270 |
| 83243A | Fuel gauge sub-assembly | 83243-06020 · 83243-33050 · 83243-33110 · 83243-33230 |
| 83244 | Water temperature meter sub-assembly | 83244-06040 · 83244-33050 · 83244-33090 |
| 83247 | Instrument circuit board | 83247-06040 · 83247-33170 · 83247-33230 · 83247-33470 |
| 83390B | Vacuum hose (for flue gas analyzers) | 90999-92004 |
| 83391D | Vacuum switch | 83391-20060 |
| 83399B | Vacuum switch bracket | 83399-33011 |
| 83910 | clock assembly | 83910-06010 · 83910-06011 · 83910-33020 · 83910-33021 |
| 83970 | Reversing warning buzzer assembly | 83970-12020 |
