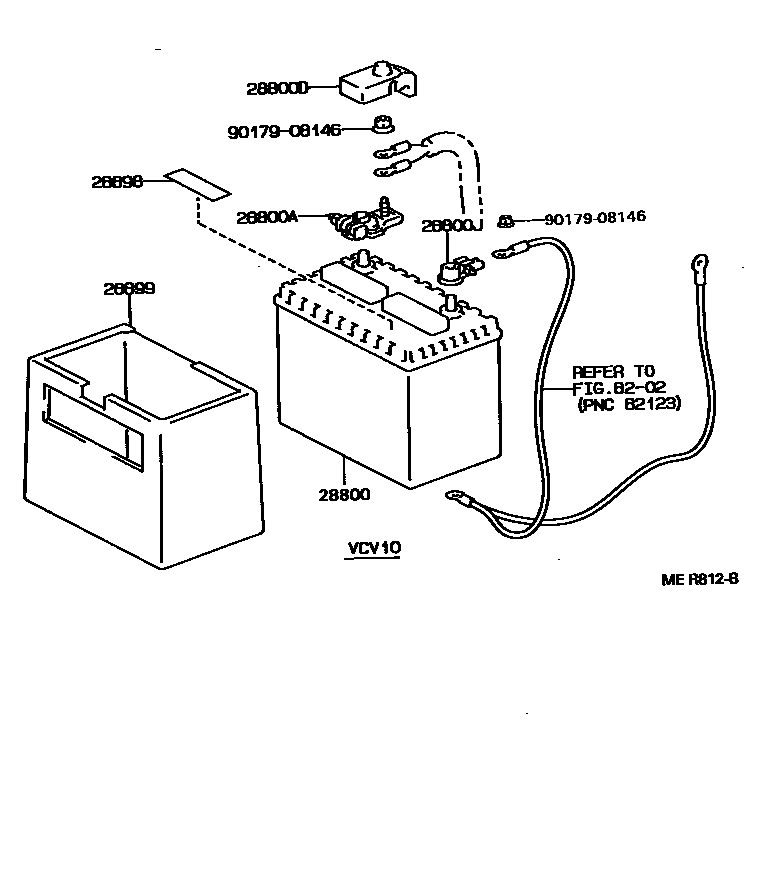

Toyota CAMRY 蓄电池和蓄电池电缆 — Figure 8201
Toyota CAMRY EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-01011 · 28800-03010 · 28800-03020 · 28800-03041 · 28800-03042 · 28800-03043 · 28800-03044 · 28800-03050 · 28800-03051 · 28800-AA010 · 28800-AA040 · 28800-AA041 |
| 28800A | battery positive terminal | 90982-05035 |
| 28800D | Connector cover (for battery terminals) | 82821-12290 · 82821-24010 |
| 28800J | battery negative terminal | 90982-06022 |
| 28899 | Battery insulation cover | 28899-62040 · 28899-62041 · 28899-62050 · 28899-62051 · 28899-AA010 · 28899-AA020 |
