Toyota CAMRY 车内灯 — Figure 8121

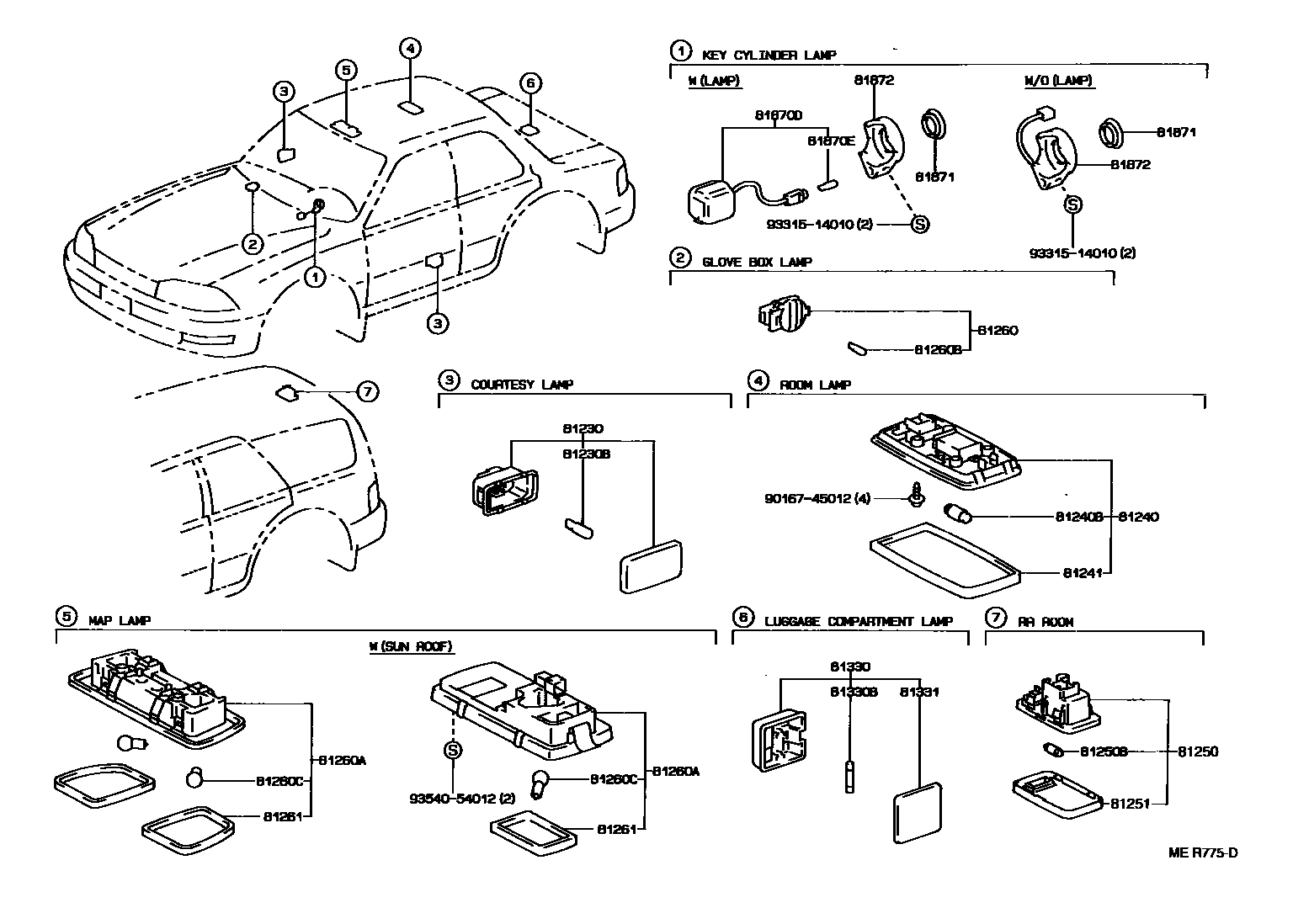

Toyota CAMRY EPC diagram 8121, 车内灯, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81230 | Door control light assembly | 81230-06010 |
| 81230B | Bulb (for gated lights) | 90981-11020 |
| 81240B | Interior light bulb No. 1 | 90080-81029 |
| 81241 | Interior light cover No. 1 | 81241-06020 |
| 81250 | No. 2 interior light assembly | 81250-06010 |
| 81250B | Interior light bulb No. 2 | 99132-13050 |
| 81251 | Interior light cover No. 2 | 81251-06010 |
| 81260 | Glove box light assembly | 81260-33010 |
| 81260B | Light bulb (for glove box) | 90981-11018 |
| 81260C | Light bulb (for reading lamp) | 90981-12014 · 90981-12020 |
| 81261 | Reading lamp shades and covers | 81261-33020 |
| 81870D | Lock core lighting assembly | 81870-33010 · 81870-33020 |
| 81870E | Lock cylinder lighting bulb | 90981-11014 |
| 81871 | Ignition lock cylinder lighting lamp cover | 81871-33010 · 81871-33020 |
| 81872 | Lock core lighting housing | 81872-33010 |
