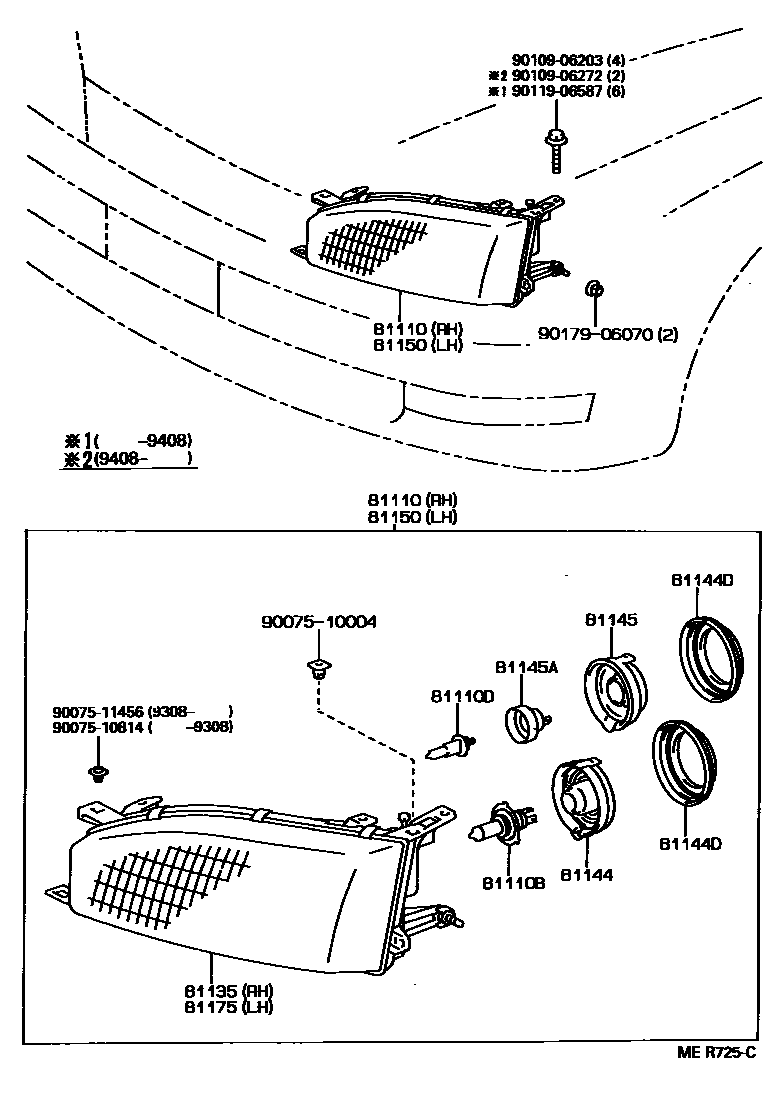

Toyota CAMRY Headlamp — Figure 8101
Toyota CAMRY EPC diagram 8101, Headlamp, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-33020 · 81110-33021 · 81110-33022 · 81110-33030 · 81110-33031 · 81110-33032 · 81110-33050 · 81110-33051 · 81110-33052 |
| 81110B | Bulb (for headlight No. 1) | 90981-13015 |
| 81110D | Bulb (for headlight No. 2) | 90981-13017 |
| 81135 | Right headlight assembly | 81130-33020 · 81130-33022 · 81130-33030 · 81130-33032 · 81130-33050 · 81130-33052 |
| 81144 | No. 1 headlight cover | 90075-99058 |
| 81144D | headlight lock cover | 90075-99057 |
| 81145 | No. 2 headlight cover | 90075-99058 |
| 81145A | Adapter assembly | 90075-99081 |
| 81150 | Left headlight assembly | 81150-33020 · 81150-33021 · 81150-33022 · 81150-33030 · 81150-33031 · 81150-33032 · 81150-33050 · 81150-33051 · 81150-33052 |
| 81175 | Left headlight assembly | 81170-33020 · 81170-33022 · 81170-33030 · 81170-33032 · 81170-33050 · 81170-33052 |
