Toyota CAMRY 侧防护条 — Figure 7503

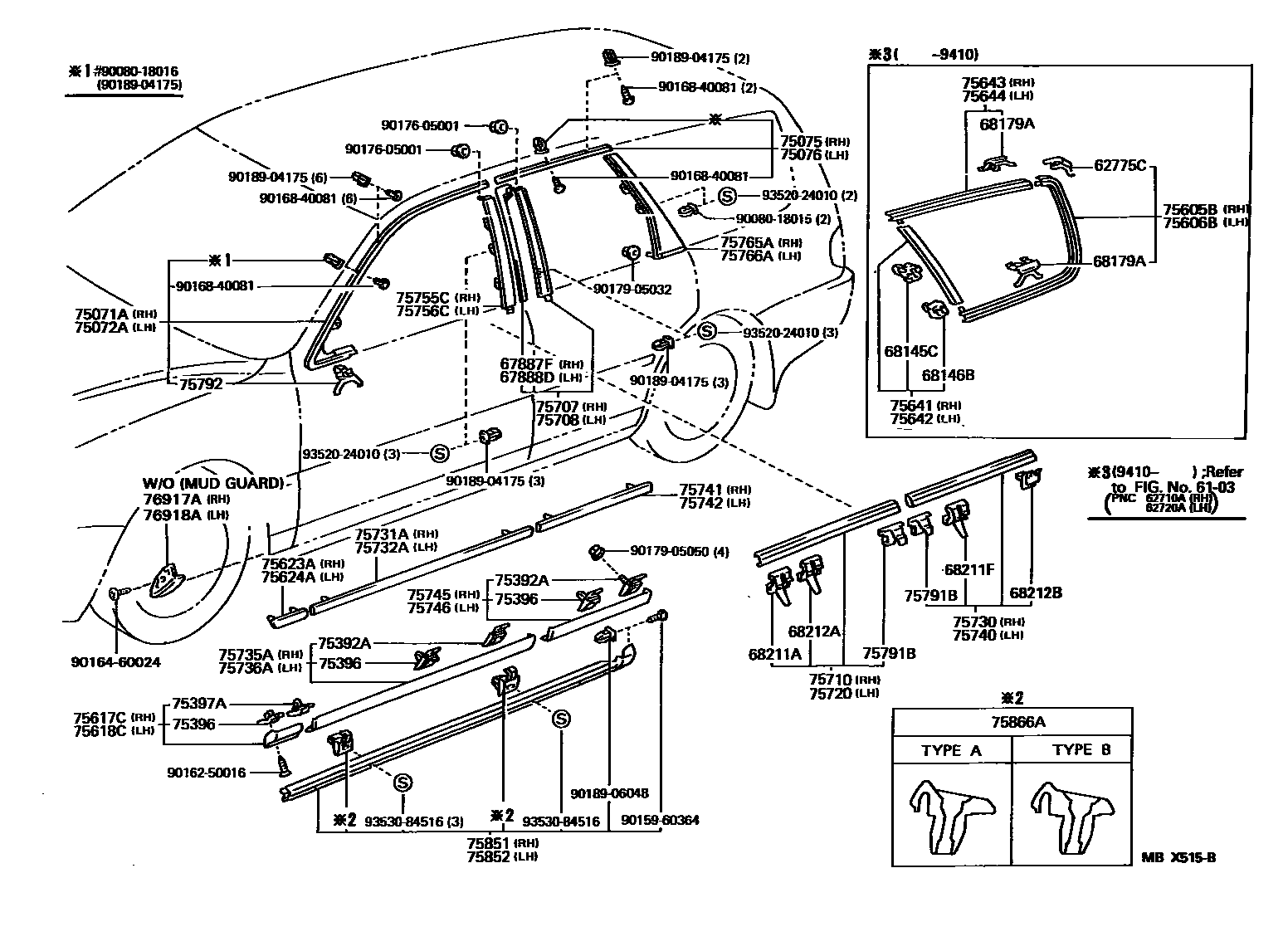

Toyota CAMRY EPC diagram 7503, 侧防护条, with 1 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62775C | Corner window clip | 62775-33010 |
| 67887F | Right rear door seal No. 2 | 67887-32040 |
| 67888D | Left rear door seal No. 2 | 67888-32040 |
| 68145C | Corner window No. 2 glass lower fixing part | 68145-33010 |
| 68146B | Front corner window No. 2 glass fixings | 68146-33010 · 68186-33010 |
| 68179A | Corner window No. 2 glass protective strip clip | 68179-33010 · 68179-33011 |
| 68211A | Door belt line protection strip clip | 68211-06010 |
| 68211F | Door glass seal strip clip | 68211-06010 |
| 68212A | Car door glass outer seal strip clip | 68212-06010 |
| 68212B | Rear door glass seal strip clip | 68212-06020 |
| 75071A | Right front door outer protective strip sub-assembly | 75071-06010 |
| 75072A | Left front door outer protective strip sub-assembly | 75072-06010 |
| 75075 | Right rear door outer protective strip sub-assembly | 75075-06020 |
| 75076 | Left rear door outer protective strip sub-assembly | 75076-06020 |
| 75392A | No. 1 outer protective strip fixings | 75392-06010 |
| 75396 | No. 2 outer protective strip clip | 75396-06010 · 75396-32120 |
| 75397A | No. 3 outer protective strip clip | 75395-32100 |
| 75605B | Right side enclosure outer protective strip sub-assembly | 75605-33020 · 75605-33021 |
| 75606B | Left side enclosure outer protective strip sub-assembly | 75606-33020 · 75606-33021 |
| 75617C | Right front fender rear lower protective strip | 75617-33010 |
| 75618C | Left front fender rear lower protective strip | 75618-33010 |
| 75641 | Right front corner window outer protective strip | 75641-33010 |
| 75642 | Left front corner window protection strip | 75642-33010 |
| 75643 | Protective strip on the outside of the right corner window | 75643-33020 · 75643-33021 |
| 75644 | Protective strip on the outside of the left corner window | 75644-33020 · 75644-33021 |
| 75707 | Right rear door window frame protective strip sub-assembly | 75707-32010 · 75707-32011 · 75707-32012 |
| 75708 | Left rear door window frame protective strip sub-assembly | 75708-32010 · 75708-32011 · 75708-32012 |
| 75710 | Right front door waistline protection strip assembly | 75710-06010 |
| 75720 | Left front door waistline protection strip assembly | 75720-06010 |
| 75730 | Right rear door waistline protection strip assembly | 75730-06020 |
| 75735A | Right front door outer lower protective strip | 75735-06010 · 75735-06020 |
| 75736A | Left front door outer lower protective strip | 75736-06010 · 75736-06020 |
| 75740 | Left rear door waistline protection strip assembly | 75740-06020 |
| 75745 | Right rear door outer lower protective strip | 75745-06010 · 75745-06020 |
| 75746 | Left rear door outer lower protective strip | 75746-06010 · 75746-06020 |
| 75755C | Right front door window frame rear protective strip | 75755-32030 · 75755-32031 |
| 75756C | Left front door window frame rear protective strip | 75756-32030 · 75756-32031 |
| 75765A | Right rear door window frame rear protective strip | 75765-33010 |
| 75766A | Left rear door window frame rear protective strip | 75766-33010 |
| 75791B | Waistline side protective strip clip | 75791-06010 |
| 75792 | Car door window frame protective strip clip | 75792-06010 |
| 75851 | Right side door sill panel protective strip | 75851-09020 |
| 75852 | Left side door sill panel protective strip | 75852-09020 |
| 75866A | Door sill panel protective strip fixings | 75866-32010 · 75866-32020 |
| 76917A | Right front fender protection strip | 76917-33010 |
| 76918A | Left front fender protection strip | 76918-33010 |
