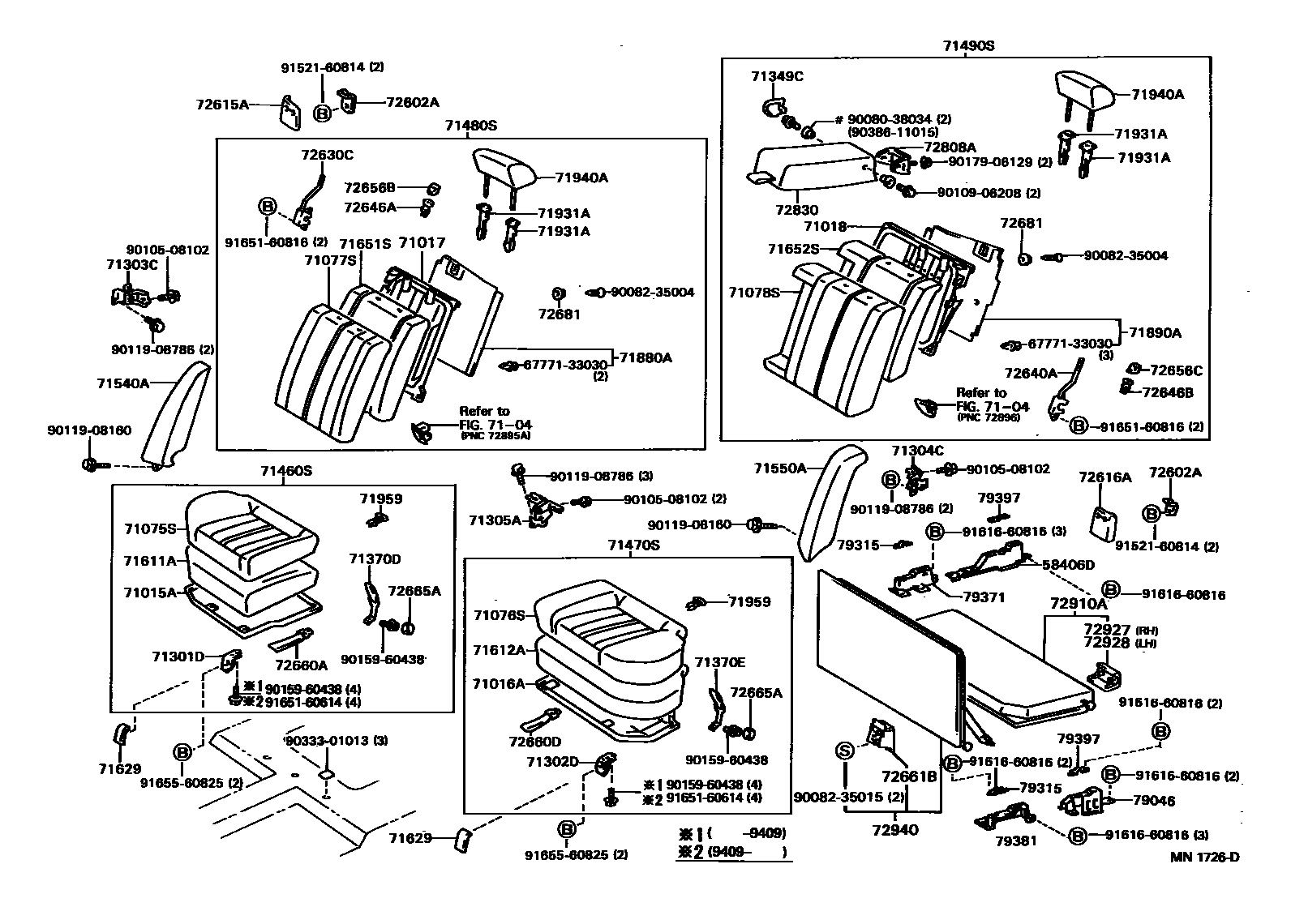

Toyota CAMRY 后排座椅和座椅滑轨 — Figure 7102
Toyota CAMRY EPC diagram 7102, 后排座椅和座椅滑轨, with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58406D | Base plate right bracket sub-assembly | 79415-06010 |
| 71017 | Right rear seat back frame sub-assembly | 71017-06030 |
| 71018 | Rear left seat back frame sub-assembly | 71018-06020 |
| 71301D | Rear right seat hinge sub-assembly | 71301-06010 · 71301-06030 |
| 71302D | Rear left seat hinge sub-assembly | 71301-06010 · 71301-06030 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-32050 |
| 71304C | Rear left seat back hinge sub-assembly | 71304-32050 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-33010 |
| 71611A | Rear right seat cushion | 71611-06020 |
| 71612A | Rear left seat cushion | 71612-06010 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-06030 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-06020 |
| 72602A | Rear left seat back lock sub-assembly | 72601-12080 |
| 72630C | Rear right seat back lock assembly | 72630-33010 |
| 72640A | Rear left seat back lock assembly | 72640-33010 |
| 72808A | Seat center armrest bracket sub-assembly | 72883-06010 |
| 79046 | No. 4 seat cushion bracket sub-assembly | 79046-06010 |
| 79315 | No. 3 seat lock bracket | 79315-06010 |
| 79371 | Right No. 3 seat back support | 79371-06010 |
| 79381 | Left No. 3 seat back bracket | 79381-06010 |
| 79397 | Seat No. 3 hinge upper bracket | 79397-06010 |
