Toyota CAMRY 前门锁和车门把手 — Figure 6703

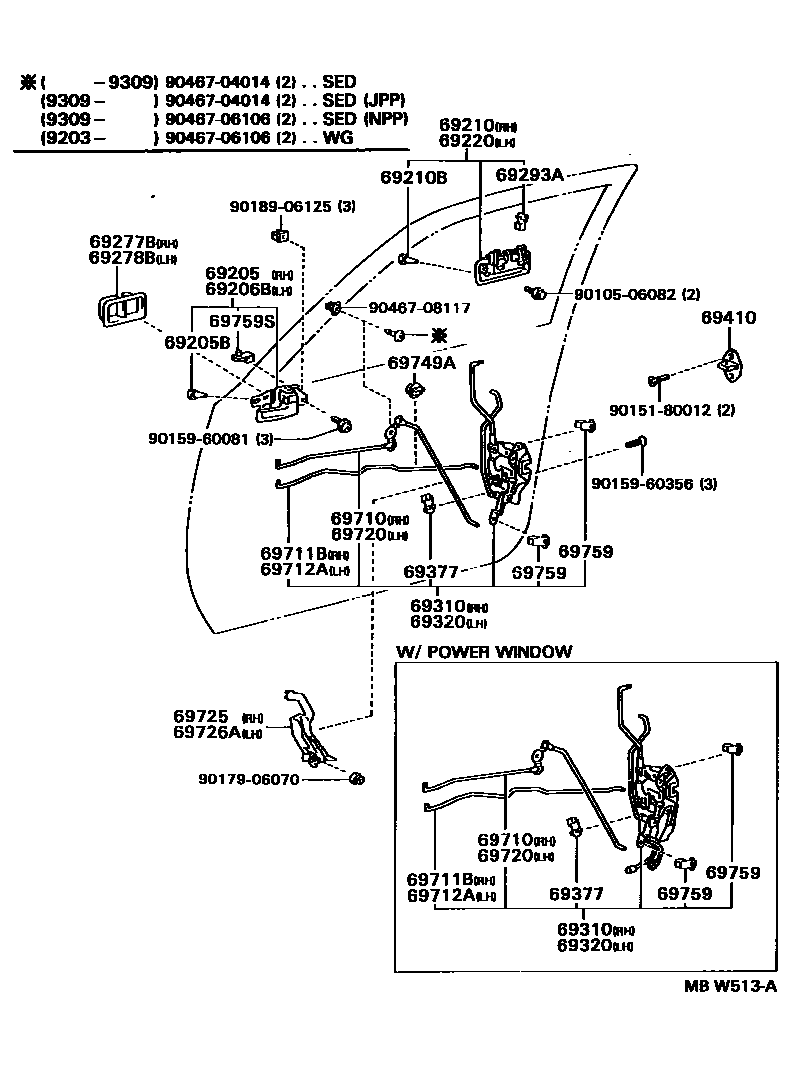

Toyota CAMRY EPC diagram 6703, 前门锁和车门把手, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69205B | Cushion pad (for inner front door handle) | 90080-54005 · 90541-04014 |
| 69210 | Right front door outer handle assembly | 69210-06010 · 69210-33010 |
| 69210B | Cushion pad (for front door outer handle) | 90080-54005 · 90541-04014 |
| 69220 | Left front door outer handle assembly | 69220-06010 · 69220-33020 |
| 69293A | Front door outer handle buckle | 69293-06010 · 69293-06020 · 69293-12050 · 69293-12060 |
| 69310 | Right front door lock assembly | 69030-33010 · 69030-33030 · 69030-33080 · 69030-33090 · 69310-33010 |
| 69320 | Left front door lock assembly | 69040-33010 · 69040-33030 · 69040-33070 · 69040-33080 · 69320-33010 |
| 69377 | Front door lock control link buckle | 69759-24010 · 69759-24020 |
| 69410 | Front door lock plate assembly | 69410-87001 |
| 69710 | Right front door opening control linkage assembly | 69710-33020 |
| 69711B | Right front door lock remote control lever | 69711-32060 |
| 69712A | Left front door lock remote control lever | 69712-32050 |
| 69720 | Left front door opening control linkage assembly | 69720-33020 |
| 69725 | Right front door inner locking link guard | 69725-33020 |
| 69726A | Left front door inner locking link guard | 69726-33020 |
| 69749A | Front door lock No. 1 link clamp | 69749-50010 |
| 69759 | Rear door lock No. 1 control link buckle | 69759-24050 · 69759-24060 |
| 69759S | Front door inner handle buckle | 69759-03020 · 69759-06030 · 69759-14050 · 69759-24070 |
