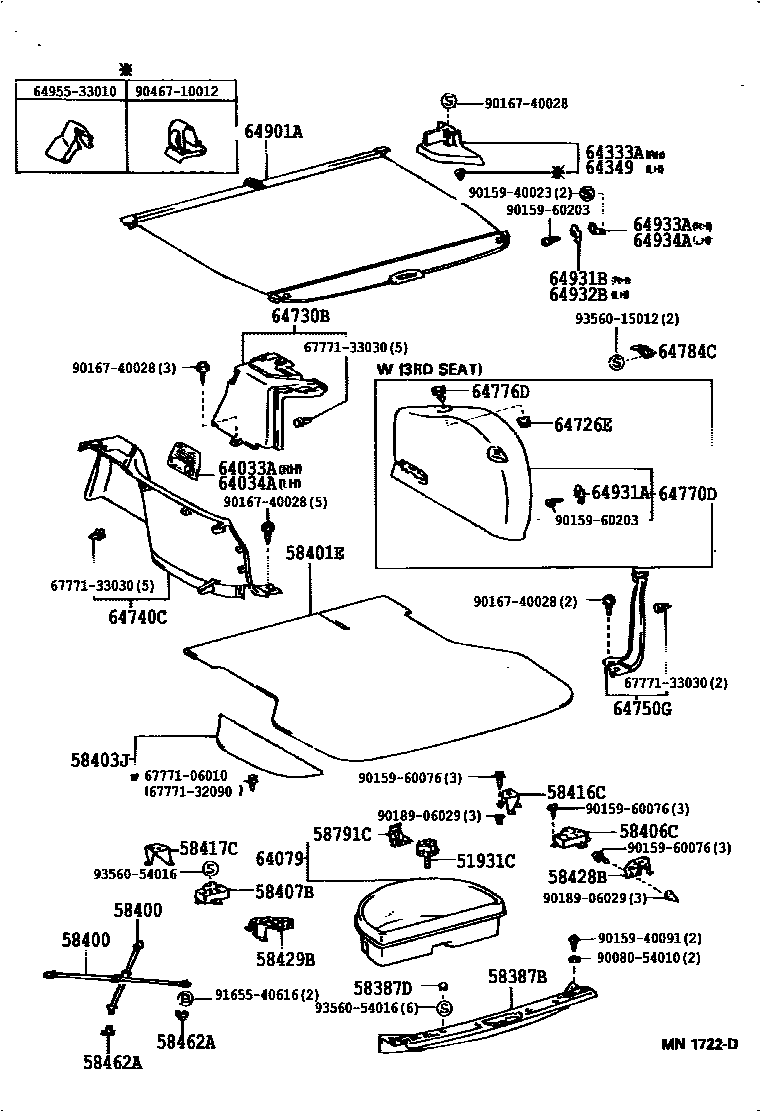

Toyota CAMRY 底板和底板装饰罩 — Figure 6404
Toyota CAMRY EPC diagram 6404, 底板和底板装饰罩, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51931C | Spare tire rack | 51931-32010 |
| 58406C | Base plate right bracket sub-assembly | 58406-06010 · 58406-06020 |
| 58407B | Base plate left bracket sub-assembly | 58407-06010 · 58407-06020 |
| 58416C | No. 1 base plate right bracket | 58416-06020 |
| 58417C | No. 1 base plate left bracket | 58417-06020 |
| 58428B | No. 5 bottom plate right bracket | 58428-06020 |
| 58429B | No. 5 base plate left bracket | 58429-06020 |
| 58462A | No. 2 suitcase fixing strap lock | 58462-06010 |
| 58791C | jack bracket | 58791-33010 |
| 64079 | Multi-purpose box assembly | 64079-06010 |
| 64726E | Rear floor trim cover fixings | 64726-33010 |
| 64784C | No. 2 spare tire cover reinforcement | 64784-06010 |
| 64933A | Right trunk trim cover retainer | 64933-06010 |
| 64934A | Left trunk trim cover retainer | 64934-06010 |
