Toyota CAMRY 前翼子板挡泥板和前围板 — Figure 5304

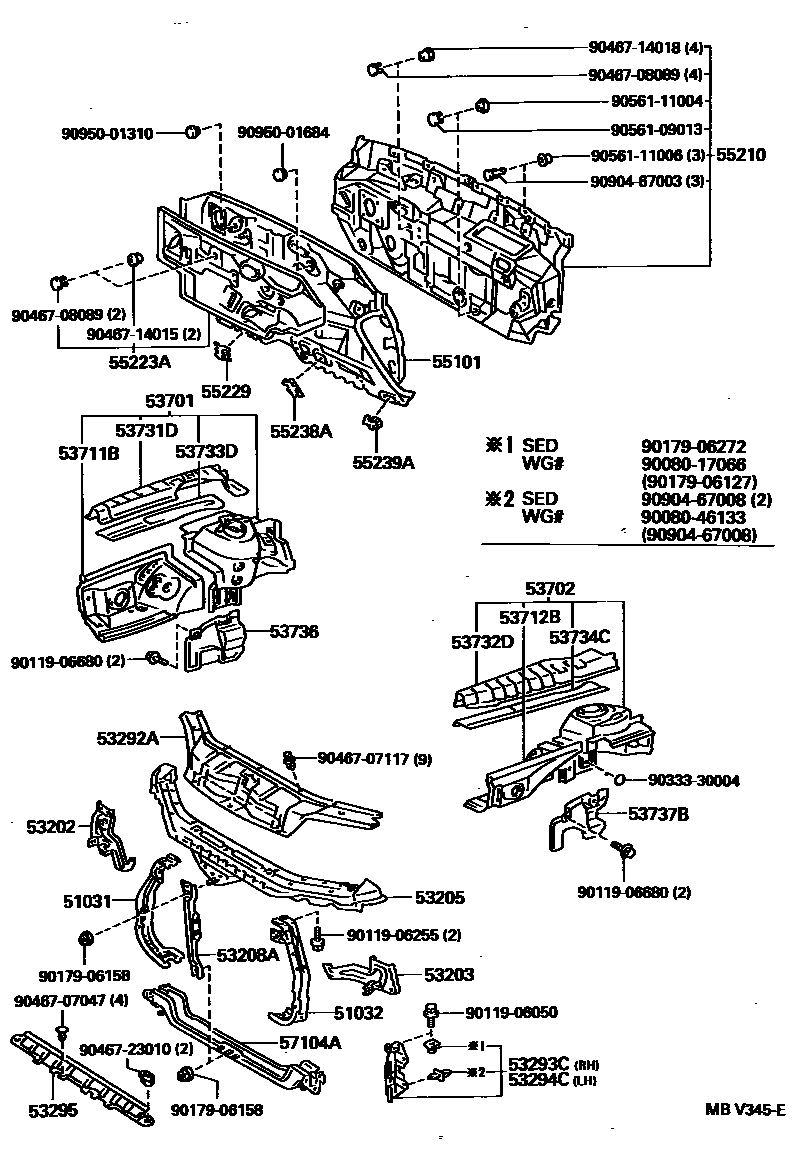

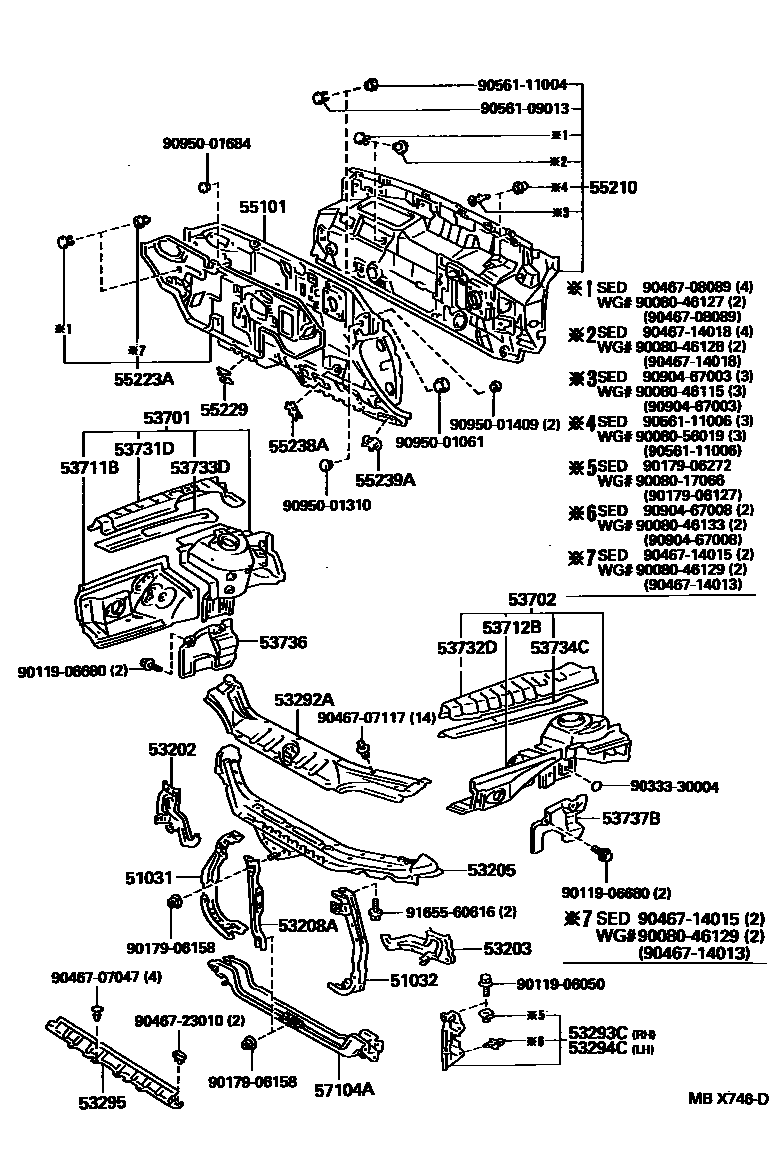

Toyota CAMRY EPC diagram 5304, 前翼子板挡泥板和前围板, with 2 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51031 | Front cross member right corner plate sub-assembly | 51031-33010 |
| 51032 | Front cross member left side corner plate sub-assembly | 51032-33010 |
| 53202 | Radiator right side bracket sub-assembly | 53202-06010 · 53202-06020 |
| 53203 | Radiator left bracket sub-assembly | 53203-06010 · 53203-06020 |
| 53205 | Radiator upper bracket sub-assembly | 53205-33010 · 53205-33011 · 53205-33020 |
| 53208A | Engine cover lock bracket sub-assembly | 53215-33010 |
| 53292A | Radiator upper bracket seal | 53292-06010 |
| 53293C | Radiator right baffle | 53293-06010 |
| 53294C | Radiator left baffle | 53294-06010 |
| 53295 | Radiator lower air deflector | 53295-33010 |
| 53701 | Right front fender fender sub-assembly | 53701-06010 · 53701-06030 · 53701-06050 |
| 53702 | Left front fender fender sub-assembly | 53702-06010 |
| 53711B | Right front fender front fender | 53711-06010 · 53711-06040 · 53711-06900 |
| 53712B | Left front fender front fender | 53712-06010 |
| 53731D | Right front fender to cowl side upper beam | 53731-06010 · 53731-06011 |
| 53732D | Left front fender to cowl side upper beam | 53732-06010 · 53732-06011 |
| 53733D | Right front fender to cowl side front lower beam | 53733-06010 · 53733-33900 |
| 53734C | Left front fender to cowl side front lower beam | 53734-06010 · 53734-33900 |
| 53736 | Right front fender fender seal | 53736-06010 · 53736-06020 |
| 53737B | Left front fender fender seal | 53737-06010 |
| 55101 | Front apron sub-assembly | 55101-06010 · 55101-06011 · 55101-06012 · 55101-06030 · 55101-06031 · 55101-06032 · 55101-06040 · 55101-06041 · 55101-06050 · 55101-06051 · 55101-06080 · 55101-06110 · 55101-06120 |
| 55210 | Front wall insulation pad assembly | 55210-06010 · 55210-06020 · 55210-33020 |
| 55223A | Front wall outer heat insulation pad | 55223-06010 · 55223-06011 · 55223-06020 · 55223-33020 · 55223-AC010 |
| 55229 | No. 4 heat insulation pad for front wall | 55229-33010 |
| 55238A | Front wall heat shield No. 2 | 55238-33010 |
| 55239A | No. 3 insulation pad for front wall panel | 55239-33010 |
| 57104A | Front cross member sub-assembly | 57104-33010 |
