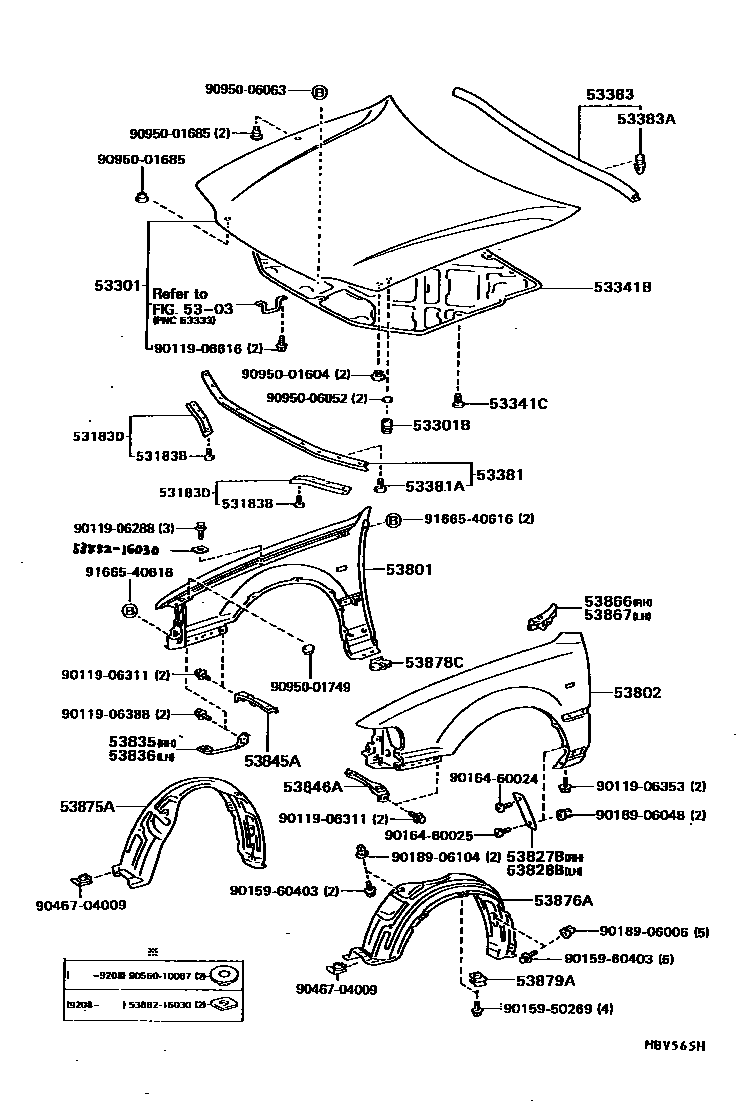

Toyota CAMRY 发动机盖和前翼子板 — Figure 5302
Toyota CAMRY EPC diagram 5302, 发动机盖和前翼子板, with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53183B | Clip (for headlight cover seal) | 90467-08011 |
| 53183D | Headlight cover to engine cover seal | 53183-06010 · 53184-06010 |
| 53301 | Engine cover sub-assembly | 53301-06900 |
| 53301B | engine cover cushion | 90541-15004 |
| 53341B | engine cover gasket | 53341-06010 |
| 53341C | Clip (for engine cover gasket) | 90467-09006 |
| 53381 | Engine cover to radiator bracket seal | 53381-06010 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 |
| 53383 | Engine cover to cowl upper cover seal | 53383-06010 |
| 53383A | Clamp (for engine cover to cowl upper cover seal) | 90467-06138 · 90467-09151 · 90467-09152 |
| 53801 | Right front fender sub-assembly | 53801-06020 · 53801-06021 |
| 53802 | Left front fender sub-assembly | 53802-06020 · 53802-06021 |
| 53827B | Front fender side panel protectors | 53827-06010 |
| 53828B | Left front fender side panel protector | 53828-06010 |
| 53835 | Right front fender to extension stay | 53835-33020 |
| 53836 | Left front fender to extension stay | 53836-33020 |
| 53845A | Right front fender fender stay | 53845-33010 |
| 53846A | Left front fender fender stay | 53846-33010 |
| 53866 | Right front fender to cowl side seal | 53866-33010 |
| 53867 | Left front fender to cowl side seal | 53867-33010 |
| 53875A | Right front fender lining | 53875-33050 |
| 53876A | Left front fender lining | 53876-33050 |
| 53878C | front fender spacer | 53878-20040 |
| 53879A | Front fender lining fixing parts | 53879-03010 |
