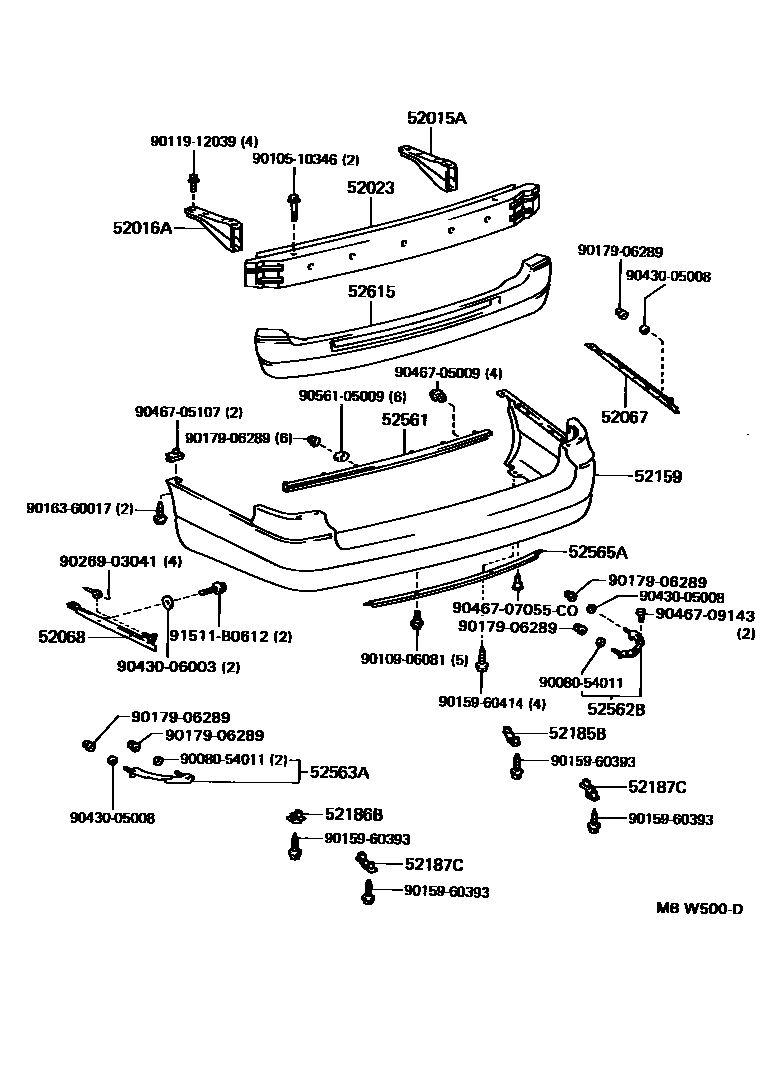

Toyota CAMRY 后保险杠及附件 — Figure 5202
Toyota CAMRY EPC diagram 5202, 后保险杠及附件, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52015-06020 |
| 52016A | Rear bumper left arm sub-assembly | 52015-06020 |
| 52023 | Rear bumper reinforcement sub-assembly | 52023-06020 |
| 52067 | Rear bumper right side bracket sub-assembly | 52067-06020 |
| 52068 | Rear bumper left bracket sub-assembly | 52068-06020 |
| 52159 | rear bumper cover | 52159-06901 |
| 52185B | Installation support on the right side of the rear bumper | 52185-06020 |
| 52186B | Rear bumper left side mounting support | 52186-06020 |
| 52187C | Rear bumper No. 2 side bracket | 52187-06021 |
| 52561 | Rear bumper upper center fixing bracket | 52561-06020 |
| 52562B | Rear bumper upper right fixing bracket | 52075-06010 |
| 52563A | Rear bumper upper left fixing bracket | 52076-06010 |
| 52565A | Rear bumper lower fixing bracket | 52565-06020 |
| 52615 | Rear bumper energy absorber | 52615-06020 |
