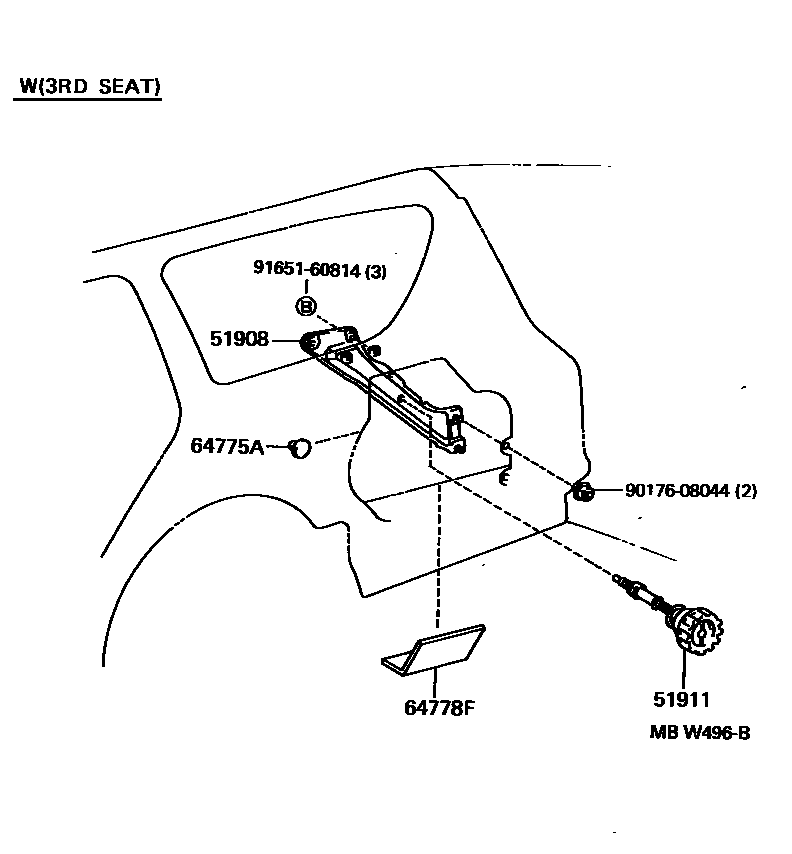

Toyota CAMRY Spare tire rack — Figure 5104
Toyota CAMRY EPC diagram 5104, Spare tire rack, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51900 | Spare tire rack assembly | 51900-33010 · 51931-33030 · 51931-33040 |
| 51908 | Spare tire rack bracket sub-assembly | 51904-06010 |
| 51911 | Spare tire mounting bolt assembly | 51910-33010 |
| 64775A | Spare tire protection device | 64775-06010 |
| 64778F | Spare tire protection device | 64778-06030 |
