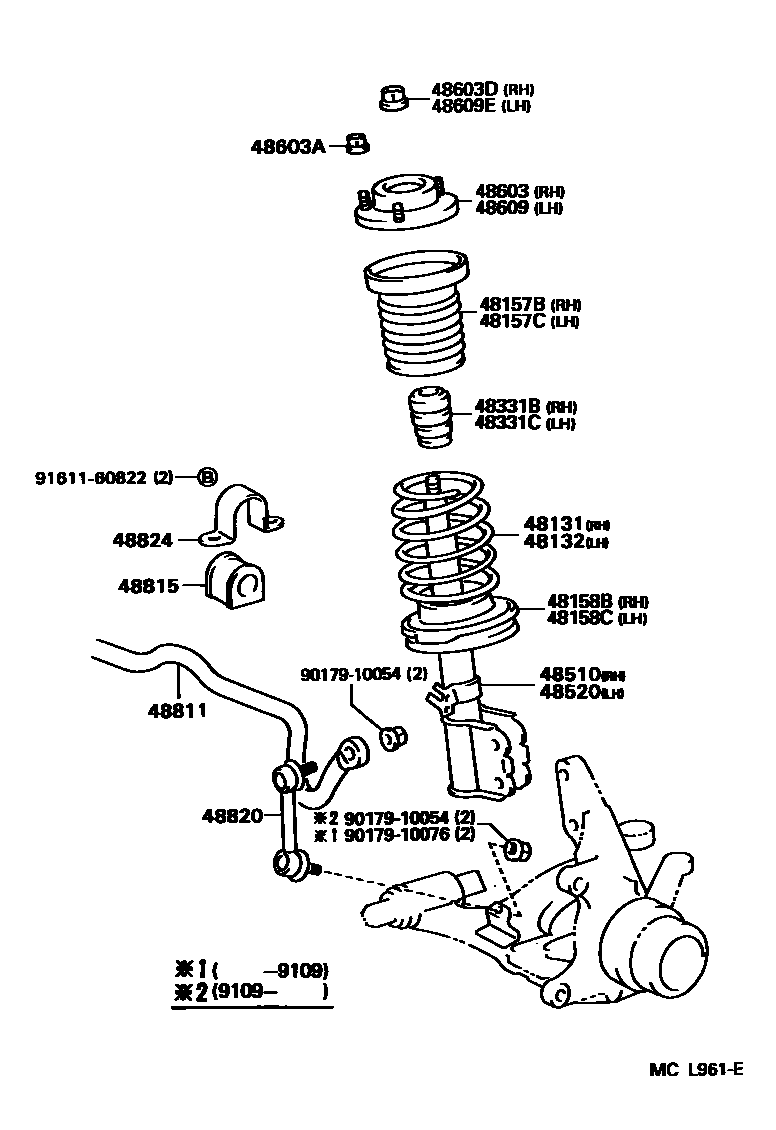

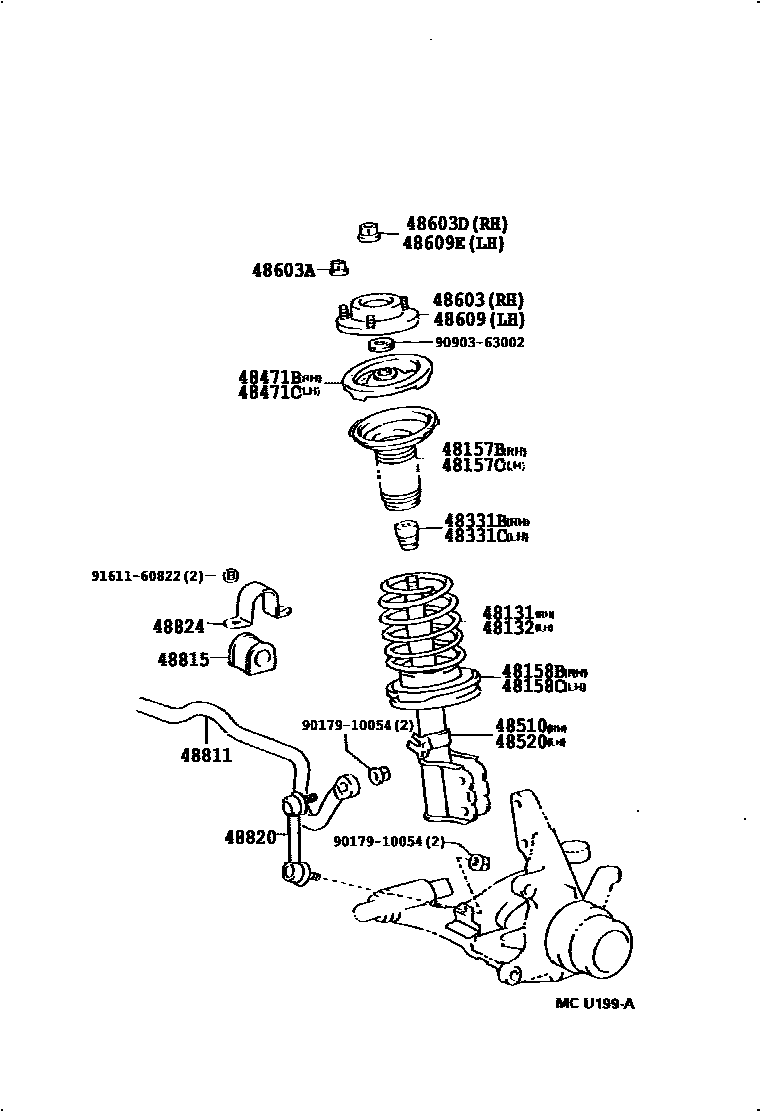

Toyota CAMRY Front Spring & Shock Absorber — Figure 4803
Toyota CAMRY EPC diagram 4803, Front Spring & Shock Absorber, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-06080 · 48131-06090 · 48131-06100 · 48131-06110 · 48131-06350 · 48131-06360 · 48131-06370 · 48131-06380 |
| 48132 | Left front coil spring | 48131-06080 · 48131-06090 · 48131-06100 · 48131-06110 · 48131-06350 · 48131-06360 · 48131-06370 · 48131-06380 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-06010 · 48157-07010 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-06010 · 48157-07010 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-06010 · 48158-33020 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-06010 · 48158-33020 |
| 48331B | Right front spring buffer block | 48331-06010 |
| 48331C | Left front spring buffer block | 48331-06010 |
| 48471B | Front coil spring upper right seat | 48471-41010 |
| 48471C | Front coil spring upper left seat | 48471-41010 |
| 48510 | Right front shock absorber assembly | 48510-06050 · 48510-09070 |
| 48520 | Left front shock absorber assembly | 48520-06050 · 48520-09060 |
| 48603 | Right front suspension bearing sub-assembly | 48609-06020 · 48609-06021 · 48609-06040 |
| 48603A | Nut (for front suspension mount) | 90179-10095 |
| 48603D | Nut (for front mount to right front shock absorber) | 90179-14015 |
| 48609 | Left front suspension bearing sub-assembly | 48609-06020 · 48609-06021 · 48609-06040 |
| 48609E | Nut (for front mount to left front shock absorber) | 90179-14015 |
| 48811 | front stabilizer bar | 48811-06020 · 48811-06030 · 48811-33010 · 48811-AC010 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-06020 · 48815-06021 · 48815-07010 |
| 48820 | Front stabilizer bar connecting rod assembly | 48820-33010 |
| 48824 | front stabilizer bar bracket | 48824-06010 · 48824-07010 |
