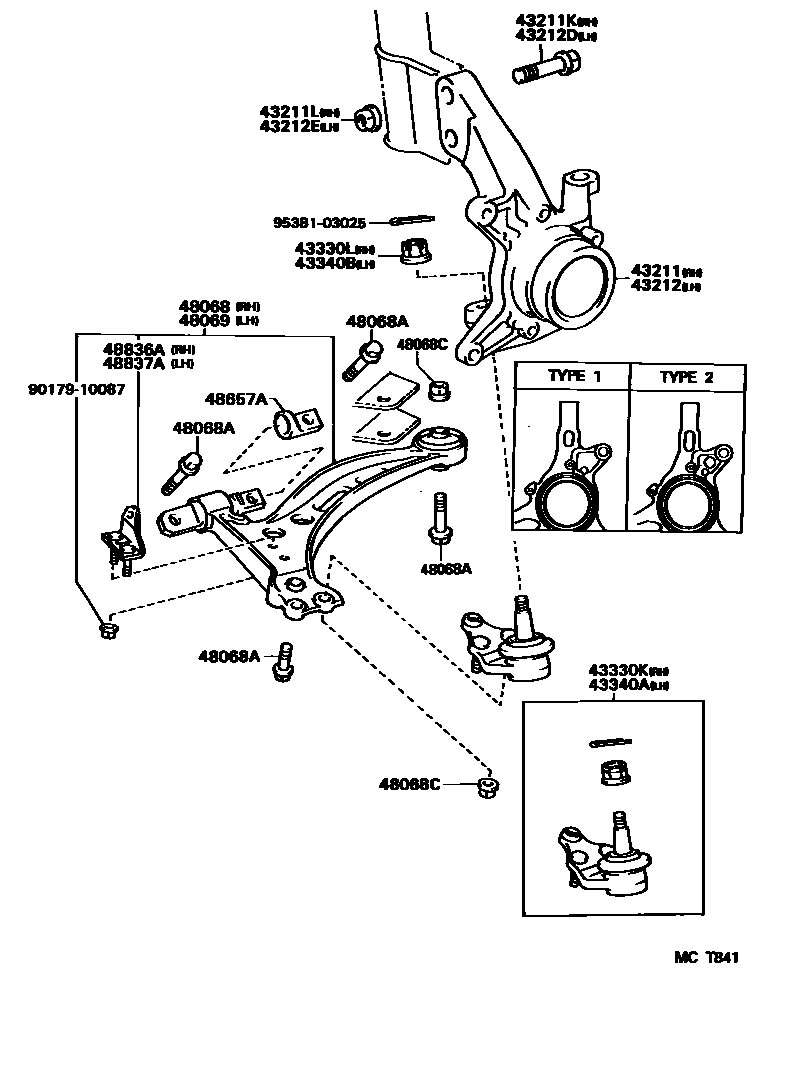

Toyota CAMRY 前桥控制臂和转向节 — Figure 4802
Toyota CAMRY EPC diagram 4802, 前桥控制臂和转向节, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43211 | Right steering knuckle | 43211-06010 · 43211-06020 · 43211-06021 · 43211-06050 · 43211-06051 · 43211-33020 |
| 43211K | Bolt (for right steering knuckle) | 90105-17001 · 90105-17003 · 90105-17004 · 90105-17005 |
| 43211L | Nut (for right steering knuckle) | 90179-17001 |
| 43212 | left steering knuckle | 43212-06010 · 43212-06020 · 43212-06021 · 43212-06050 · 43212-06051 · 43212-33020 |
| 43212D | Bolt (for left steering knuckle) | 90105-17001 · 90105-17003 · 90105-17004 · 90105-17005 |
| 43212E | Nut (for left steering knuckle) | 90179-17001 |
| 43330K | Right front lower ball joint assembly | 43330-09050 · 43330-39285 |
| 43330L | Castle nut (for right front lower ball joint) | 90171-14003 |
| 43340A | Left front lower ball joint assembly | 43330-09050 · 43330-39285 |
| 43340B | Castle nut (for left front lower ball joint) | 90171-14003 |
| 48068 | Right front suspension No. 1 lower arm sub-assembly | 48068-06010 · 48068-07010 · 48068-33020 |
| 48068A | Bolt (for front suspension lower arm) | 90105-12216 · 90105-14081 · 90105-14084 |
| 48068C | Nut (for front suspension lower arm) | 90179-12103 · 90179-14048 |
| 48069 | Left front suspension No. 1 lower arm sub-assembly | 48069-06010 · 48069-07010 · 48069-33020 |
| 48657A | Front lower arm bushing stop | 48657-33010 · 48657-33020 |
| 48836A | Right front stabilizer bar end bracket | 48836-33010 · 48836-33011 |
| 48837A | Left front stabilizer bar end bracket | 48837-33010 · 48837-33011 |
