Toyota CAMRY 制动配管和卡箍 — Figure 4708

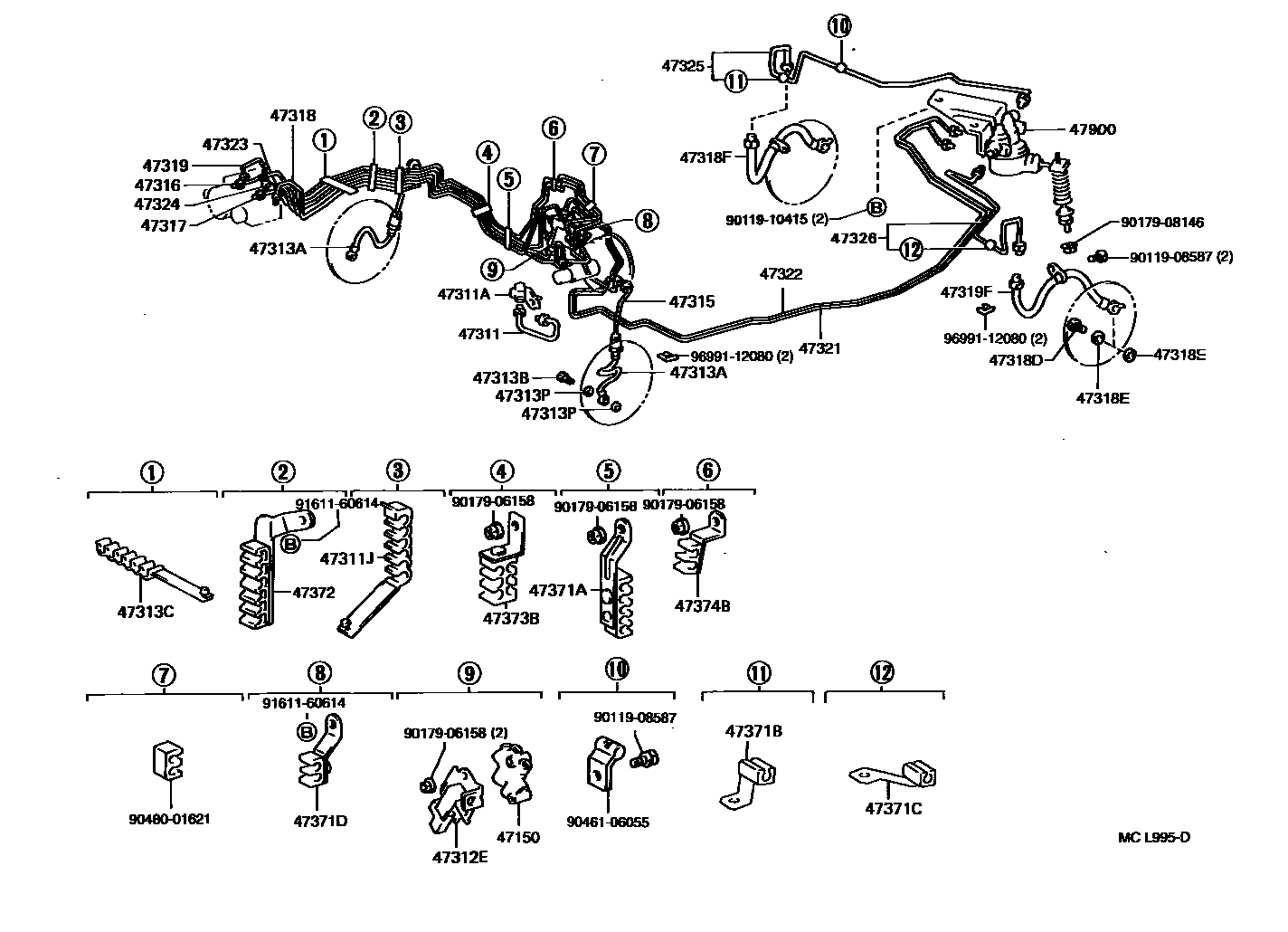

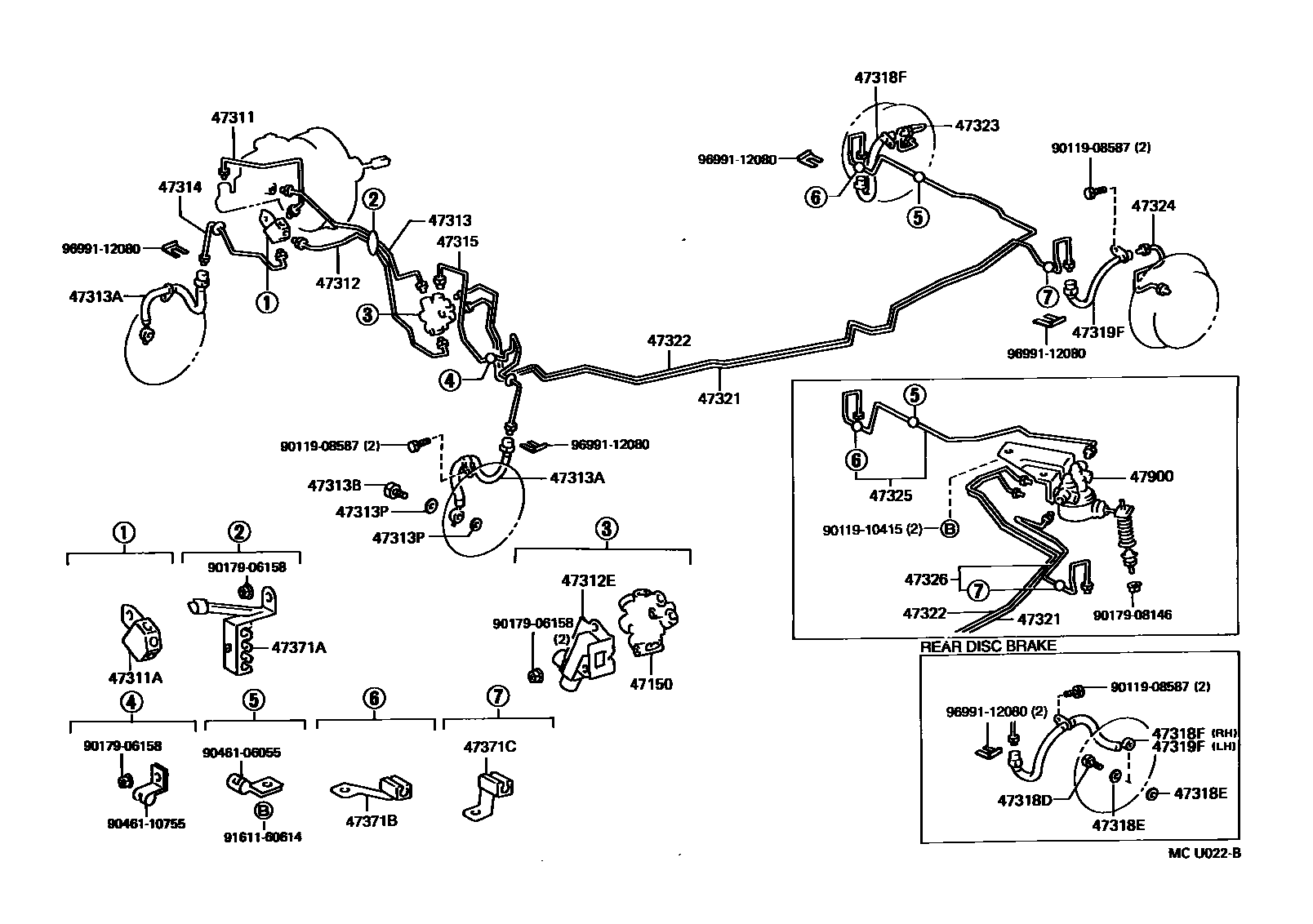

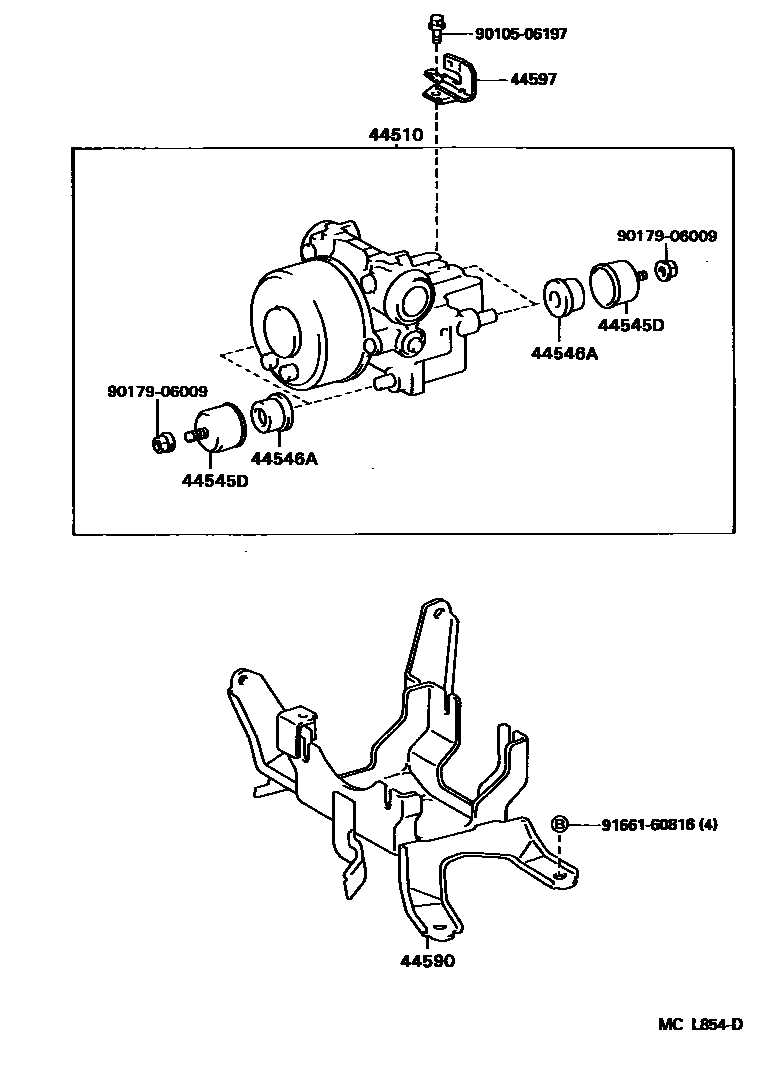

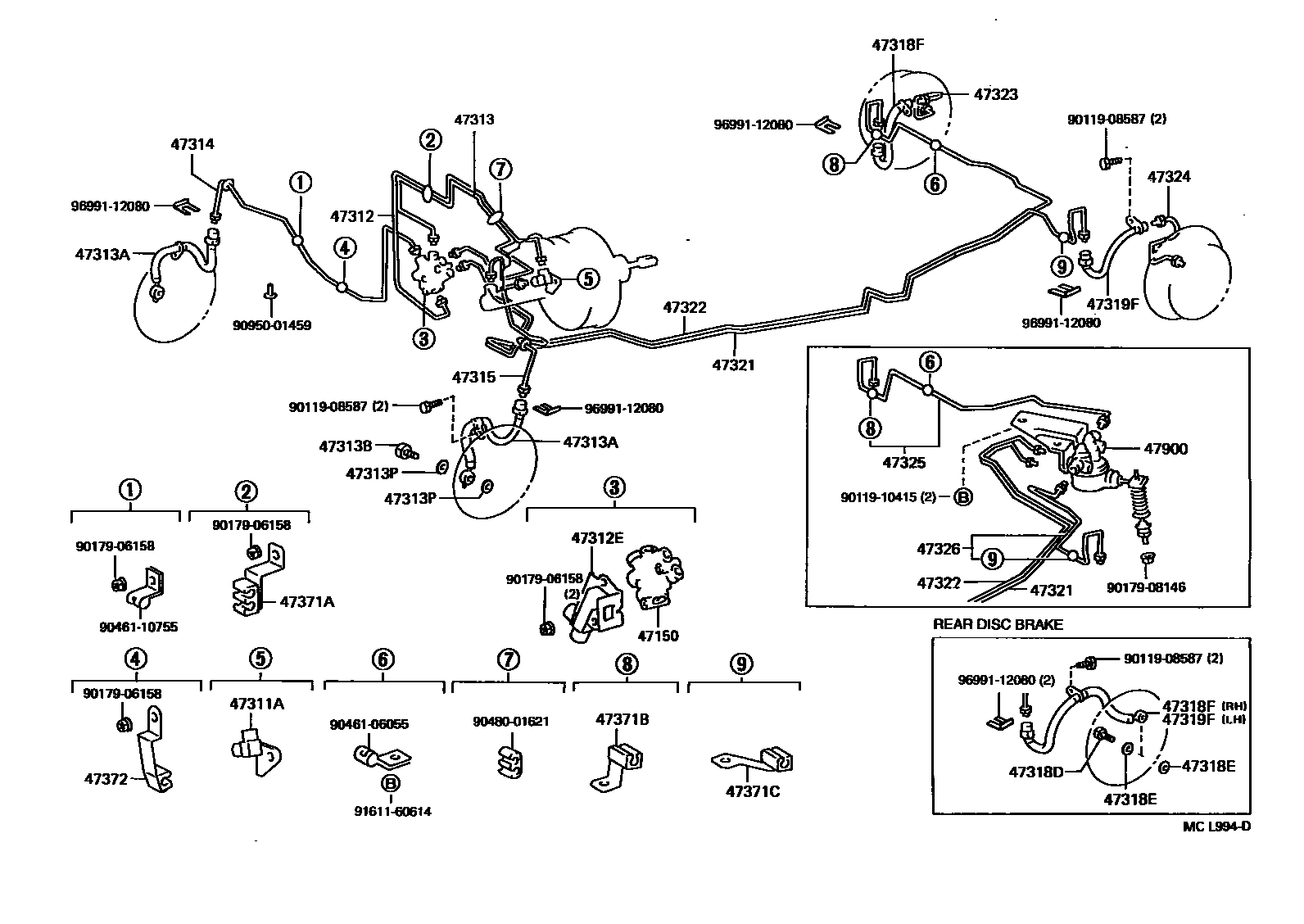

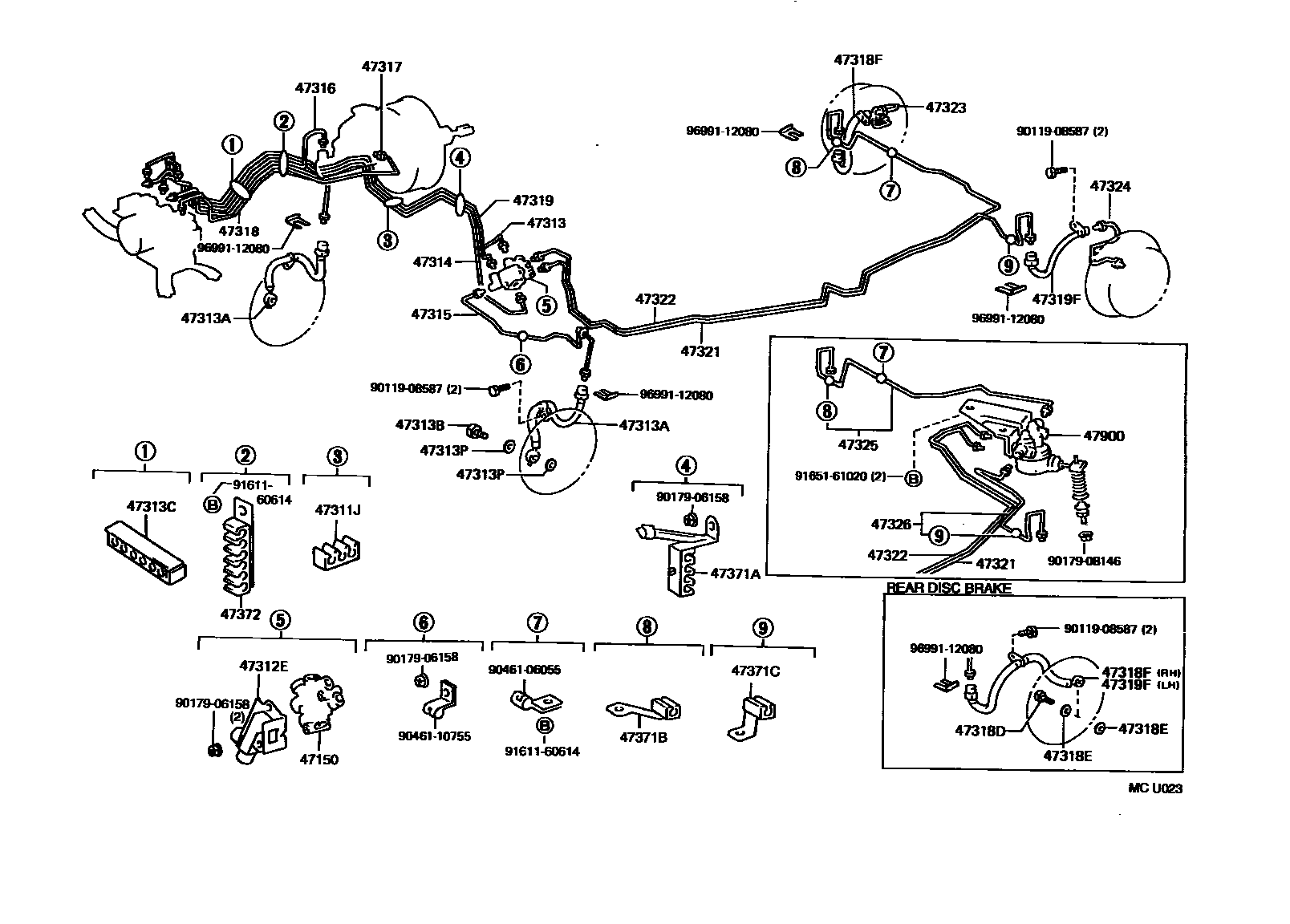

Toyota CAMRY EPC diagram 4708, 制动配管和卡箍, with 5 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44510-33020 · 44510-33040 |
| 44545D | Brake actuator bolt mount | 44545-33010 |
| 44546A | Brake actuator bolt cushion | 44546-33010 |
| 44590 | Brake actuator bracket assembly | 44590-33010 · 44590-33020 |
| 44597 | No. 1 brake actuator connector clip | 44597-32010 |
| 47150 | Proportional valve assembly | 90412-10140 · 90413-10205 |
| 47311 | No. 1 front brake pipe | 47311-06030 · 47311-07010 · 47311-33010 · 47311-33022 · 47311-33023 |
| 47311A | Pipe fitting (for front brake pipe) | 90412-10185 · 90413-10261 · 90413-10268 · 90904-12025 · 90904-13011 · 90904-13014 |
| 47311J | Seal No. 1 (for front brake pipe) | 90480-01413 · 90480-01514 · 90480-01610 |
| 47312 | No. 2 front brake pipe | 47312-06010 · 47312-06020 · 47312-06030 · 47312-06050 · 47312-06060 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90412-10155 · 90412-10187 · 90412-10209 · 90904-12026 |
| 47313 | No. 3 front brake pipe | 47313-06010 · 47313-06020 · 47313-06030 · 47313-06050 · 47313-06060 |
| 47313A | No. 1 front flexible hose | 90947-02652 · 90947-02653 · 90947-02734 · 90947-02736 |
| 47313B | Connector bolt (for front flex hose) | 90401-10015 |
| 47313C | Seal No. 3 (for front brake pipe) | 90480-01627 |
| 47313P | Gasket (for front flex hose) | 90430-10074 |
| 47314 | No. 4 front brake pipe | 47314-06010 · 47314-06020 · 47314-06030 |
| 47315 | No. 5 front brake pipe | 47315-06010 · 47315-06020 · 47315-06030 · 47315-06040 · 47315-06050 · 47315-06060 |
| 47316 | No. 6 front brake pipe | 47316-06010 · 47316-06020 · 47316-06040 · 47316-06050 · 47316-06060 · 47316-06080 |
| 47317 | No. 7 front brake pipe | 47317-06010 · 47317-06020 · 47317-06040 · 47317-06050 · 47317-06051 · 47317-06060 |
| 47318 | No. 8 front brake pipe | 47318-06010 · 47318-06050 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10015 |
| 47318E | Gasket (for rear flex hose) | 90430-10074 |
| 47318F | Right rear flexible hose | 90080-94022 · 90080-94023 · 90947-02668 · 90947-02670 · 90947-02750 · 90947-02752 |
| 47319 | No. 9 front brake pipe | 47319-06010 · 47319-06020 · 47319-06040 · 47319-06050 |
| 47319F | Left rear flexible hose | 90080-94020 · 90080-94021 · 90947-02669 · 90947-02671 · 90947-02751 · 90947-02753 |
| 47321 | No. 1 rear brake pipe | 47321-06020 · 47321-06030 · 47321-33030 · 47321-33050 |
| 47322 | No. 2 rear brake pipe | 47322-06020 · 47322-06030 · 47322-33030 · 47322-33050 |
| 47323 | No. 3 rear brake pipe | 47323-06010 · 47323-06020 · 47323-06030 · 47323-06050 · 47323-06060 |
| 47324 | No. 4 rear brake pipe | 47324-06010 · 47324-06020 · 47324-06030 · 47324-06050 · 47324-06060 |
| 47325 | No. 5 rear brake pipe | 47325-06010 |
| 47326 | No. 6 rear brake pipe | 47326-06010 |
| 47371A | No. 1 brake pipe clamp | 47371-33010 · 47371-33040 · 47372-50090 |
| 47371B | No. 6 brake pipe clamp | 47371-32130 |
| 47371C | No. 7 brake pipe clamp | 47371-32140 |
| 47371D | No. 8 brake pipe clamp | 47371-33020 · 47371-33080 · 47371-33090 |
| 47372 | No. 2 brake pipe clamp | 47371-33050 · 47371-33060 |
| 47373B | No. 3 brake pipe clamp | 47371-33070 |
| 47374B | No. 4 brake pipe clamp | 47372-50090 |
| 47900 | Load sensing valve assembly with spring | 47900-33020 · 47900-33050 · 47900-33080 |
